Mexen G05 angled thermostatic set, chrome - W901-958-01

Black Week EN

Black Week EN

(0)
Questions
(0)

Mexen G05 angled thermostatic set, chrome - W901-958-01

  • Mexen in Black
Mexen G05 angled thermostatic set, chrome - W901-958-01
search
  • Mexen G05 angled thermostatic set, chrome - W901-958-01
  • Mexen G05 angled thermostatic set, chrome - W901-958-01
Mexen G05 angled thermostatic set, chrome - W901-958-01
Mexen G05 angled thermostatic set, chrome - W901-958-01 Mexen G05 angled thermostatic set, chrome - W901-958-01
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Seria:
G05
Ean:
5905315237378
Index:
W901-958-01
Colour:
Chrome
Connection diameter:
G 1/2"
Type:
Angular
Series:
G05
Colour - Chrome - ()

Mexen G05 angled thermostatic set, chrome - W901-958-01

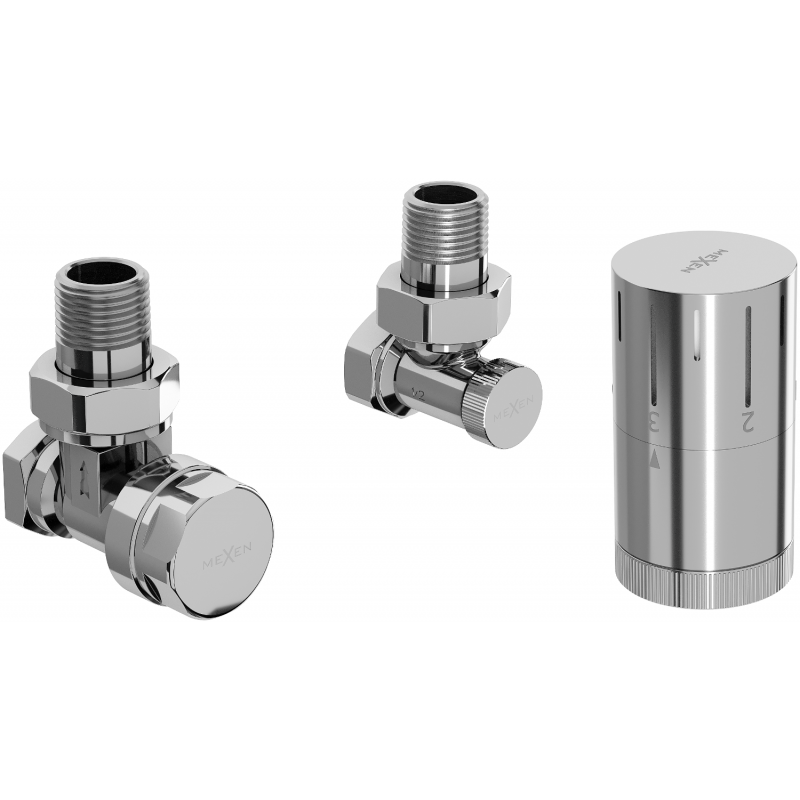

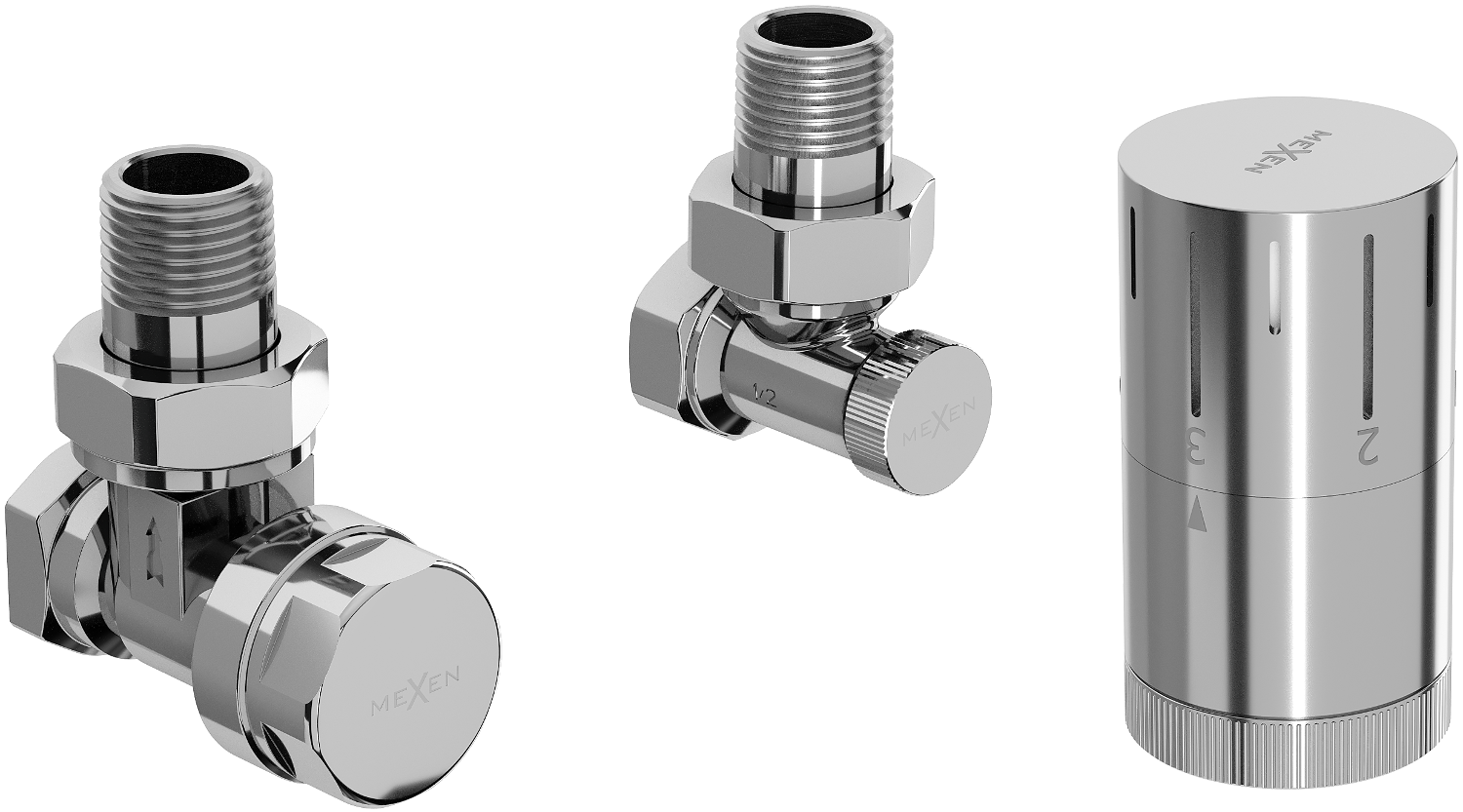

The Mexen G05 angled thermostatic set, chrome, is a high-quality set of valves made from brass, covered with elegant chrome. The valves have a connection diameter of G 1/2", a maximum operating pressure of 10 bar, and an operating temperature of up to 120 °C. The head thread is M30 x 1.5 mm. The product offers an adjustment scale from 0 to 5, frost protection at 5°C, and a temperature regulation range from 0 to 29 °C. Ideal for modern interiors, providing precise temperature control.

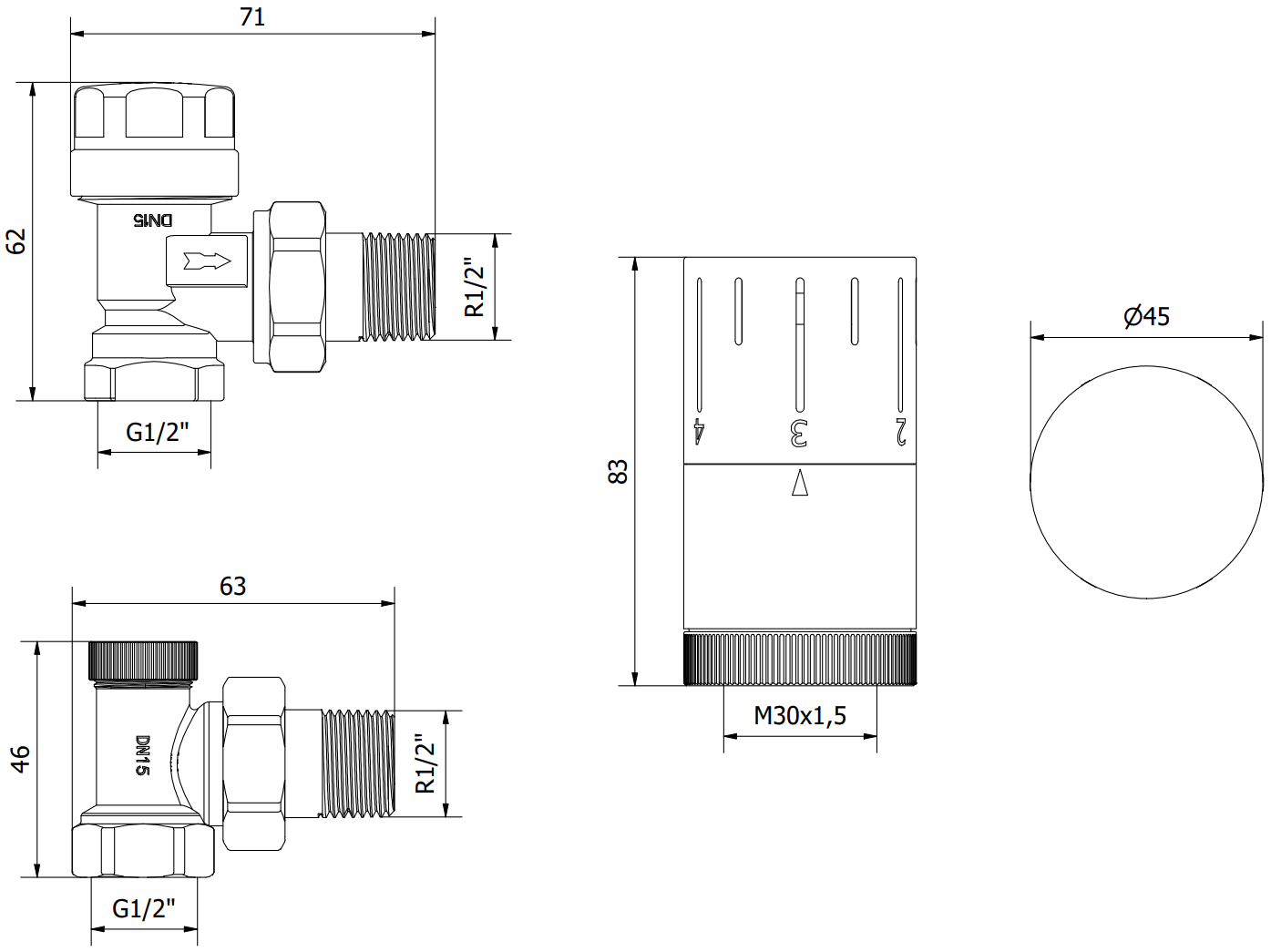

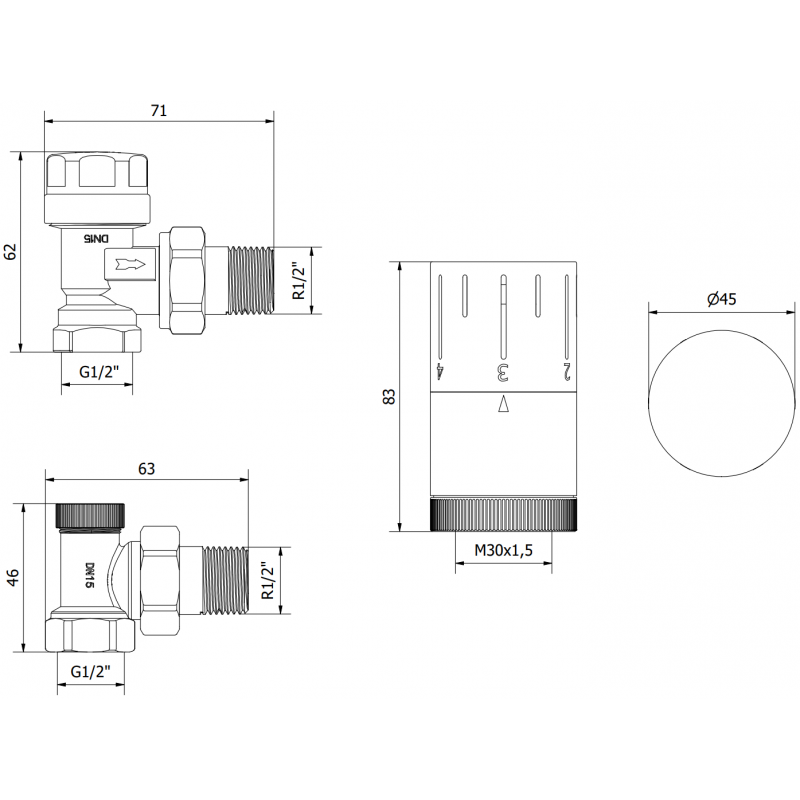

Technical data:

Valve material: Brass

Valve colour: Chrome

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Head thread: M30 x 1.5 mm

Head colour: Chrome

Adjustment scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Includes supply and shut-off radiator valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G05
Type
Angular
Colour
Chrome
Connection diameter
G 1/2"
Cover
No
Warranty conditions
Download
Manufacturer
See

Haven't found the answer?

Write to us

See more questions
The product has no opinion yet. Leave your opinion!

Previous
Next
Mexen G05 angled thermostatic set, chrome - W901-958-01

Mexen G05 angled thermostatic set, chrome - W901-958-01

(0)
Questions
(0)

List price: €28.60

€22.89 (tax included)

Cheaper by  €5.71

19.97%

Lowest price from the last 30 days: €18.61

Availability: In stock

Delivery from: 12.99 €

Returns up to 100 days

1people bought this product.

Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Seria:
G05
Ean:
5905315237378
Index:
W901-958-01
Colour:
Chrome
Connection diameter:
G 1/2"
Type:
Angular
Series:
G05
Colour - Chrome - ()
