Mexen G05 angled thermostatic set, black - W901-958-70

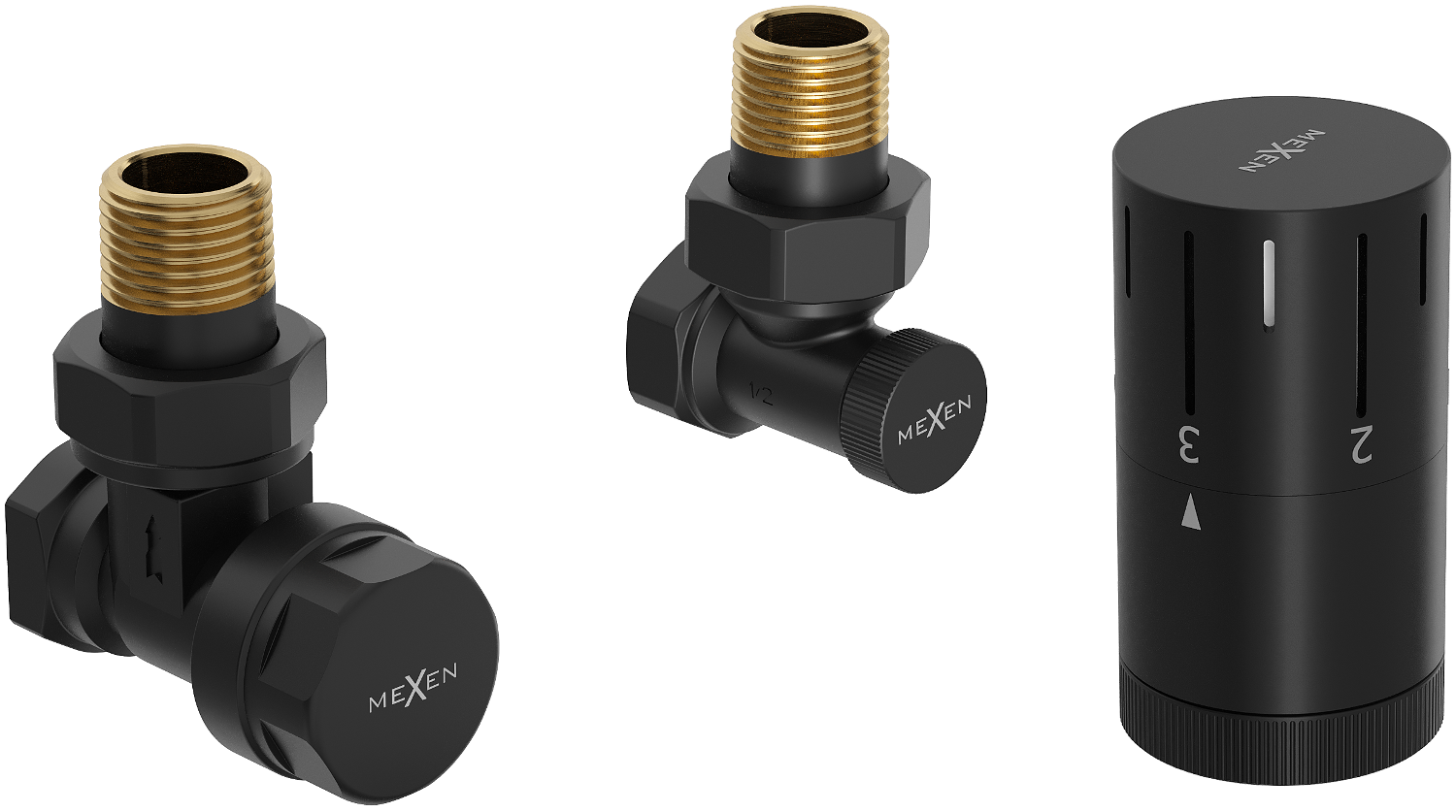

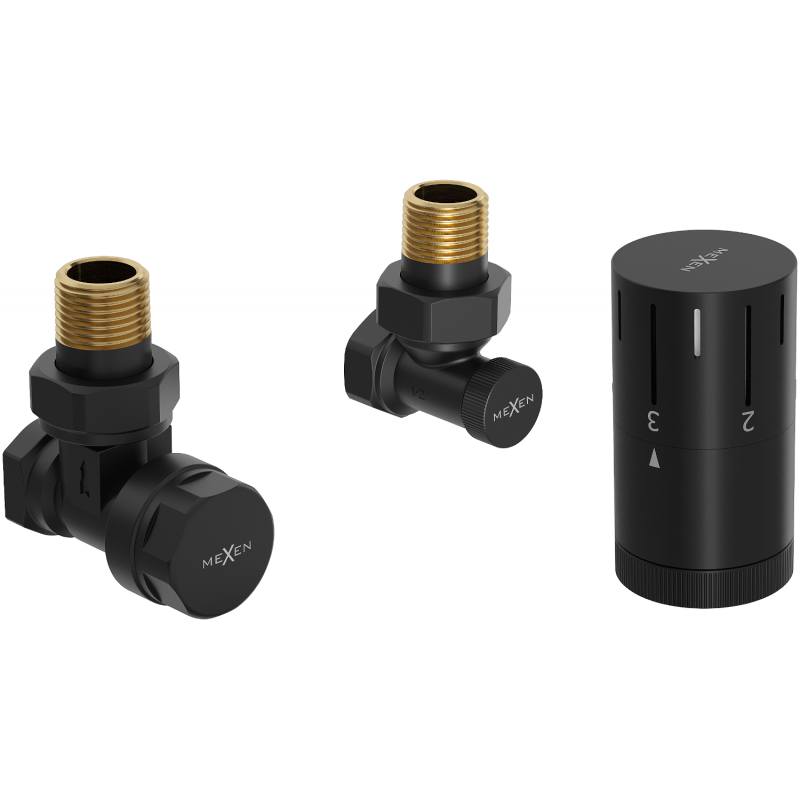

The Mexen G05 angled thermostatic set in black boasts high-quality construction with brass valves. It features an elegant black color that suits modern interiors. Easy to install with a G 1/2" connection and precise temperature regulation in the range of 0-29°C. The set includes a supply and cut-off radiator valve, ensuring full functionality and safe use, including frost protection at 5°C.

Technical data:

Valve material: Brass

Valve color: Black

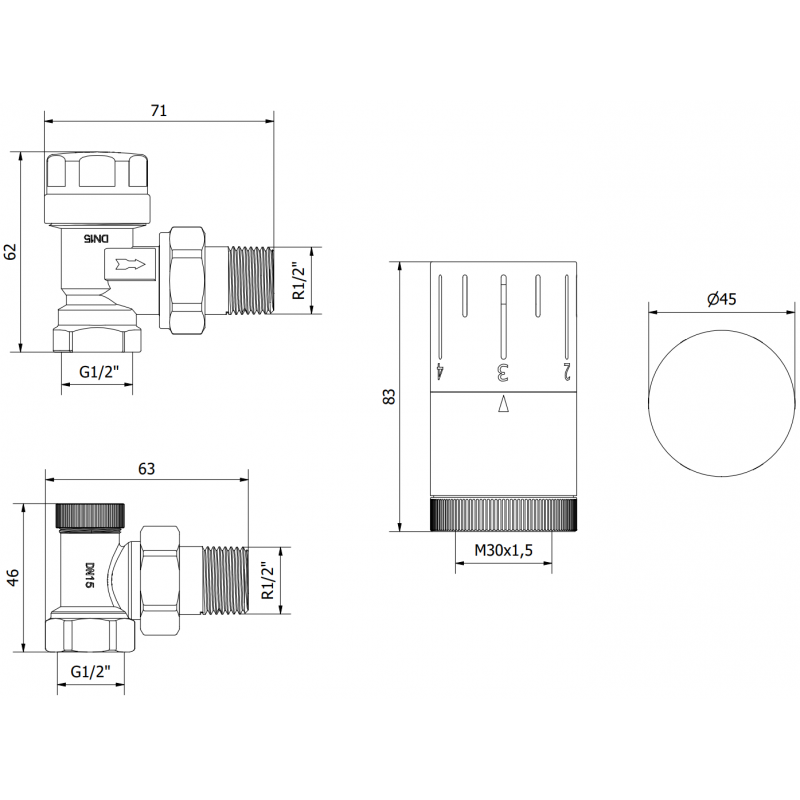

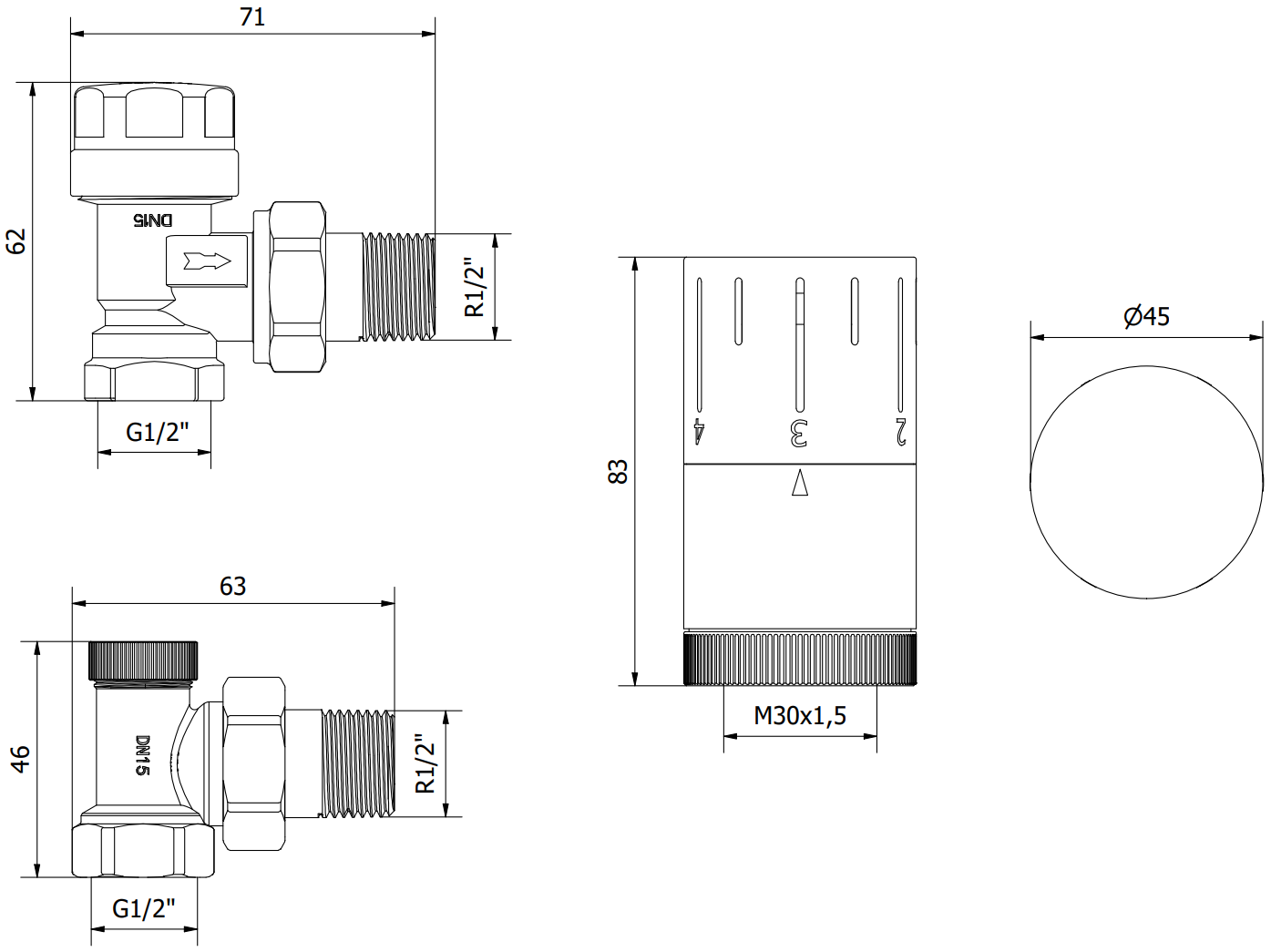

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: Black

Adjustment scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

The set includes a supply and cut-off radiator valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G05
Type
Angular
Colour
Black
Connection diameter
G 1/2"
Cover
No
