Mexen G05 angled thermostatic set, white - W901-958-20

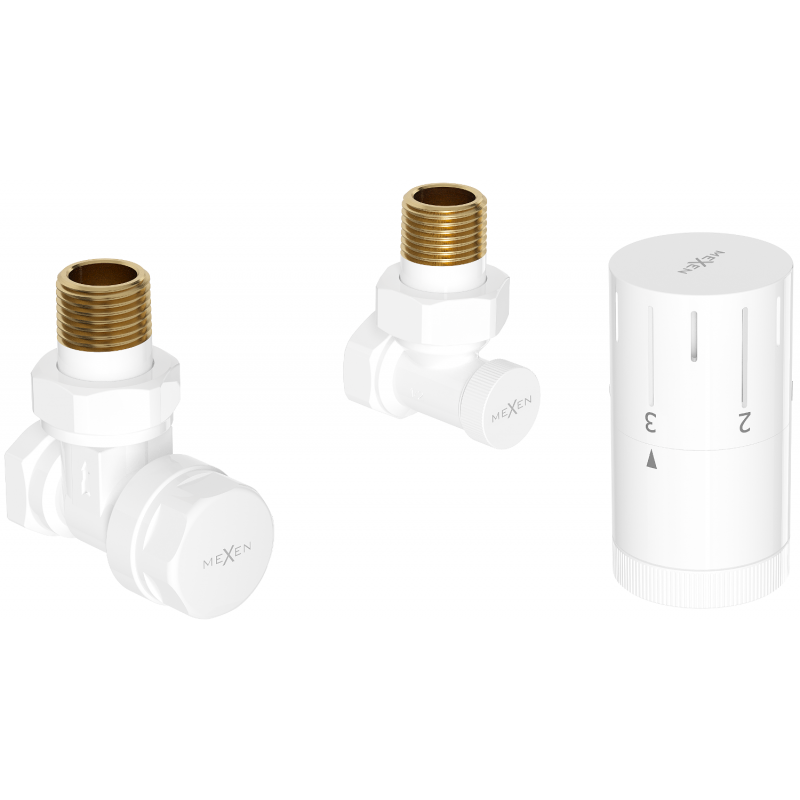

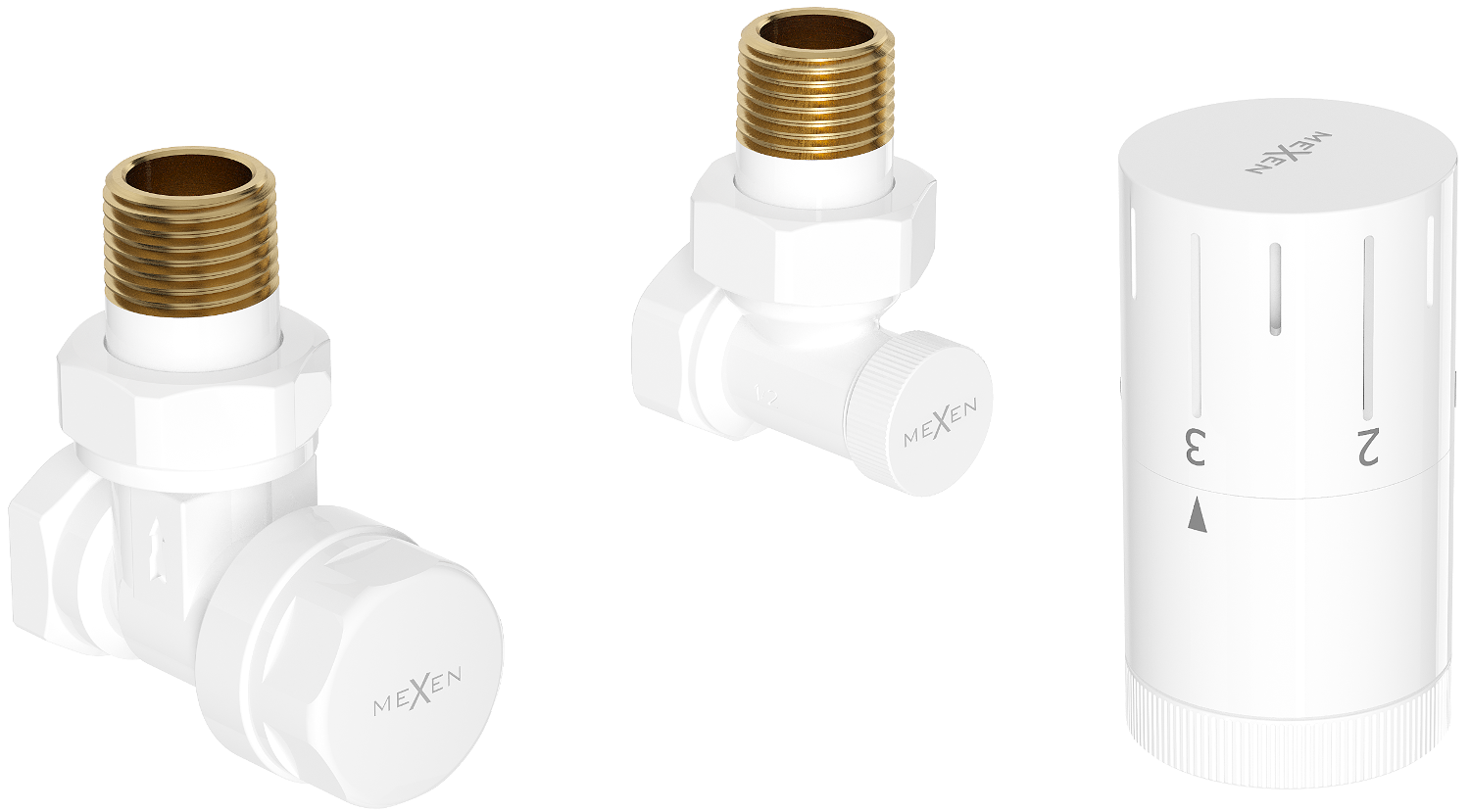

The Mexen G05 angled thermostatic set, white, is distinguished by its high-quality brass construction, ensuring reliability and durability. The white colour of the valves and head blends perfectly with modern interiors. The product offers flexibility with a temperature regulation range of 0-29 °C and a scale of 0-5. The maximum operating temperature is 120 °C, and the working pressure up to 10 bar. Frost protection at 5 °C guarantees trouble-free use in winter. Ideal for elegant and functional heating installations.

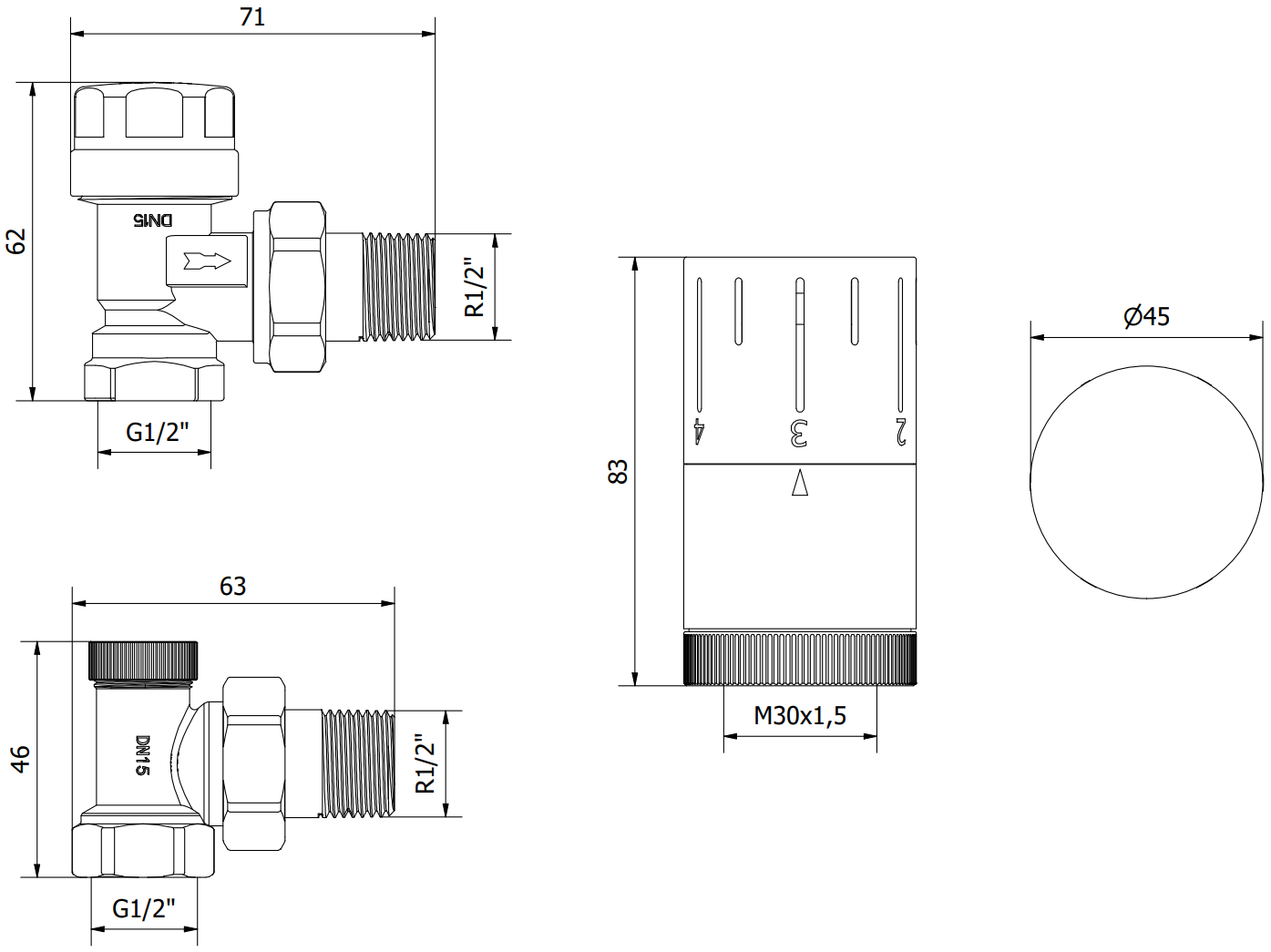

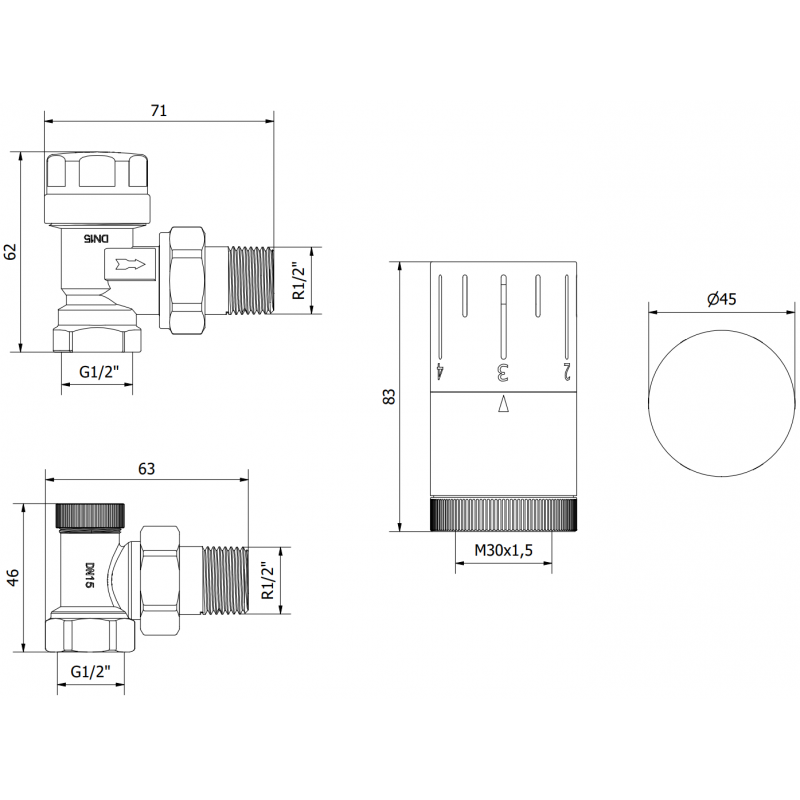

Technical specifications:

Valve material: Brass

Valve colour: White

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head colour: White

Adjustment scale: 0-5

Temperature range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Includes supply and shut-off radiator valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G05
Type
Angle
Color
White
Inlet Diameter
G 1/2"
Cover
No
User manual - radiator valve
Download
User manual - thermostatic head
Download
Safety Information - Radiator Valve
Download
Safety information - thermostatic head
Download
Warranty conditions
Download
