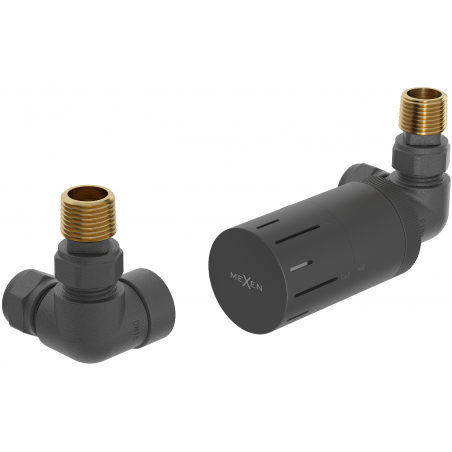

Mexen G05 axial thermostatic set, anthracite - W903-958-66

Mexen G05 axial thermostatic set, anthracite - W903-958-66
Mexen G05 axial thermostatic set, anthracite - W903-958-66
Product features
Brand: Mexen
Series: G05
Ean: 5905315237453
Index: W903-958-66
Color: Anthracite
Connector diameter: G 1/2"
Type: Axial
Series: G05
Description

Mexen G05 axial thermostatic set, anthracite - W903-958-66

Technical data:

Valve material: Brass

Valve color: Anthracite

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: Anthracite

Adjustment scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Set includes supply and shut-off radiator valve

Feature tab
Series
G05
Type
Axial
Color
Anthracite
Connector diameter
G 1/2"
Cover
No
