Mexen G05 angled thermostatic set, Duplex, DN50, white - W907-958-20
Mexen G05 angled thermostatic set, Duplex, DN50, white - W907-958-20 Mexen G05 angled thermostatic set, Duplex, DN50, white - W907-958-20 Mexen G05 angled thermostatic set, Duplex, DN50, white - W907-958-20
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Seria:
Ean:
5905315237484
Index:
W907-958-20
Colour:
White
Connection diameter:
G 1/2"
Type:
Angular
Series:
G05
Colour - White - ()

Mexen G05 angled thermostatic set, Duplex, DN50, white - W907-958-20

The Mexen G05 angled thermostatic set is the perfect solution for those who value comfort and functionality. Made of high-quality brass, in white color, it ensures durability and elegance. With temperature regulation ranging from 0-29°C and frost protection at 5°C, it guarantees smooth and safe use. The supply and shut-off radiator valve, with the option to connect the head to the left or right side, ensures versatile installation.

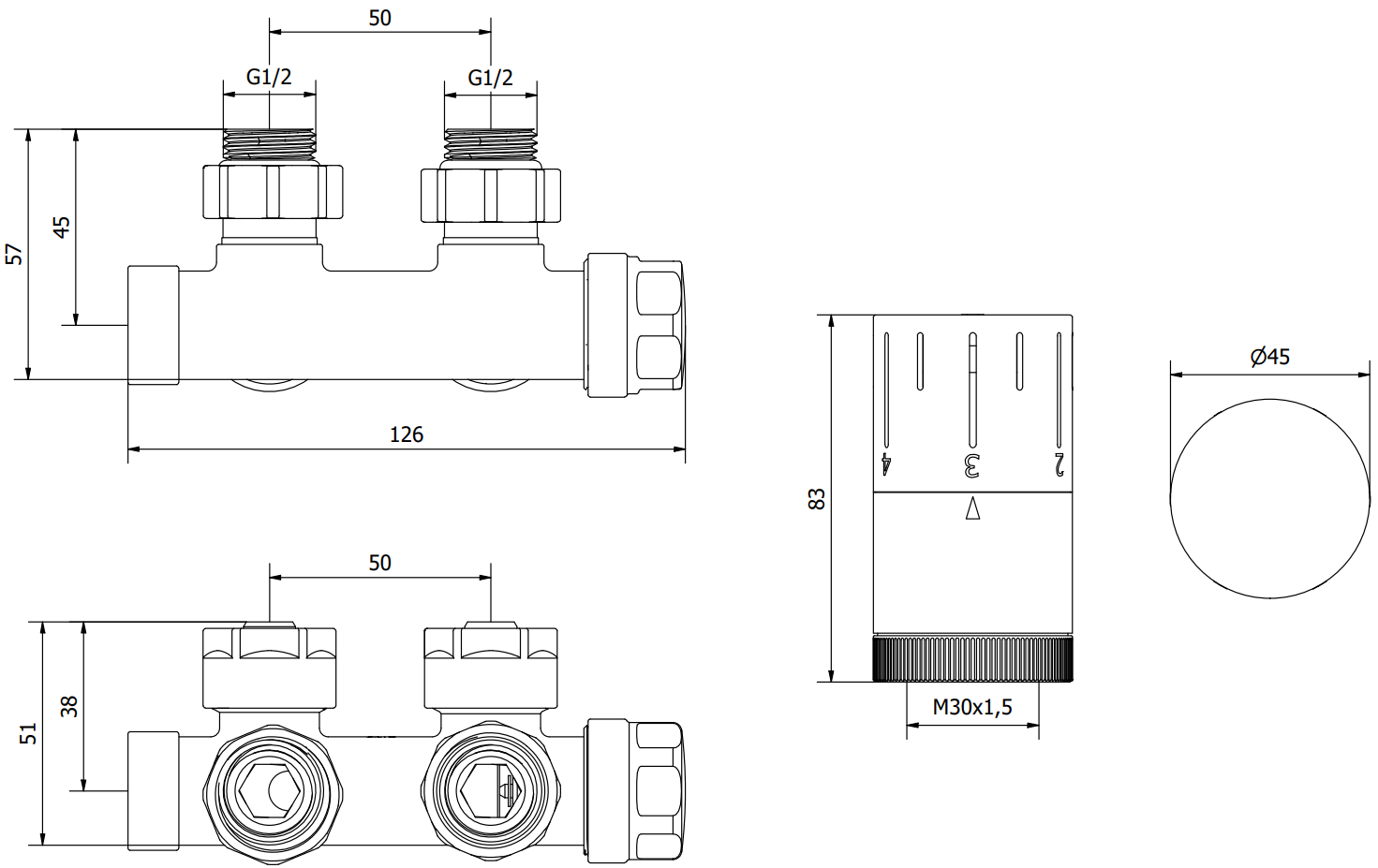

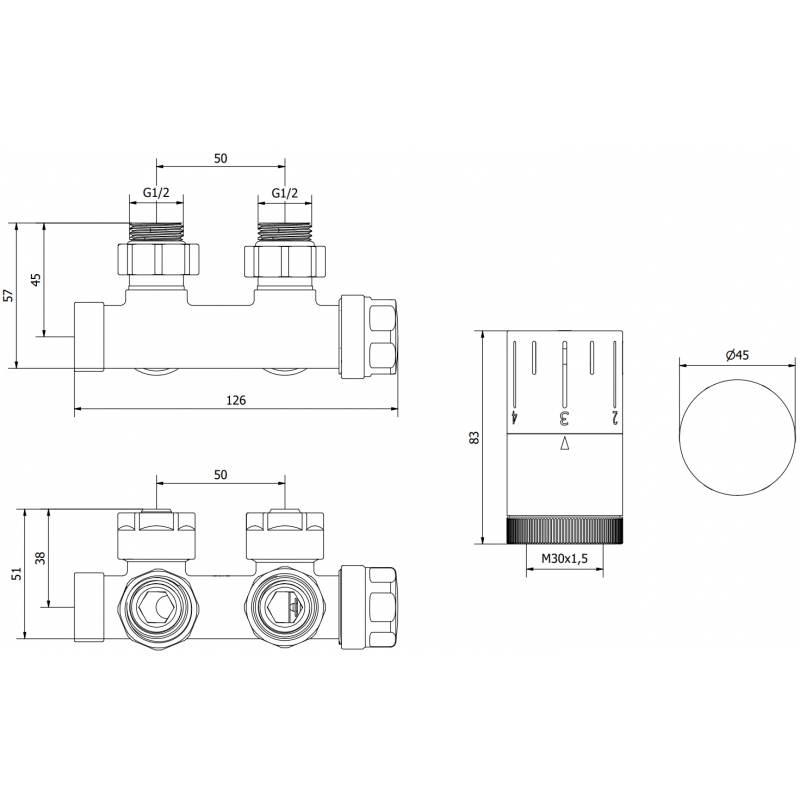

Technical data:

Valve material: Brass

Valve color: White

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Supply and shut-off radiator valve

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head color: White

Adjustment scale: 0-5

Temperature range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Option to connect the head to the left or right side of the valve

Includes additional connectors for 16x2 mm multilayer pipes and connectors for 15 mm copper pipes

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G05
Type
Angular
Colour
White
Connection diameter
G 1/2"
Cover
No
Warranty conditions
Manufacturer
