Mexen G05 axial thermostatic set, black - W903-958-70
Mexen G05 axial thermostatic set, black - W903-958-70 Mexen G05 axial thermostatic set, black - W903-958-70 Mexen G05 axial thermostatic set, black - W903-958-70
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Seria:
G05
Ean:
5905315237460
Index:
W903-958-70
Colour:
Black
Connection diameter:
G 1/2"
Type:
Axial
Series:
G05
Colour - Black - ()

Mexen G05 axial thermostatic set, black - W903-958-70

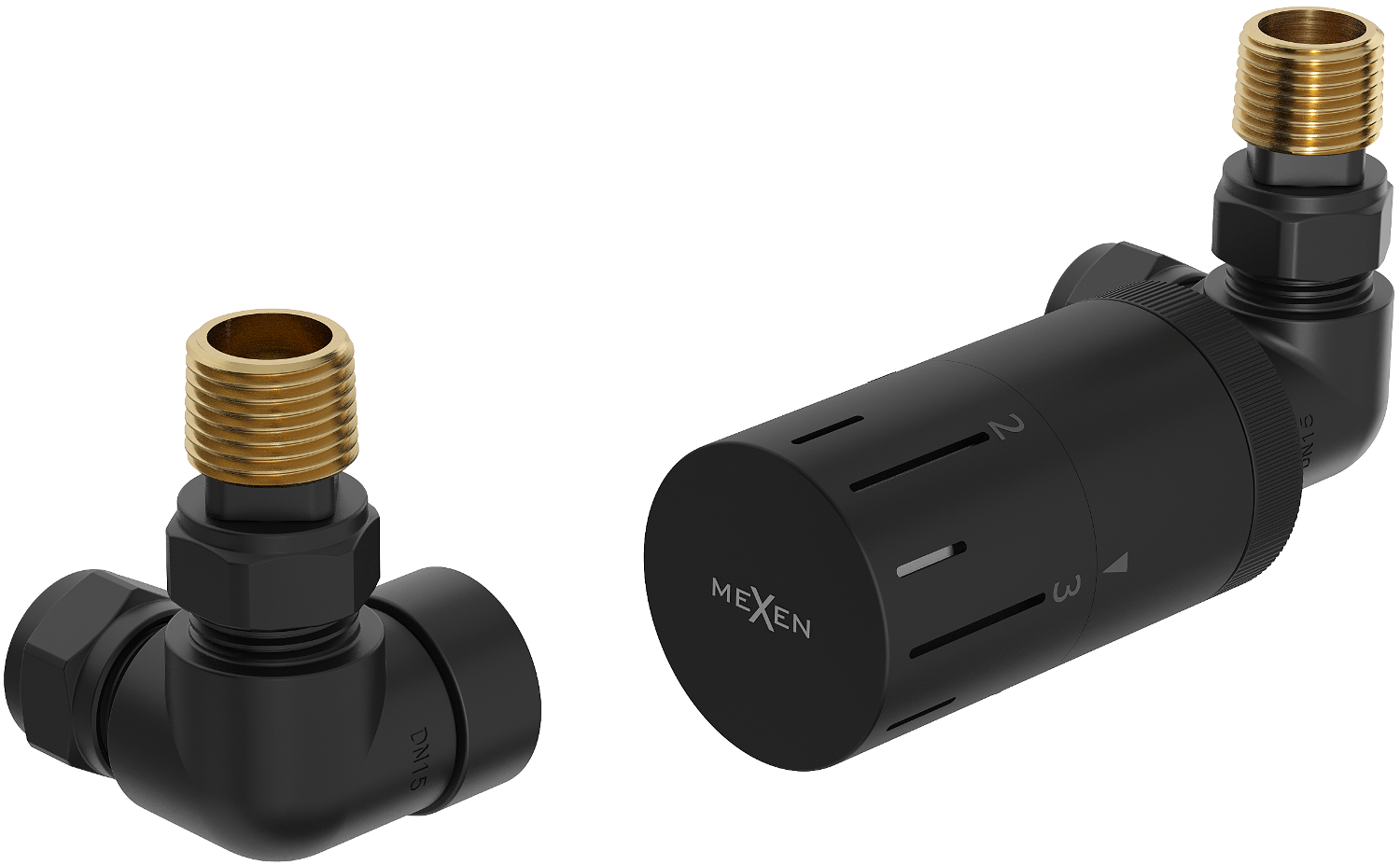

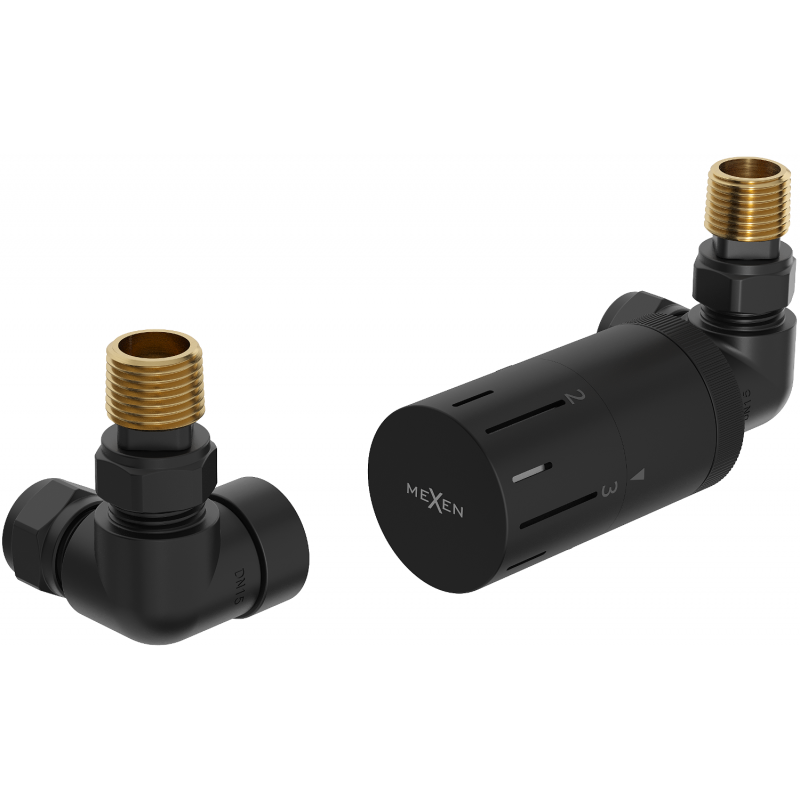

The Mexen G05 is an axial thermostatic set that combines elegance and functionality with its black finish. Made from brass, it ensures durability and reliability. Valves with a diameter of G 1/2" support a maximum operating pressure of 10 bar and operate at temperatures up to 120°C. The thermostat, with a temperature adjustment range of 0 to 29°C and frost protection at 5°C, offers precise thermal control. An ideal choice for modern heating installations.

Technical data:

Valve material: Brass

Valve colour: Black

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Head thread: M30 x 1.5 mm

Head colour: Black

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Includes supply and cut-off radiator valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G05
Type
Axial
Colour
Black
Connection diameter
G 1/2"
Cover
No
