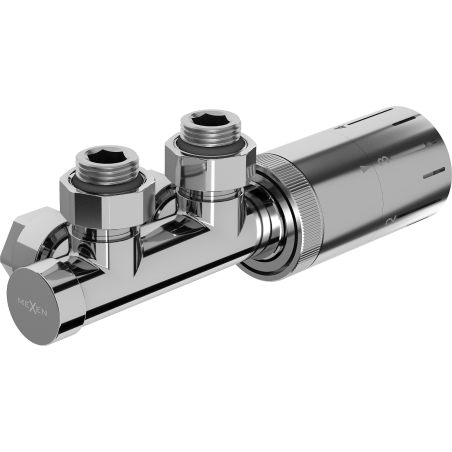

Mexen G05 angled thermostatic set, Duplex, DN50, chrome - W907-958-01
The Mexen G05 angled thermostatic set offers excellence with its brass construction and chrome finish. Ideal for installation with a connection diameter of G 1/2" and 50 mm spacing. The maximum working temperature is 120°C, and the working pressure is 10 bar. It includes a head with 0-5 regulation and a temperature range of 0-29°C. Features frost protection and can be connected from the left or right side. Includes connectors for multilayer and copper pipes.
Technical data:
Valve material: Brass
Valve colour: Chrome
Valve connection diameter: G 1/2"
Working temperature: max 120 °C
Maximum working pressure: 10 bar

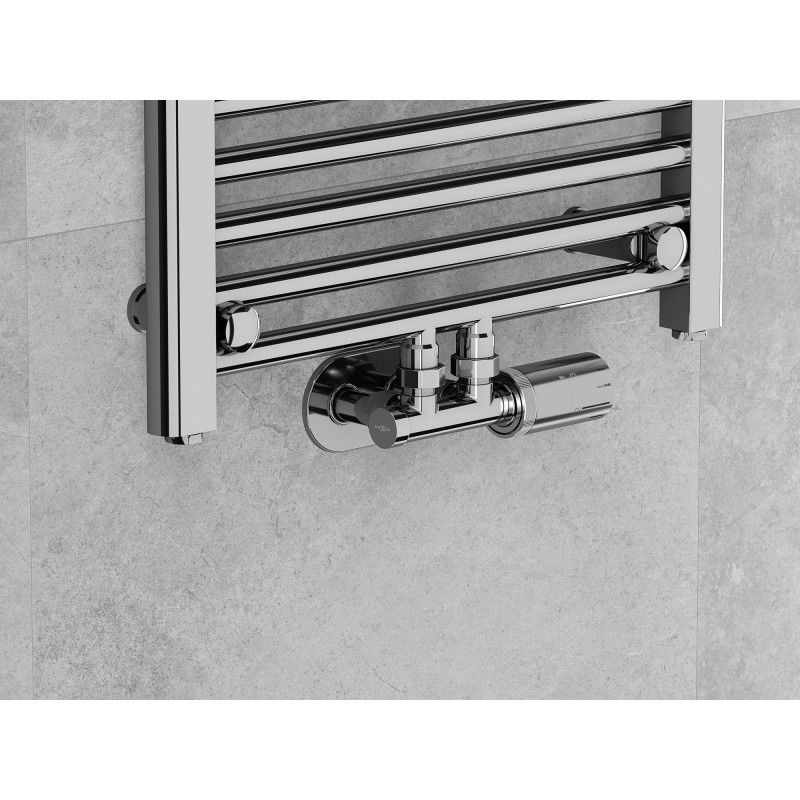

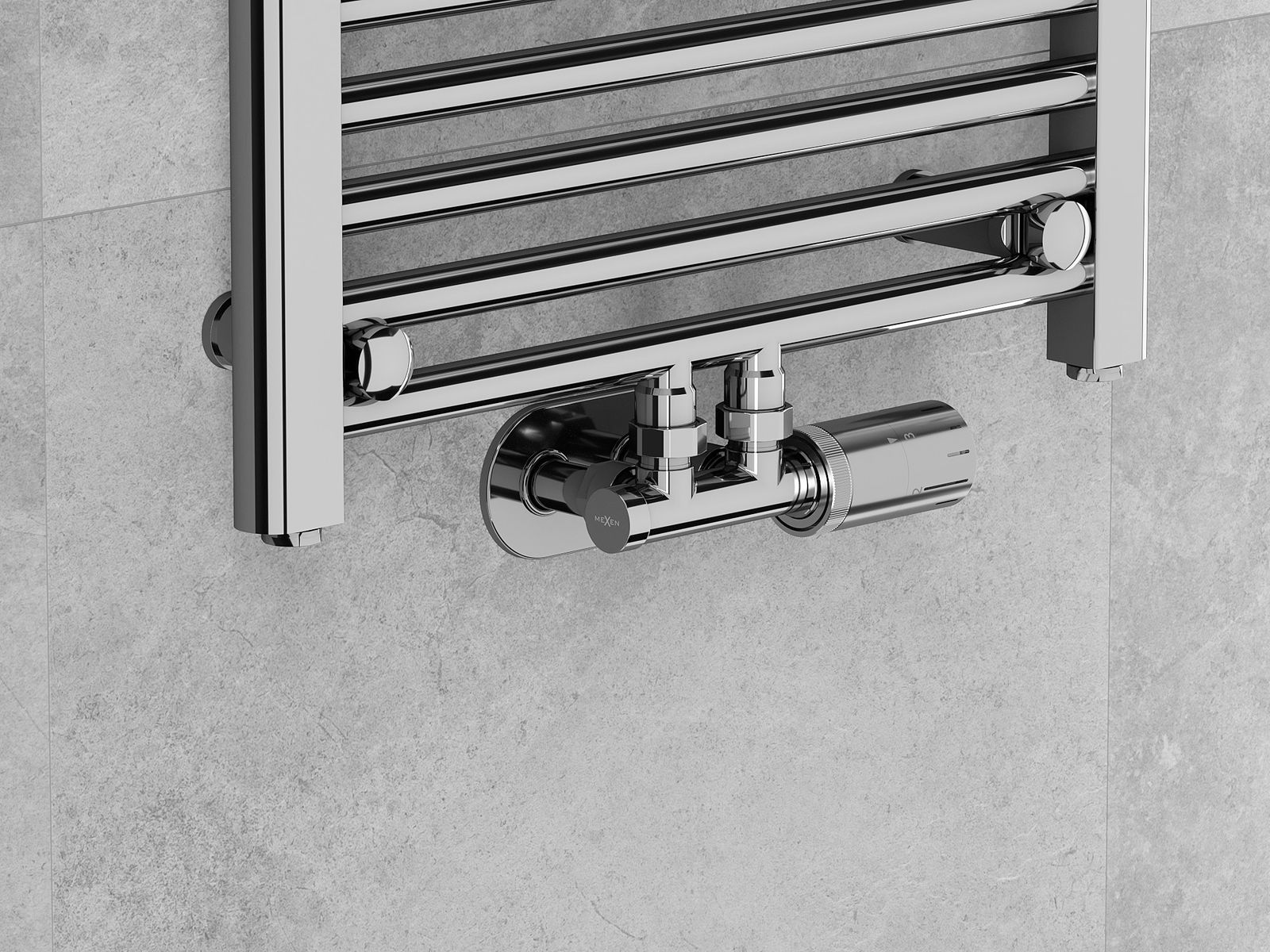

Radiator supply and shut-off valve

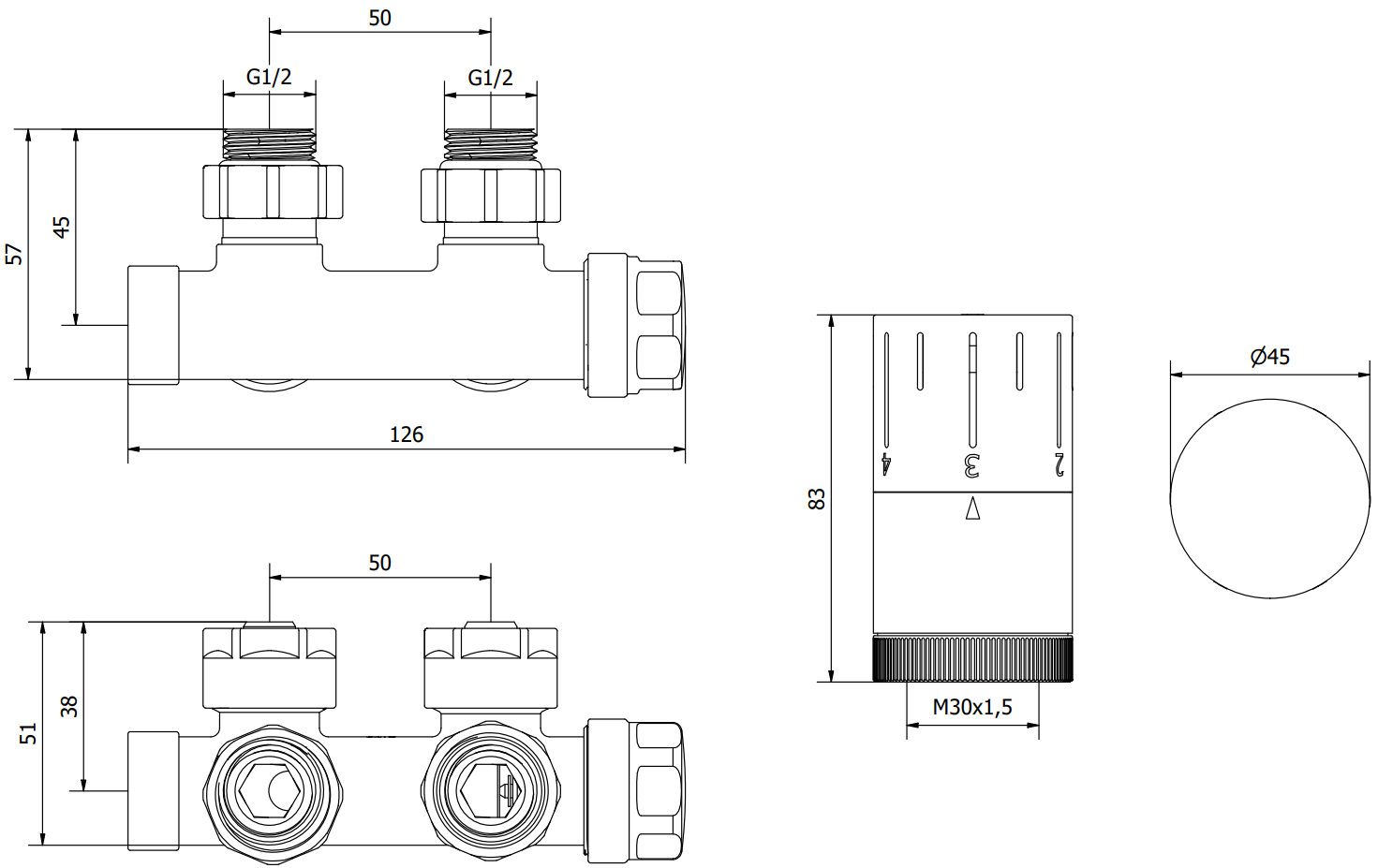

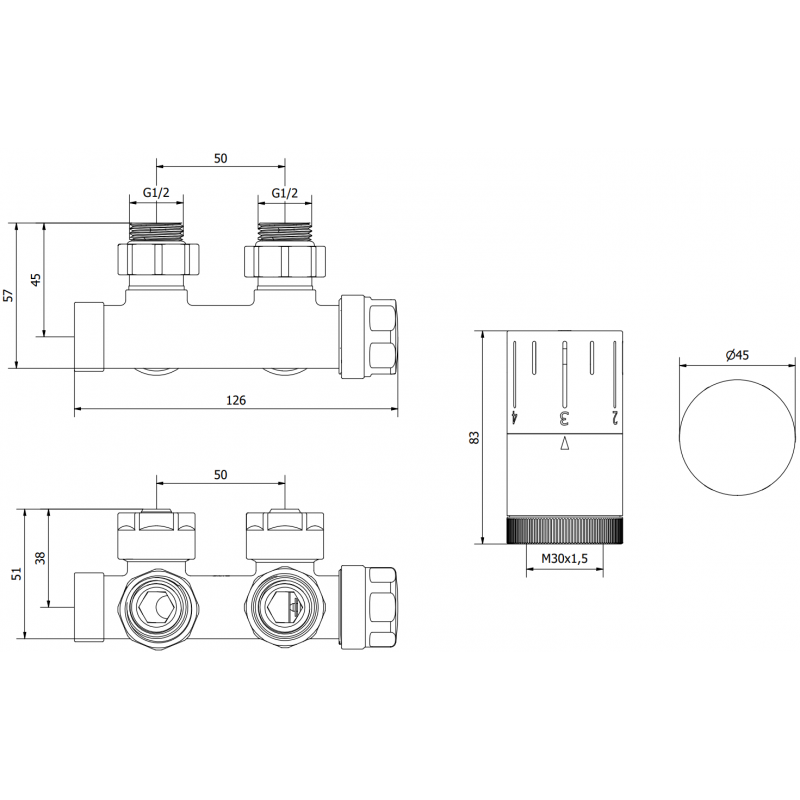

Bottom connection with 50 mm spacing
Head thread: M30 x 1.5 mm
Head colour: Chrome
Adjustment scale: 0-5
Temperature adjustment range: 0-29 °C
Ambient temperature: max 50 °C
Frost protection 5°C
Possibility to connect the head from the left or right side of the valve
Includes additional connectors for 16x2 mm multilayer pipes and 15 mm copper pipes
