Mexen G05 angled thermostatic set, Duplex, DN50, gold - W907-958-50

Mexen G05 angled thermostatic set, Duplex, DN50, gold is an excellent choice for those who value functionality and design. Made of brass, it ensures durability and resistance to high pressure (up to 10 bar) and a working temperature of up to 120°C. Its versatility and ease of use are guaranteed by the possibility of connecting the head on both sides and the 50 mm connection spacing. The gold colour adds elegance, while frost protection and temperature adjustment scale (0-29°C) ensure user comfort.

Technical data:

Valve material: Brass

Valve colour: Gold

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Heating valve supply and shut-off

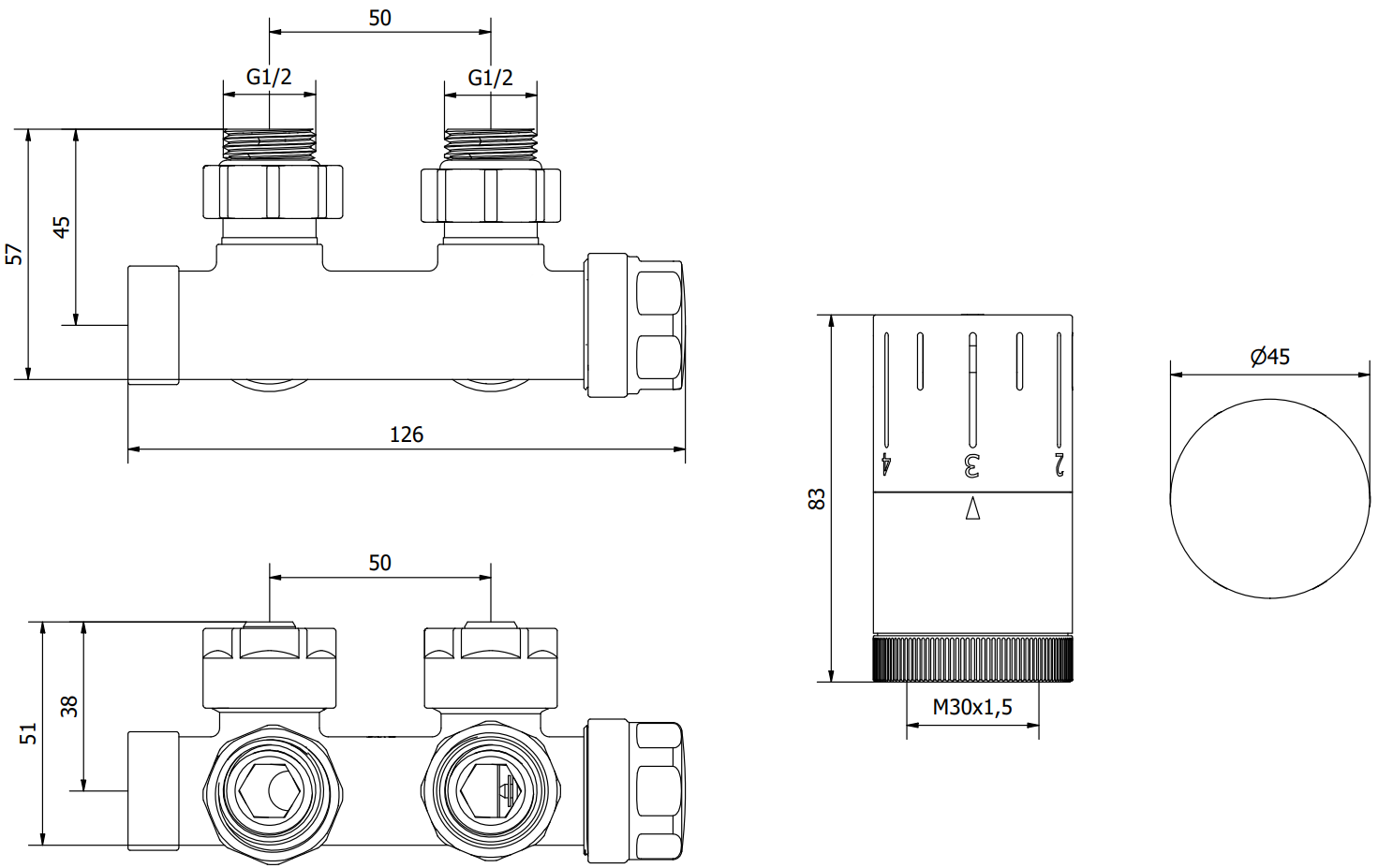

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head colour: Gold

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head from the left or right side of the valve

Includes additional fittings for 16x2 mm multi-layer pipes and fittings for 15 mm copper pipes

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the operating pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe functioning in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G05
Type
Angular
Color
Gold
Connection diameter
G 1/2"
