Mexen G05 angled thermostatic set, Duplex, DN50, black - W907-958-70

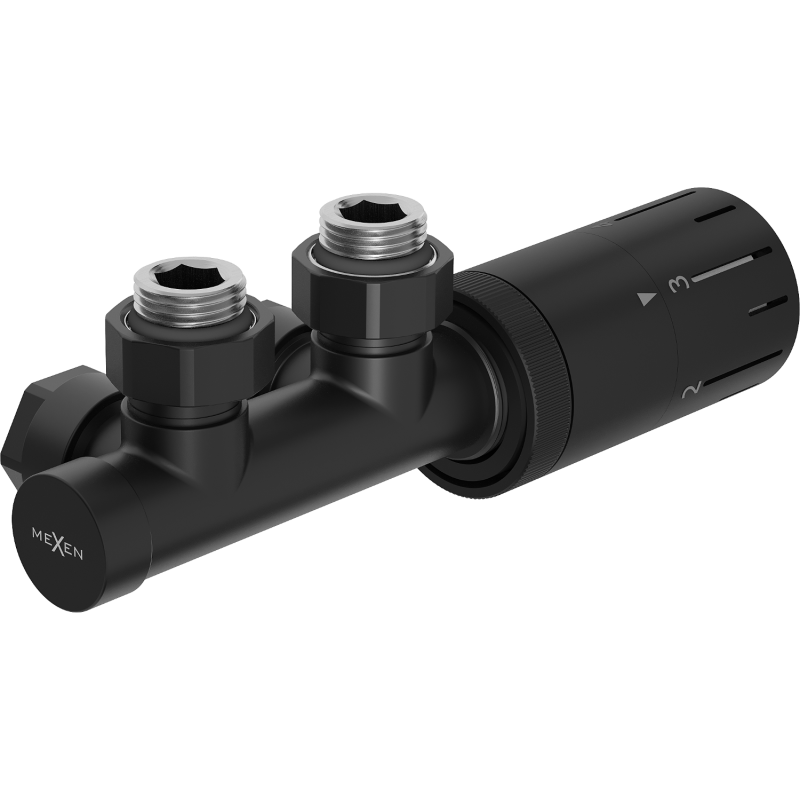

Mexen G05 angled thermostatic set, Duplex, DN50, black offers exceptional performance thanks to the use of durable brass and elegant black colour. The set has a connection diameter of G 1/2'', can operate at temperatures up to 120 °C and working pressure up to 10 bar. The radiator supply and shut-off valve provides a bottom connection with a spacing of 50 mm. With an adjustment scale of 0-5, a temperature range of 0-29 °C, and frost protection, it is functional and safe to use.

Technical data:

Valve material: Brass

Valve colour: Black

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Radiator supply and shut-off valve

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head colour: Black

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head on the left or right side of the valve

Includes additional connectors for 16x2 mm multilayer pipes and connectors for 15 mm copper pipes

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G05
Type
Angle
Color
Black
Inlet Diameter
G 1/2"
Cover
No
