Brand:
Mexen
Seria:
G05
Ean:
5905315237989
Index:
W907-958-910-20
Color:
White
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G05
Color - White - ()

Mexen G05 angled thermostatic set with S masking, Duplex, DN50, white - W907-958-910-20

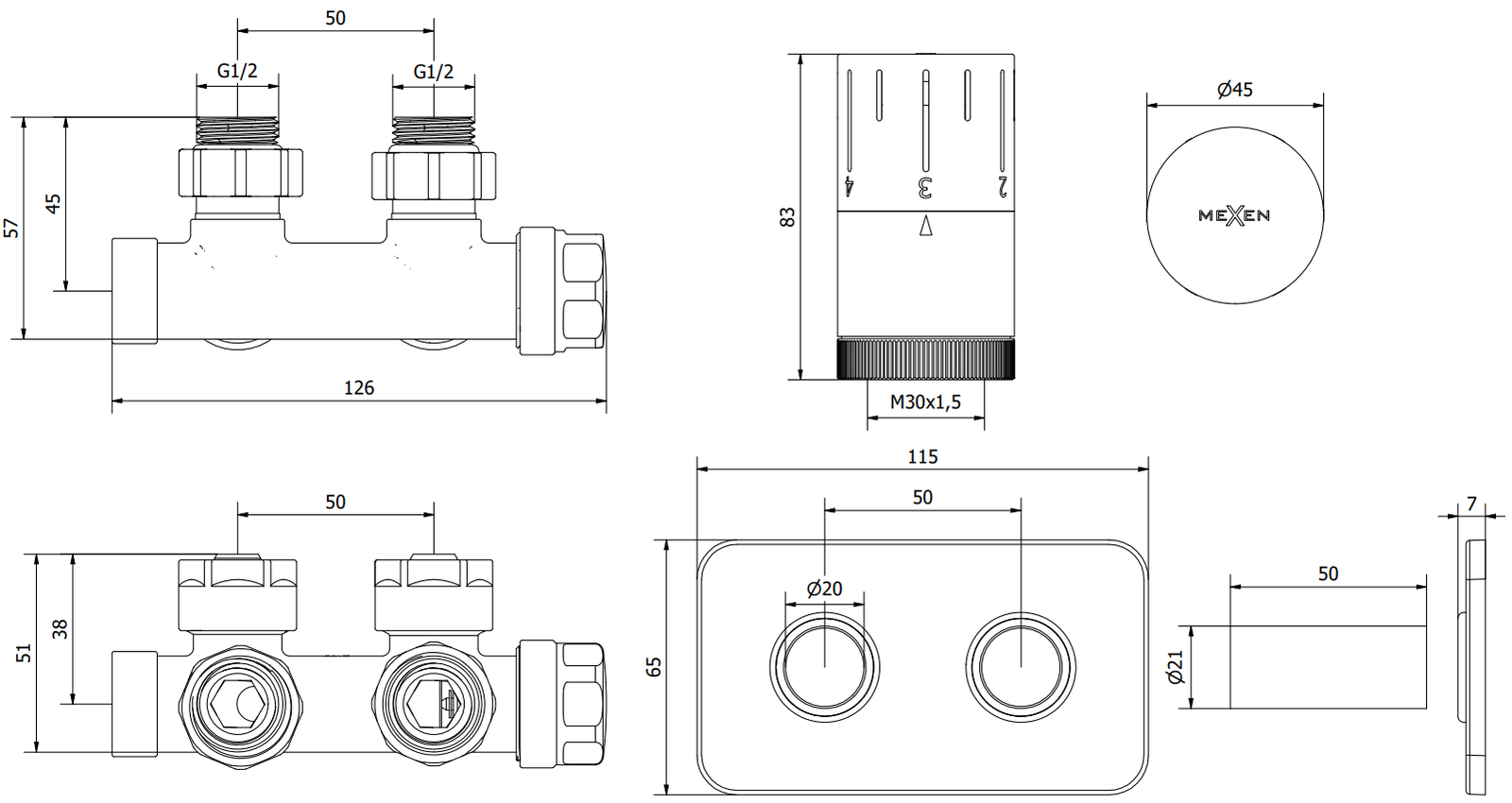

Technical data:

Valve material: Brass

Valve color: White

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Supply and shut-off radiator valve

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1,5 mm

Head color: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Anti-freeze protection 5°C

Possibility to connect the head to the left or right side of the valve

Masking color: White

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Inner bushing diameter: 20 mm

Spacing of holes for radiator connections: 50 mm

The masking consists of a double rosette and two bushings

Complete with additional connectors for multi-layer pipes 16x2 mm and connectors for copper pipes 15 mm

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Corner
Color
White
Connection Diameter
G 1/2"
Cover
Yes
