Mexen G05 angular thermostatic set with cover R, Duplex, DN50, anthracite - W907-958-905-66
Mexen G05 angular thermostatic set with cover R, Duplex, DN50, anthracite - W907-958-905-66 Mexen G05 angular thermostatic set with cover R, Duplex, DN50, anthracite - W907-958-905-66 Mexen G05 angular thermostatic set with cover R, Duplex, DN50, anthracite - W907-958-905-66
Brand:
Mexen
Seria:
G05
Ean:
5905315237750
Index:
W907-958-905-66
Color:
Anthracite
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G05
Color - Anthracite - ()

Mexen G05 angular thermostatic set with cover R, Duplex, DN50, anthracite - W907-958-905-66

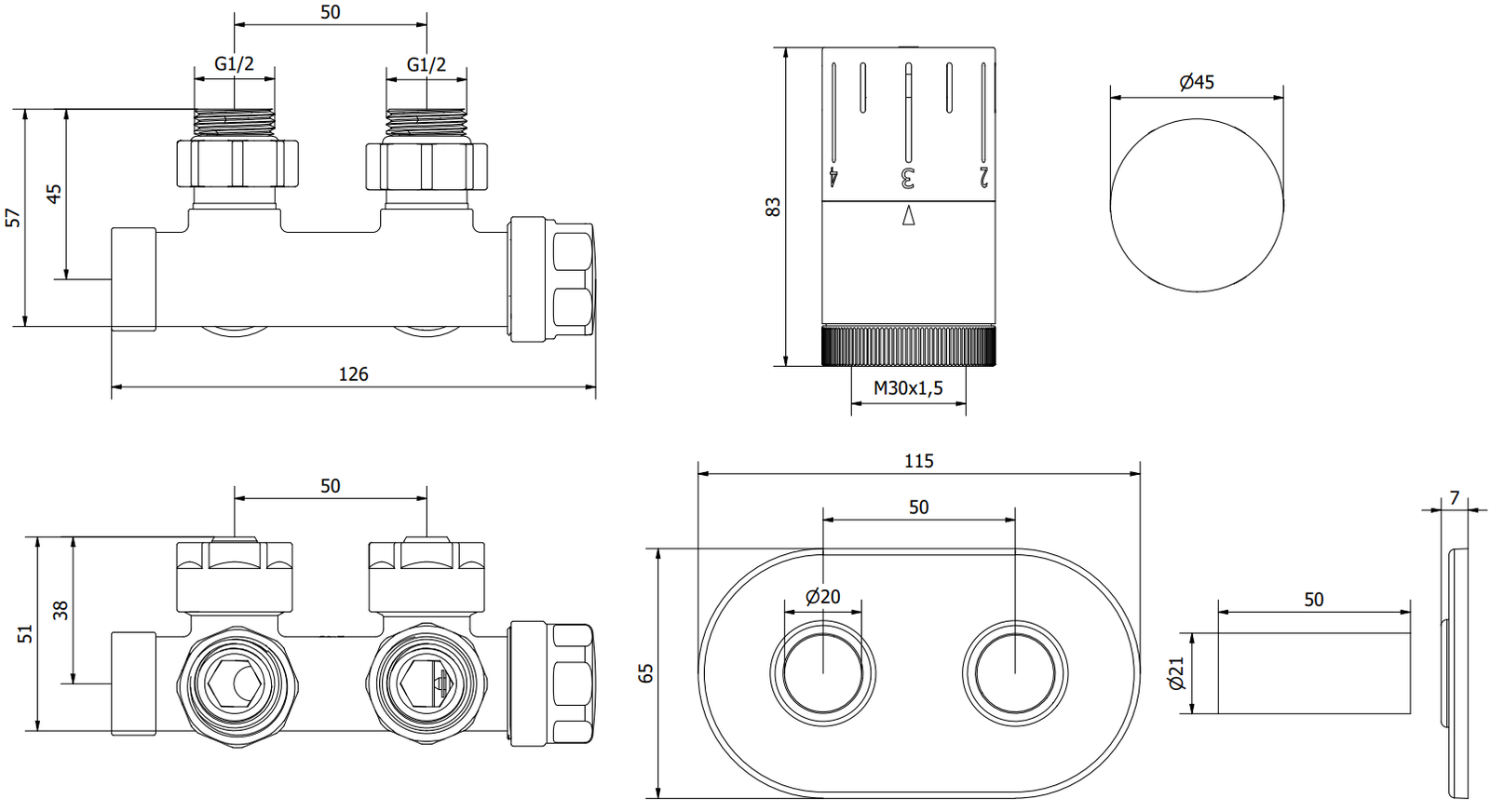

Technical data:

Valve material: Brass

Valve color: Anthracite

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Radiator supply and shut-off valve

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head color: Anthracite

Adjustment scale: 0-5

Temperature range: 0-29 °C

Ambient temperature: max 50 °C

Freeze protection 5°C

Possibility to connect the head on the left or right side of the valve

Cover color: Anthracite

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Sleeve inner diameter: 20 mm

Spacing of the radiator connection holes: 50 mm

The cover consists of a double rosette and two sleeves

Included additional fittings for multilayer pipes 16x2 mm and fittings for copper pipes 15 mm

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Corner
Color
Anthracite
Connection Diameter
G 1/2"
Cover
Yes
