Mexen G05 angled thermostatic set with R cover, Duplex, DN50, white - W907-958-905-20

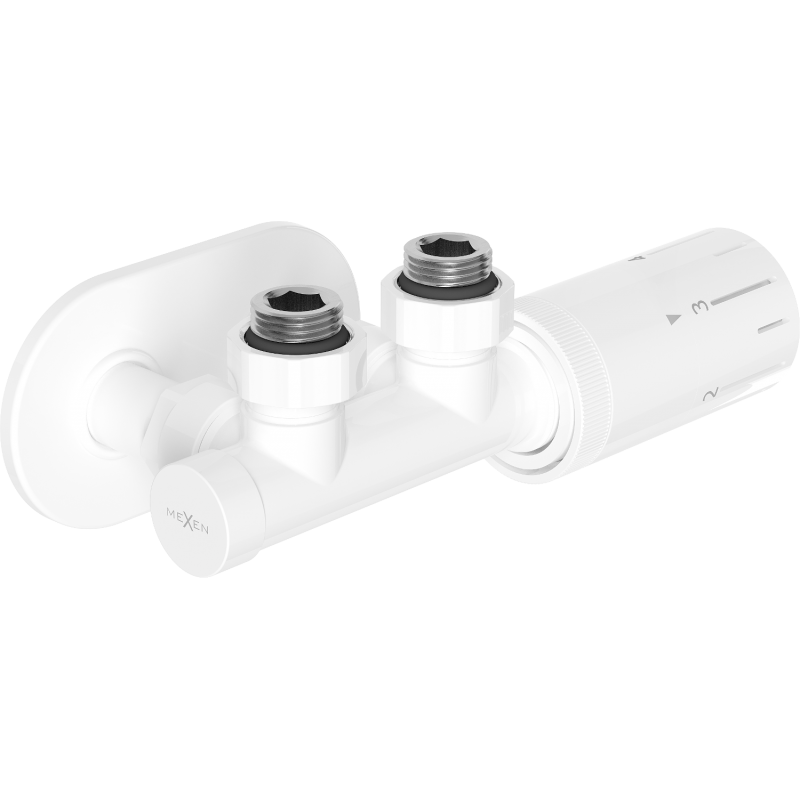

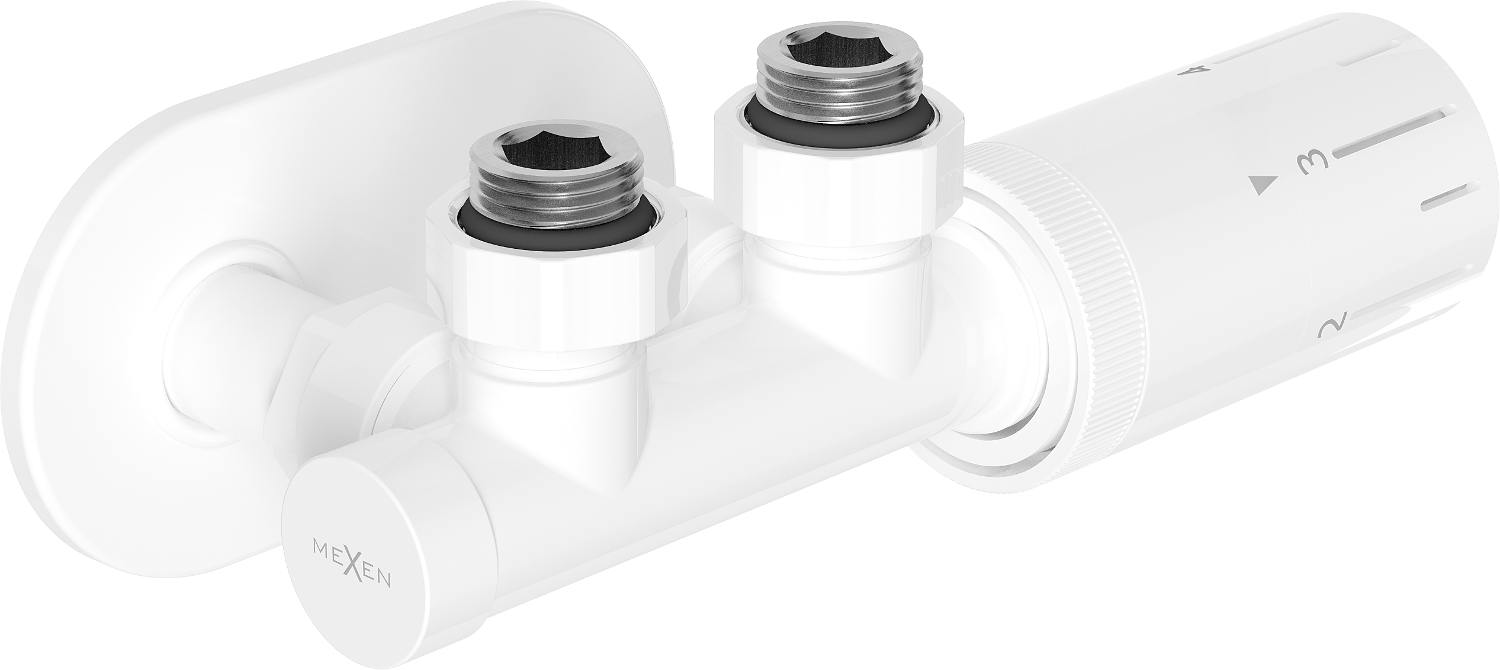

Mexen G05 angled thermostatic set with R cover, Duplex, DN50, white, is an ideal solution for modern heating installations. Made from brass, with the possibility of connecting the head to the left or right side, it offers reliability and durability. It operates at temperatures up to 120°C and at a pressure of up to 10 bar. Frost protection down to 5°C and a white colour add aesthetics. The set includes a cover with a double rosette and bushings, and additional connectors for multilayer and copper pipes.

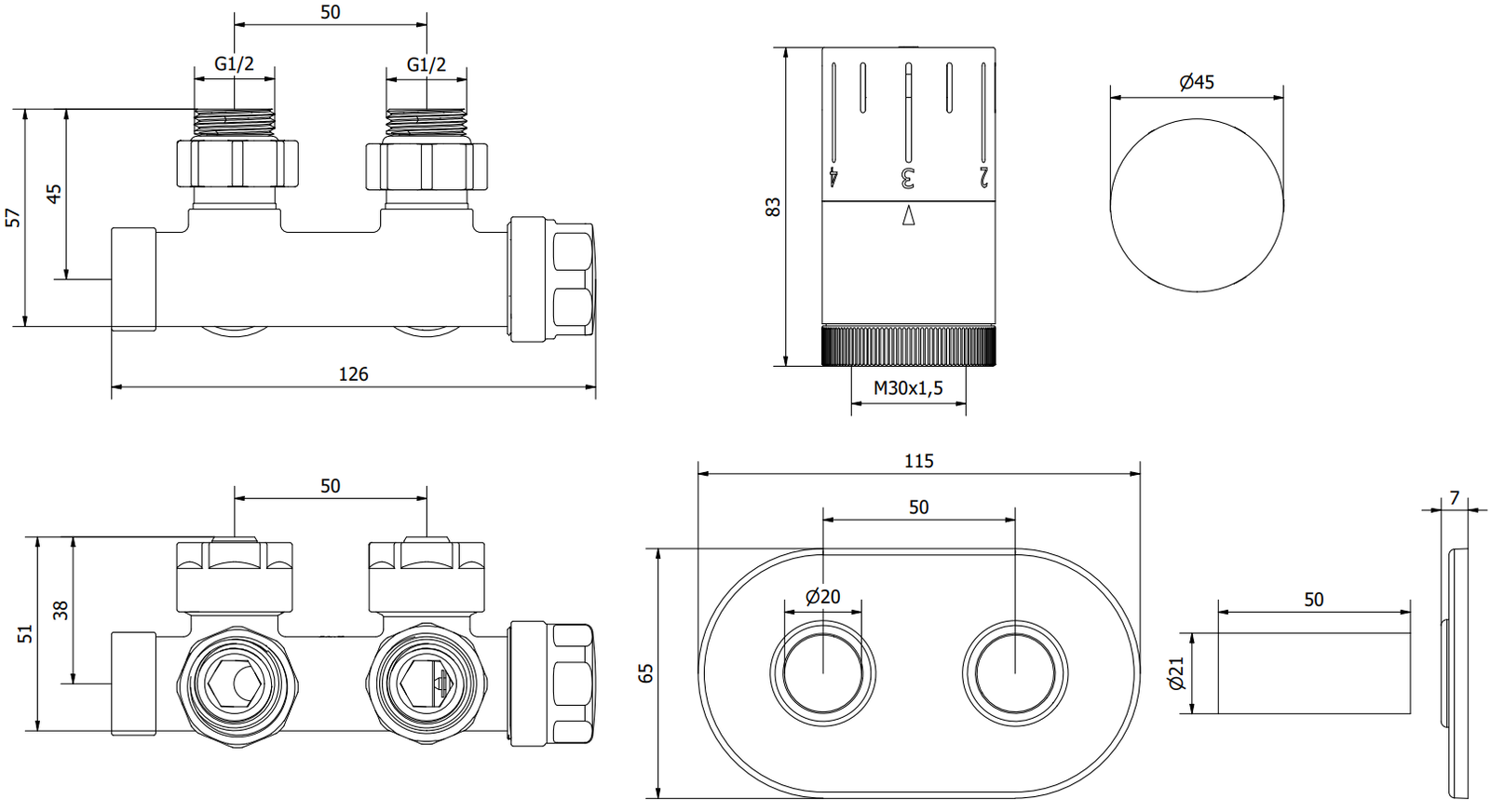

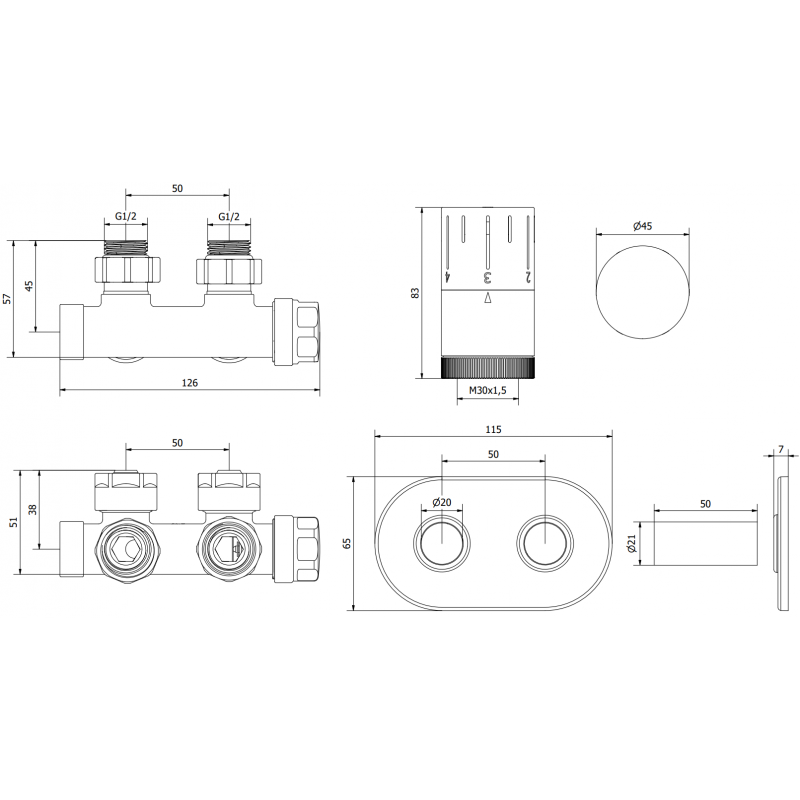

Technical data:

Valve material: Brass

Valve colour: White

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Supply and shut-off radiator valve

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head colour: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility of connecting the head to the left or right side of the valve

Cover colour: White

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Internal diameter of the hole: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Internal diameter of bushings: 20 mm

Spacing of holes for radiator connections: 50 mm

The cover consists of a double rosette and two bushings

The set includes additional connectors for multilayer pipes 16x2 mm and connectors for copper pipes 15 mm

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Practical Solution

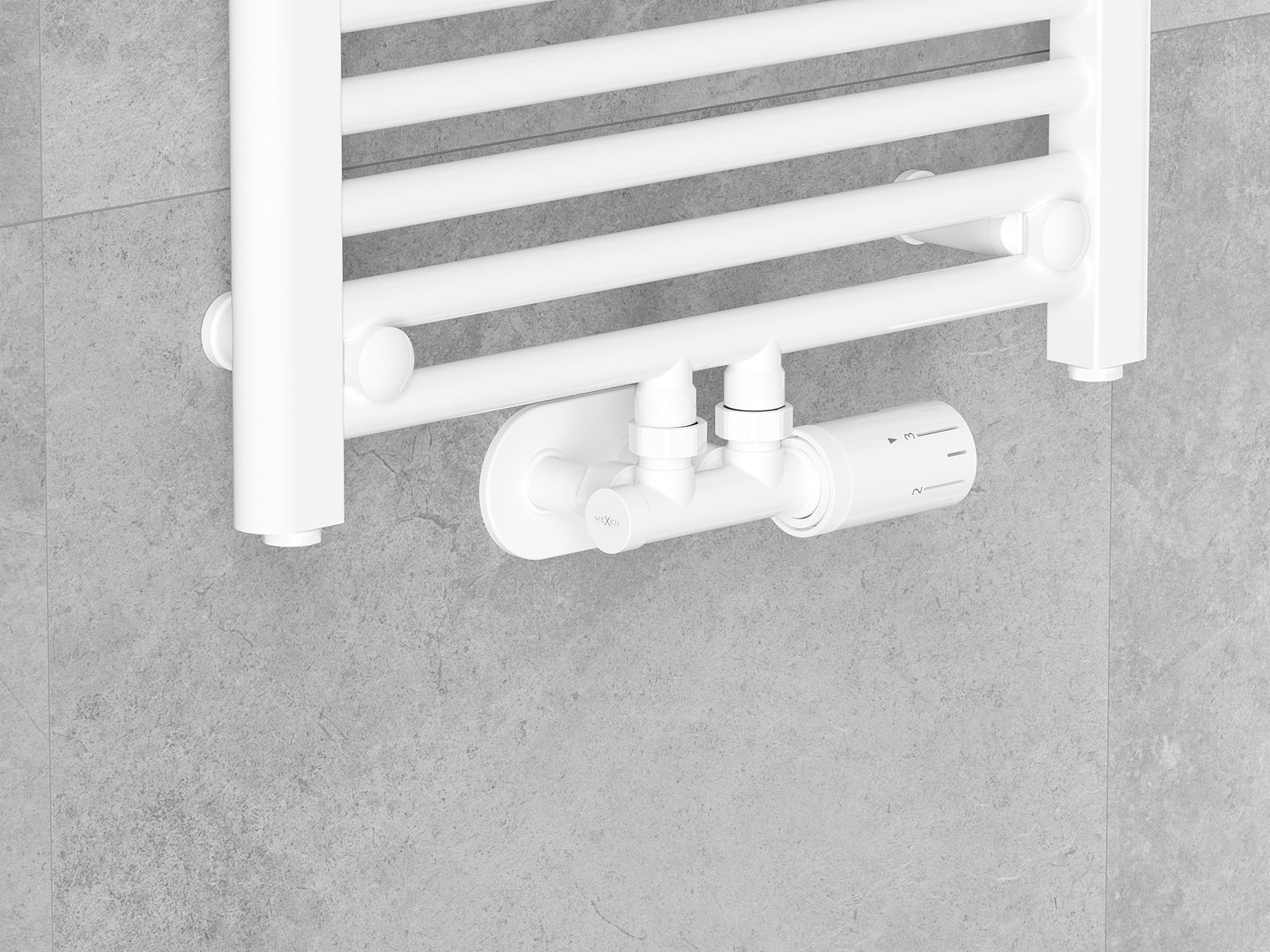

A radiator masking set is a practical and aesthetic accessory that helps to conceal heating installation elements. This makes the radiator more discreet and the interior gains a tidier and more organized appearance.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.
