Mexen G05 angled thermostatic set with R cover, white - W901-958-904-20

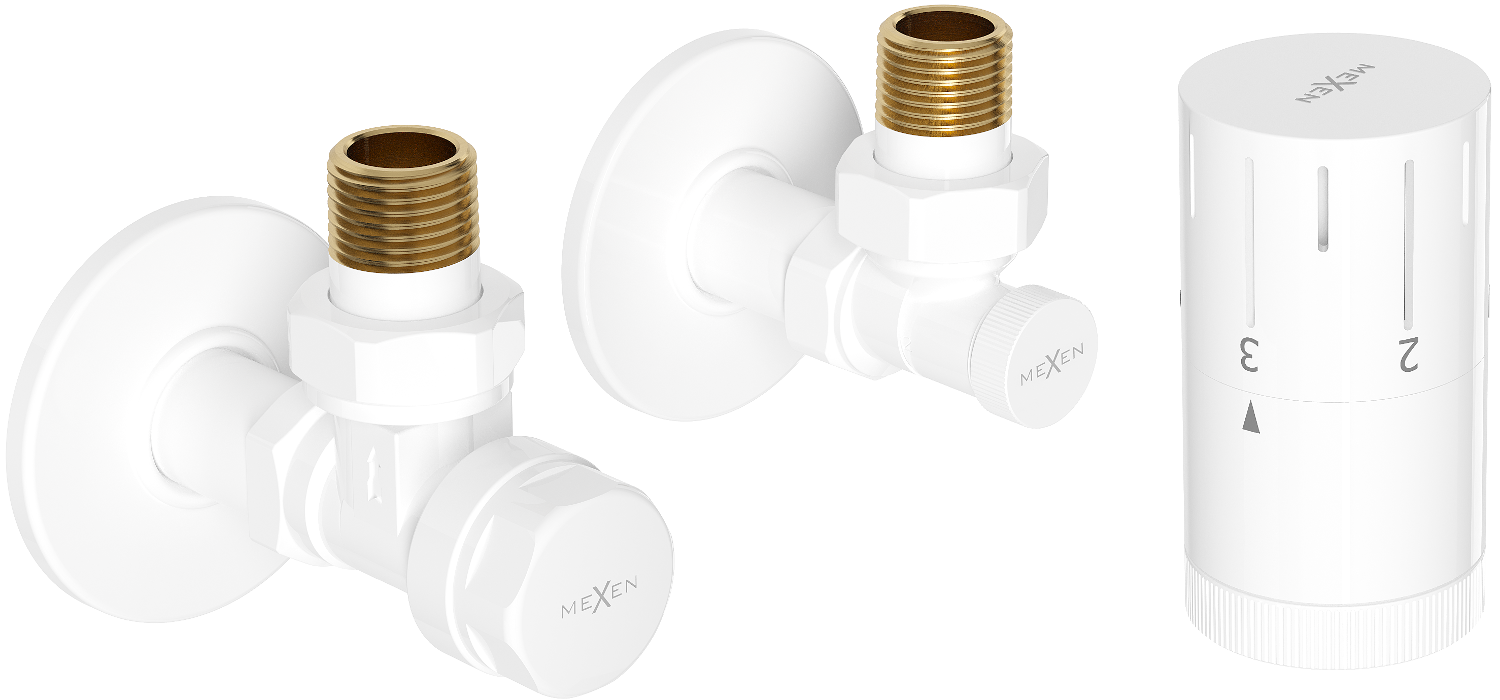

The Mexen G05 angled thermostatic set with an R cover in white is the perfect solution for demanding users. Made of brass, the valves have a G 1/2" connection diameter and are designed to operate at temperatures up to 120 °C and pressure up to 10 bar. The white head with M30 x 1.5 mm thread and the ability to adjust the temperature from 0 to 29 °C provide precise control. Frost protection at 5 °C and the elegant stainless steel cover enhance the functionality and aesthetics of the set.

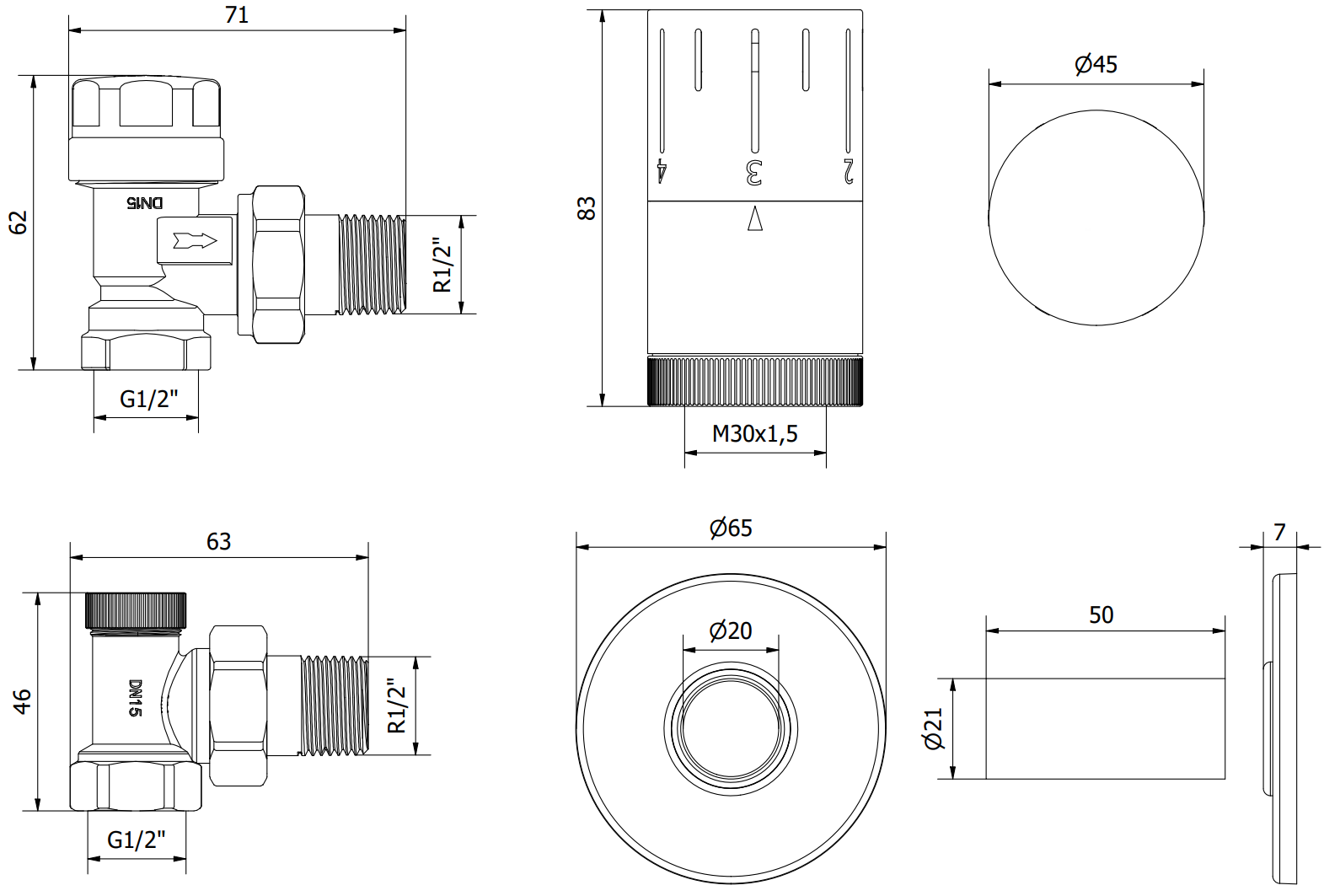

Technical Data:

Valve Material: Brass

Valve Colour: White

Valve Connection Diameter: G 1/2"

Working Temperature: max 120 °C

Maximum Operating Pressure: 10 bar

Head Thread: M30 x 1.5 mm

Head Colour: White

Adjustment Scale: 0-5

Temperature Adjustment Range: 0-29 °C

Ambient Temperature: max 50 °C

Frost Protection 5°C

Cover Colour: White

Rosette Material: Stainless Steel

Rosette Outer Diameter: 65 mm

Rosette Height: 7 mm

Inner Hole Diameter: 21 mm

Sleeve Material: Brass

Sleeve Length: 50 mm

Sleeve Inner Diameter: 20 mm

The cover consists of two single rosettes and a sleeve

The kit includes a radiator supply and shut-off valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Practical Solution

A radiator masking set is a practical and aesthetic accessory that helps to conceal heating installation elements. This makes the radiator more discreet and the interior gains a tidier and more organized appearance.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G05
Type
Angle
Color
White
Inlet Diameter
G 1/2"
Cover
Yes
