Mexen G05 angled thermostatic set with cover R, anthracite - W901-958-904-66
Mexen G05 angled thermostatic set with cover R, anthracite - W901-958-904-66 Mexen G05 angled thermostatic set with cover R, anthracite - W901-958-904-66
Brand:
Mexen
Seria:
G05
Ean:
5905315237606
Index:
W901-958-904-66
Color:
Anthracite
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G05
Color - Anthracite - ()

Mexen G05 angled thermostatic set with cover R, anthracite - W901-958-904-66

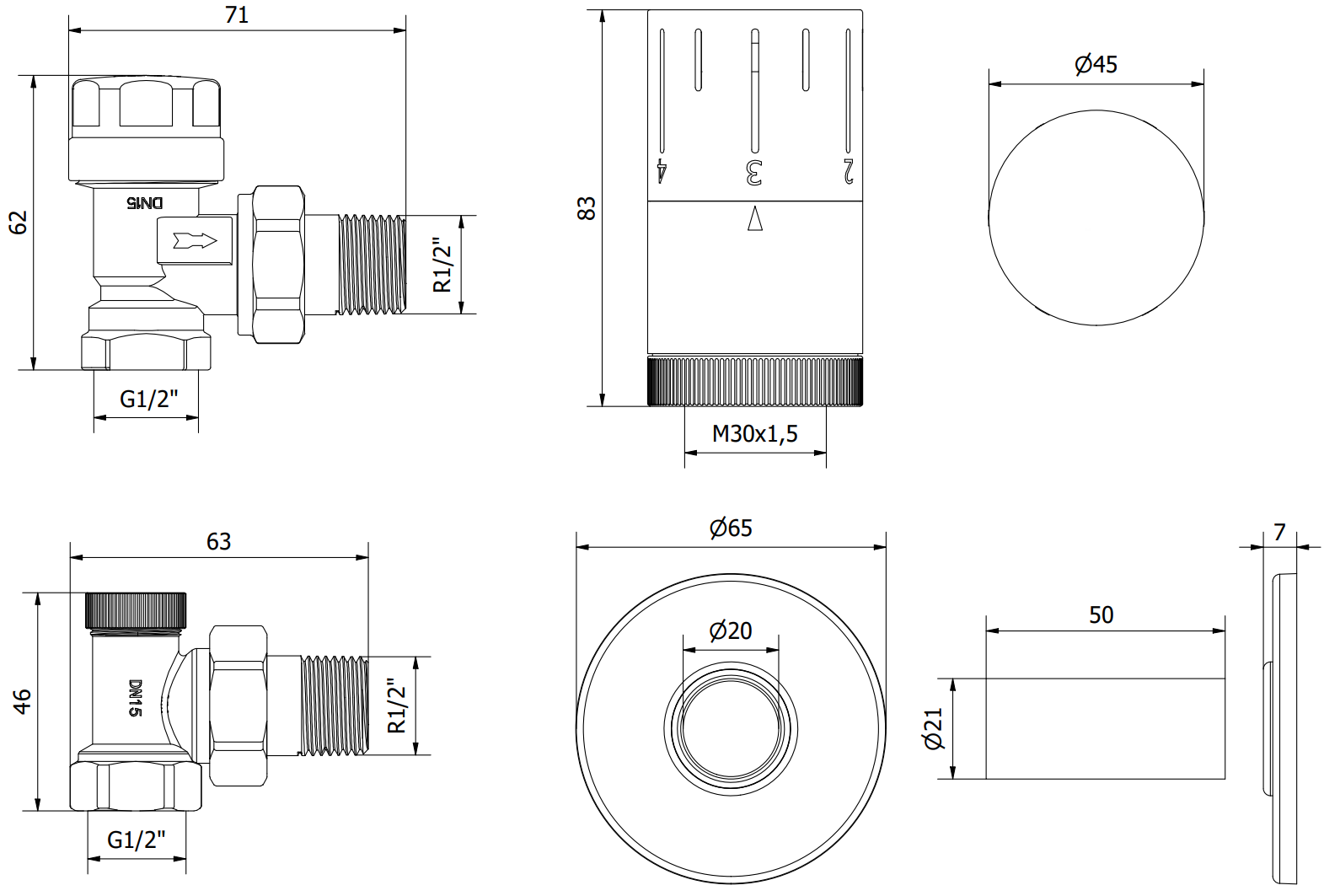

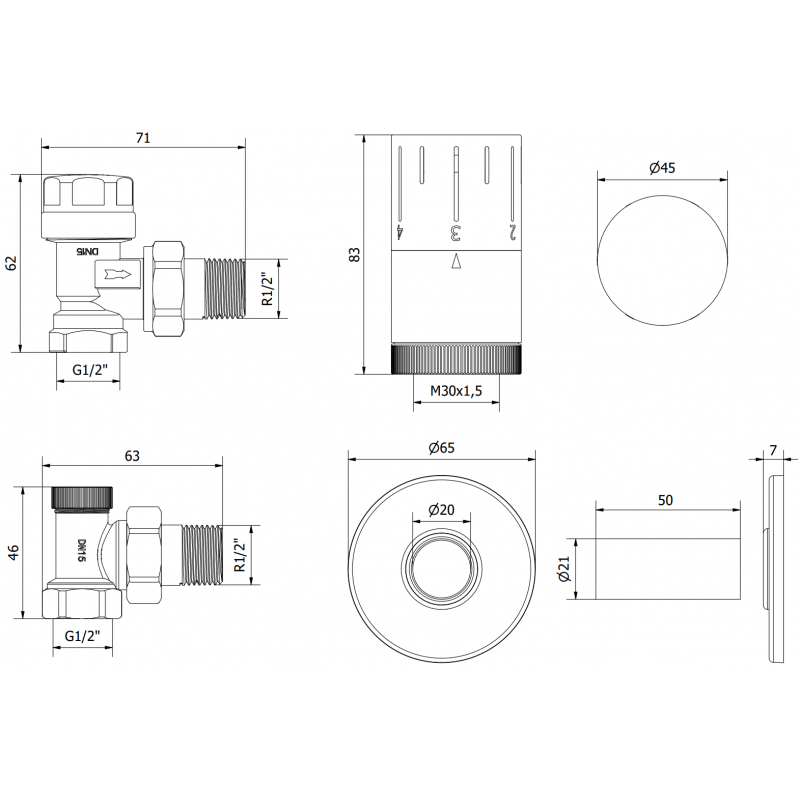

Technical data:

Valve material: Brass

Valve color: Anthracite

Valve connection diameter: G 1/2"

Operating temperature: max 120°C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: Anthracite

Scale of regulation: 0-5

Temperature regulation range: 0-29°C

Ambient temperature: max 50°C

Anti-freeze protection 5°C

Cover color: Anthracite

Rosette material: Stainless steel

Rosette outer diameter: 65 mm

Rosette height: 7 mm

Internal hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Bushing internal diameter: 20 mm

The cover consists of two single rosettes and a bushing

The set includes a supply and shut-off radiator valve

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Corner
Color
Anthracite
Connection Diameter
G 1/2"
Cover
Yes
Warranty conditions
Download
