Mexen G05 Thermostatic Set Angular with Cover R, Black - W901-958-904-70

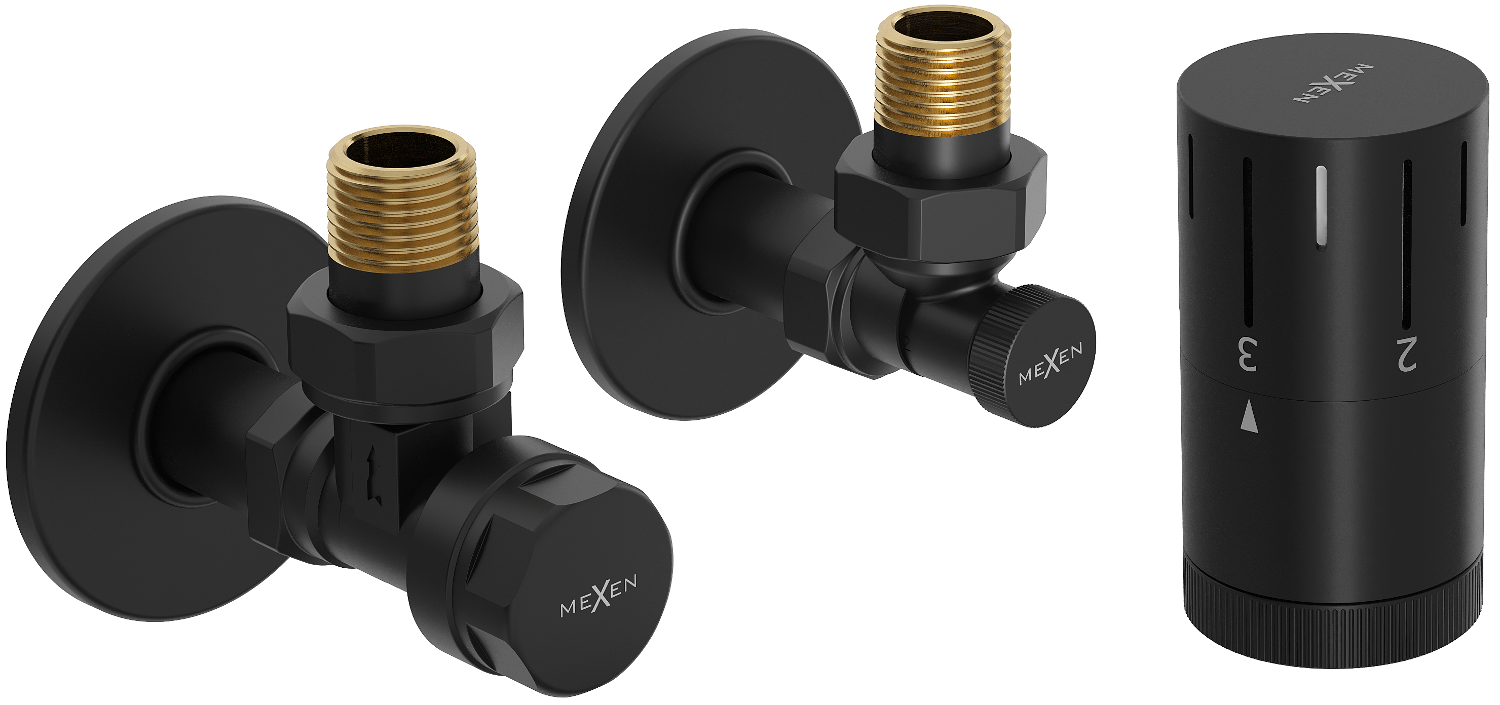

The Mexen G05 angular thermostatic set with cover R, black offers excellent temperature control thanks to its brass valves with an adjustment scale of 0-5. The anthracite color adds elegance, and the steel covers ensure durability. The product handles high pressure up to 10 bar and temperatures up to 120°C. The set includes a radiator supply and shut-off valve, and the cover consists of two cover plates and brass sleeves, ensuring an aesthetic finish.

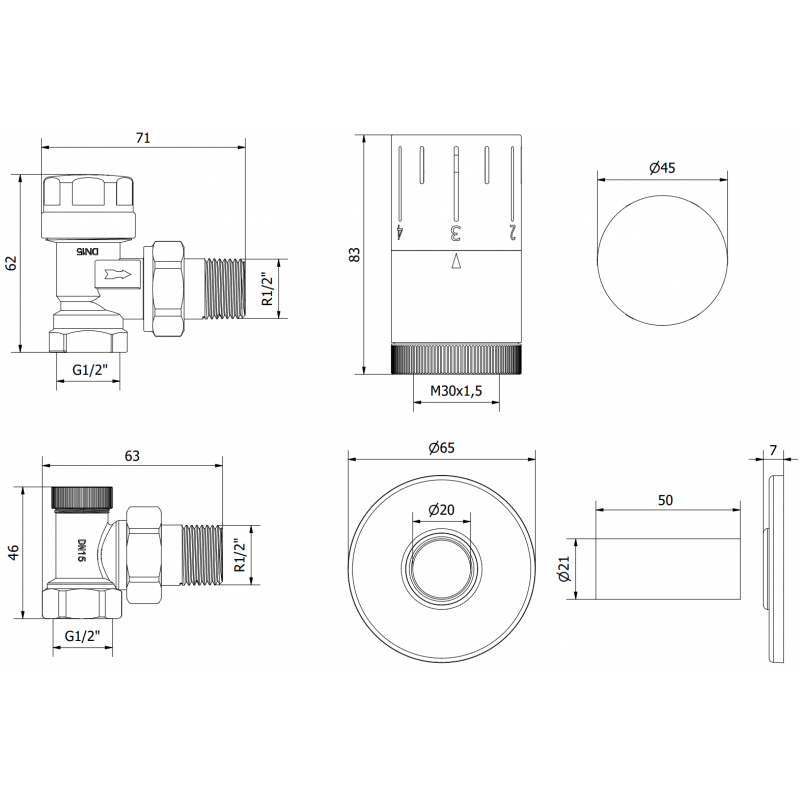

Technical data:

Valve material: Brass

Valve colour: Black

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Head thread: M30 x 1.5 mm

Head colour: Black

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover colour: Black

Cover plates material: Stainless steel

External diameter of cover plates: 65 mm

Height of cover plates: 7 mm

Internal hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Sleeve internal diameter: 20 mm

The cover consists of two single cover plates and a sleeve

The set includes a radiator supply and shut-off valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Practical Solution

A radiator masking set is a practical and aesthetic accessory that helps to conceal heating installation elements. This makes the radiator more discreet and the interior gains a tidier and more organized appearance.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.
