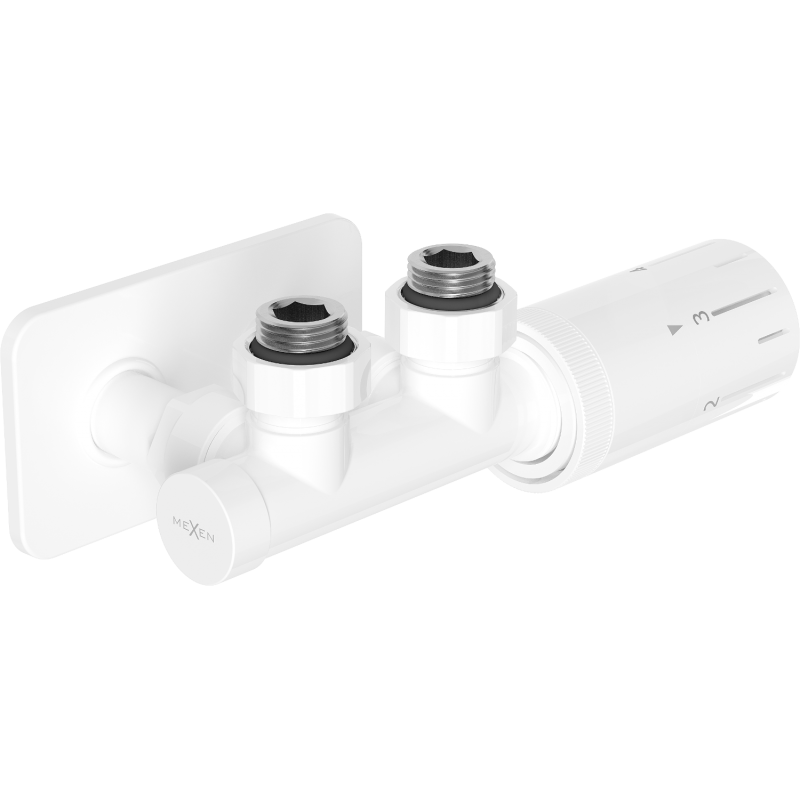

Mexen G05 angled thermostatic set with decorative cover S, Duplex, DN50, white - W907-958-910-20

Mexen G05 angled thermostatic set with decorative cover S, Duplex, DN50, white is an excellent choice for those who value functionality and aesthetics. Made from brass, it ensures durability and reliability. The white colour perfectly complements modern interiors. With a connection diameter of G 1/2" and a maximum operating temperature of up to 120°C, the set is versatile and effective. The decorative cover made of stainless steel and the ability to connect the head on both sides of the valve increase its practicality.

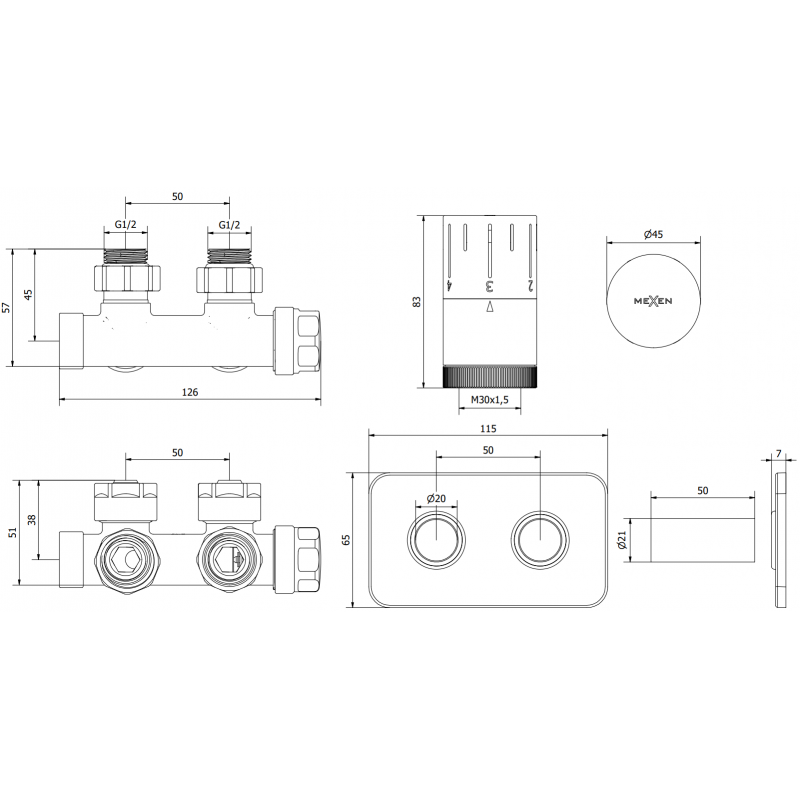

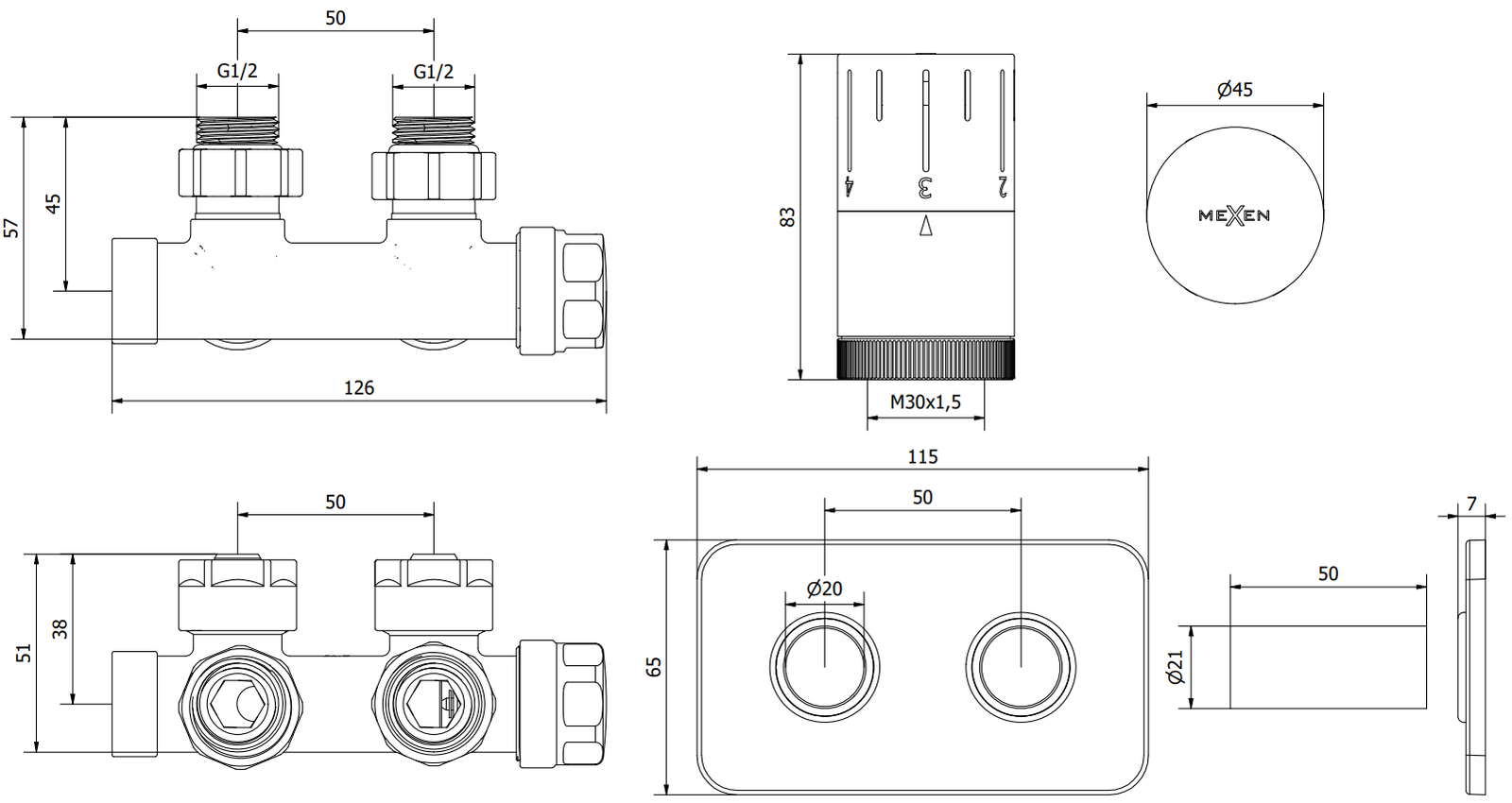

Technical specifications:

Valve material: Brass

Valve colour: White

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Radiator supply and shut-off valve

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head colour: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head on the left or right side of the valve

Decorative cover colour: White

Escutcheon material: Stainless steel

Escutcheon width: 115 x 65 mm

Escutcheon height: 7 mm

Internal hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Internal bushing diameter: 20 mm

Radiator connection spacing: 50 mm

The decorative cover consists of a double escutcheon and two bushings

Includes additional fittings for 16x2 mm multilayer pipes and 15 mm copper pipes

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Practical Solution

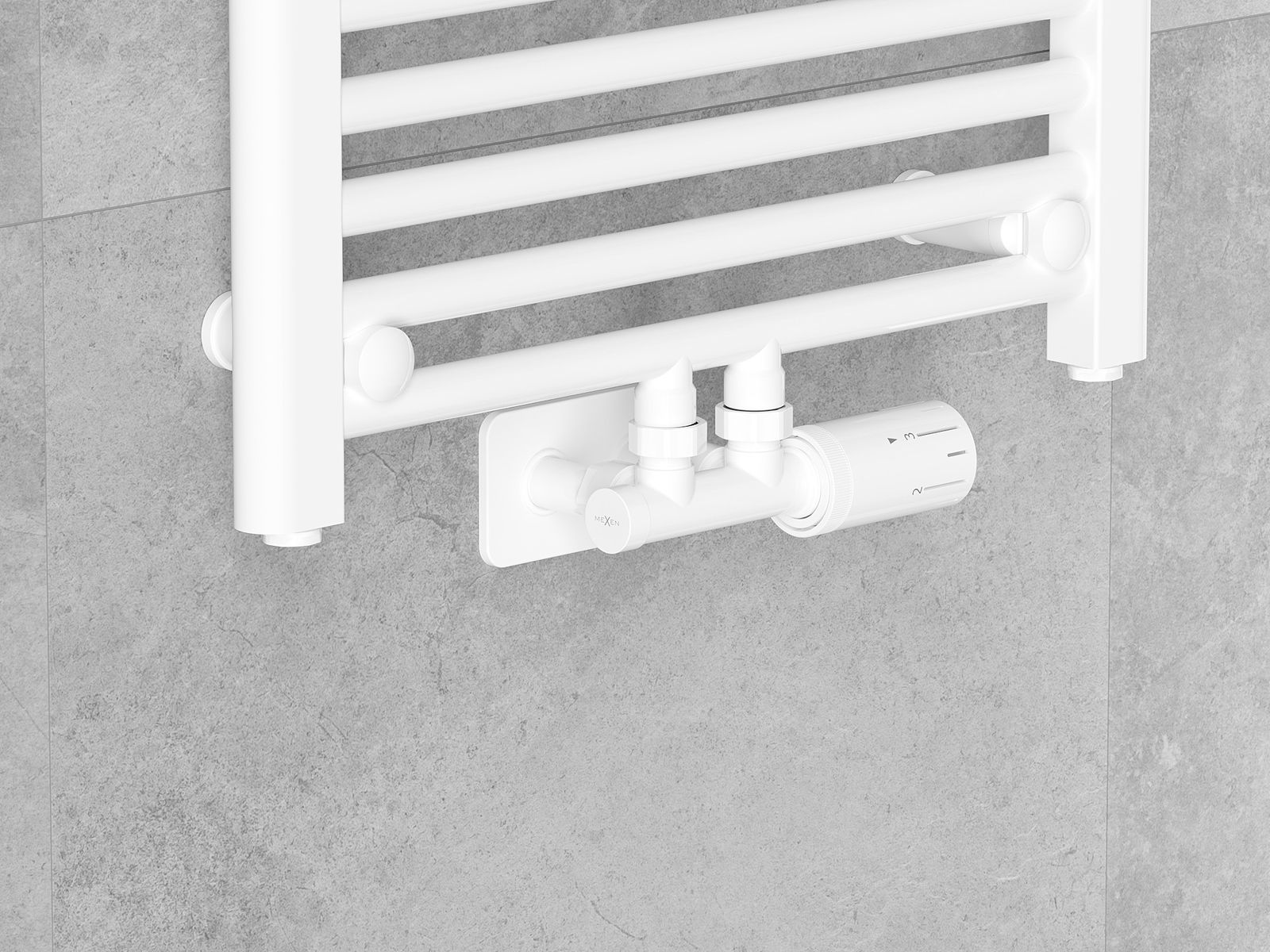

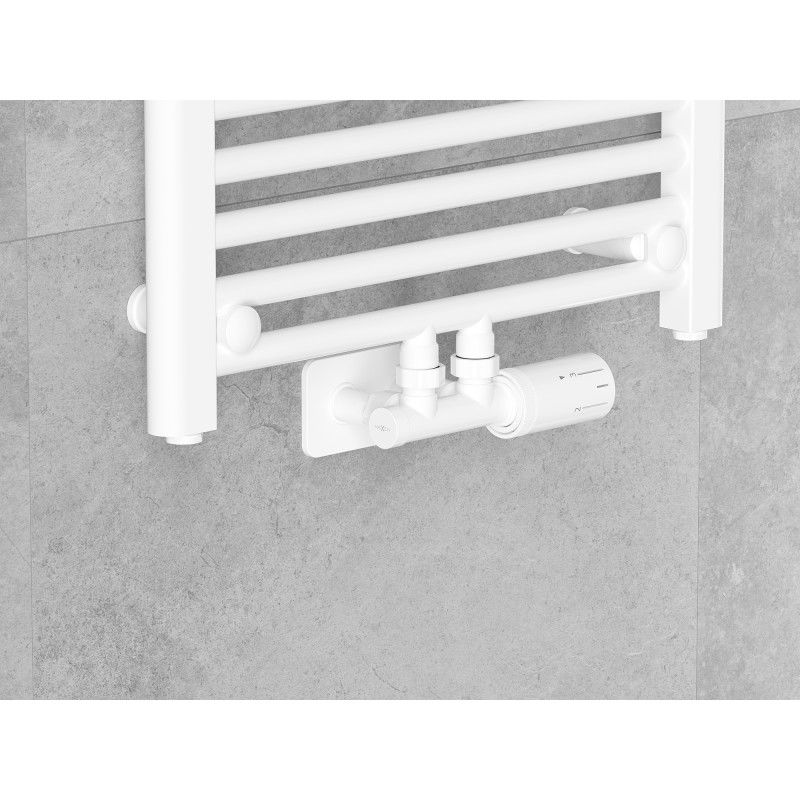

A radiator masking set is a practical and aesthetic accessory that helps to conceal heating installation elements. This makes the radiator more discreet and the interior gains a tidier and more organized appearance.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G05
Type
Angular
Colour
White
Connection diameter
G 1/2"
Cover
Yes
