Mexen G05 angled thermostatic set with S cover, Duplex, DN50, anthracite - W907-958-910-66

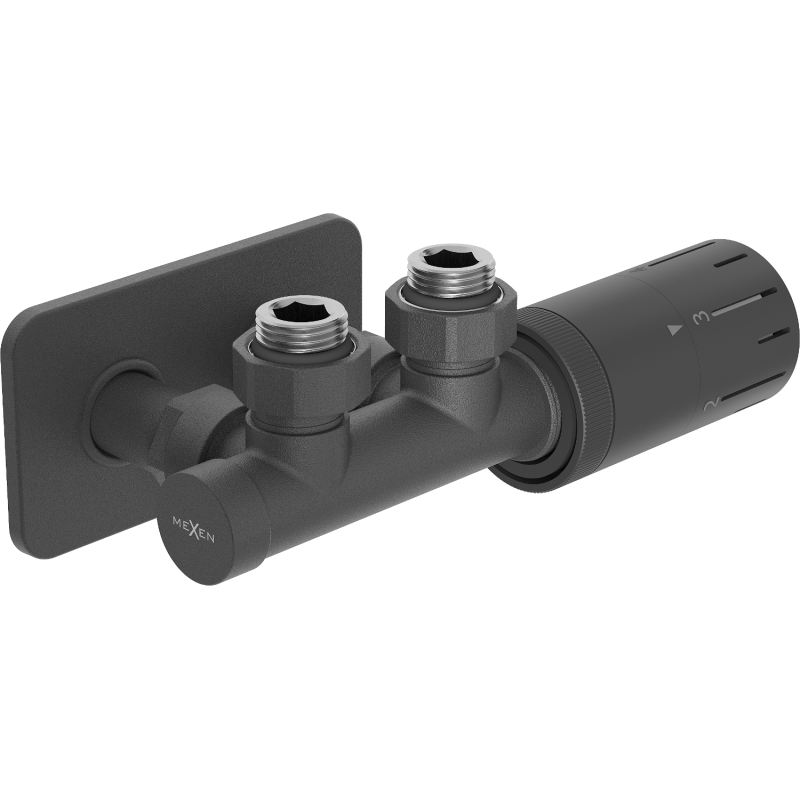

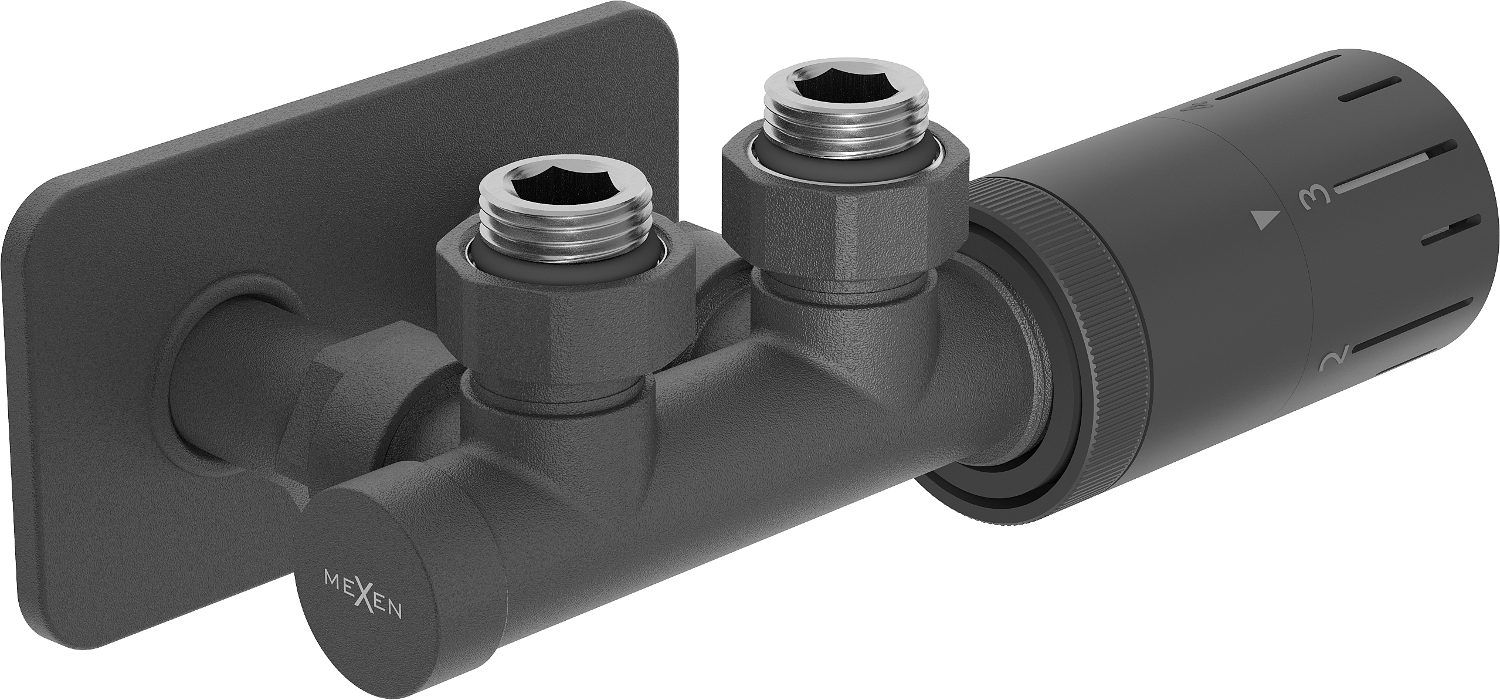

The Mexen G05 angled thermostatic set with S cover, Duplex, DN50, in anthracite colour, stands out for its high-quality craftsmanship. Made of brass, the valve is durable and resistant to high temperatures (up to 120°C) and working pressure up to 10 bars. The set includes a supply and shut-off radiator valve, with the possibility to connect the head from the left or right side. The stainless steel cover adds a touch of aesthetics. An ideal solution for modern heating systems.

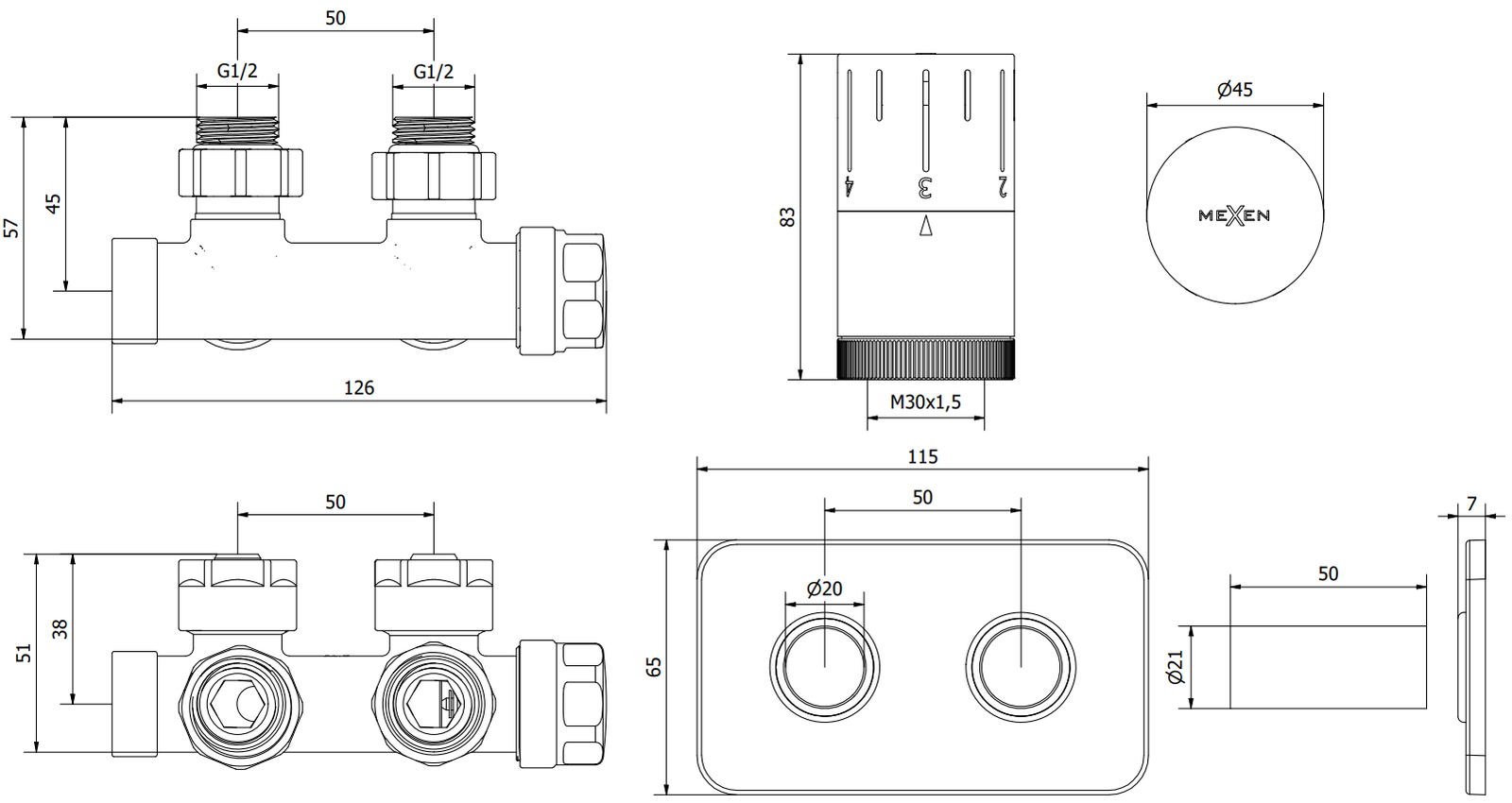

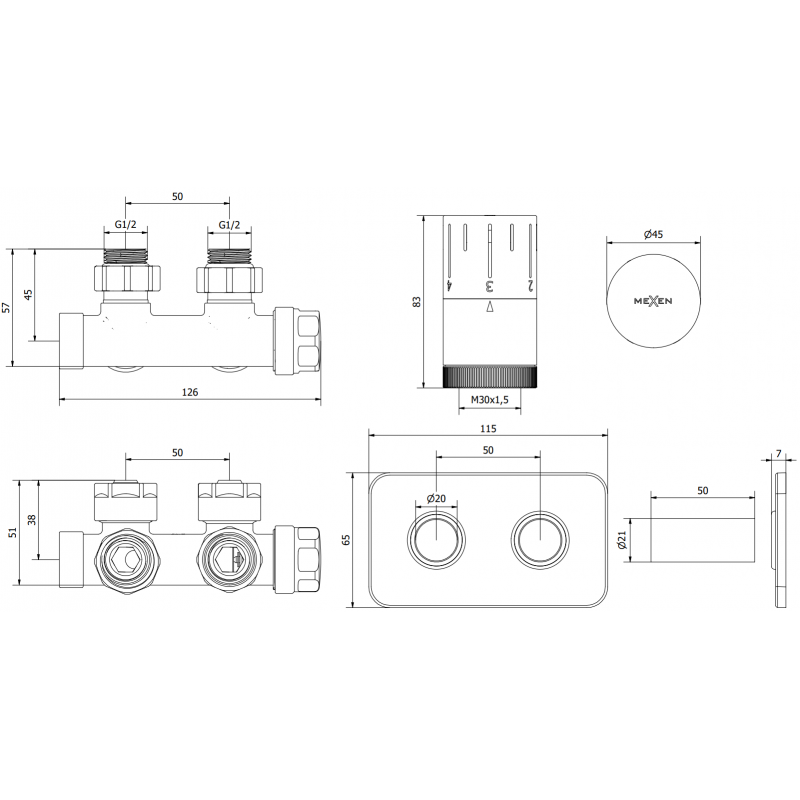

Technical data:

Valve material: Brass

Valve colour: Anthracite

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Supply and shut-off radiator valve

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head colour: Anthracite

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head from the left or right side of the valve

Cover colour: Anthracite

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Internal hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Internal diameter of bushings: 20 mm

Spacing of holes for radiator connections: 50 mm

The cover consists of a double rosette and two sleeves

Includes additional connectors for 16x2 mm multilayer pipes and connectors for 15 mm copper pipes

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the operating pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe functioning in systems with relatively high pressure.

Practical Solution

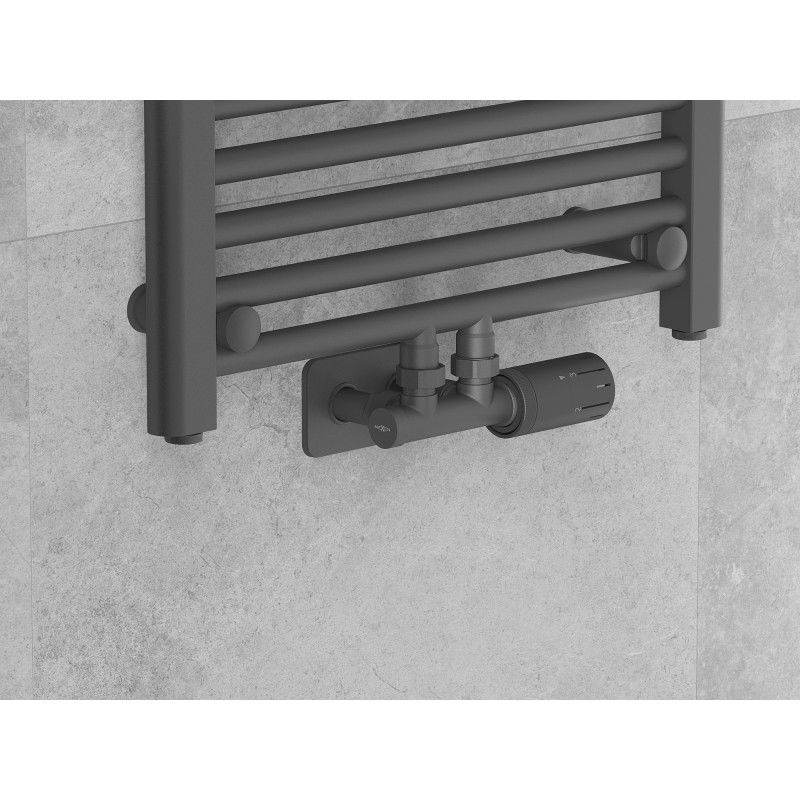

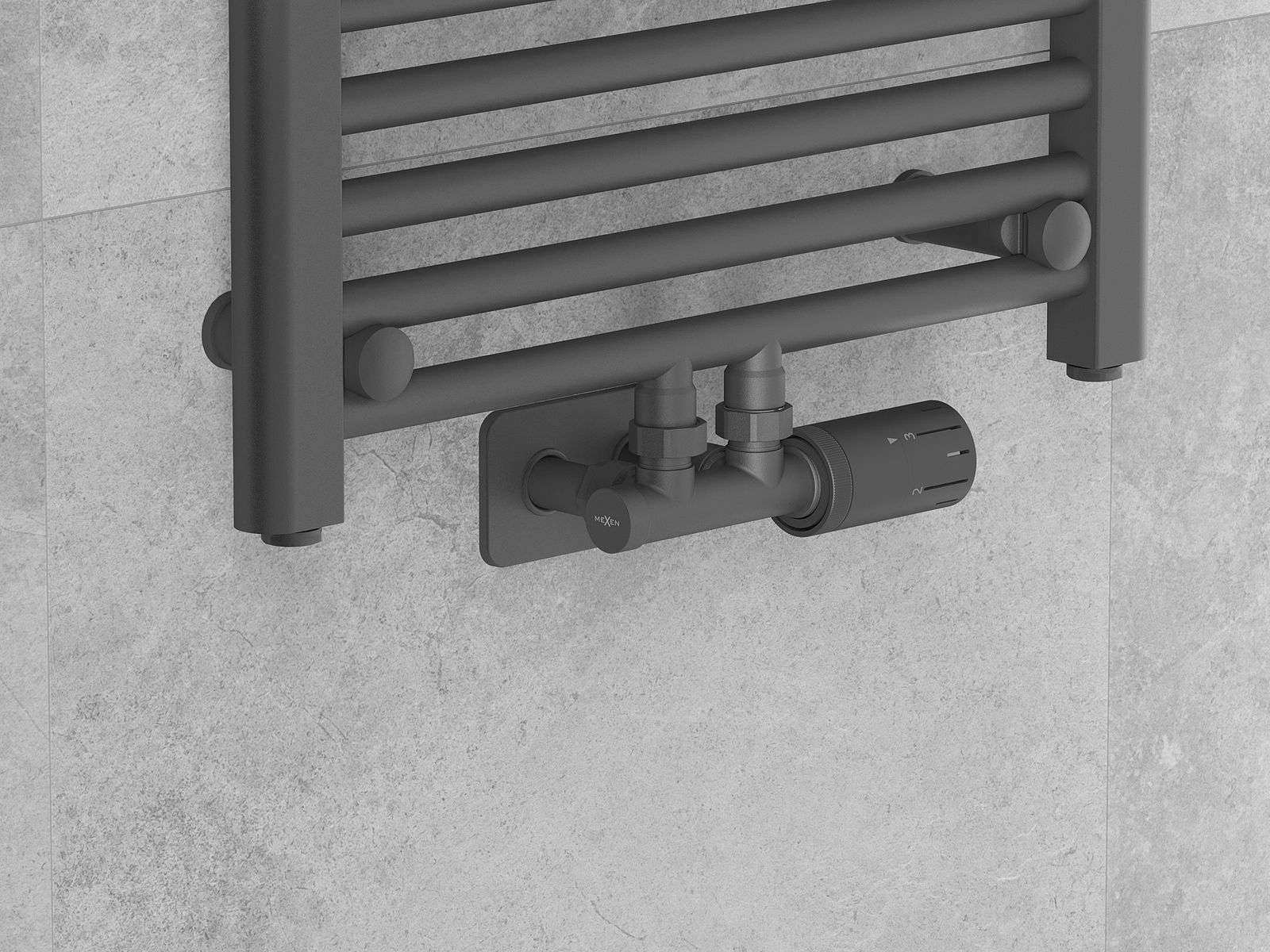

A radiator masking set is a practical and aesthetic accessory that helps to conceal heating installation elements. This makes the radiator more discreet and the interior gains a tidier and more organized appearance.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.
