Mexen G05 angled thermostatic set with cover R, Duplex, DN50, chrome - W907-958-905-01
Mexen G05 angled thermostatic set with cover R, Duplex, DN50, chrome - W907-958-905-01 Mexen G05 angled thermostatic set with cover R, Duplex, DN50, chrome - W907-958-905-01 Mexen G05 angled thermostatic set with cover R, Duplex, DN50, chrome - W907-958-905-01
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Series:
G05
Ean:
5905315237729
Index:
W907-958-905-01
Type:
Angle
Series:
G05
Color:
Chrome
Inlet Diameter:
G 1/2"
Color - Chrome - ()

Mexen G05 angled thermostatic set with cover R, Duplex, DN50, chrome - W907-958-905-01

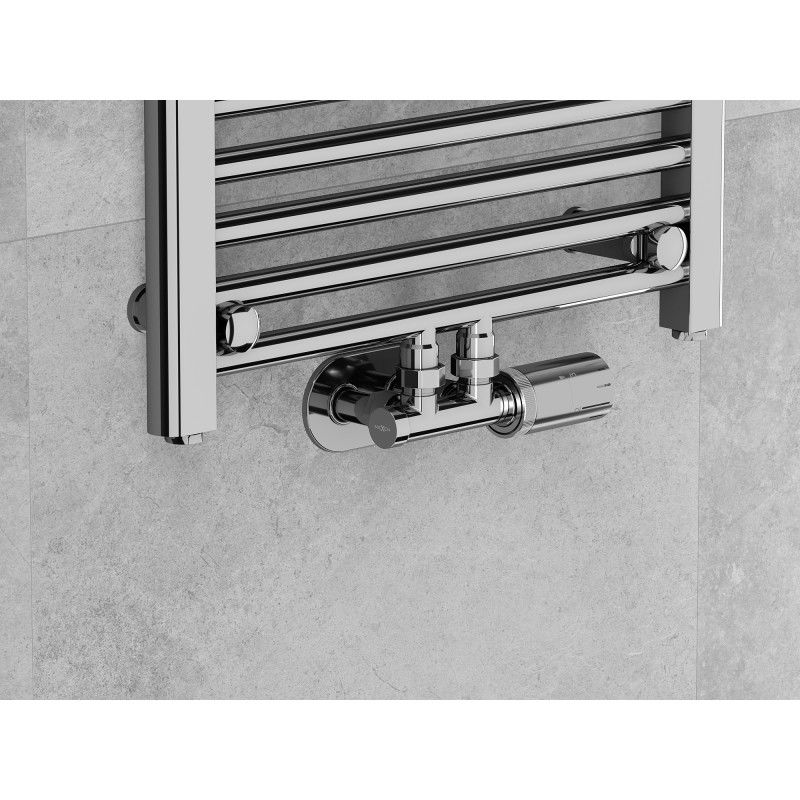

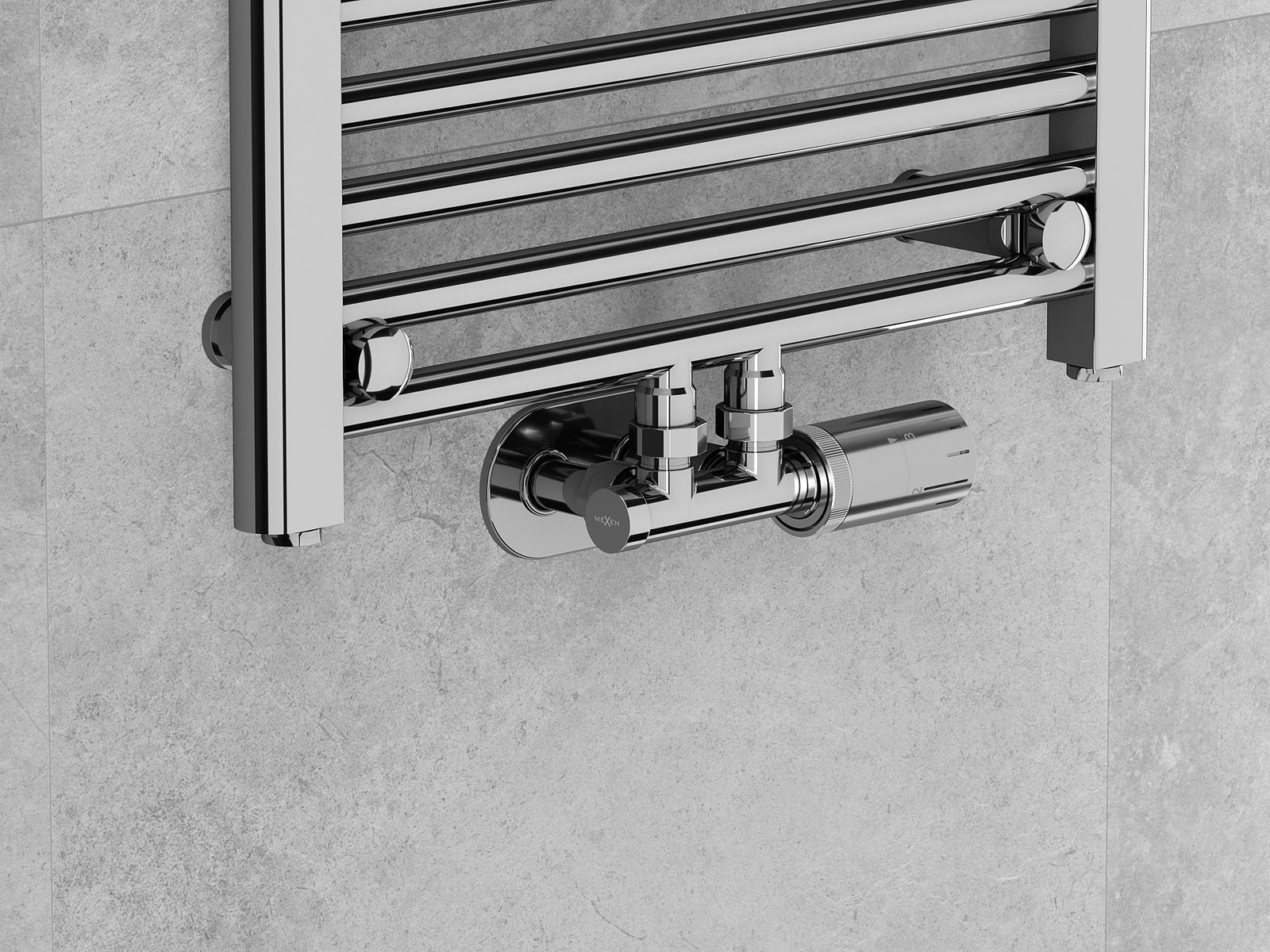

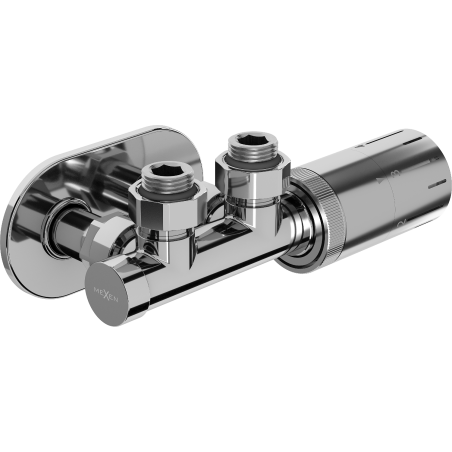

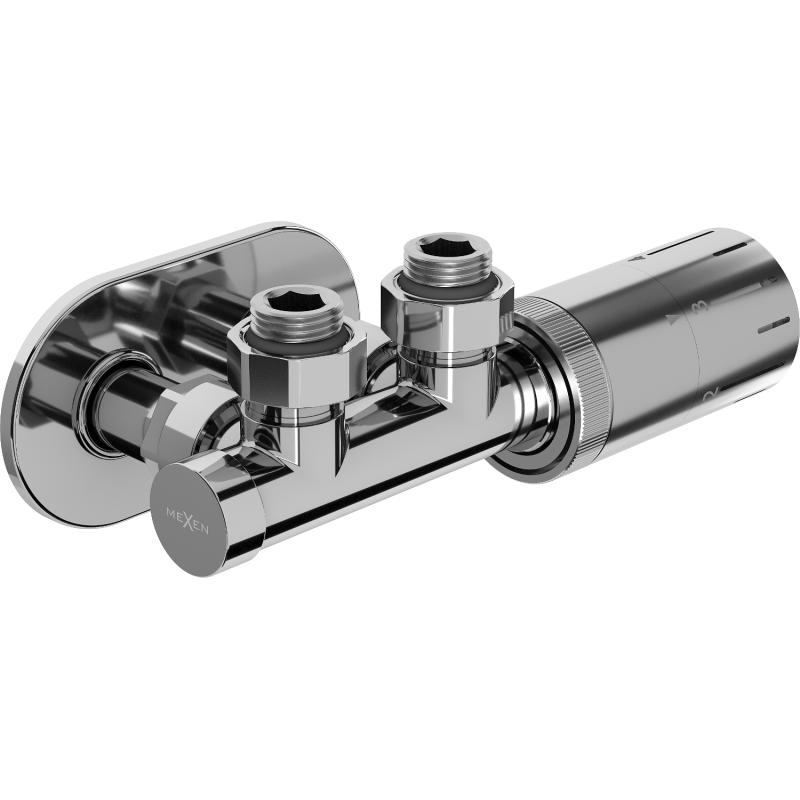

The Mexen G05 angled thermostatic set with cover R, Duplex, DN50, chrome is a unique product combining aesthetics and functionality. Made of brass, this chrome-plated set ensures durability and an elegant appearance. It features a supply and shut-off radiator valve, a bottom connection with a spacing of 50 mm, and a head with temperature regulation in the range of 0-29°C. With frost protection and the option to connect the head from the left or right side, it is ideal for modern heating installations.

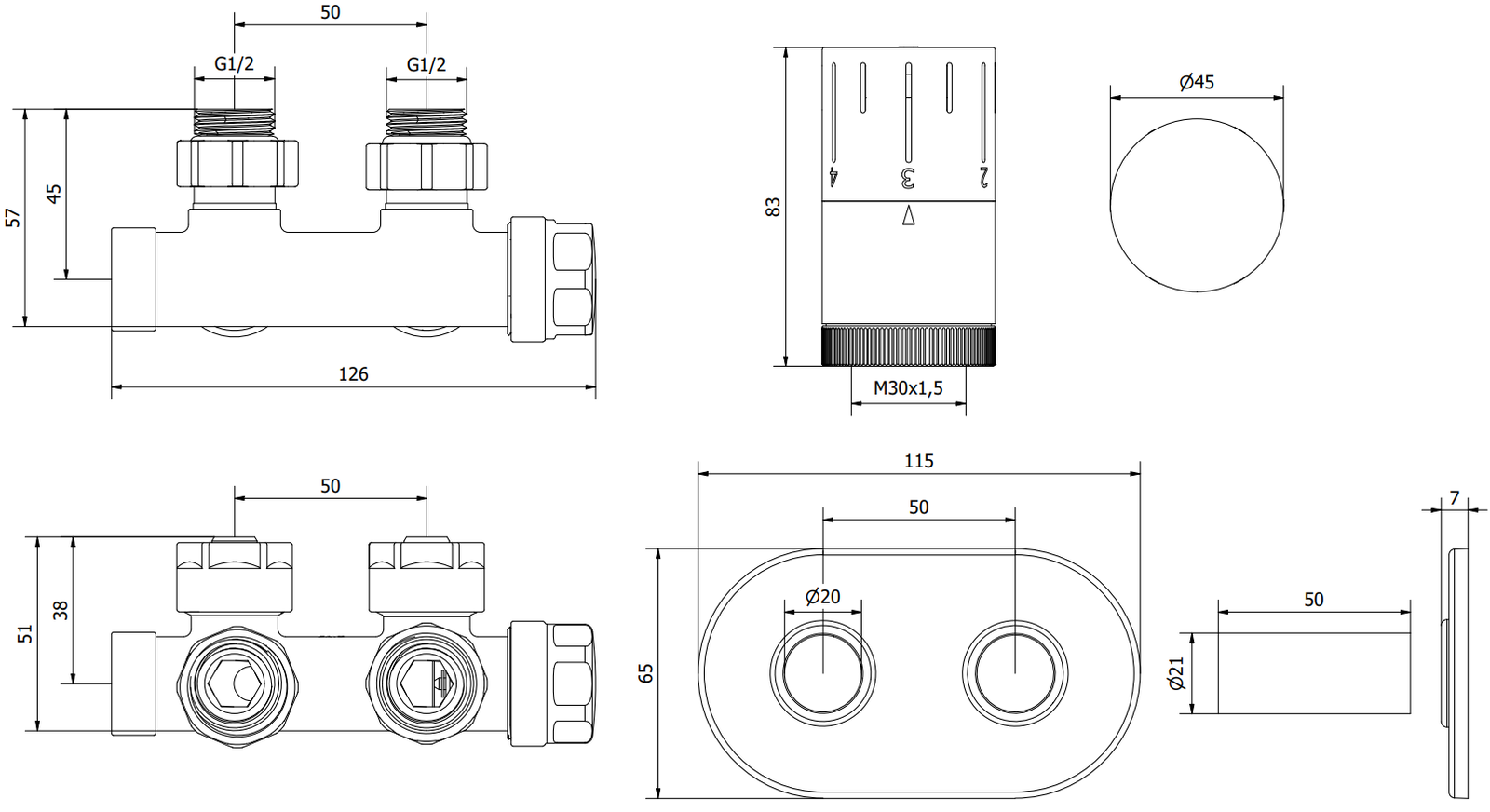

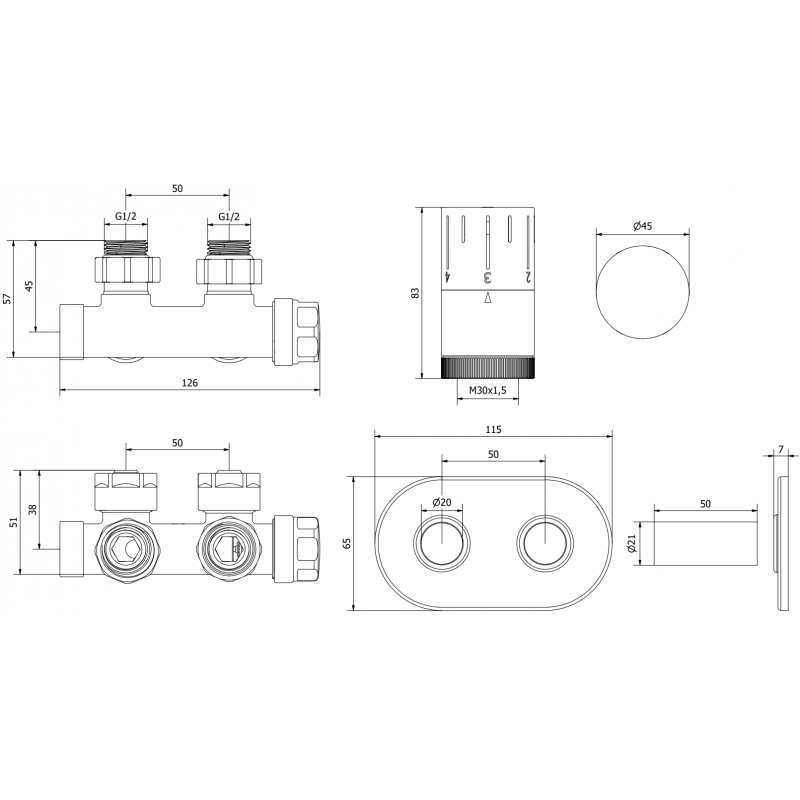

Technical data:

Valve material: Brass

Valve colour: Chrome

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Supply and shut-off radiator valve

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head colour: Chrome

Adjustment scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility to connect the head from the left or right side of the valve

Cover colour: Chrome

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Diameter of the internal hole: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Internal diameter of the bushings: 20 mm

Spacing of holes for radiator connections: 50 mm

The cover consists of a double rosette and two bushings

The set includes additional connectors for multilayer pipes 16x2 mm and connectors for copper pipes 15 mm

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Practical Solution

A radiator masking set is a practical and aesthetic accessory that helps to conceal heating installation elements. This makes the radiator more discreet and the interior gains a tidier and more organized appearance.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G05
Type
Angle
Color
Chrome
Inlet Diameter
G 1/2"
Cover
Yes
User manual - radiator valve
Download
User manual - thermostatic head
Download
Safety Information - Radiator Valve
Download
Safety information - thermostatic head
Download
Warranty conditions
Download
Manufacturer
See
