Mexen G05 angled thermostatic set with S cover, white - W901-958-909-20
Mexen G05 angled thermostatic set with S cover, white - W901-958-909-20 Mexen G05 angled thermostatic set with S cover, white - W901-958-909-20
Brass Brass
Frost Protection Frost Protection
Temperature Regulation Temperature Regulation
Brand:
Mexen
Series:
G05
Ean:
5905315237835
Index:
W901-958-909-20
Type:
Angular
Series:
G05
Color:
White
Connection diameter:
G 1/2"
Color - White - ()

Mexen G05 angled thermostatic set with S cover, white - W901-958-909-20

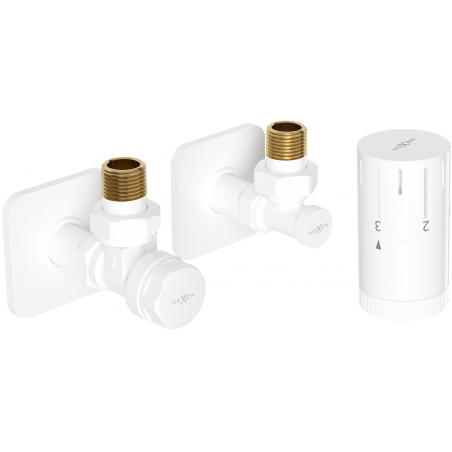

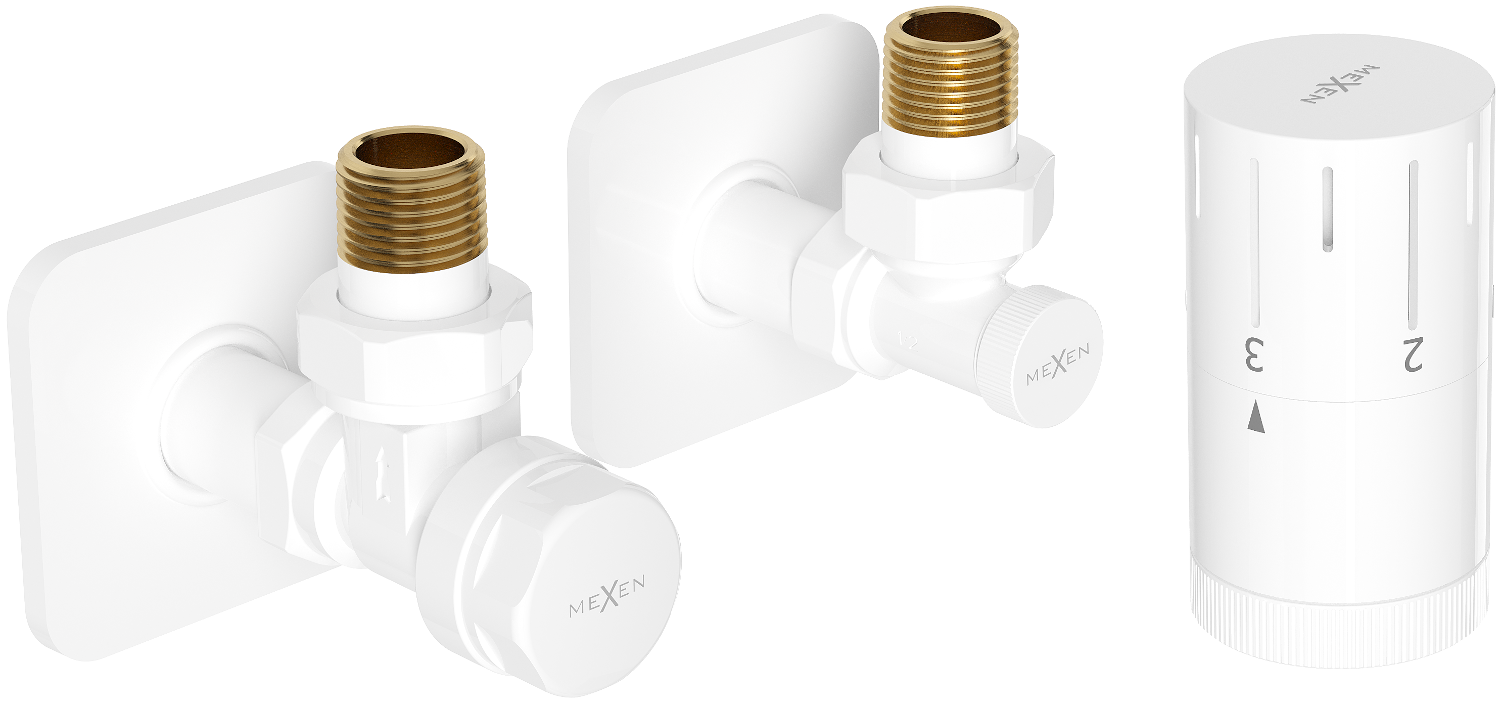

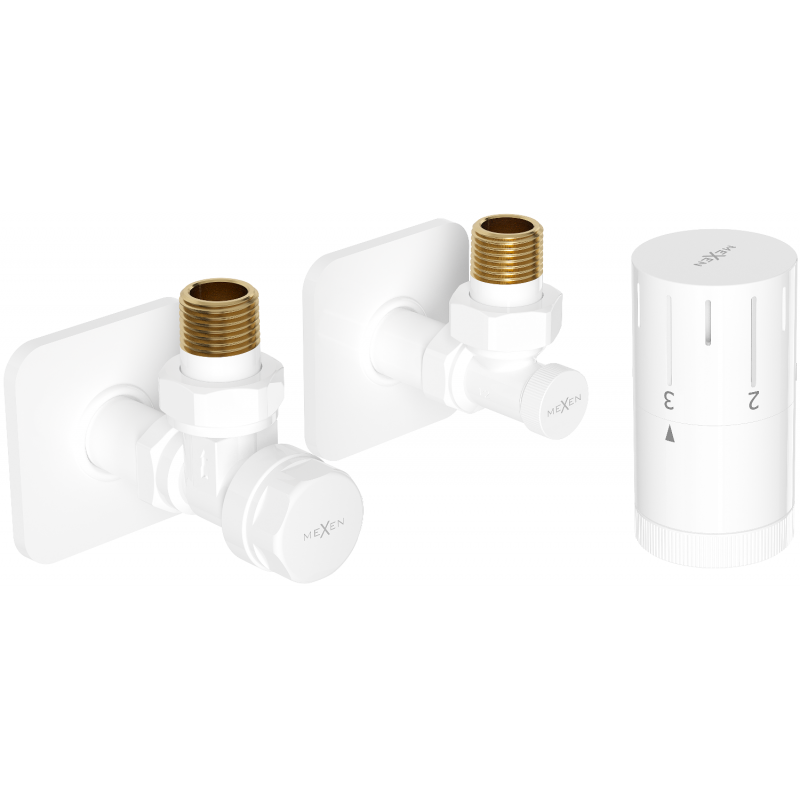

Mexen G05 angled thermostatic set with S cover, white offers unmatched benefits for any heating system. Made of durable brass and stainless steel, it ensures long life and reliability. The white colour of the set and aesthetic cover blend perfectly with modern interiors. With an adjustment scale of 0-5 and a temperature regulation range from 0 to 29 °C, it allows precise heat control. Additionally, the frost protection and high operating temperature of up to 120 °C enhance its functionality.

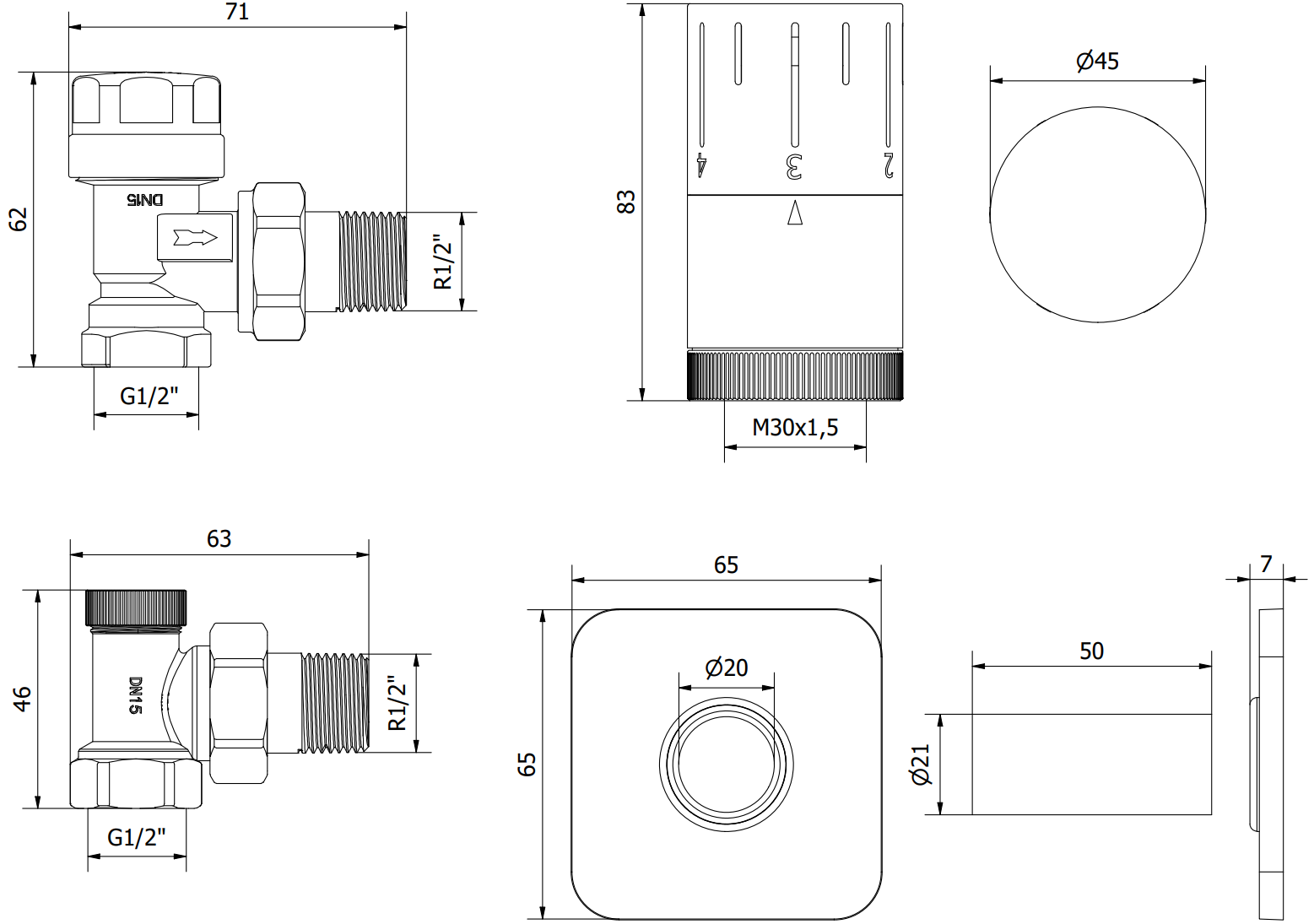

Technical data:

Valve material: Brass

Valve colour: White

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head colour: White

Adjustment scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover colour: White

Rosette material: Stainless steel

Rosette width: 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Inner sleeve diameter: 20 mm

The cover consists of two single rosettes and a sleeve

The set includes a supply and shut-off radiator valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the operating pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe functioning in systems with relatively high pressure.

Practical Solution

A radiator masking set is a practical and aesthetic accessory that helps to conceal heating installation elements. This makes the radiator more discreet and the interior gains a tidier and more organized appearance.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.
