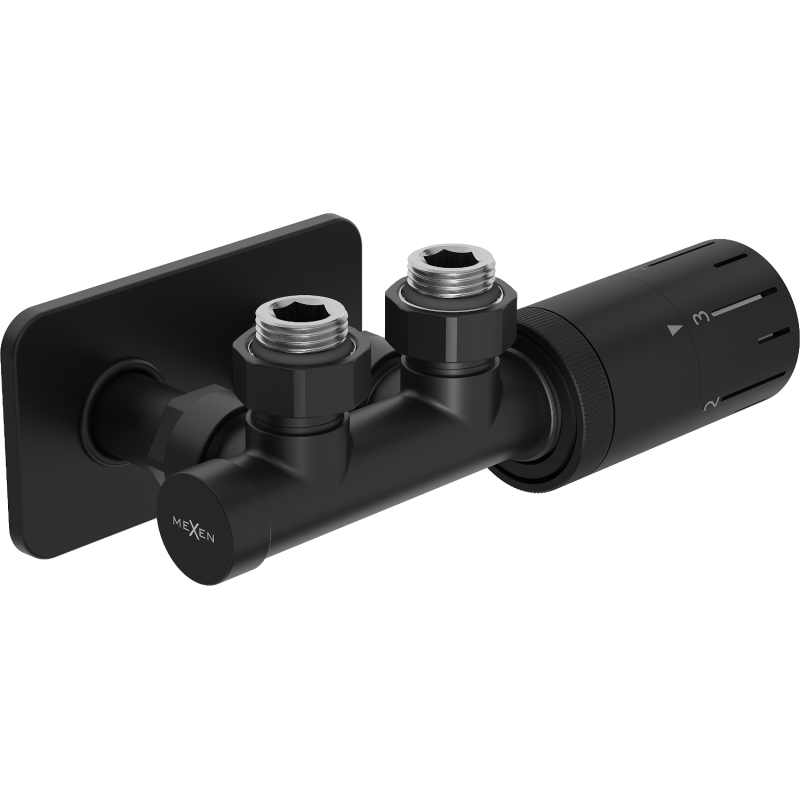

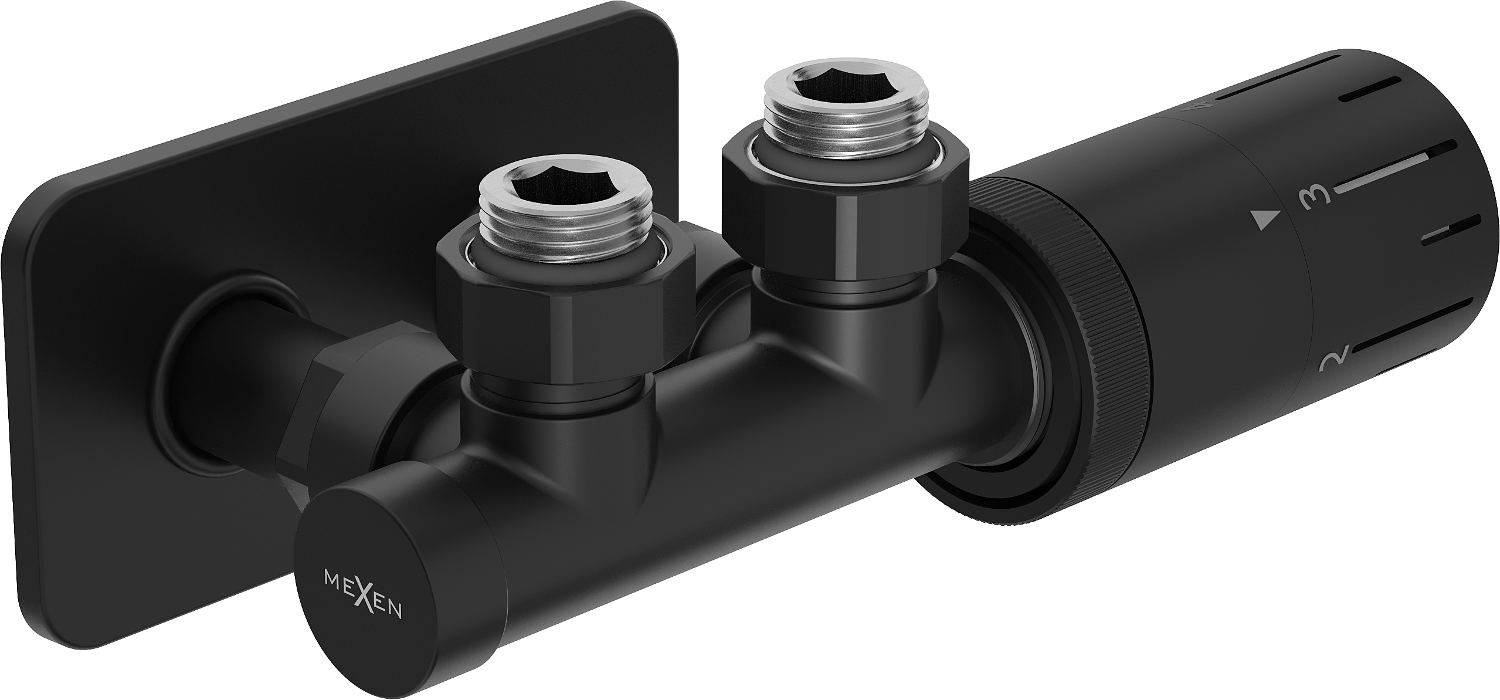

Mexen G05 angular thermostatic set with S cover, Duplex, DN50, black - W907-958-910-70
(0)
Questions
(0)

Mexen G05 angular thermostatic set with S cover, Duplex, DN50, black - W907-958-910-70

Mexen G05 angular thermostatic set with S cover, Duplex, DN50, black - W907-958-910-70
search
  • Mexen G05 angular thermostatic set with S cover, Duplex, DN50, black - W907-958-910-70
  • Mexen G05 angular thermostatic set with S cover, Duplex, DN50, black - W907-958-910-70
  • Mexen G05 angular thermostatic set with S cover, Duplex, DN50, black - W907-958-910-70
Mexen G05 angular thermostatic set with S cover, Duplex, DN50, black - W907-958-910-70
Mexen G05 angular thermostatic set with S cover, Duplex, DN50, black - W907-958-910-70 Mexen G05 angular thermostatic set with S cover, Duplex, DN50, black - W907-958-910-70 Mexen G05 angular thermostatic set with S cover, Duplex, DN50, black - W907-958-910-70
Brand:
Mexen
Seria:
G05
Ean:
5905315238016
Index:
W907-958-910-70
Color:
Black
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G05
Color - Black - ()

Mexen G05 angular thermostatic set with S cover, Duplex, DN50, black - W907-958-910-70

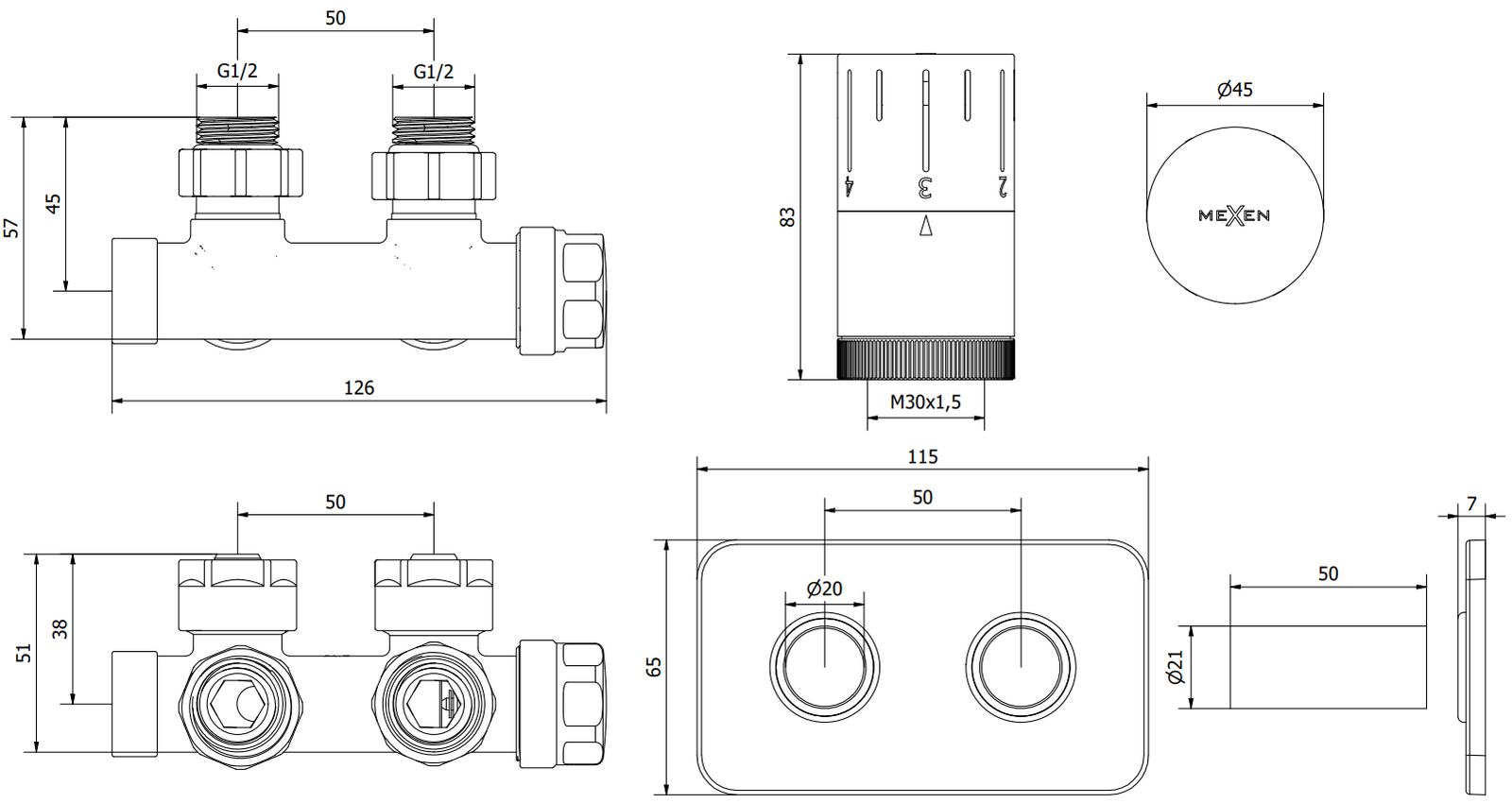

Technical data:

Valve material: Brass

Valve color: Black

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Supply and shut-off radiator valve

Bottom connection with spacing of 50 mm

Head thread: M30 x 1.5 mm

Head color: Black

Regulation scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Head can be connected to the left or right side of the valve

Cover color: Black

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Height of the rosette: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Inner sleeve diameter: 20 mm

Radiator connector hole spacing: 50 mm

The cover consists of a double rosette and two sleeves

The set includes additional connectors for multilayer pipes 16x2 mm and connectors for copper pipes 15 mm

Innovative solutions used in this product

2-year warranty

The product is covered by a 2-year warranty. If you have any problems with the purchased product, please contact us via the contact form or by calling our hotline.

Serial
G05
Type
Corner
Color
Black
Connection Diameter
G 1/2"
Cover
Yes
