Mexen G05 corner thermostatic set with R cover plate, Duplex, DN50, chrome - W907-958-905-01
Mexen G05 corner thermostatic set with R cover plate, Duplex, DN50, chrome - W907-958-905-01 Mexen G05 corner thermostatic set with R cover plate, Duplex, DN50, chrome - W907-958-905-01 Mexen G05 corner thermostatic set with R cover plate, Duplex, DN50, chrome - W907-958-905-01
Brand:
Mexen
Seria:
G05
Ean:
5905315237729
Index:
W907-958-905-01
Color:
Chrome
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G05
Color - Chrome - ()

Mexen G05 corner thermostatic set with R cover plate, Duplex, DN50, chrome - W907-958-905-01

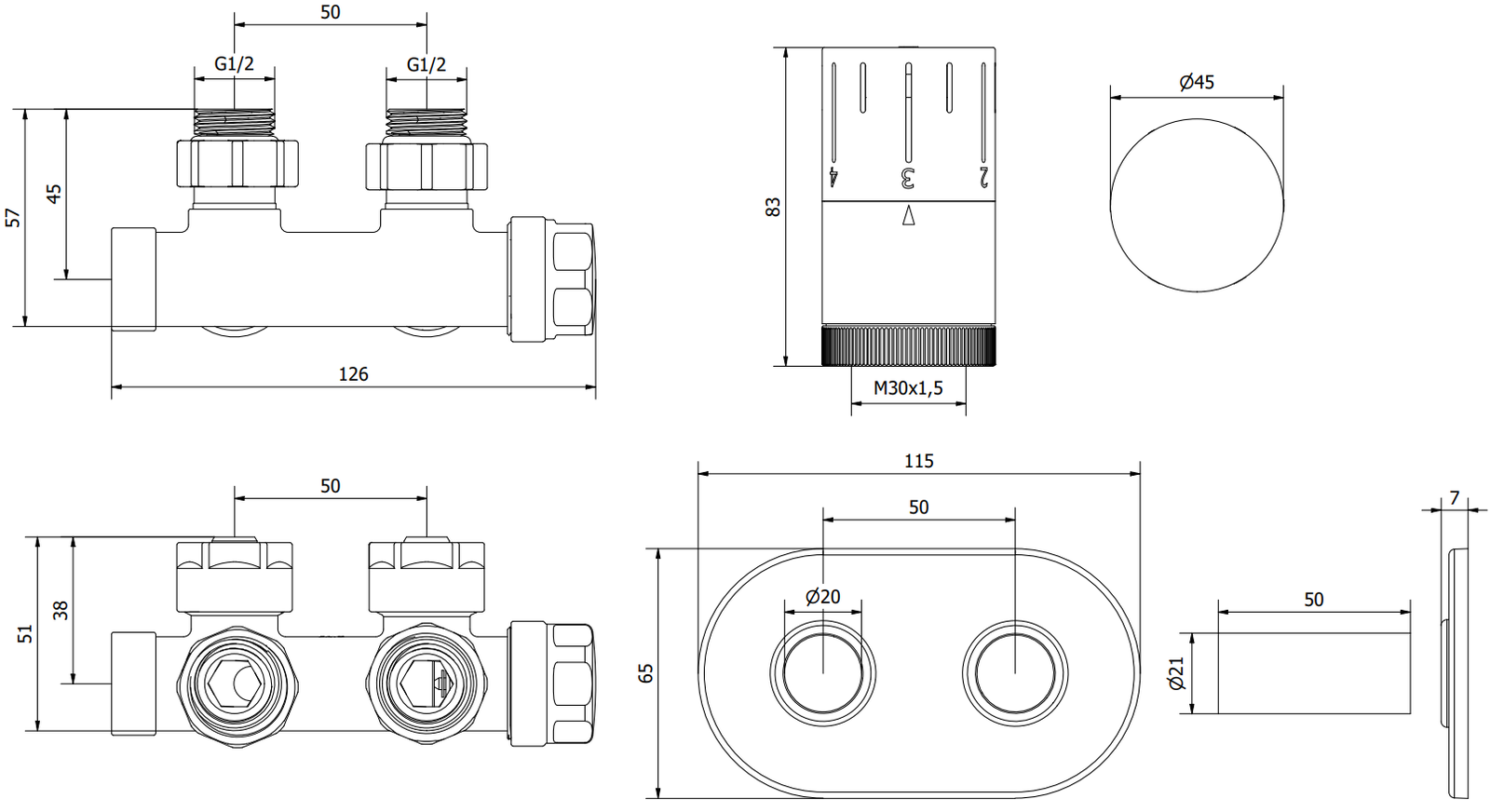

Technical data:

Valve material: Brass

Valve color: Chrome

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Radiator supply and shut-off valve

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head color: Chrome

Adjustment scale: 0-5

Temperature range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possible to connect the head on either side of the valve

Cover plate color: Chrome

Cover plate material: Stainless steel

Cover plate width: 115 x 65 mm

Cover plate height: 7 mm

Internal hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Internal sleeve diameter: 20 mm

Distance between radiator connection holes: 50 mm

The cover plate consists of a double rosette and two sleeves

Includes additional connectors for 16x2 mm multilayer pipes and 15 mm copper pipe connectors

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Corner
Color
Chrome
Connection Diameter
G 1/2"
Cover
Yes
