Mexen G05 angled thermostatic set with cover S, Duplex, DN50, chrome - W907-958-910-01
Mexen G05 angled thermostatic set with cover S, Duplex, DN50, chrome - W907-958-910-01 Mexen G05 angled thermostatic set with cover S, Duplex, DN50, chrome - W907-958-910-01 Mexen G05 angled thermostatic set with cover S, Duplex, DN50, chrome - W907-958-910-01
Brand:
Mexen
Seria:
G05
Ean:
5905315237972
Index:
W907-958-910-01
Color:
Chrome
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G05
Color - Chrome - ()

Mexen G05 angled thermostatic set with cover S, Duplex, DN50, chrome - W907-958-910-01

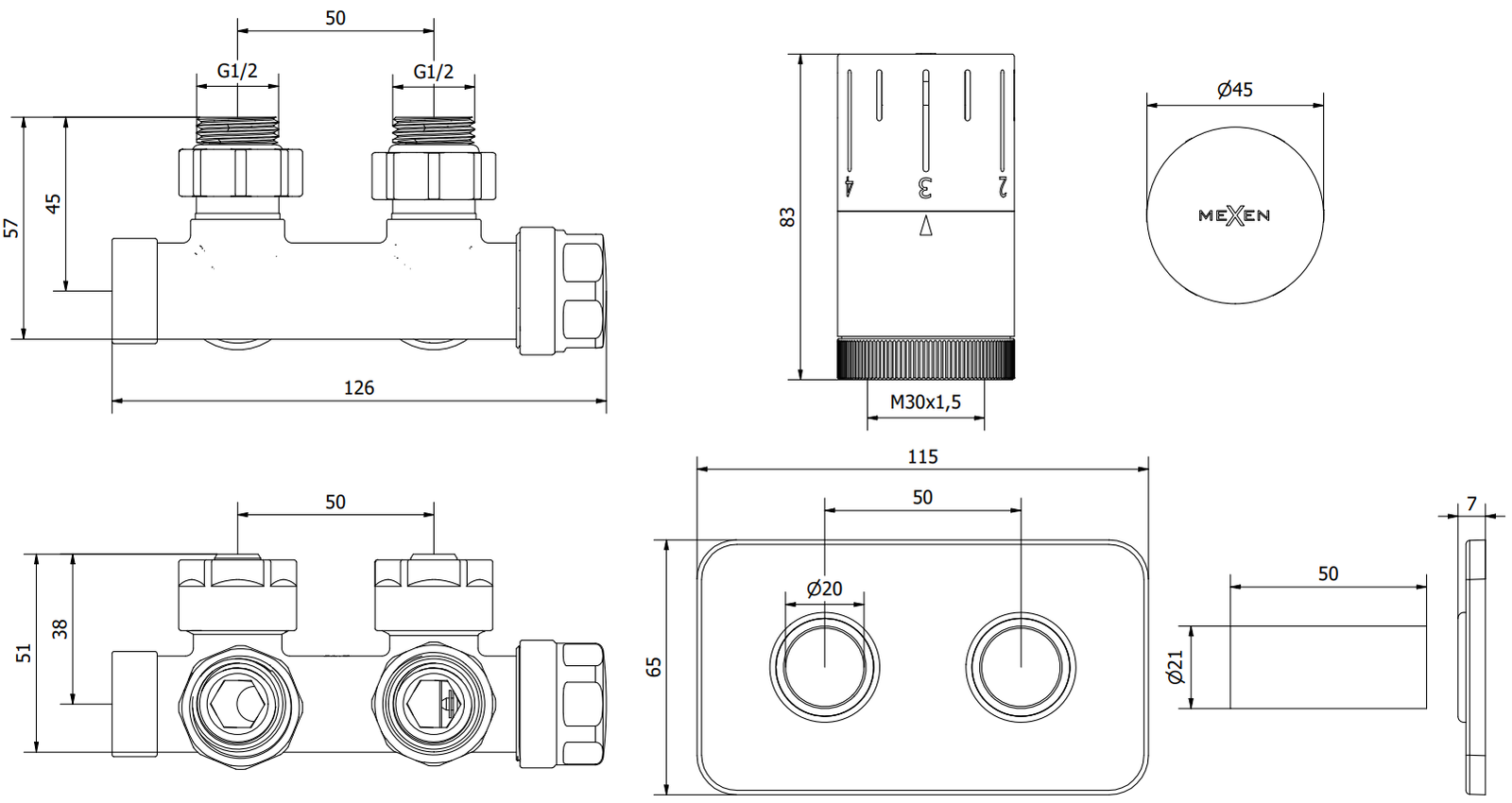

Technical data:

Valve material: Brass

Valve color: Chrome

Valve connector diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Supply and shut-off radiator valve

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head color: Chrome

Regulation scale: 0-5

Temperature range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Option to connect the head on the left or right side of the valve

Cover color: Chrome

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Internal hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Internal bushing diameter: 20 mm

Spacing of the holes for radiator connections: 50 mm

The cover consists of a double rosette and two bushings

Includes additional fittings for 16x2 mm multilayer pipes and fittings for 15 mm copper pipes

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Corner
Color
Chrome
Connection Diameter
G 1/2"
Cover
Yes
