Mexen G05 angled/straight thermostatic set with R cover, Duplex, DN50, gold - W908-958-905-50

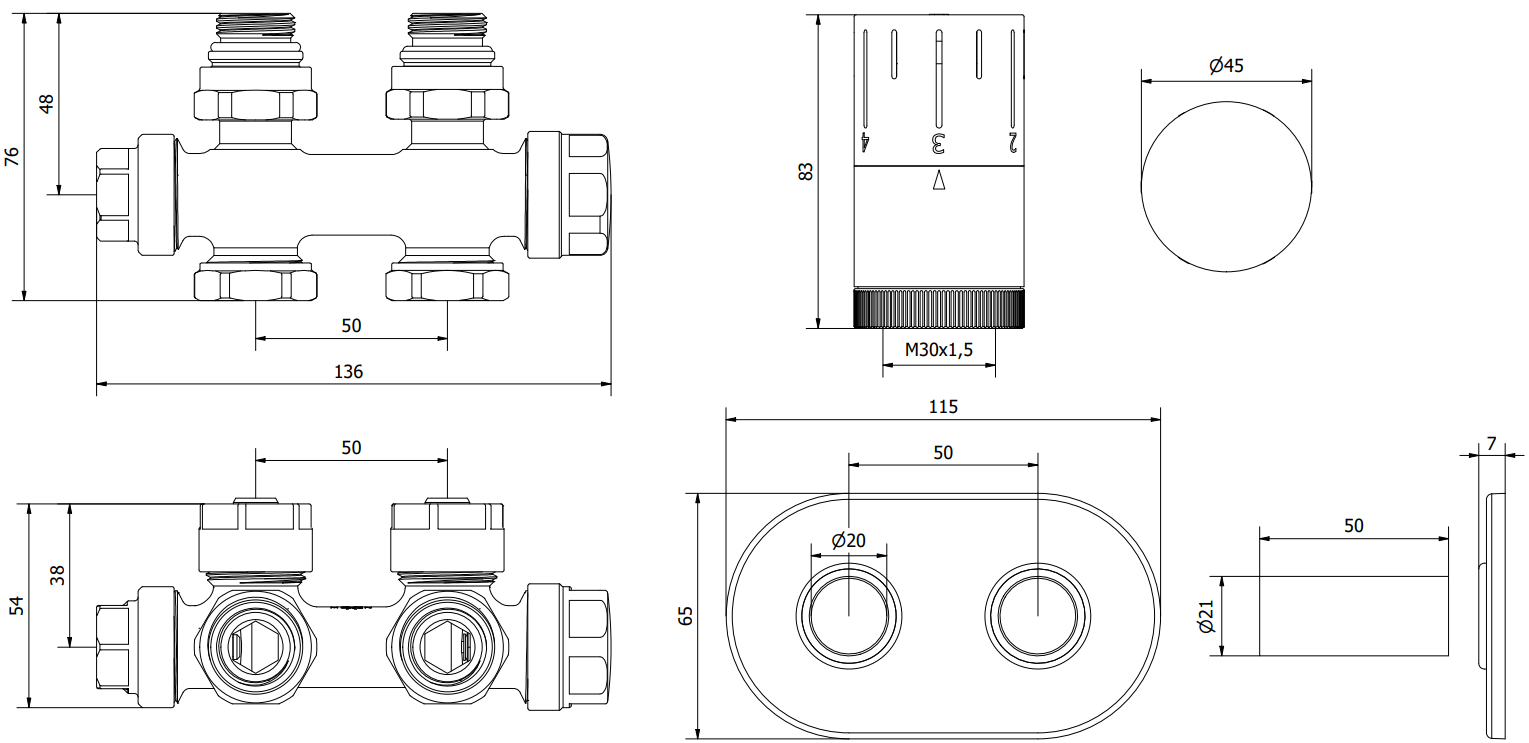

Technical data:

Valve material: Brass

Valve color: Gold

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head color: Gold

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection at 5°C

Possibility to connect the head on the left or right side of the valve

Cover color: Gold

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Inner sleeve diameter: 20 mm

Spacing of radiator connection holes: 50 mm

The cover consists of a double rosette and two sleeves

The set includes additional connectors for multi-layer pipes 16x2 mm and copper pipe connectors 15 mm

Universal supply and shut-off valve for angled and straight connections

regardless of whether the connection is in the wall or floor

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Simple , Corner
Color
Gold
Connection Diameter
G 1/2"
Cover
Yes
