Mexen G05 set thermostat angular/straight with cover S, Duplex, DN50, anthracite - W908-958-910-66
(0)
Questions
(0)

Mexen G05 set thermostat angular/straight with cover S, Duplex, DN50, anthracite - W908-958-910-66

Mexen G05 set thermostat angular/straight with cover S, Duplex, DN50, anthracite - W908-958-910-66
search
  • Mexen G05 set thermostat angular/straight with cover S, Duplex, DN50, anthracite - W908-958-910-66
  • Mexen G05 set thermostat angular/straight with cover S, Duplex, DN50, anthracite - W908-958-910-66
  • Mexen G05 set thermostat angular/straight with cover S, Duplex, DN50, anthracite - W908-958-910-66
Mexen G05 set thermostat angular/straight with cover S, Duplex, DN50, anthracite - W908-958-910-66
Mexen G05 set thermostat angular/straight with cover S, Duplex, DN50, anthracite - W908-958-910-66 Mexen G05 set thermostat angular/straight with cover S, Duplex, DN50, anthracite - W908-958-910-66 Mexen G05 set thermostat angular/straight with cover S, Duplex, DN50, anthracite - W908-958-910-66
Brand:
Mexen
Seria:
G05
Ean:
5905315238054
Index:
W908-958-910-66
Color:
Anthracite
Connection Diameter:
G 1/2"
Type:
Simple
Type:
Corner
Color - Anthracite - ()

Mexen G05 set thermostat angular/straight with cover S, Duplex, DN50, anthracite - W908-958-910-66

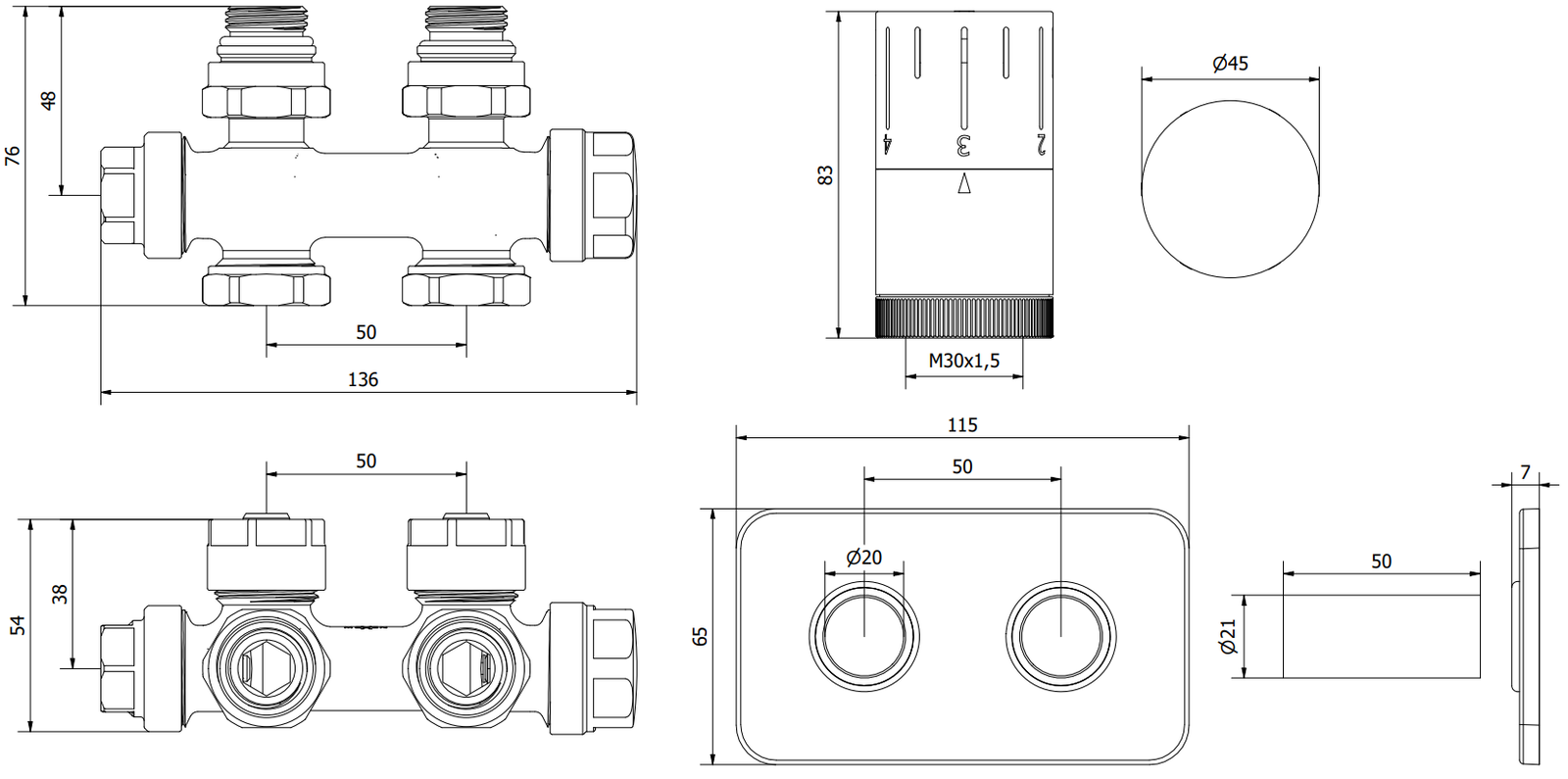

Technical data:

Valve material: Brass

Valve color: Anthracite

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1.5 mm

Head color: Anthracite

Adjustment scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility of connecting the head to the left or right side of the valve

Cover color: Anthracite

Cover material: Stainless steel

Cover width: 115 x 65 mm

Cover height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Inner diameter of sleeves: 20 mm

Spacing of holes for radiator connections: 50 mm

The cover consists of a double rosette and two sleeves

The kit includes additional connectors for 16x2 mm multilayer pipes and connectors for 15 mm copper pipes

Universal supply and cut-off valve for angular and straight connections, regardless of whether the connection is in the wall or in the floor

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Simple , Corner
Color
Anthracite
Connection Diameter
G 1/2"
Cover
Yes
Warranty conditions
Download
Manufacturer
See
