Mexen G05 angled/straight thermostatic set with R masking, Duplex, DN50, chrome - W908-958-905-01
Mexen G05 angled/straight thermostatic set with R masking, Duplex, DN50, chrome - W908-958-905-01 Mexen G05 angled/straight thermostatic set with R masking, Duplex, DN50, chrome - W908-958-905-01 Mexen G05 angled/straight thermostatic set with R masking, Duplex, DN50, chrome - W908-958-905-01
Brand:
Mexen
Seria:
G05
Ean:
5905315237774
Index:
W908-958-905-01
Color:
Chrome
Connection Diameter:
G 1/2"
Type:
Simple
Type:
Corner
Color - Chrome - ()

Mexen G05 angled/straight thermostatic set with R masking, Duplex, DN50, chrome - W908-958-905-01

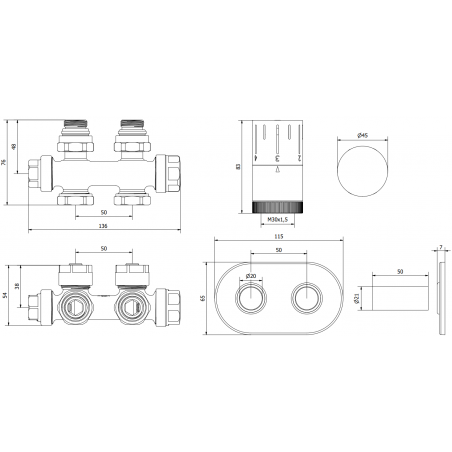

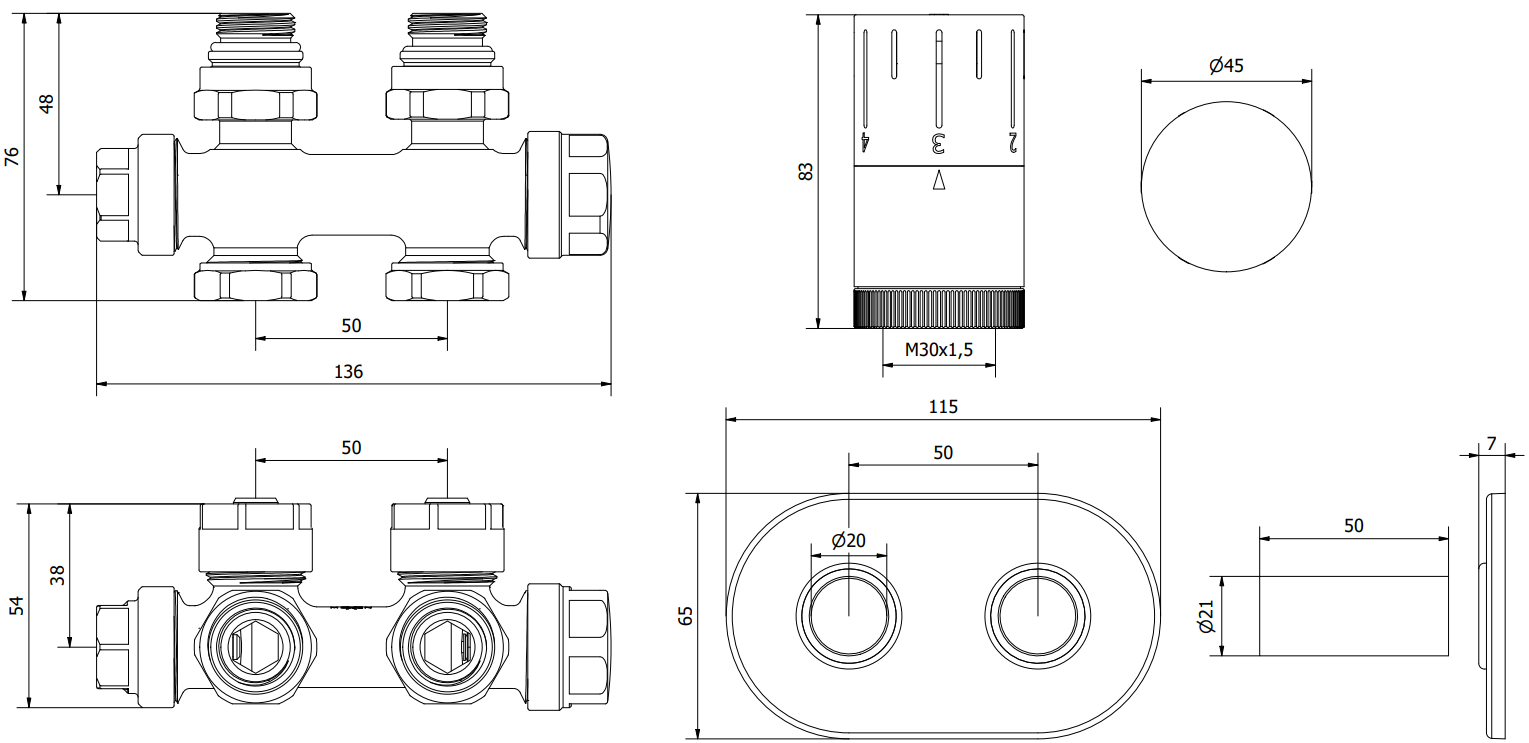

Technical data:

Valve material: Brass

Valve color: Chrome

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum operating pressure: 10 bar

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1,5 mm

Head color: Chrome

Adjustment scale: 0-5

Temperature range: 0-29 °C

Ambient temperature: max 50 °C

Anti-freeze protection 5°C

Possibility to connect the head to the left or right side of the valve

Mask color: Chrome

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Tube material: Brass

Tube length: 50 mm

Inner diameter of the tubes: 20 mm

Distance between radiator connection holes: 50 mm

The mask consists of a double rosette and two tubes

Includes additional connectors for multi-layer pipes 16x2 mm and connectors for copper pipes 15 mm

Universal supply and shut-off valve for angled and straight connections, regardless of whether the connection is in the wall or in the floor

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Simple , Corner
Color
Chrome
Connection Diameter
G 1/2"
Cover
Yes
