Brand:
Mexen
Seria:
G05
Ean:
5905315238061
Index:
W908-958-910-70
Color:
Black
Connection Diameter:
G 1/2"
Type:
Simple
Type:
Corner
Color - Black - ()

Mexen G05 thermostatic set angled/straight with S masking, Duplex, DN50, black - W908-958-910-70

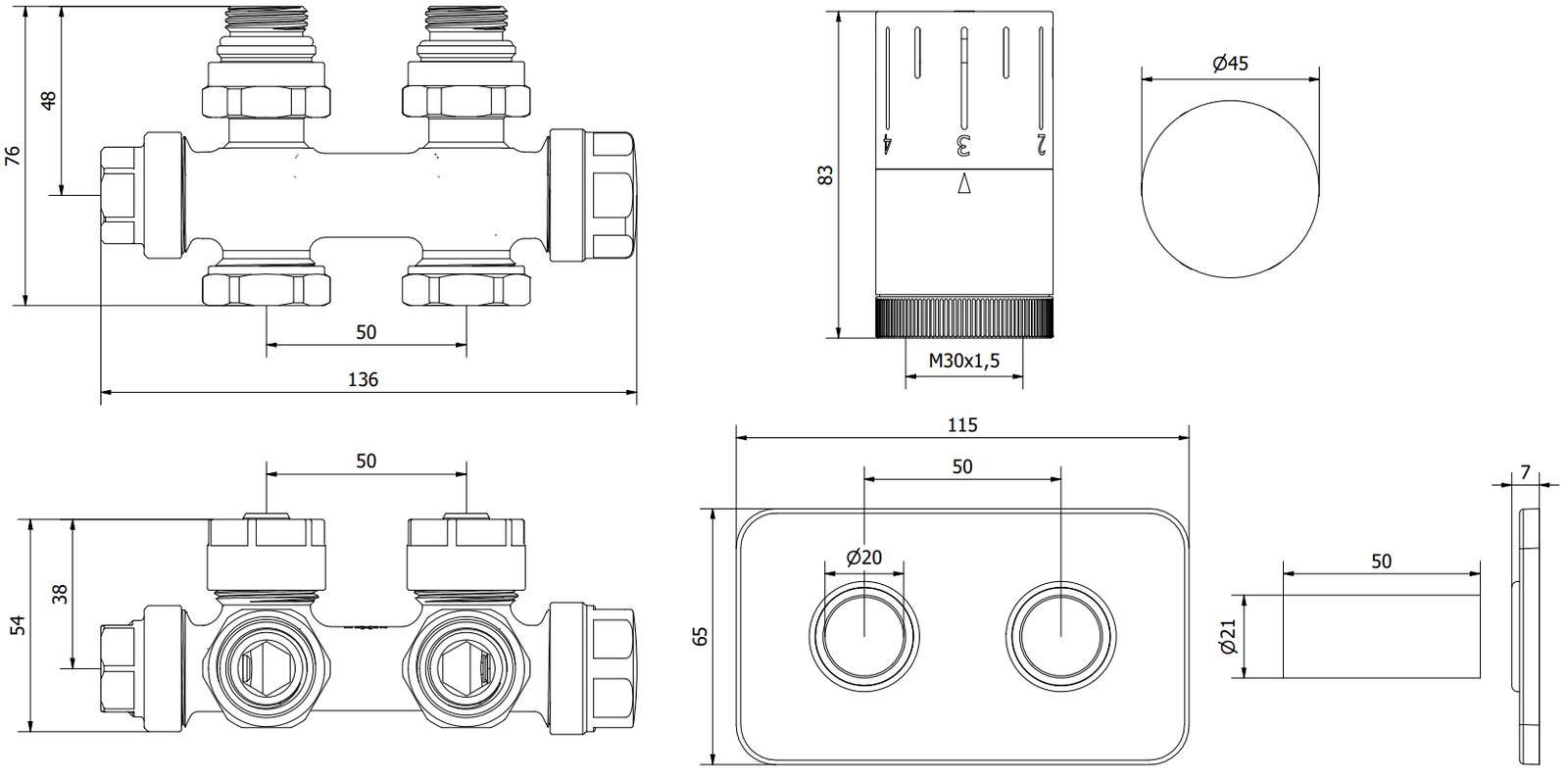

Technical data:

Valve material: Brass

Valve color: Black

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Bottom connection with spacing of 50 mm

Thread of the head: M30 x 1.5 mm

Head color: Black

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Anti-freeze protection 5°C

Possibility to connect the head from the left or right side of the valve

Masking color: Black

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Bushing inner diameter: 20 mm

Radiator connection hole spacing: 50 mm

The masking consists of a double rosette and two bushings

Included additional fittings for multilayer pipes 16x2 mm and fittings for copper pipes 15 mm

Universal supply and shut-off valve for angled and straight connections

regardless of whether the connection is in the wall or in the floor

Innovative solutions used in this product

2-year warranty

The product is covered by a 2-year warranty. If you have any problems with the purchased product, please contact us via the contact form or by calling our hotline.

Serial
G05
Type
Simple , Corner
Color
Black
Connection Diameter
G 1/2"
Cover
Yes
