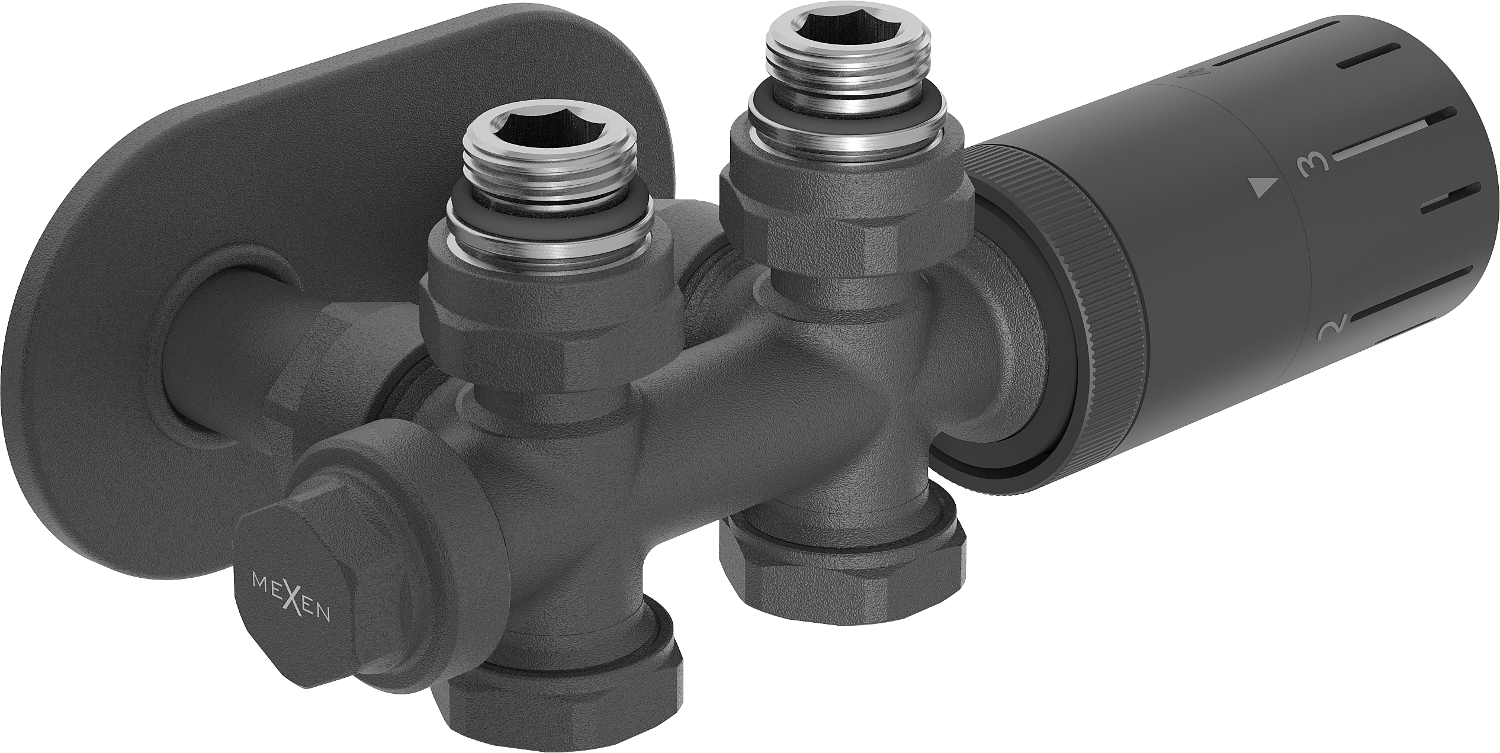

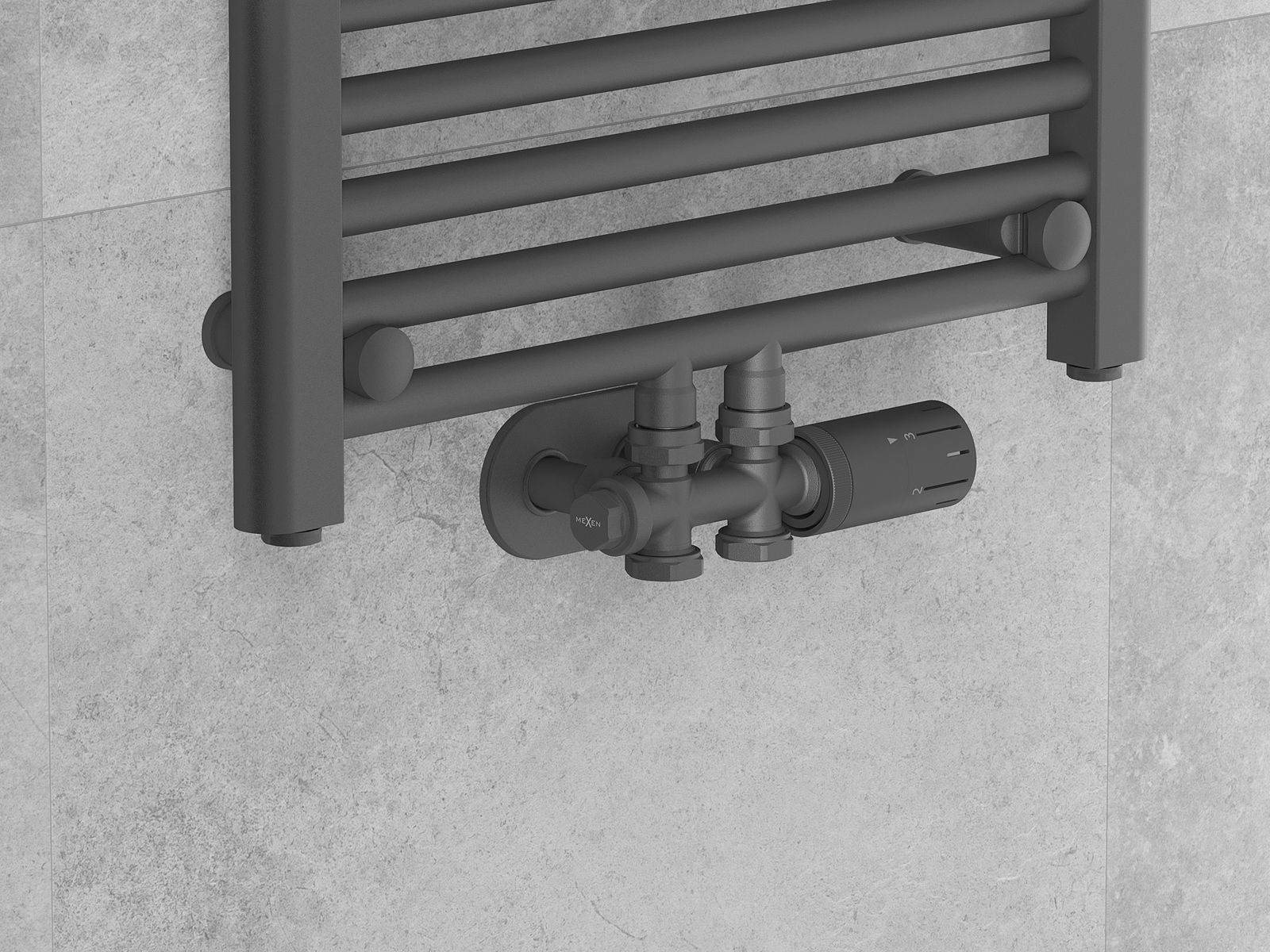

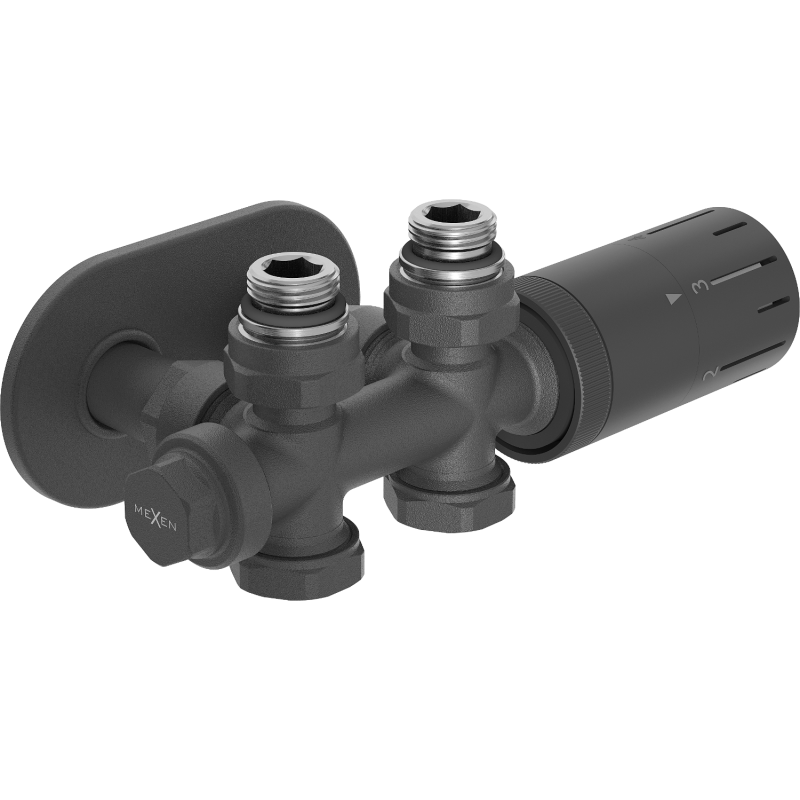

Mexen G05 thermostatic set angled/straight with cover R, Duplex, DN50, anthracite - W908-958-905-66
(0)
Questions
(0)

Mexen G05 thermostatic set angled/straight with cover R, Duplex, DN50, anthracite - W908-958-905-66

Mexen G05 thermostatic set angled/straight with cover R, Duplex, DN50, anthracite - W908-958-905-66
search
  • Mexen G05 thermostatic set angled/straight with cover R, Duplex, DN50, anthracite - W908-958-905-66
  • Mexen G05 thermostatic set angled/straight with cover R, Duplex, DN50, anthracite - W908-958-905-66
  • Mexen G05 thermostatic set angled/straight with cover R, Duplex, DN50, anthracite - W908-958-905-66
Mexen G05 thermostatic set angled/straight with cover R, Duplex, DN50, anthracite - W908-958-905-66
Mexen G05 thermostatic set angled/straight with cover R, Duplex, DN50, anthracite - W908-958-905-66 Mexen G05 thermostatic set angled/straight with cover R, Duplex, DN50, anthracite - W908-958-905-66 Mexen G05 thermostatic set angled/straight with cover R, Duplex, DN50, anthracite - W908-958-905-66
Brand:
Mexen
Seria:
G05
Ean:
5905315237804
Index:
W908-958-905-66
Color:
Anthracite
Connection Diameter:
G 1/2"
Type:
Simple
Type:
Corner
Color - Anthracite - ()

Mexen G05 thermostatic set angled/straight with cover R, Duplex, DN50, anthracite - W908-958-905-66

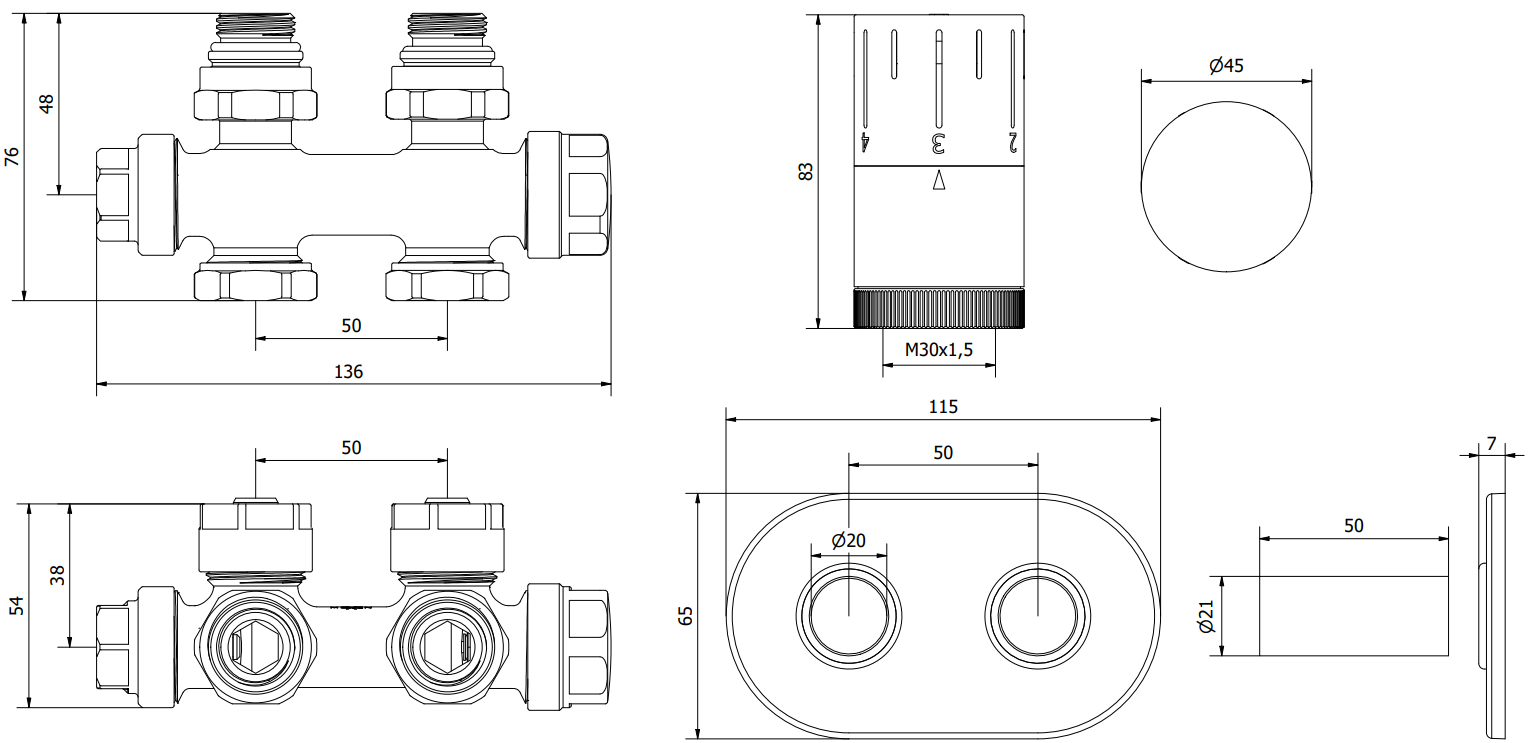

Technical data:

Valve material: Brass

Valve color: Anthracite

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head color: Anthracite

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Anti-frost protection 5°C

Possible to connect the head on the left or right side of the valve

Cover color: Anthracite

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Inner diameter of bushings: 20 mm

Spacing of radiator connection holes: 50 mm

The cover consists of a double rosette and two bushings

Includes additional fittings for 16x2 mm multilayer pipes and fittings for 15 mm copper pipes

Universal supply and shut-off valve for angled and straight connections

Innovative solutions used in this product

2-year warranty

The product is covered by a 2-year warranty. If you have any problems with the purchased product, please contact us via the contact form or by calling our hotline.

Serial
G05
Type
Simple , Corner
Color
Anthracite
Connection Diameter
G 1/2"
Cover
Yes
