Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, gold - W908-958-910-50
(0)
Questions
(0)

Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, gold - W908-958-910-50

Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, gold - W908-958-910-50
search
  • Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, gold - W908-958-910-50
  • Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, gold - W908-958-910-50
  • Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, gold - W908-958-910-50
Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, gold - W908-958-910-50
Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, gold - W908-958-910-50 Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, gold - W908-958-910-50 Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, gold - W908-958-910-50
Brand:
Mexen
Seria:
G05
Ean:
5905315238047
Index:
W908-958-910-50
Color:
Gold
Connection Diameter:
G 1/2"
Type:
Simple
Type:
Corner
Color - Gold - ()

Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, gold - W908-958-910-50

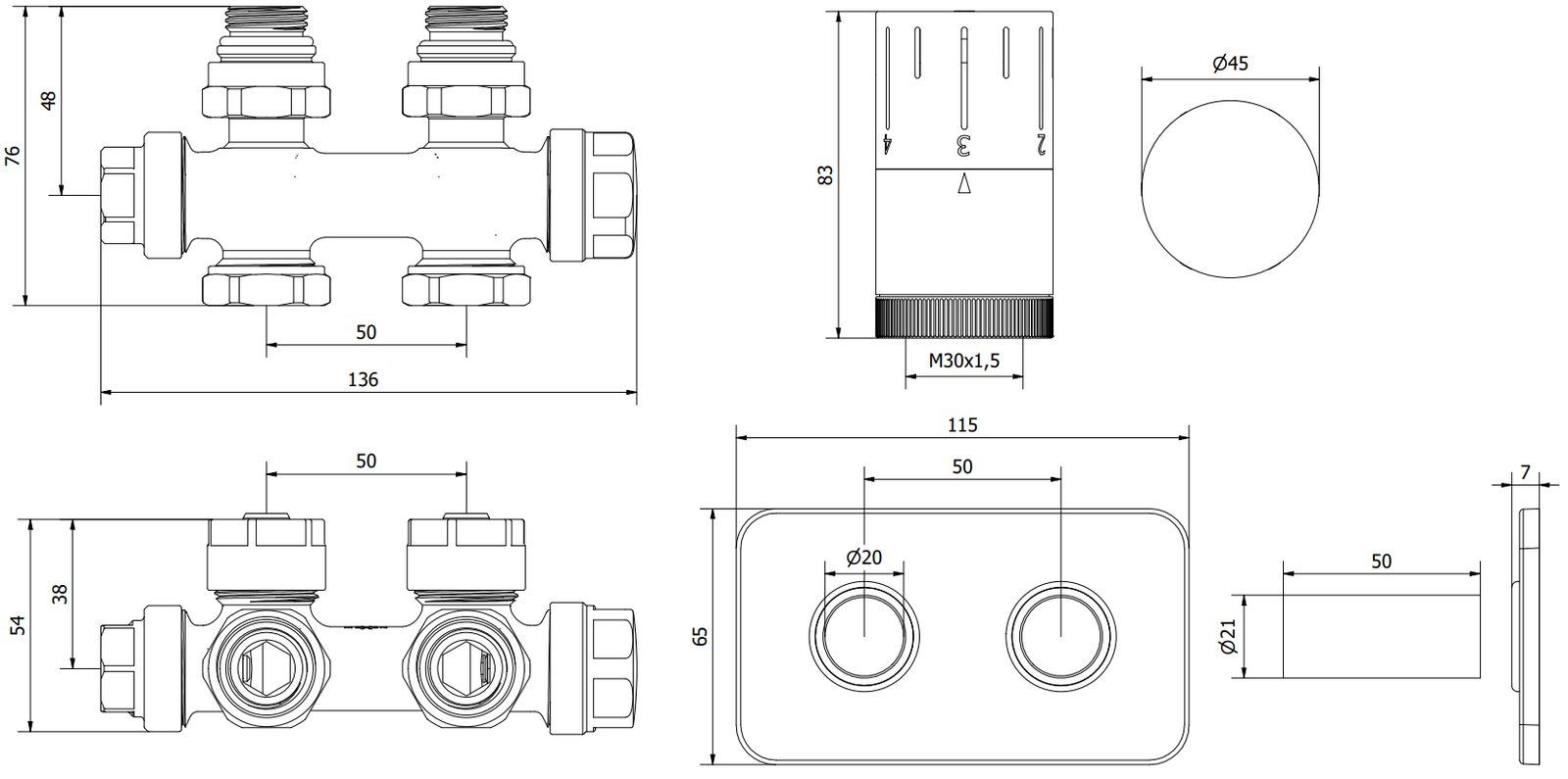

Technical data:

Valve material: Brass

Valve color: Gold

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Bottom connection with a spacing of 50 mm

Head thread: M30 x 1,5 mm

Head color: Gold

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility of connecting the head to the left or right side of the valve

Cover color: Gold

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Material of sleeves: Brass

Sleeve length: 50 mm

Inner diameter of sleeves: 20 mm

Spacing of radiator connection holes: 50 mm

The cover consists of a double rosette and two sleeves

The set includes additional connectors for 16x2 mm multilayer pipes and connectors for 15 mm copper pipes

Universal supply and shut-off valve for angled and straight connections

Mounting the rosette regardless of wall or floor connection

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Simple , Corner
Color
Gold
Connection Diameter
G 1/2"
Cover
Yes
