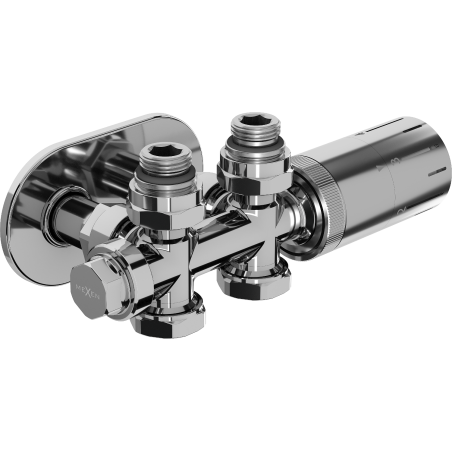

Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, chrome - W908-958-910-01
(0)
Questions
(0)

Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, chrome - W908-958-910-01

Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, chrome - W908-958-910-01
search
  • Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, chrome - W908-958-910-01
  • Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, chrome - W908-958-910-01
  • Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, chrome - W908-958-910-01
Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, chrome - W908-958-910-01
Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, chrome - W908-958-910-01 Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, chrome - W908-958-910-01 Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, chrome - W908-958-910-01
Brand:
Mexen
Seria:
G05
Ean:
5905315238023
Index:
W908-958-910-01
Color:
Chrome
Connection Diameter:
G 1/2"
Type:
Simple
Type:
Corner
Color - Chrome - ()

Mexen G05 thermostatic set angled/straight with S cover, Duplex, DN50, chrome - W908-958-910-01

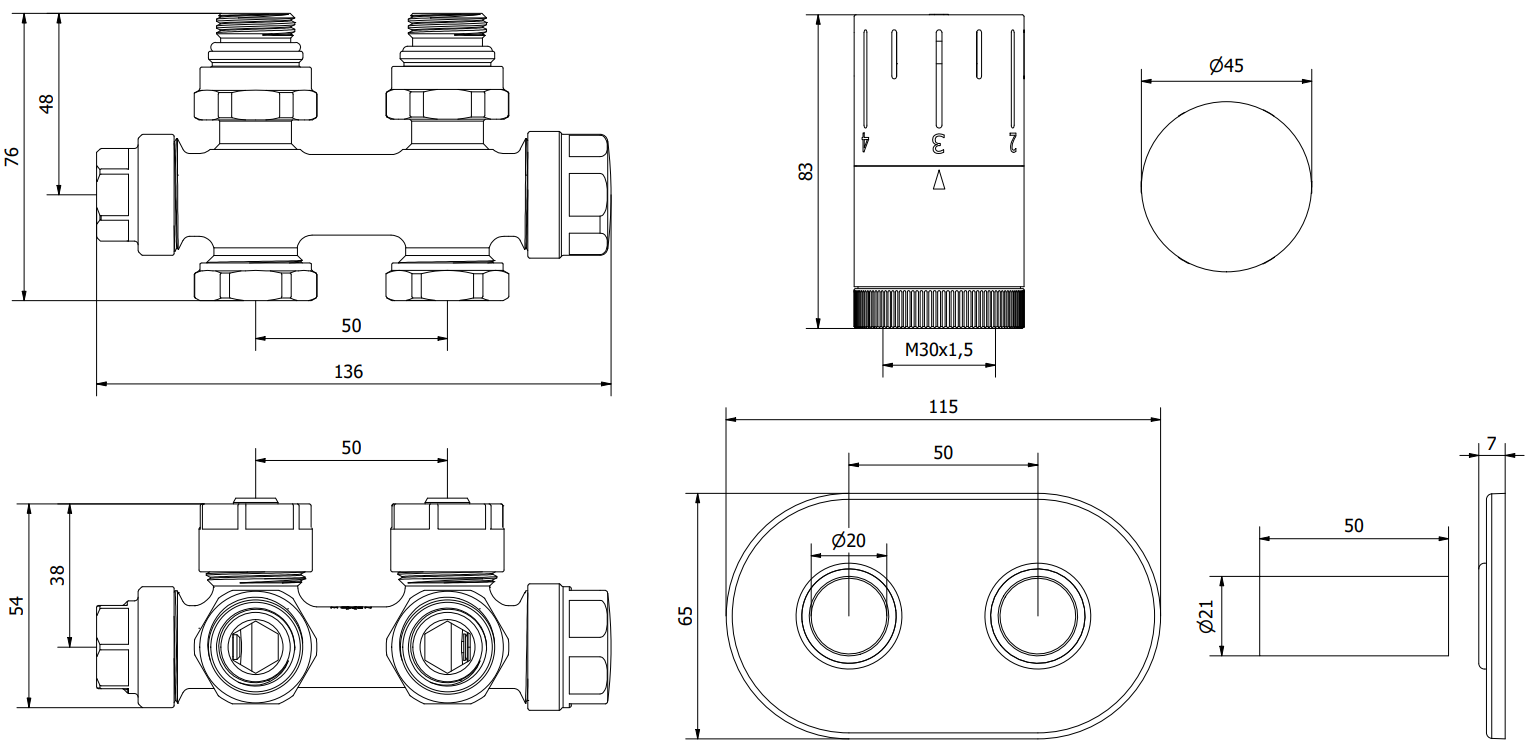

Technical data:

Valve material: Brass

Valve color: Chrome

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum operating pressure: 10 bar

Bottom connection with 50 mm spacing

Head thread: M30 x 1.5 mm

Head color: Chrome

Adjustment scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Possibility of connecting the head on the left or right side of the valve

Cover color: Chrome

Rosette material: Stainless steel

Rosette width: 115 x 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Inner bushing diameter: 20 mm

Radiator connection hole spacing: 50 mm

The cover consists of a double rosette and two sleeves

The set includes additional connectors for multilayer pipes 16x2 mm and connectors for copper pipes 15 mm

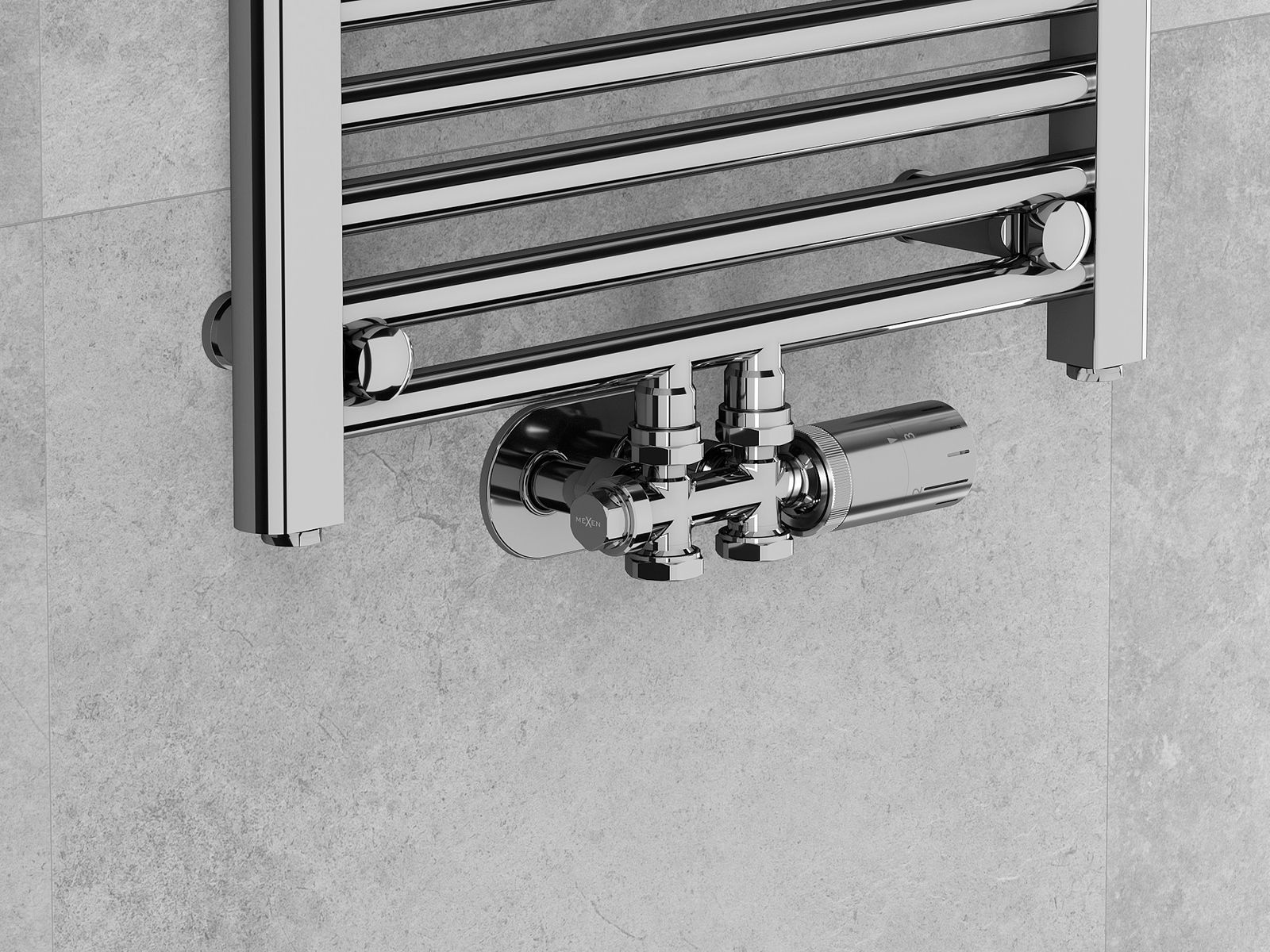

Universal supply and shut-off valve for angled and straight connections, regardless of whether the connection is in the wall or in the floor

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Simple , Corner
Color
Chrome
Connection Diameter
G 1/2"
Cover
Yes
