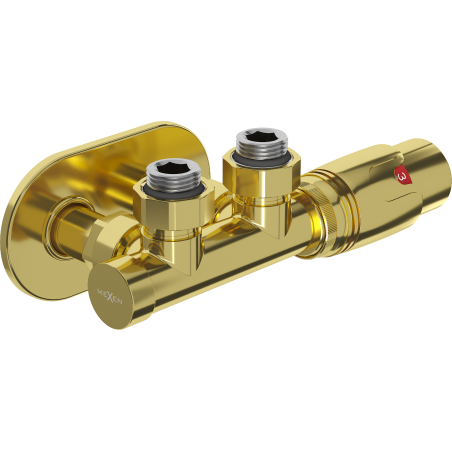

Mexen G00 angled thermostatic set with R masking, Duplex, DN50, gold - W907-900-905-50

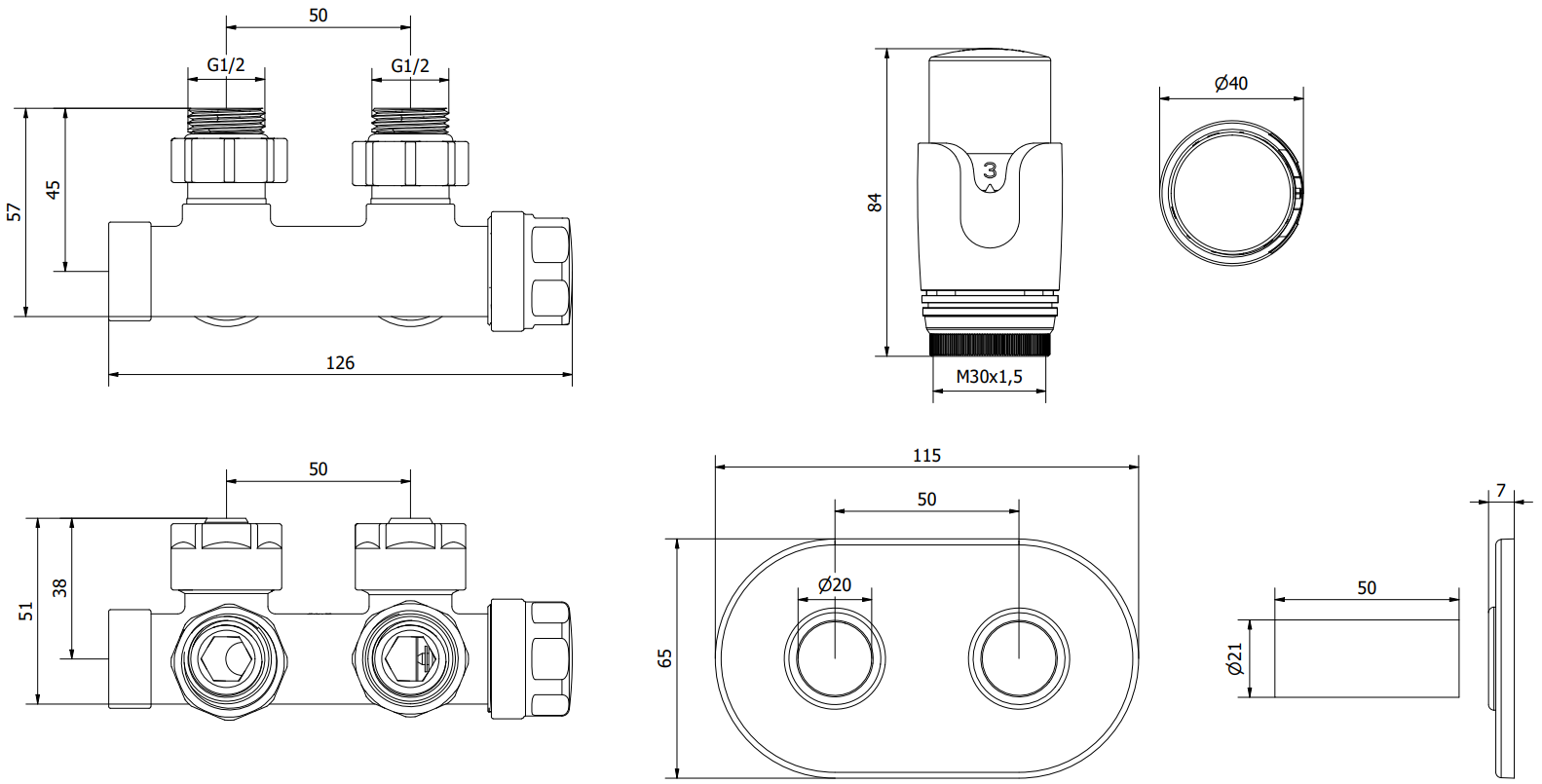

Technical data:
Valve material: Brass
Valve color: Gold
Valve connection diameter: G 1/2"
Operating temperature: max 120 °C
Maximum operating pressure: 10 bar
Supply and shut-off radiator valve
Bottom connection with 50 mm spacing
Head thread: M30 x 1.5 mm
Head color: Gold
Regulation scale: 0-5
Temperature regulation range: 0-29 °C
Ambient temperature: max 50 °C
Anti-freeze protection 5°C
Possibility to connect the head on the left or right side of the valve
Masking color: Gold
Mask material: Stainless steel
Mask width: 115 x 65 mm
Mask height: 7 mm
Inner hole diameter: 21 mm
Bushing material: Brass
Bushing length: 50 mm
Internal diameter of the bushings: 20 mm
Spacing of holes for radiator connections: 50 mm
The masking consists of a double mask and two bushings
The set includes additional connectors for 16x2 mm multi-layer pipes and connectors for 15 mm copper pipes
- Series
- G00
- Type
- Corner
- Color
- Gold
- Connector diameter
- G 1/2"
- Cover
- Yes
