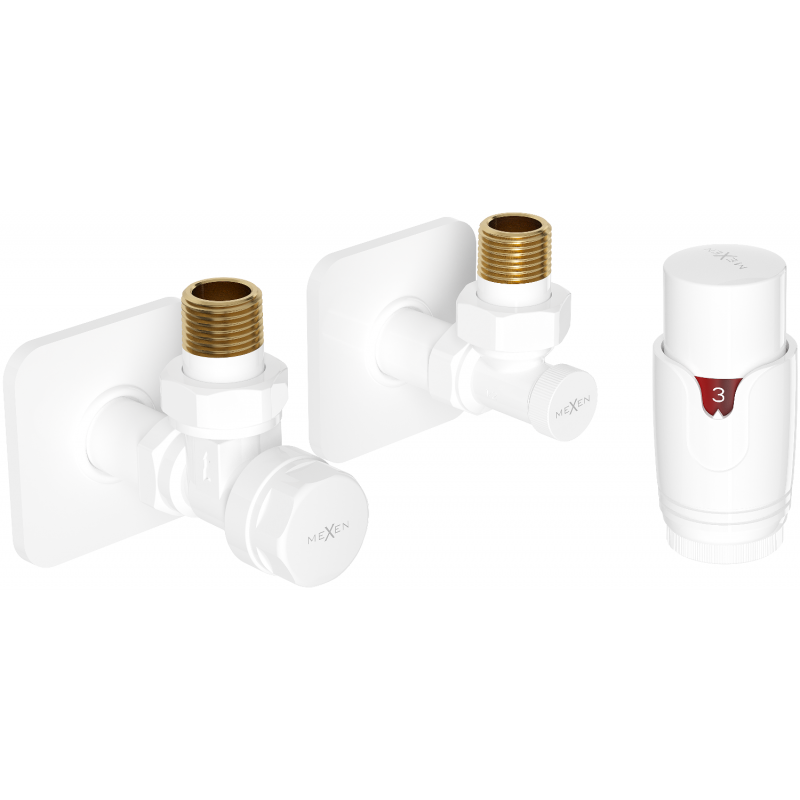

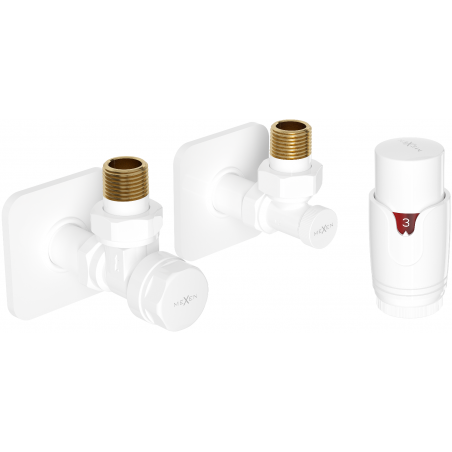

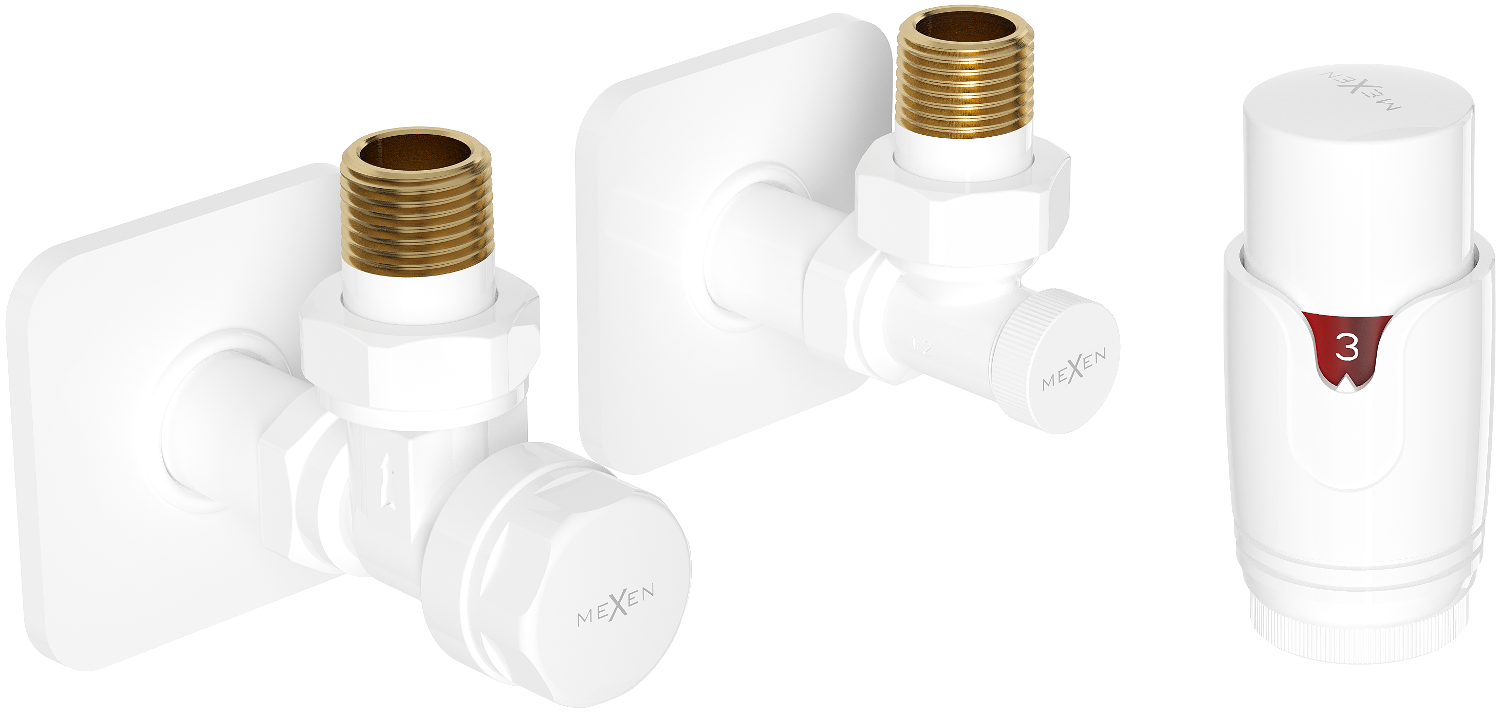

Mexen G00 thermostatic angled set with S masking, white - W901-900-909-20
(0)
Questions
(0)

Mexen G00 thermostatic angled set with S masking, white - W901-900-909-20

Mexen G00 thermostatic angled set with S masking, white - W901-900-909-20
search
  • Mexen G00 thermostatic angled set with S masking, white - W901-900-909-20
  • Mexen G00 thermostatic angled set with S masking, white - W901-900-909-20
Mexen G00 thermostatic angled set with S masking, white - W901-900-909-20
Mexen G00 thermostatic angled set with S masking, white - W901-900-909-20 Mexen G00 thermostatic angled set with S masking, white - W901-900-909-20
Brand:
Mexen
Seria:
G00
Ean:
5905315237132
Index:
W901-900-909-20
Color:
White
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G00
Color - White - ()

Mexen G00 thermostatic angled set with S masking, white - W901-900-909-20

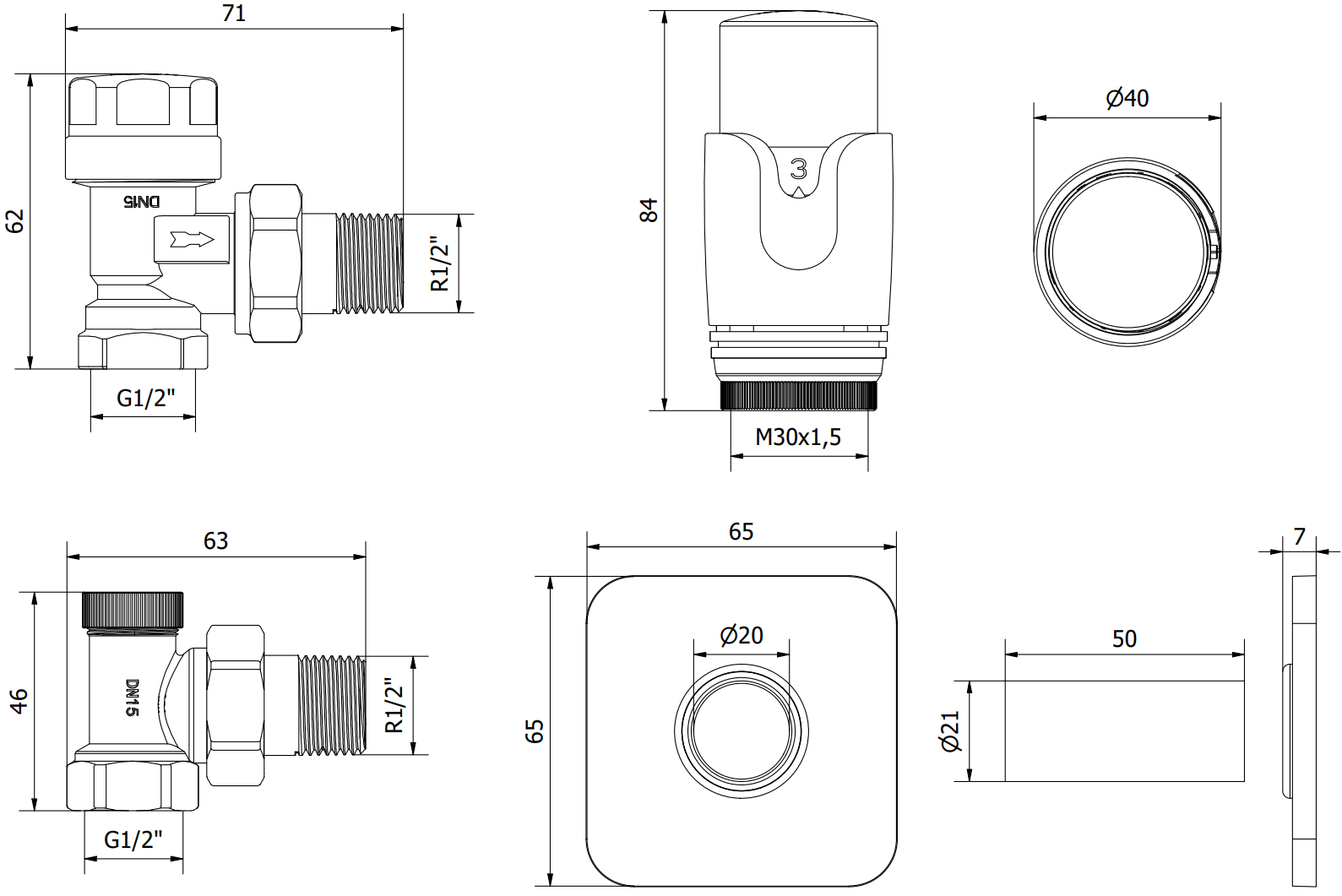

Technical data:

Radiator valve material: Brass

Valve color: White

Valve connection diameter: G 1/2"

Operating temperature: max 120°C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29°C

Ambient temperature: max 50°C

Frost protection 5°C

Masking color: White

Escutcheon material: Stainless steel

Escutcheon width: 65 mm

Height of escutcheons: 7 mm

Inner hole diameter: 21 mm

Insert material: Brass

Insert length: 50 mm

Inner diameter of inserts: 20 mm

The covering consists of two single escutcheons and a sleeve

The set includes a supply and shut-off radiator valve

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Corner
Color
White
Connection Diameter
G 1/2"
Cover
Yes
Warranty conditions
Download
