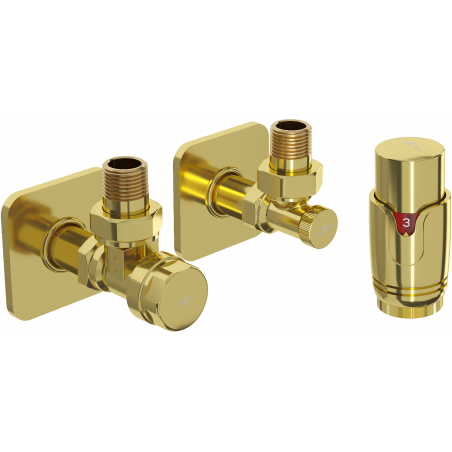

Mexen G00 angled thermostatic set with cover S, gold - W901-900-909-50
Mexen G00 angled thermostatic set with cover S, gold - W901-900-909-50

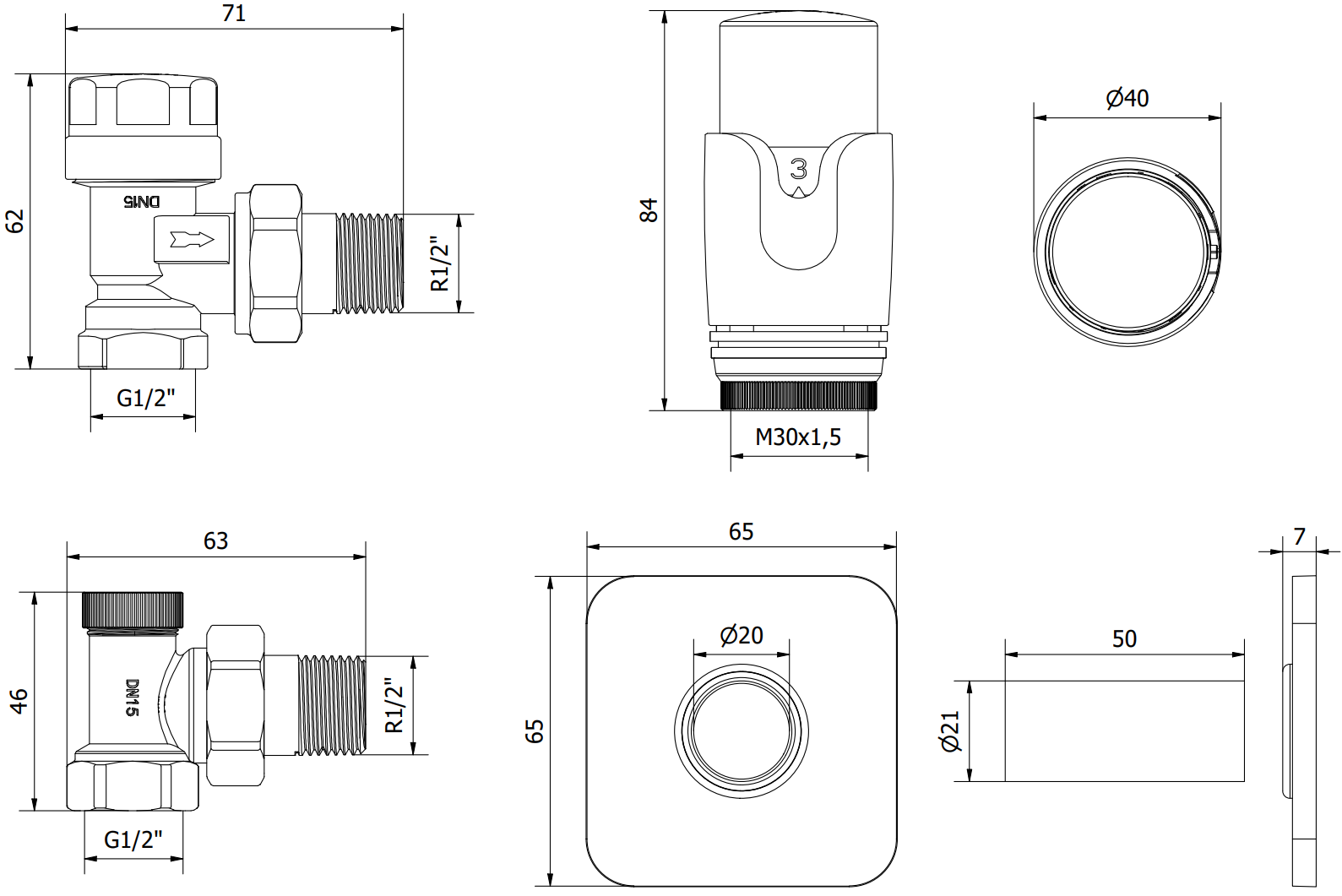

Technical data:
Valve material: Brass
Valve color: Gold
Valve connection diameter: G 1/2"
Operating temperature: max 120 °C
Maximum working pressure: 10 bar
Head thread: M30 x 1.5 mm
Head color: Gold
Adjustment scale: 0-5
Temperature adjustment range: 0-29 °C
Ambient temperature: max 50 °C
Frost protection 5°C
Cover color: Gold
Roses material: Stainless steel
Rose width: 65 mm
Rose height: 7 mm
Inner hole diameter: 21 mm
Sleeve material: Brass
Sleeve length: 50 mm
Inner sleeve diameter: 20 mm
The cover consists of two single roses and a sleeve
Includes supply and shut-off radiator valve
- Series
- G00
- Type
- Corner
- Color
- Gold
- Connector diameter
- G 1/2"
- Cover
- Yes
