Mexen G00 angled thermostatic set with S shrouds, anthracite - W901-900-909-66
Mexen G00 angled thermostatic set with S shrouds, anthracite - W901-900-909-66 Mexen G00 angled thermostatic set with S shrouds, anthracite - W901-900-909-66
Brand:
Mexen
Seria:
G00
Ean:
5905315237156
Index:
W901-900-909-66
Color:
Anthracite
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G00
Color - Anthracite - ()

Mexen G00 angled thermostatic set with S shrouds, anthracite - W901-900-909-66

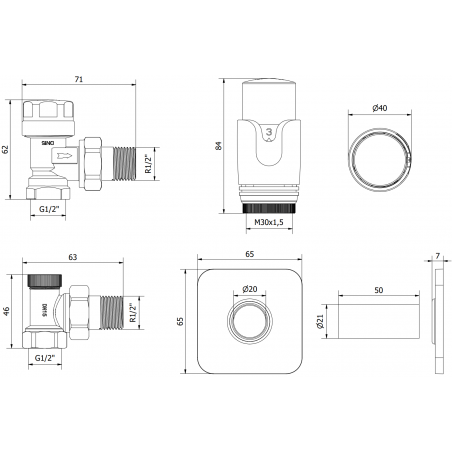

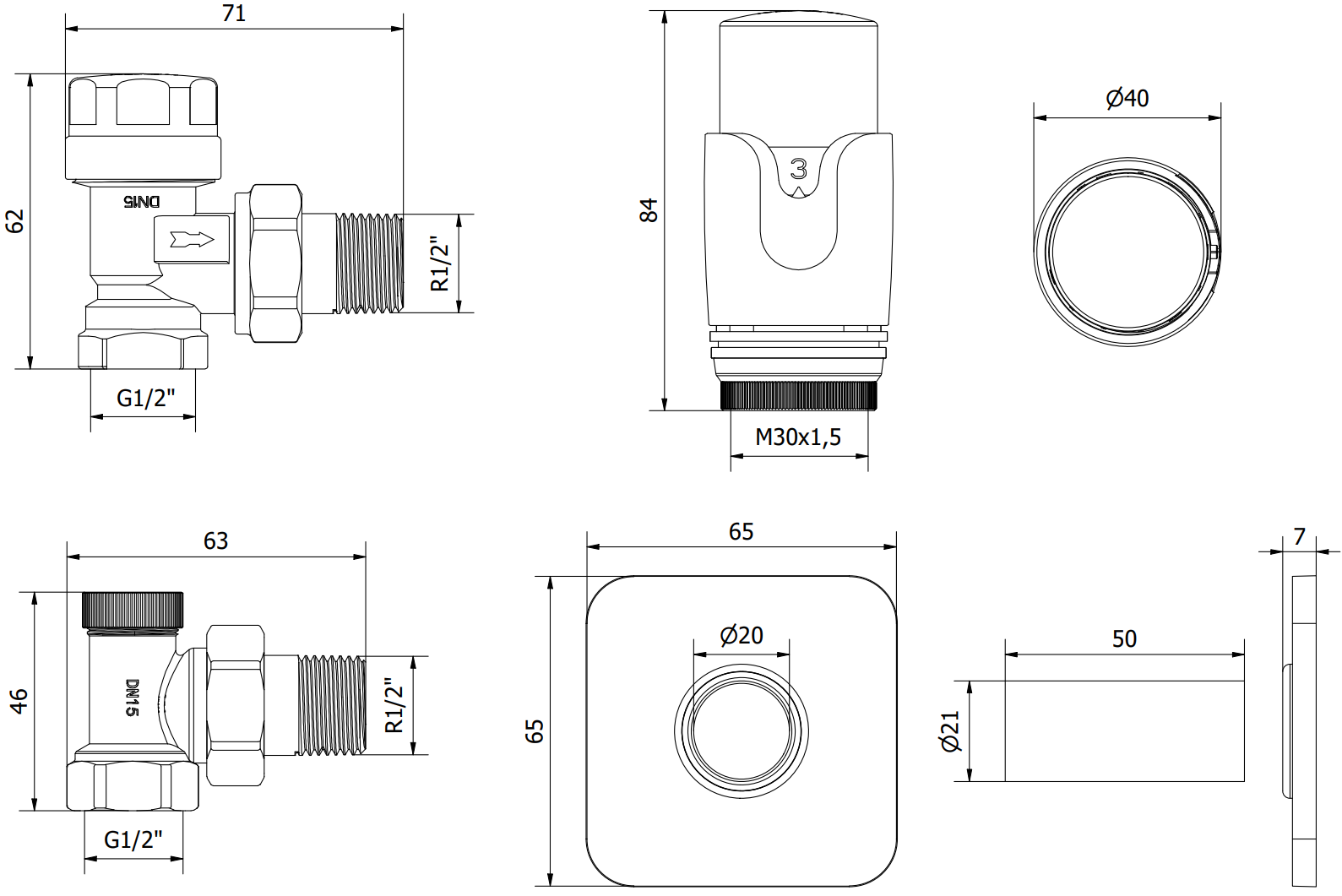

Technical data:

Valve material: Brass

Valve color: Anthracite

Valve connector diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: Anthracite

Adjustable scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Anti-freeze protection at 5°C

Shroud color: Anthracite

Rosette material: Stainless steel

Rosette width: 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Inner bushing diameter: 20 mm

The shroud consists of two single rosettes and a sleeve

The set includes a supply and shut-off radiator valve

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G00
Type
Corner
Color
Anthracite
Connection Diameter
G 1/2"
Cover
Yes
