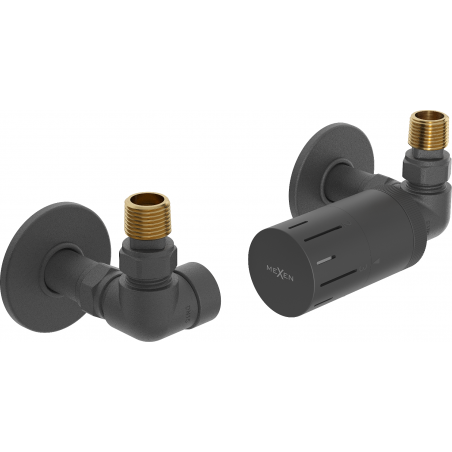

Mexen G05 Thermostatic Set with R Masking, Anthracite - W903-958-904-66
(0)
Questions
(0)

Mexen G05 Thermostatic Set with R Masking, Anthracite - W903-958-904-66

Mexen G05 Thermostatic Set with R Masking, Anthracite - W903-958-904-66
search
  • Mexen G05 Thermostatic Set with R Masking, Anthracite - W903-958-904-66
  • Mexen G05 Thermostatic Set with R Masking, Anthracite - W903-958-904-66
  • Mexen G05 Thermostatic Set with R Masking, Anthracite - W903-958-904-66
Mexen G05 Thermostatic Set with R Masking, Anthracite - W903-958-904-66
Mexen G05 Thermostatic Set with R Masking, Anthracite - W903-958-904-66 Mexen G05 Thermostatic Set with R Masking, Anthracite - W903-958-904-66 Mexen G05 Thermostatic Set with R Masking, Anthracite - W903-958-904-66
Brand:
Mexen
Seria:
G05
Ean:
5905315237705
Index:
W903-958-904-66
Color:
Anthracite
Connection Diameter:
G 1/2"
Type:
Axial
Series:
G05
Color - Anthracite - ()

Mexen G05 Thermostatic Set with R Masking, Anthracite - W903-958-904-66

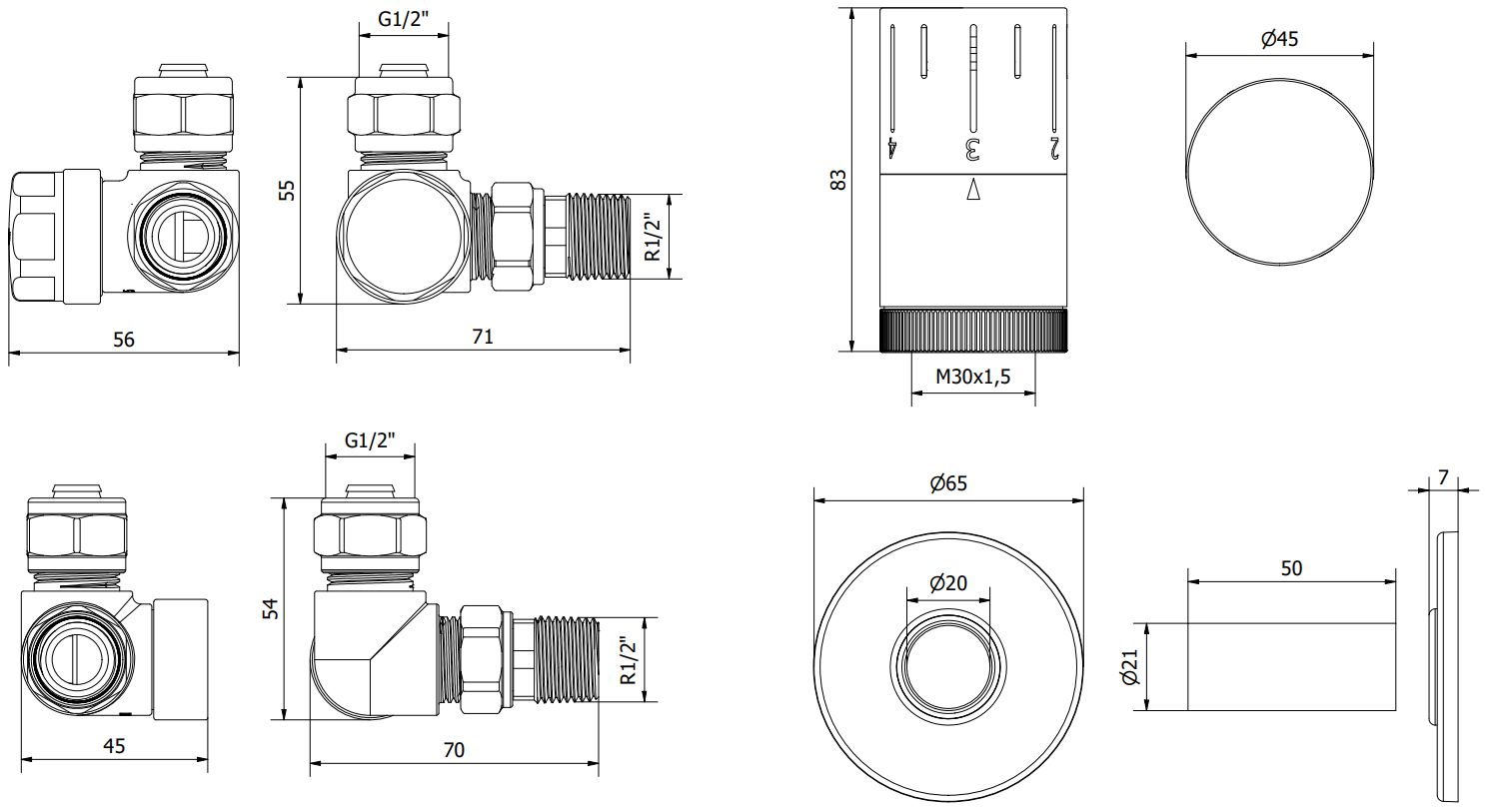

Technical Data:

Valve Material: Brass

Valve Color: Anthracite

Valve Connection Diameter: G 1/2"

Operating Temperature: max 120 °C

Maximum Working Pressure: 10 bar

Head Thread: M30 x 1.5 mm

Head Color: Anthracite

Adjustment Scale: 0-5

Temperature Adjustment Range: 0-29 °C

Ambient Temperature: max 50 °C

Freeze Protection 5°C

Cover Color: Anthracite

Rosette Material: Stainless Steel

Rosette Outer Diameter: 65 mm

Rosette Height: 7 mm

Inner Hole Diameter: 21 mm

Bushing Material: Brass

Bushing Length: 50 mm

Inner Bushing Diameter: 20 mm

The cover consists of two single rosettes and a sleeve

The set includes supply and shut-off radiator valves

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Axial
Color
Anthracite
Connection Diameter
G 1/2"
Cover
Yes
