Mexen G05 axial thermostatic set with cover S, white - W903-958-909-20
Mexen G05 axial thermostatic set with cover S, white - W903-958-909-20 Mexen G05 axial thermostatic set with cover S, white - W903-958-909-20 Mexen G05 axial thermostatic set with cover S, white - W903-958-909-20
Brand:
Mexen
Seria:
G05
Ean:
5905315237934
Index:
W903-958-909-20
Color:
White
Connection Diameter:
G 1/2"
Type:
Axial
Series:
G05
Color - White - ()

Mexen G05 axial thermostatic set with cover S, white - W903-958-909-20

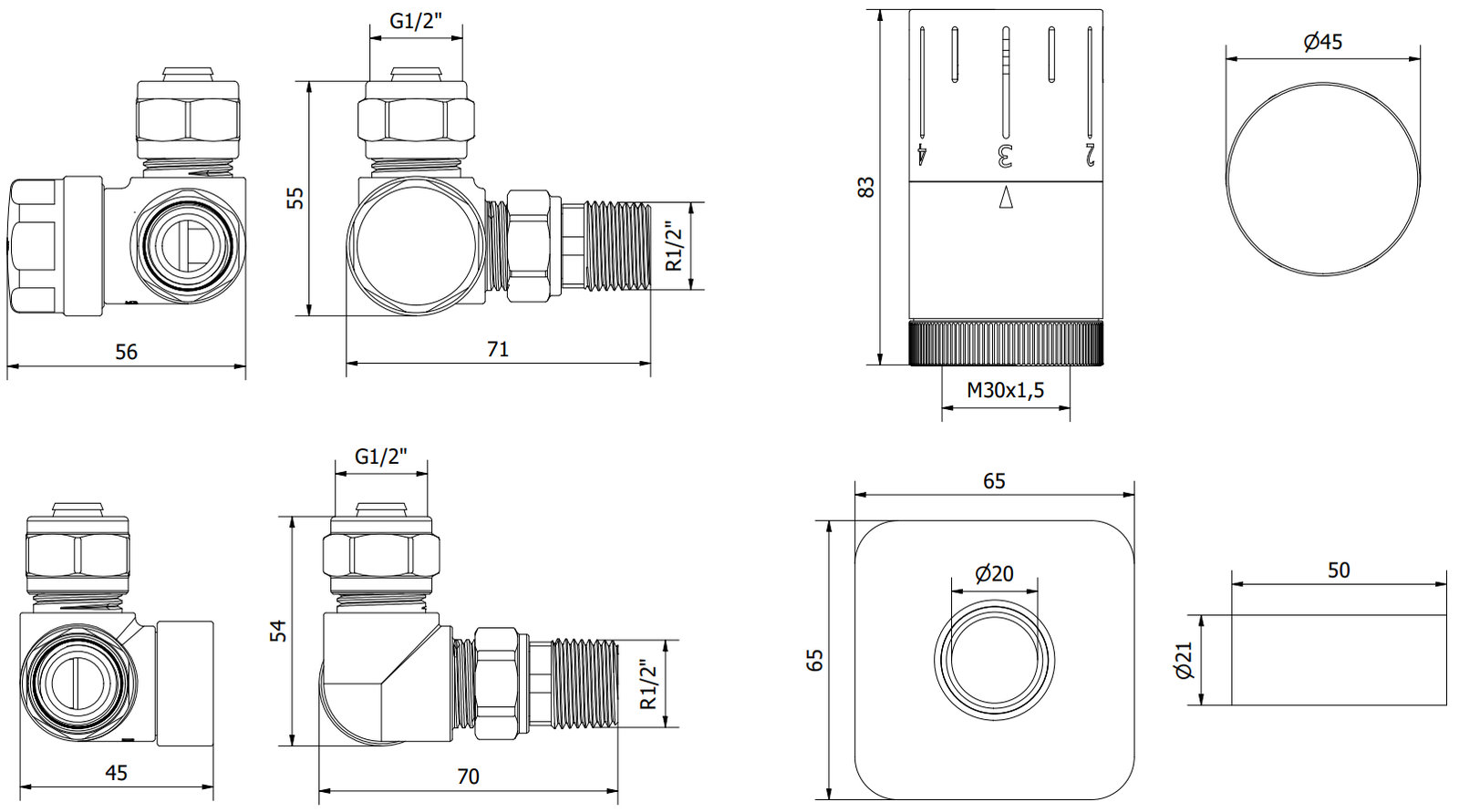

Technical data:

Valve material: Brass

Valve color: White

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum operating pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover color: White

Rosette material: Stainless steel

External diameter of rosettes: 65 mm

Height of rosettes: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Inner diameter of sleeves: 20 mm

The cover consists of two single rosettes and a sleeve

Includes radiator supply and shut-off valve

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Axial
Color
White
Connection Diameter
G 1/2"
Cover
Yes
