Mexen G05 axial thermostatic set with R, chrome masking - W903-958-904-01
(0)
Questions
(0)

Mexen G05 axial thermostatic set with R, chrome masking - W903-958-904-01

Mexen G05 axial thermostatic set with R, chrome masking - W903-958-904-01
search
  • Mexen G05 axial thermostatic set with R, chrome masking - W903-958-904-01
  • Mexen G05 axial thermostatic set with R, chrome masking - W903-958-904-01
  • Mexen G05 axial thermostatic set with R, chrome masking - W903-958-904-01
Mexen G05 axial thermostatic set with R, chrome masking - W903-958-904-01
Mexen G05 axial thermostatic set with R, chrome masking - W903-958-904-01 Mexen G05 axial thermostatic set with R, chrome masking - W903-958-904-01 Mexen G05 axial thermostatic set with R, chrome masking - W903-958-904-01
Brand:
Mexen
Seria:
G05
Ean:
5905315237675
Index:
W903-958-904-01
Color:
Chrome
Connection Diameter:
G 1/2"
Type:
Axial
Series:
G05
Color - Chrome - ()

Mexen G05 axial thermostatic set with R, chrome masking - W903-958-904-01

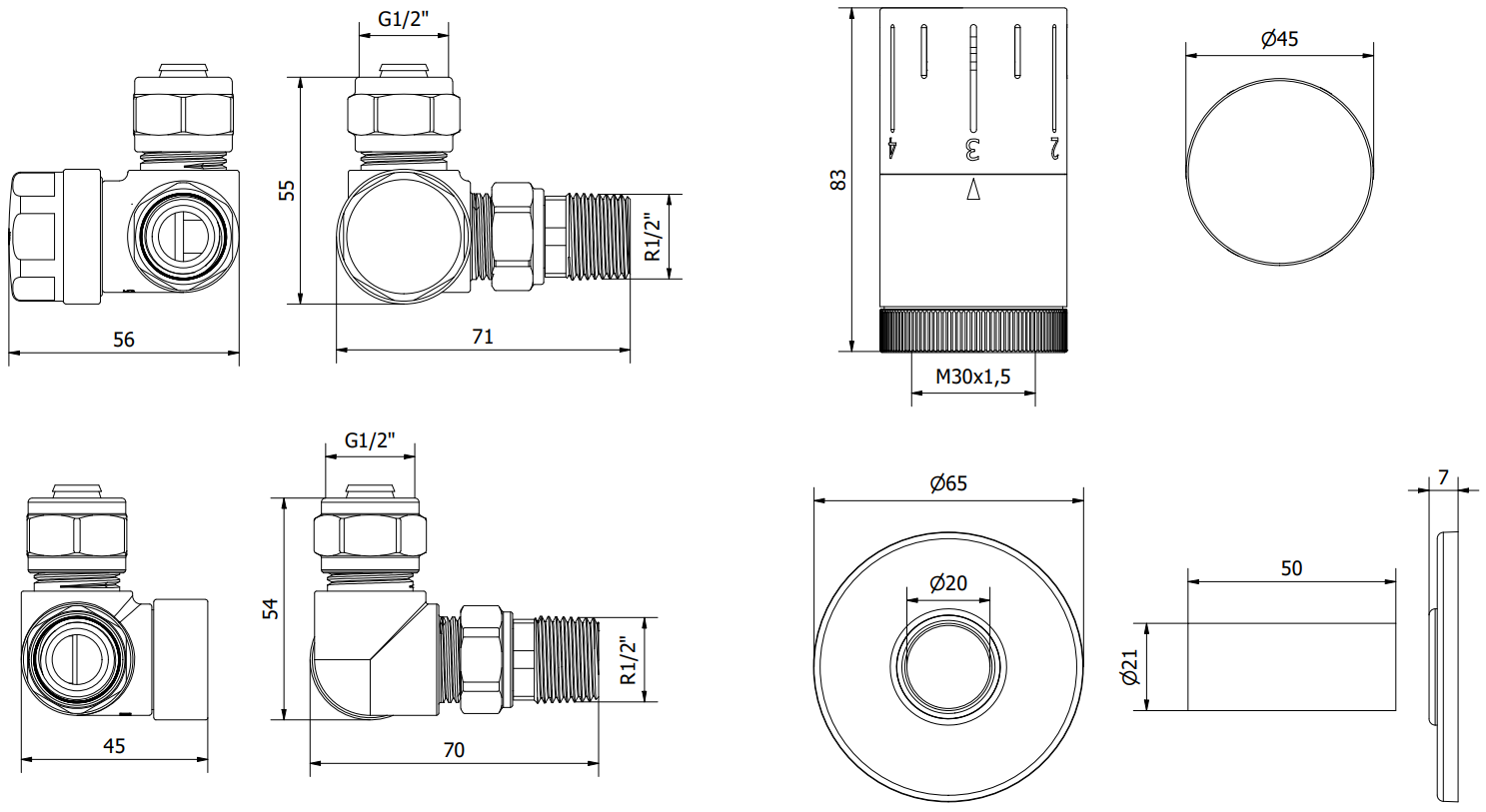

Technical data:

Valves material: Brass

Valve color: Chrome

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: Chrome

Adjustment scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Concealer color: Chrome

Rozet material: Stainless steel

Outer diameter of rosettes: 65 mm

Rozet height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Inner diameter of sleeves: 20 mm

The cover consists of two single rosettes and a sleeve

The set includes a supply and shut-off radiator valve

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Axial
Color
Chrome
Connection Diameter
G 1/2"
Cover
Yes
Warranty conditions
Download
Manufacturer
See

Haven't found the answer?

Write to us

See more questions
The product has no opinion yet. Leave your opinion!

Previous
Next
Mexen G05 axial thermostatic set with R, chrome masking - W903-958-904-01

Mexen G05 axial thermostatic set with R, chrome masking - W903-958-904-01

(0)
Questions
(0)

€40.50 19.94%

€32.43

Cheaper by €8.07

Lowest price from the last 30 days: €32.43

Color - Chrome - ()
Availability: In stock

Delivery from: 12.99 €

1people bought this product.

Brand:
Mexen
Seria:
G05
Ean:
5905315237675
Index:
W903-958-904-01
Color:
Chrome
Connection Diameter:
G 1/2"
Type:
Axial
Series:
G05
Color - Chrome - ()
