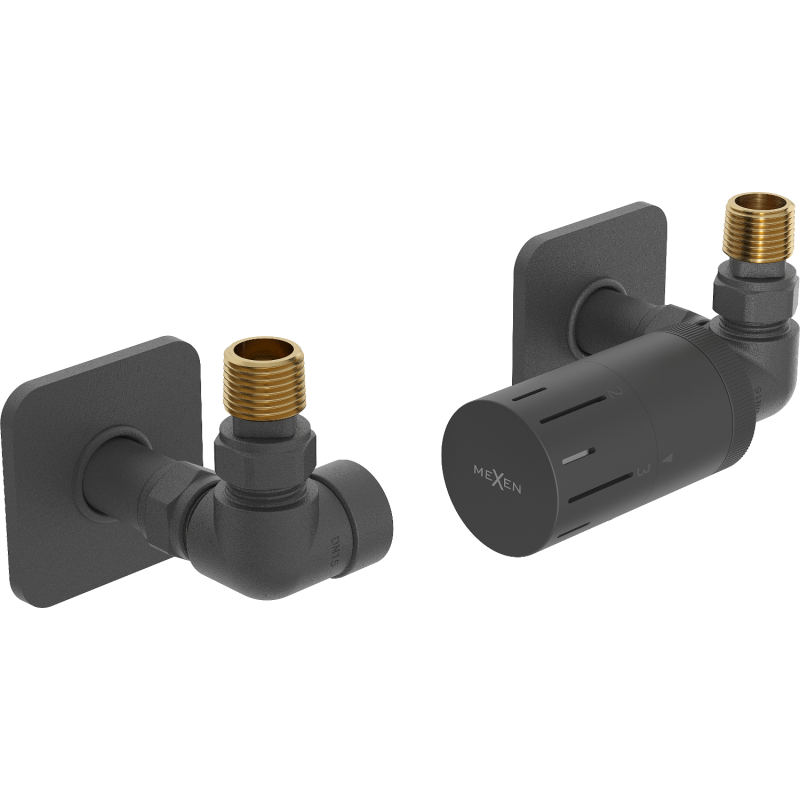

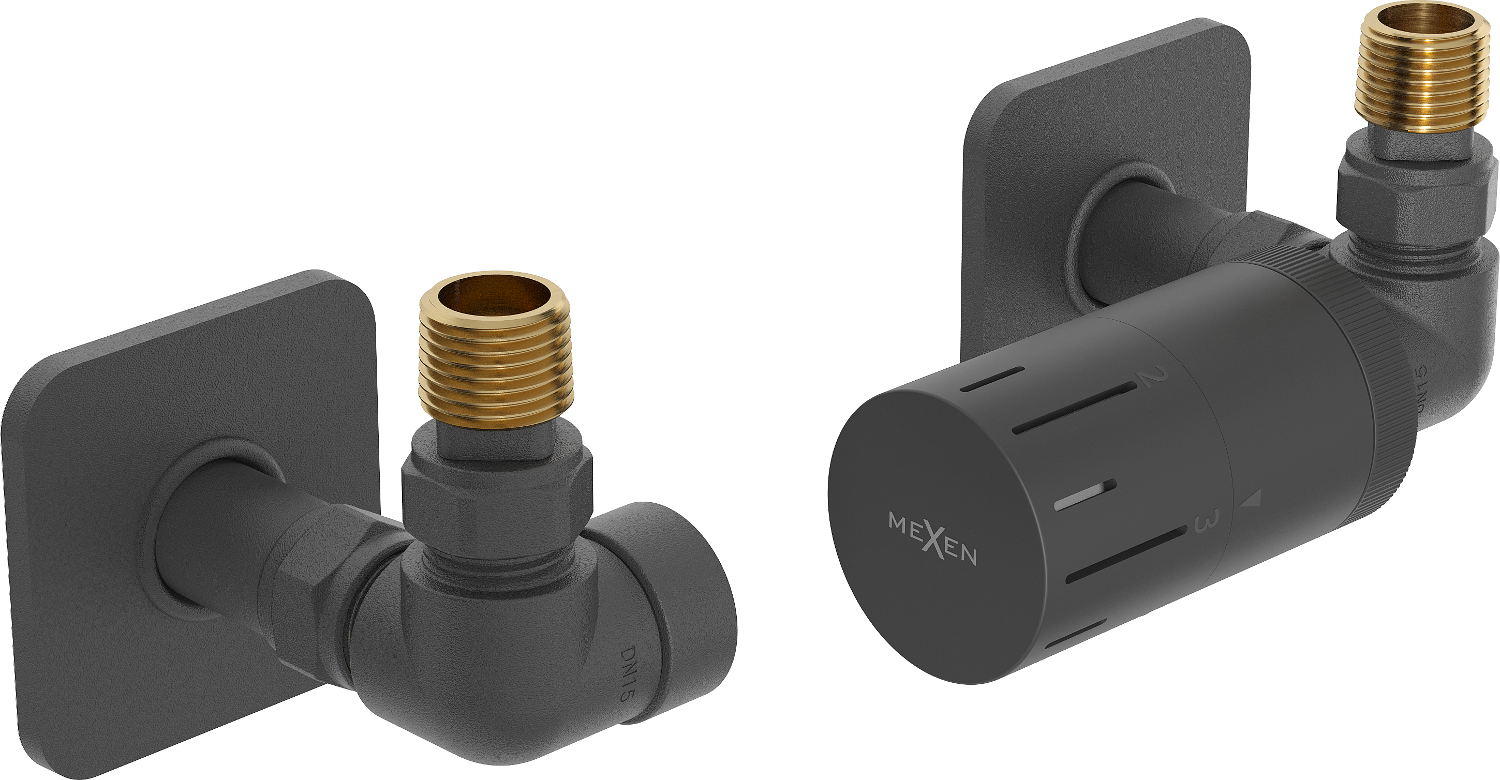

Mexen G05 axial thermostatic set with cover S, anthracite - W903-958-909-66
Mexen G05 axial thermostatic set with cover S, anthracite - W903-958-909-66 Mexen G05 axial thermostatic set with cover S, anthracite - W903-958-909-66 Mexen G05 axial thermostatic set with cover S, anthracite - W903-958-909-66
Brand:
Mexen
Seria:
G05
Ean:
5905315237958
Index:
W903-958-909-66
Color:
Anthracite
Connection Diameter:
G 1/2"
Type:
Axial
Series:
G05
Color - Anthracite - ()

Mexen G05 axial thermostatic set with cover S, anthracite - W903-958-909-66

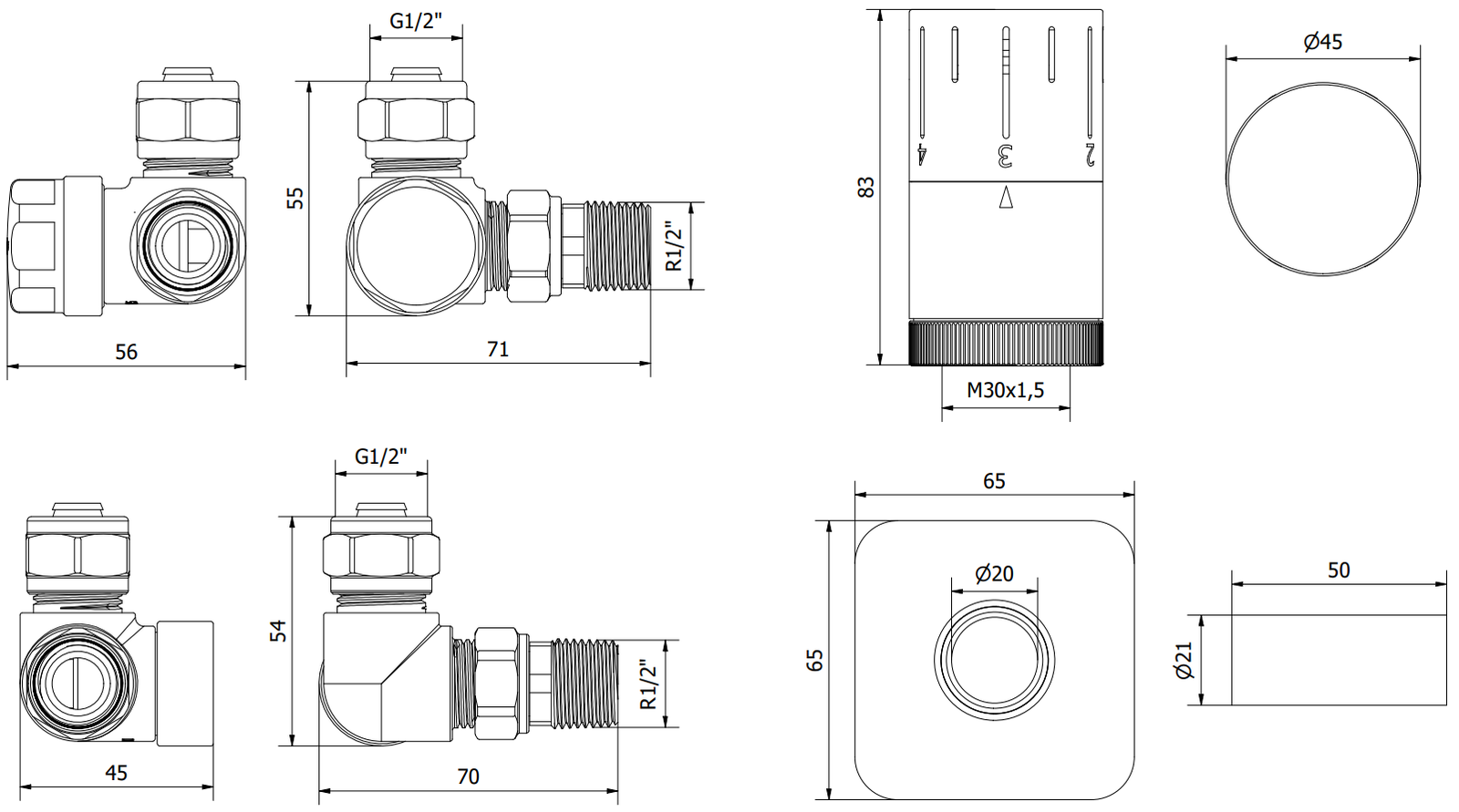

Technical data:

Valve material: Brass

Valve color: Anthracite

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: Anthracite

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover color: Anthracite

Rosette material: Stainless steel

External diameter of rosettes: 65 mm

Height of rosettes: 7 mm

Internal hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Internal diameter of the bushings: 20 mm

The cover consists of two single rosettes and a sleeve

The set includes the supply and cut-off radiator valve

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Axial
Color
Anthracite
Connection Diameter
G 1/2"
Cover
Yes
