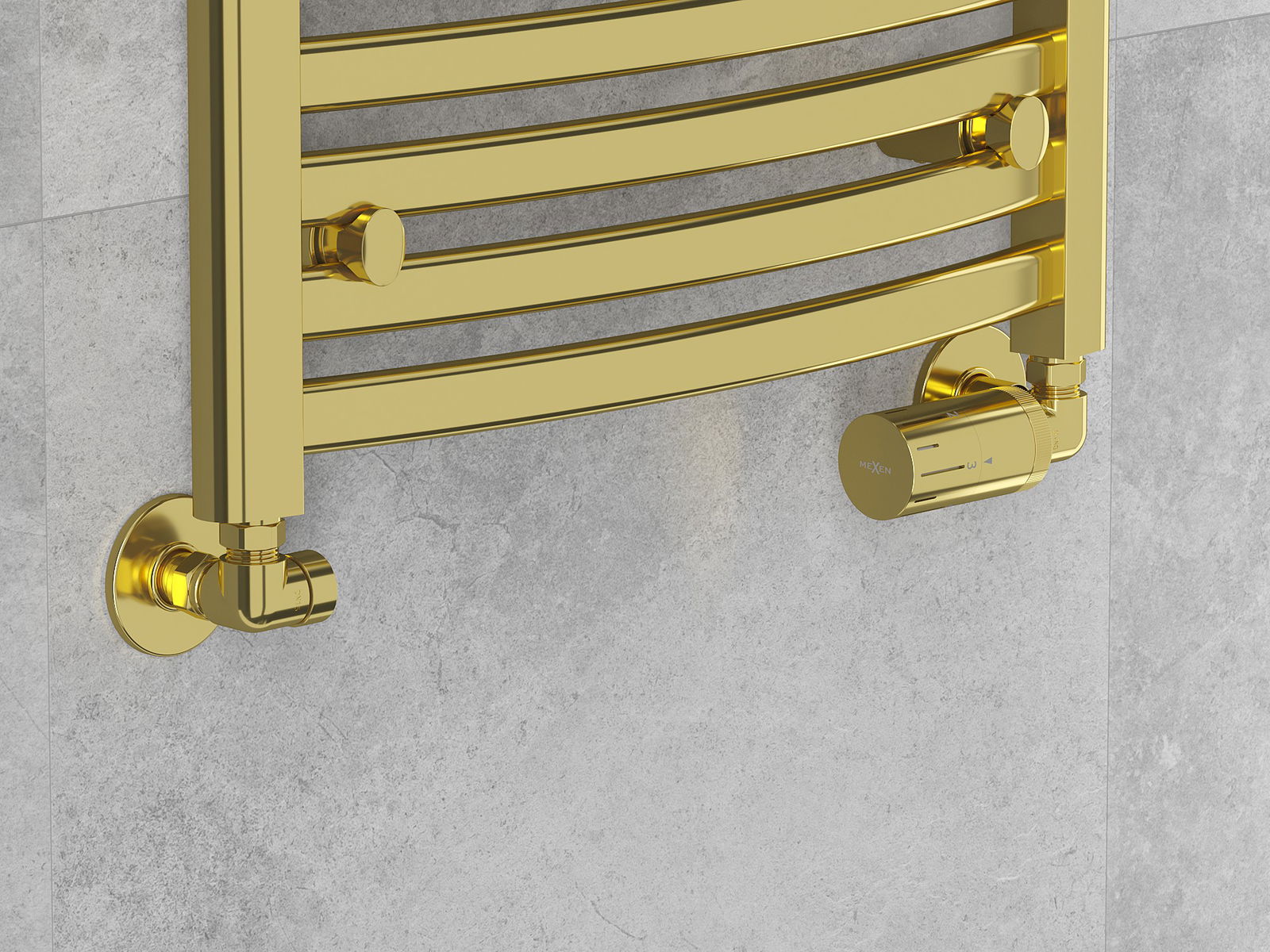

Mexen G05 thermostatic axial set with masking covers, gold - W903-958-904-50
(0)
Questions
(0)

Mexen G05 thermostatic axial set with masking covers, gold - W903-958-904-50

Mexen G05 thermostatic axial set with masking covers, gold - W903-958-904-50
search
  • Mexen G05 thermostatic axial set with masking covers, gold - W903-958-904-50
  • Mexen G05 thermostatic axial set with masking covers, gold - W903-958-904-50
  • Mexen G05 thermostatic axial set with masking covers, gold - W903-958-904-50
Mexen G05 thermostatic axial set with masking covers, gold - W903-958-904-50
Mexen G05 thermostatic axial set with masking covers, gold - W903-958-904-50 Mexen G05 thermostatic axial set with masking covers, gold - W903-958-904-50 Mexen G05 thermostatic axial set with masking covers, gold - W903-958-904-50
Brand:
Mexen
Seria:
G05
Ean:
5905315237699
Index:
W903-958-904-50
Color:
Gold
Connection Diameter:
G 1/2"
Type:
Axial
Series:
G05
Color - Gold - ()

Mexen G05 thermostatic axial set with masking covers, gold - W903-958-904-50

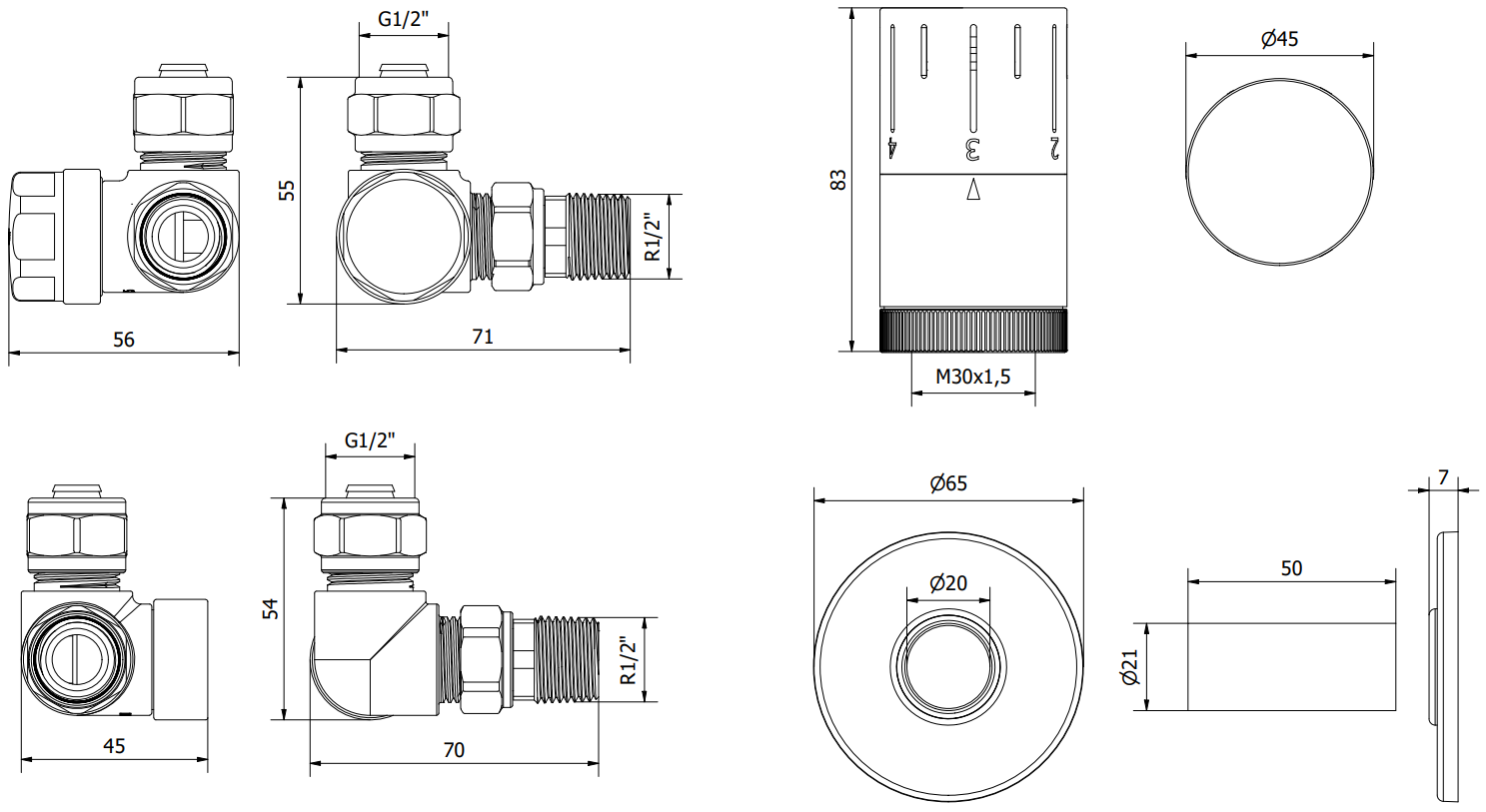

Technical data:

Valve material: Brass

Valve color: Gold

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: Gold

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Anti-freeze protection 5°C

Cover color: Gold

Rosette material: Stainless steel

Rosette outer diameter: 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Inner bushing diameter: 20 mm

The cover consists of two separate rosettes and a bushing

The set includes supply and shut-off radiator valves

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Axial
Color
Gold
Connection Diameter
G 1/2"
Cover
Yes
