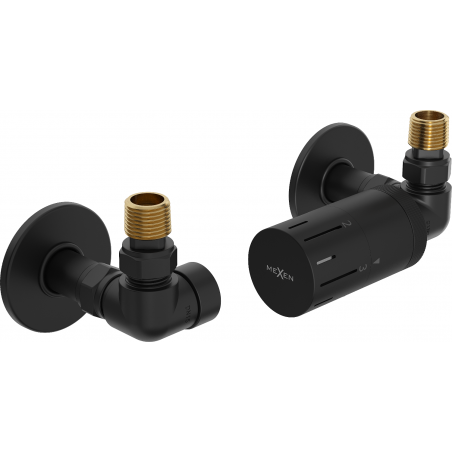

Mexen G05 axial thermostatic set with R cover, black - W903-958-904-70

The Mexen G05 axial thermostatic set with a cover is an excellent choice for those who value quality and functionality. Made of brass, it offers durability and longevity. The black color gives an elegant look, suitable for modern interiors. Valves with G 1/2" thread and a maximum operating temperature of up to 120°C and working pressure of 10 bar ensure reliability and efficiency. Additionally, the set has frost protection and the possibility of temperature adjustment in the range of 0-29°C.

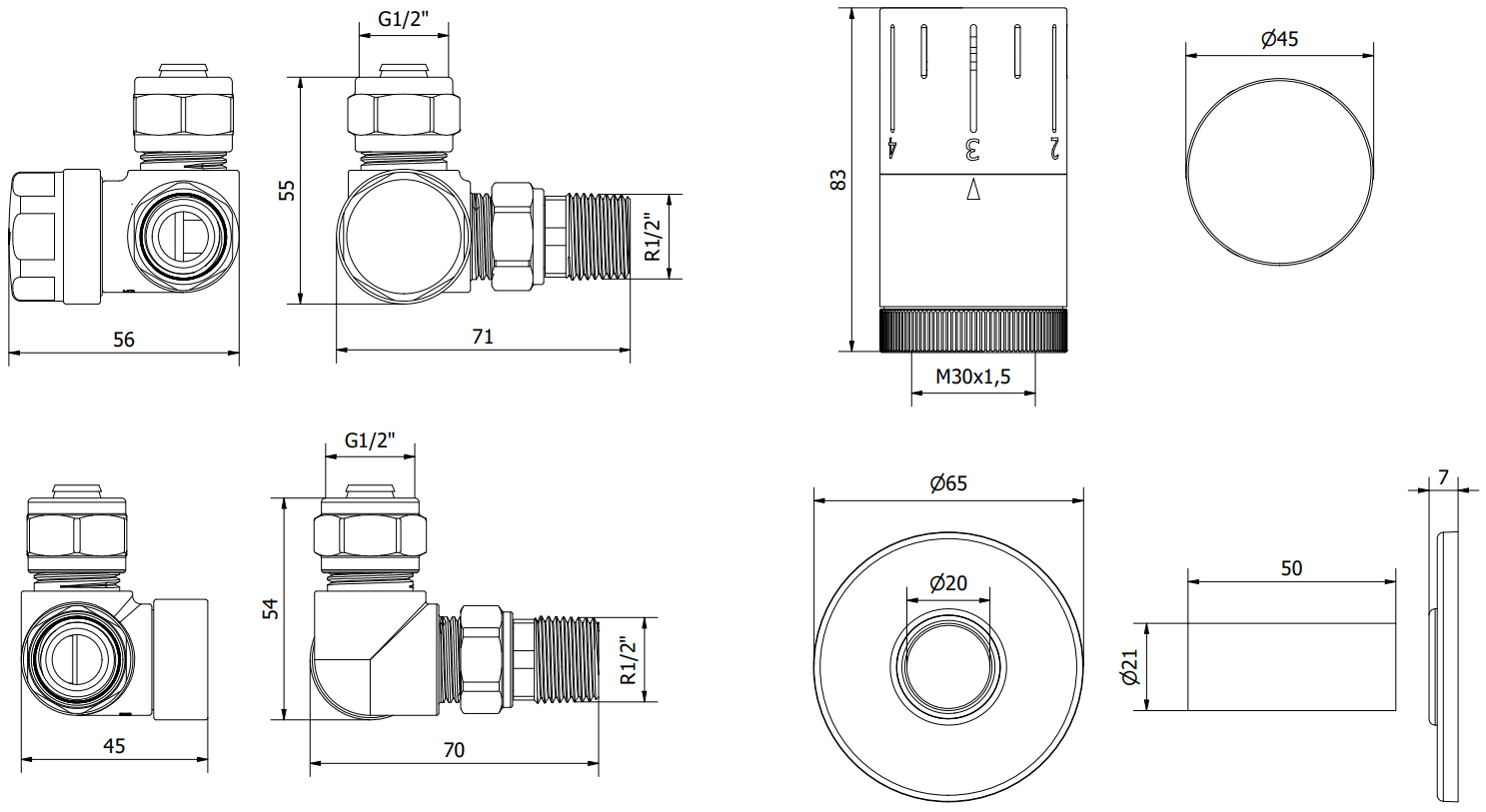

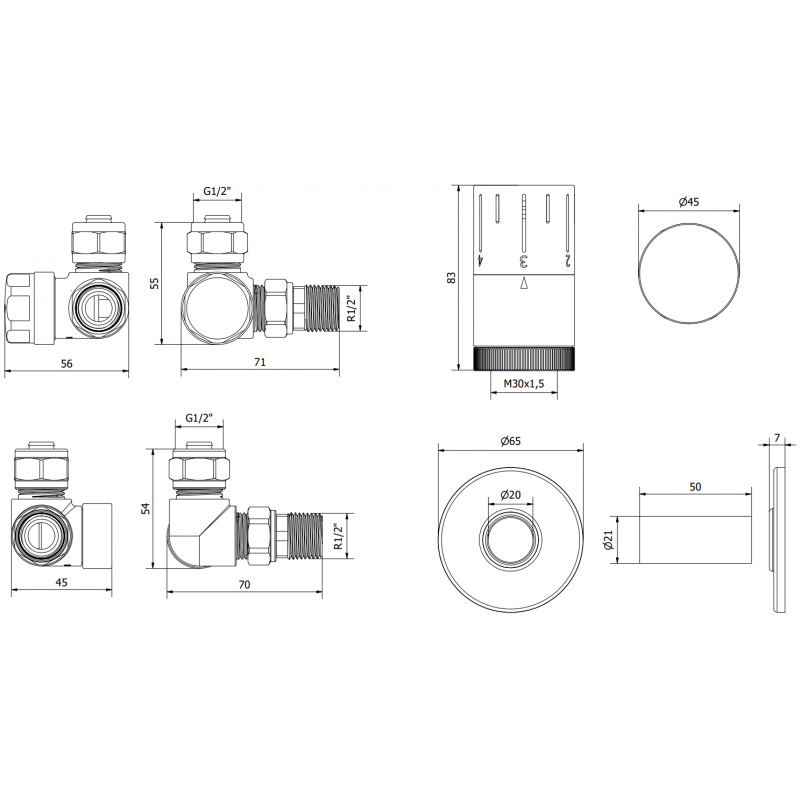

Technical data:

Valve material: Brass

Valve color: Black

Connection diameter of valves: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: Black

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover color: Black

Rosette material: Stainless steel

External diameter of rosettes: 65 mm

Height of rosettes: 7 mm

Internal diameter of hole: 21 mm

Material of spacers: Brass

Spacer length: 50 mm

Internal diameter of spacers: 20 mm

The cover consists of two single rosettes and a spacer

The set includes a supply and shut-off radiator valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the operating pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe functioning in systems with relatively high pressure.

Practical Solution

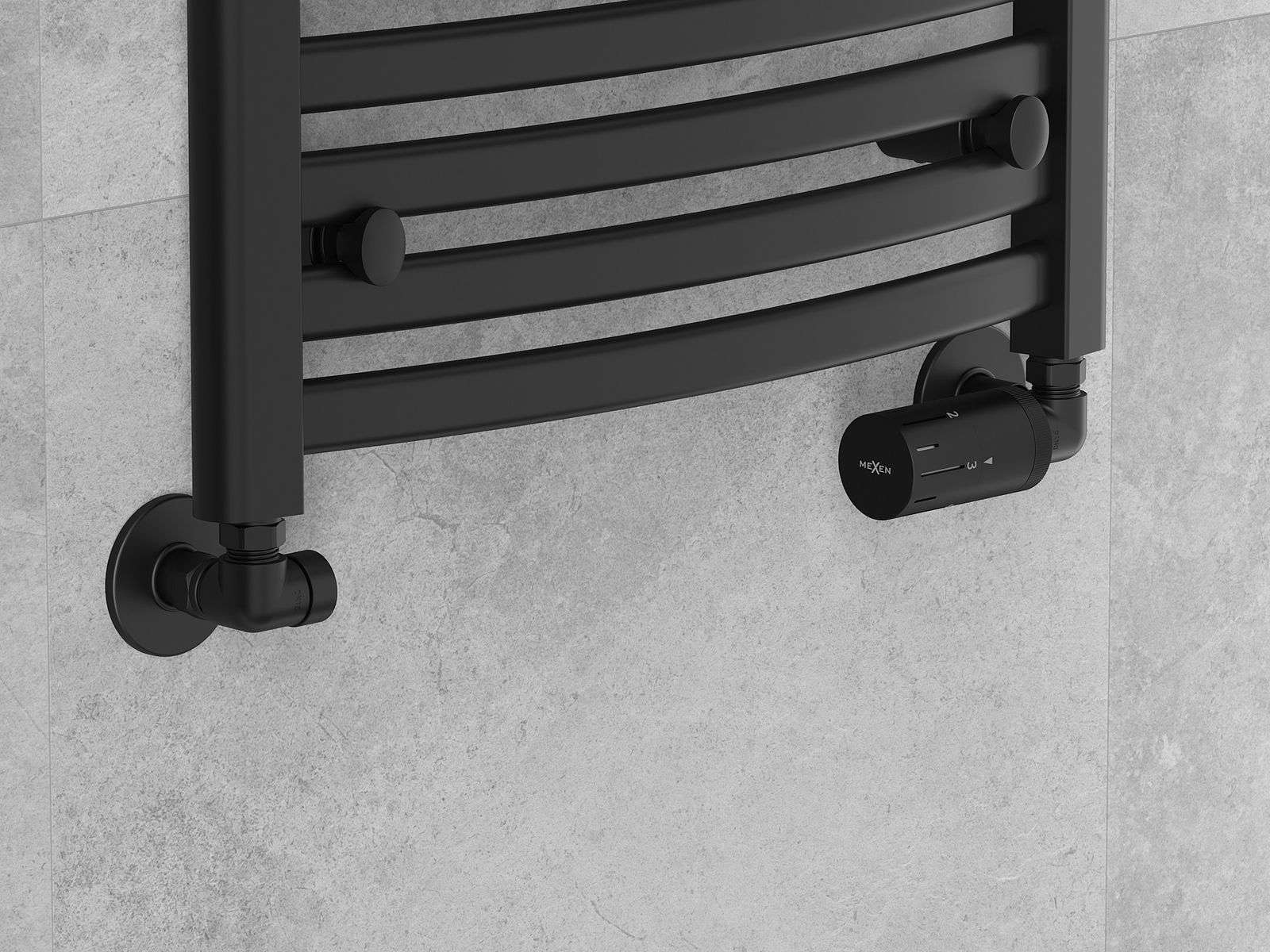

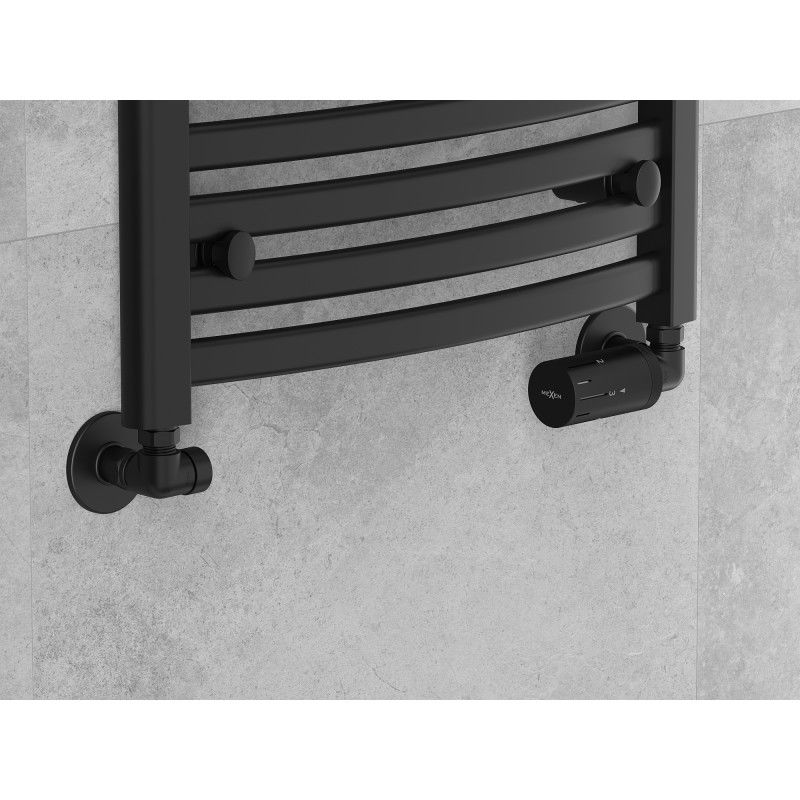

A radiator masking set is a practical and aesthetic accessory that helps to conceal heating installation elements. This makes the radiator more discreet and the interior gains a tidier and more organized appearance.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G05
Type
Axial
Color
Black
Connection diameter
G 1/2"
Cover
Yes
User manual - radiator valve
Download
User manual - thermostatic head
Download
Safety Information - Radiator Valve
Download
Safety information - thermostatic head
Download
Warranty conditions
Download
