Mexen G05 axial thermostatic set with R cover, white - W903-958-904-20

The Mexen G05 thermostatic set is the ideal solution for precise temperature control. Made of brass with a white finish, it features a G 1/2'' connection diameter and M30 x 1.5 mm head thread. It offers a temperature adjustment range from 0 to 29°C, with frost protection at 5°C. The set also includes a cover and stainless steel rosettes. It operates at a maximum temperature of 120°C and a working pressure of up to 10 bar, ensuring reliability and durability.

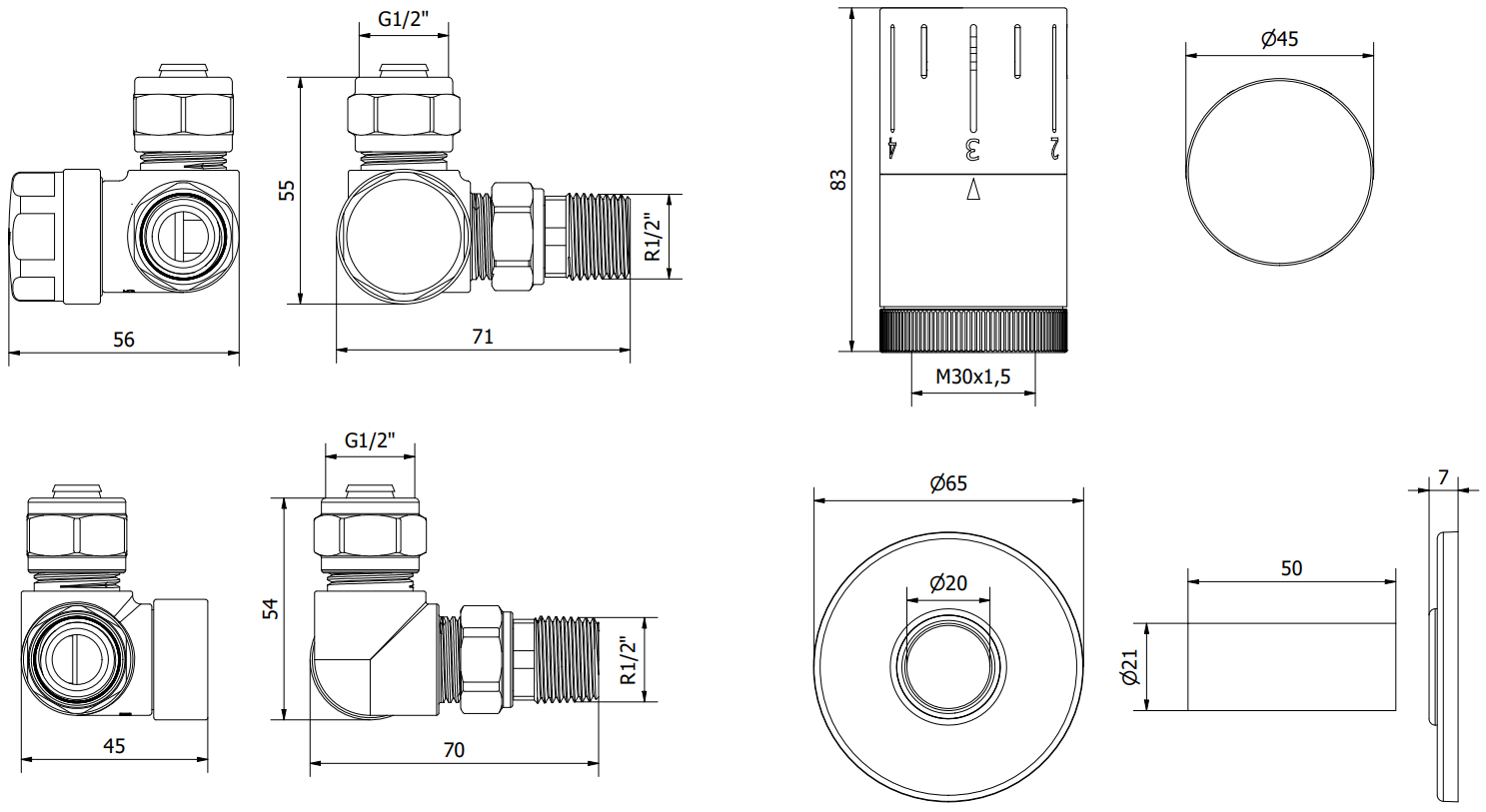

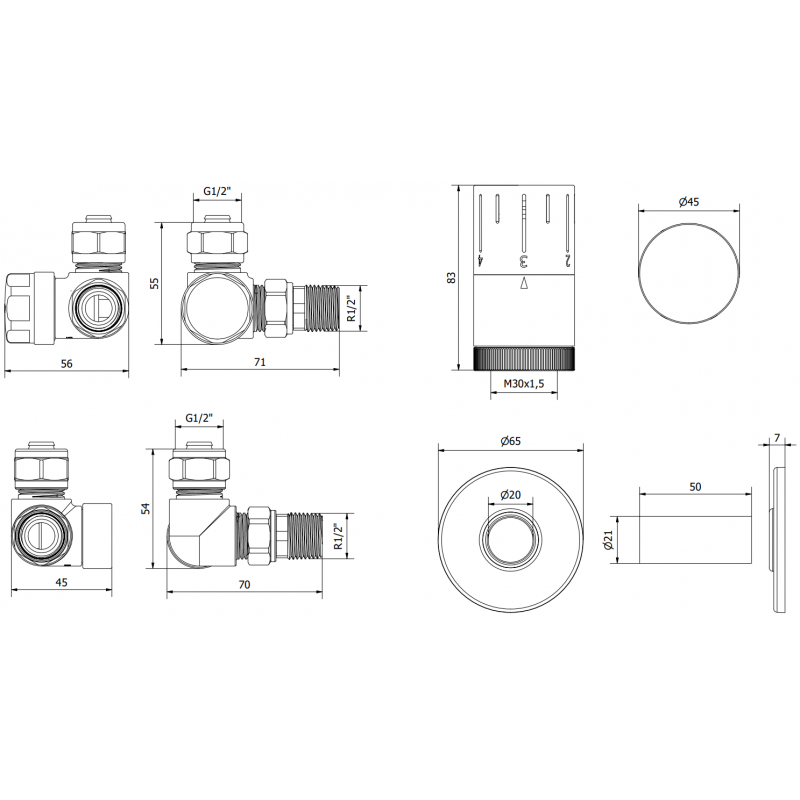

Technical data:

Valve material: Brass

Valve colour: White

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head colour: White

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover colour: White

Rosette material: Stainless steel

Rosette outer diameter: 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Tube material: Brass

Tube length: 50 mm

Tube inner diameter: 20 mm

The cover consists of two single rosettes and a sleeve

The set includes a supply and shut-off radiator valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the operating pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe functioning in systems with relatively high pressure.

Practical Solution

A radiator masking set is a practical and aesthetic accessory that helps to conceal heating installation elements. This makes the radiator more discreet and the interior gains a tidier and more organized appearance.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.
