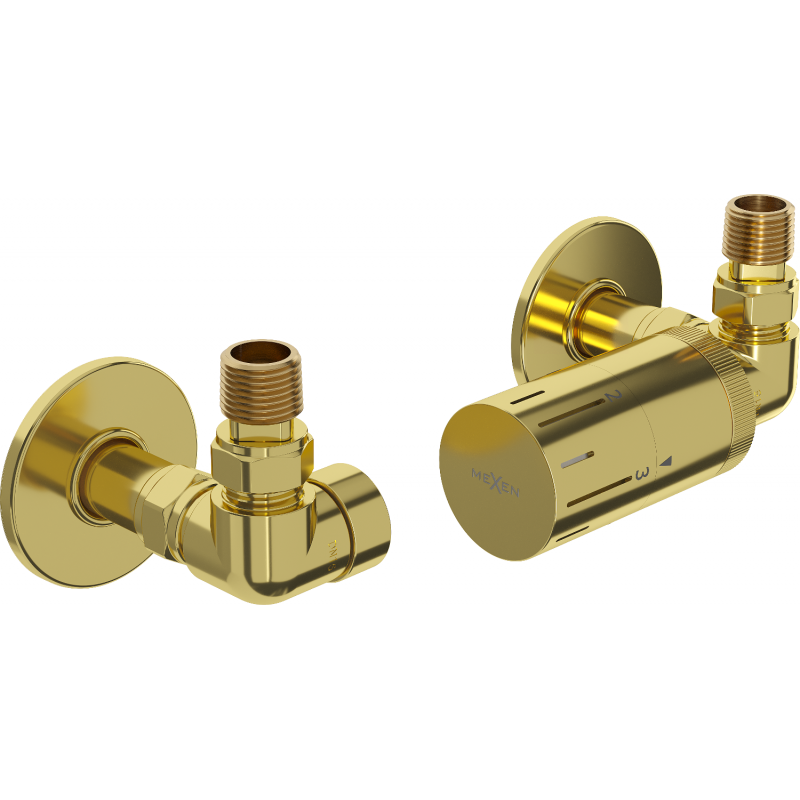

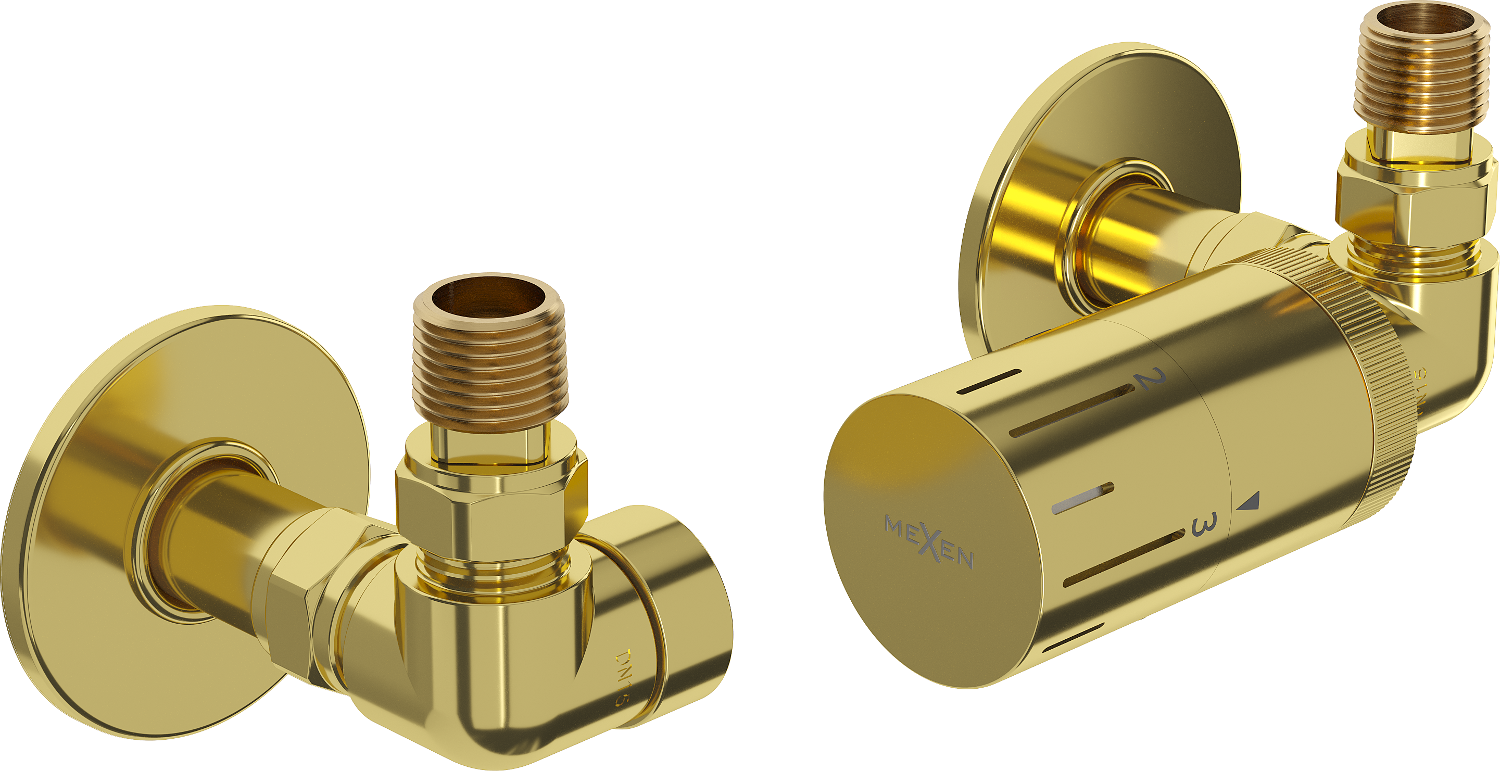

The Mexen G05 axial thermostatic set with R cover is an elegant and functional solution for your heating system. Made of durable brass with steel elements, it ensures long service life and reliability. The gold colour adds prestige and luxury, and the 0-5 adjustment scale allows precise temperature control. With frost protection and the ability to operate at high temperatures (up to 120°C) and a maximum operating pressure of 10 bar, it is an ideal choice for demanding users.

Technical data:

Valve material: Brass

Valve colour: Gold

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Head thread: M30 x 1.5 mm

Head colour: Gold

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover colour: Gold

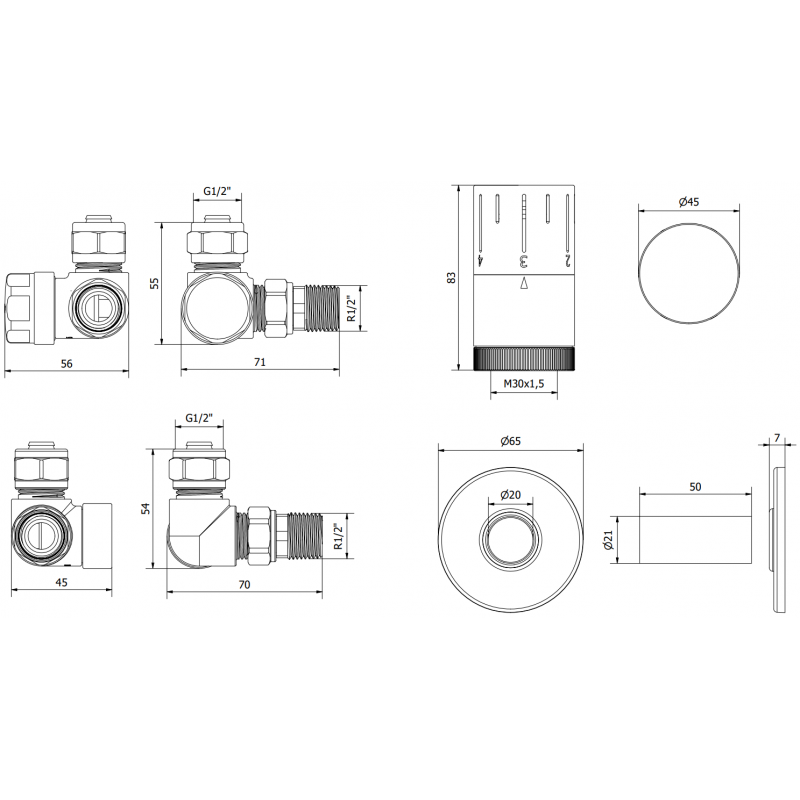

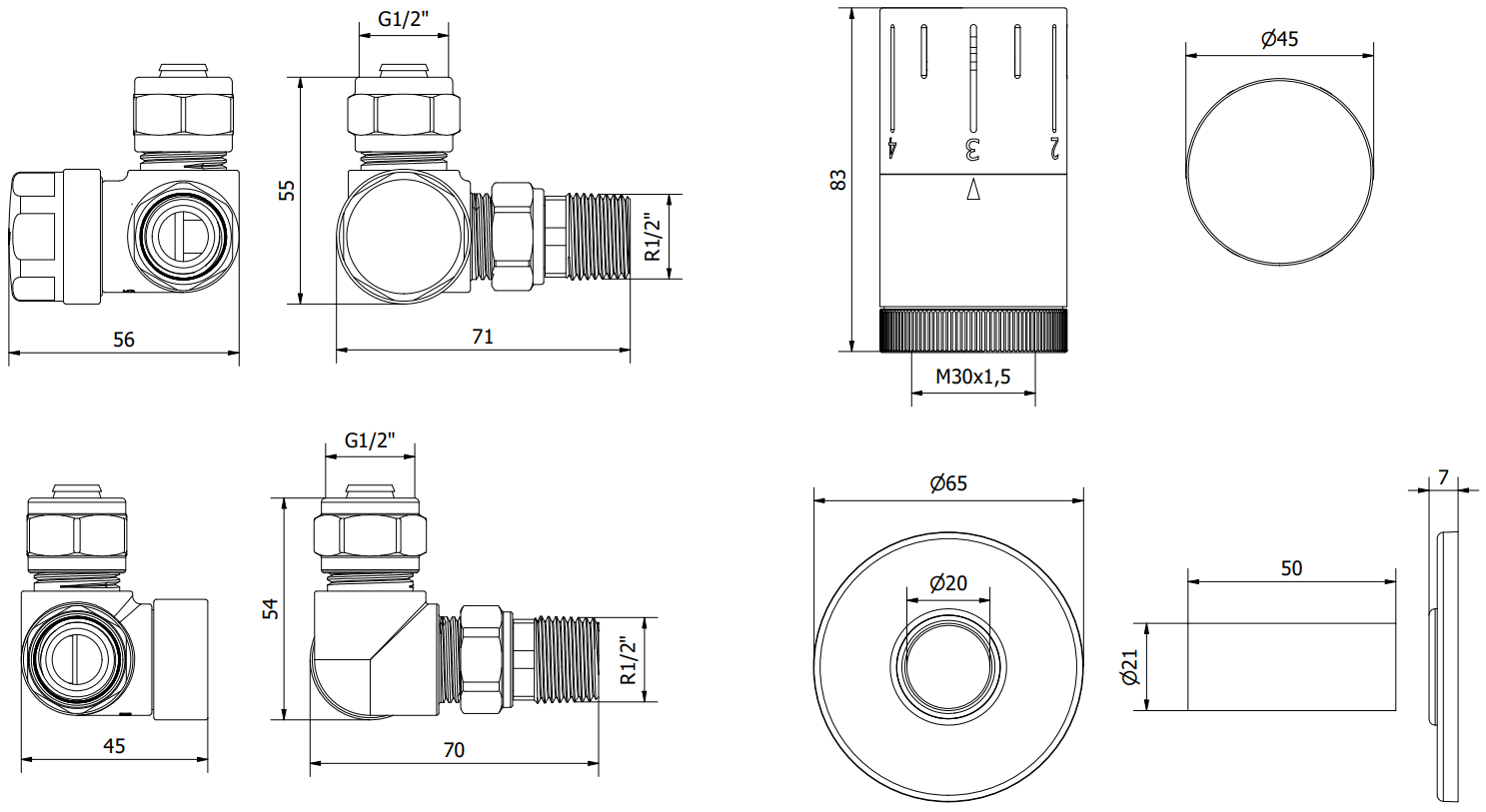

Rosette material: Stainless steel

External diameter of rosettes: 65 mm

Height of rosettes: 7 mm

Diameter of inner hole: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Internal diameter of sleeves: 20 mm

The cover consists of two single rosettes and a sleeve

Includes radiator supply and shut-off valve

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Practical Solution

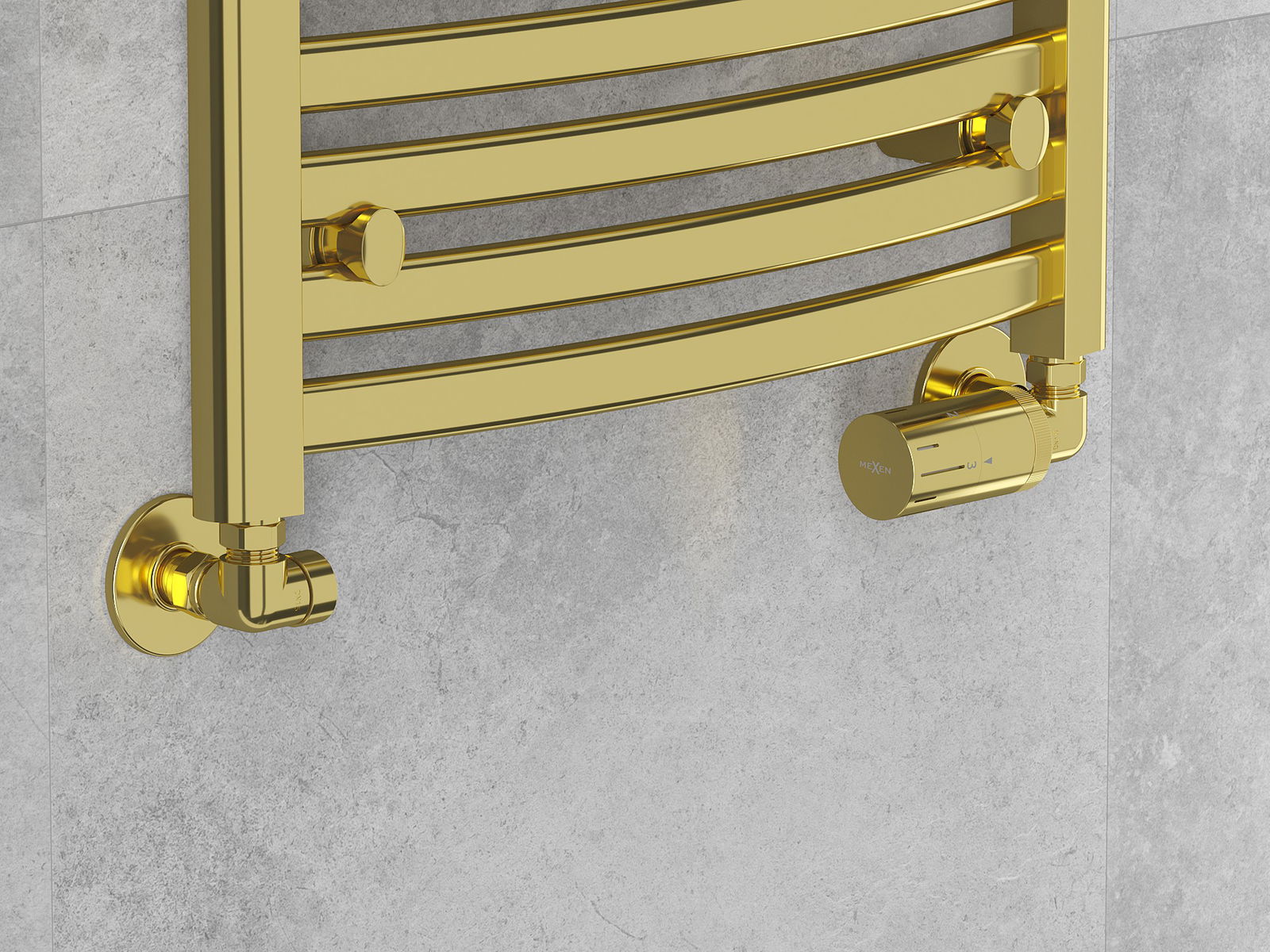

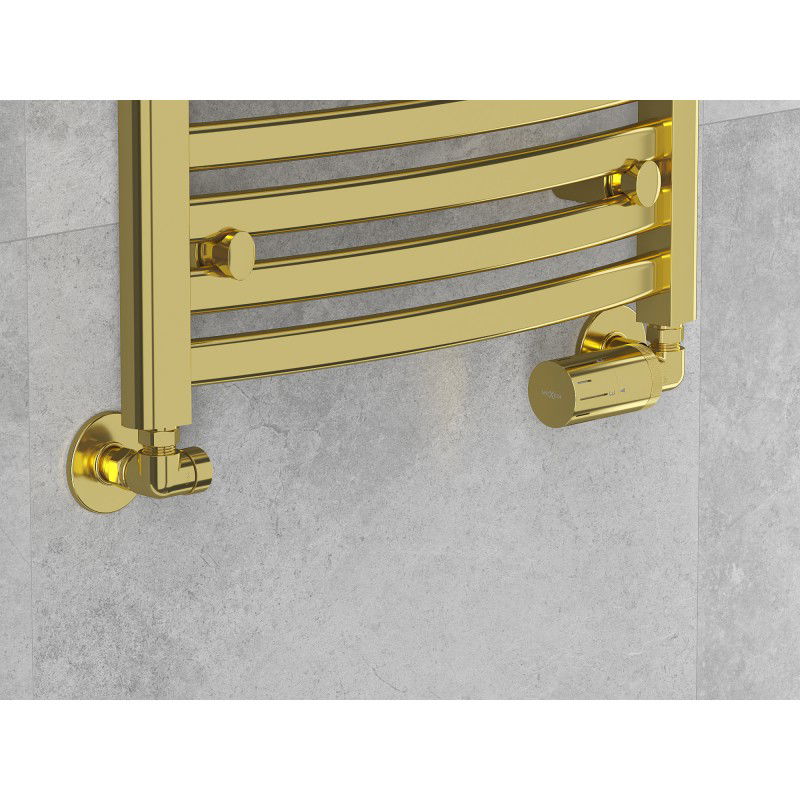

A radiator masking set is a practical and aesthetic accessory that helps to conceal heating installation elements. This makes the radiator more discreet and the interior gains a tidier and more organized appearance.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
G05
Type
Axial
Color
Gold
Inlet Diameter
G 1/2"
Cover
Yes
