Mexen G05 axial thermostatic set with S cover, chrome - W903-958-909-01

The Mexen G05 axial thermostatic set with S cover, chrome, offers high-quality brass valves and an elegant chrome finish. With a maximum operating temperature of up to 120°C and working pressure up to 10 bar, the set provides efficiency and reliability. Temperature adjustment from 0 to 29°C and frost protection at 5°C make the product ideal for various conditions. The set also includes stainless steel rosettes and brass sleeves, ensuring long-lasting use.

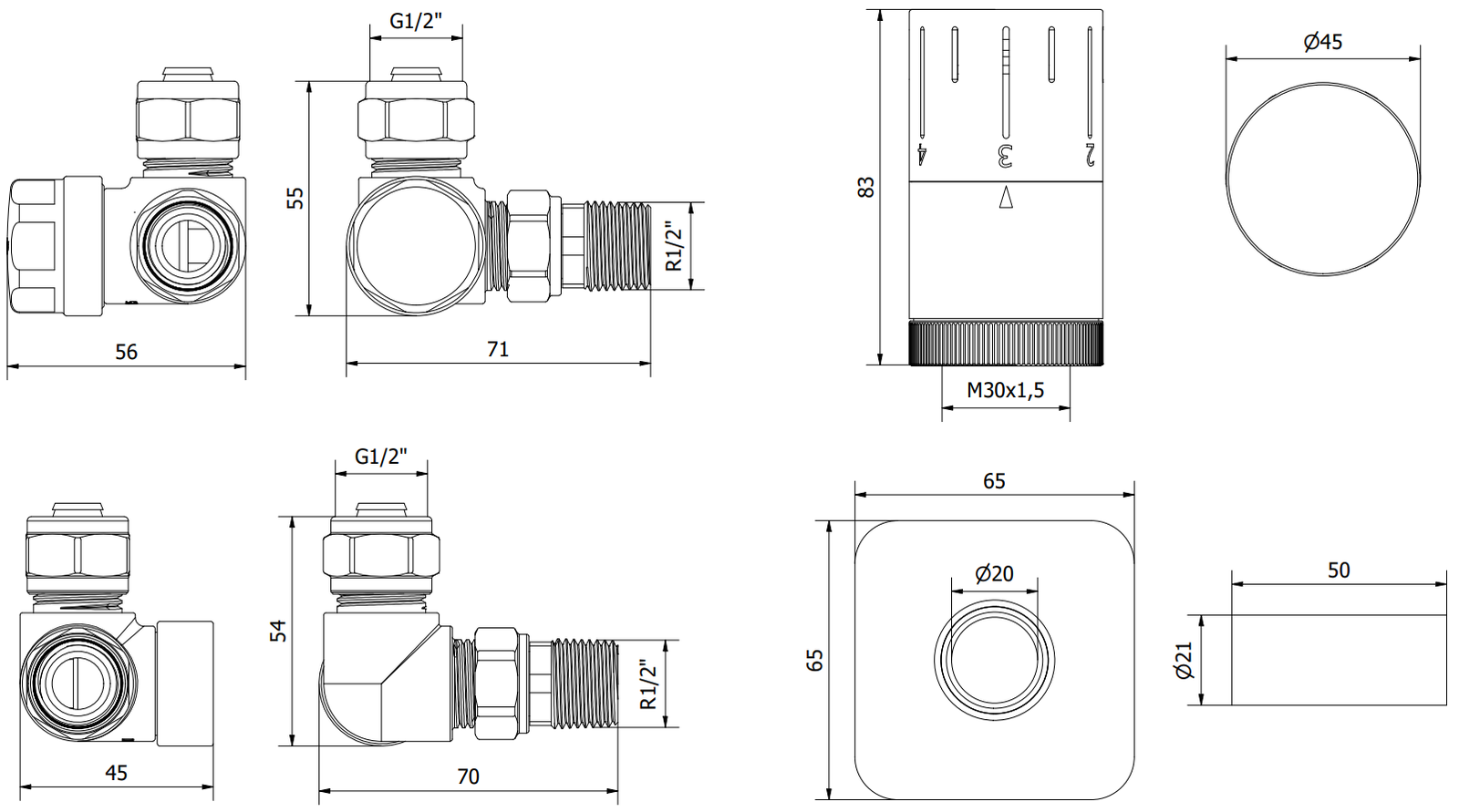

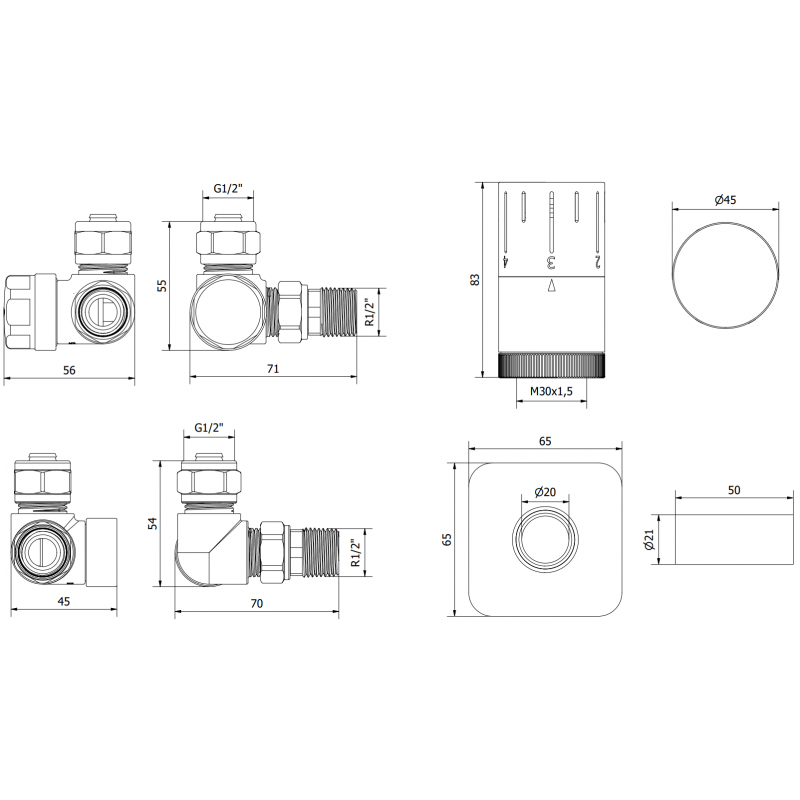

Technical Data:

Valve material: Brass

Valve colour: Chrome

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Head thread: M30 x 1.5 mm

Head colour: Chrome

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover colour: Chrome

Rosette material: Stainless steel

Outer diameter of rosettes: 65 mm

Height of rosettes: 7 mm

Inner diameter of hole: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Inner diameter of sleeves: 20 mm

The cover consists of two individual rosettes and a sleeve

The set includes both supply and cut-off radiator valves

Innovative solutions used in this product

Brass

Making valves from brass ensures their durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and varying temperatures.

Frost Protection

The product features a built-in frost protection function when the temperature drops below 5°C. This function provides protection for the heating system and pipes against freezing, especially during periods of low temperatures when the building is not in use.

Temperature Regulation

The head with a 5-stage temperature regulation scale, ranging from 0-29 °C, allows for precise temperature control. This function enables the user to set the room temperature, which translates to thermal comfort and energy savings.

1 Mpa

The product is designed for use in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Practical Solution

A radiator masking set is a practical and aesthetic accessory that helps to conceal heating installation elements. This makes the radiator more discreet and the interior gains a tidier and more organized appearance.

Immunity and Durability

Set with a stainless steel rosette and brass sleeve combines two materials with exceptional properties. Stainless steel provides an aesthetic finish and resistance to corrosion, while brass guarantees durability and strength when connecting the elements of the heating system.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Serial
G05
Type
Axial
Colour
Chrome
Connection diameter
G 1/2"
Cover
Yes
