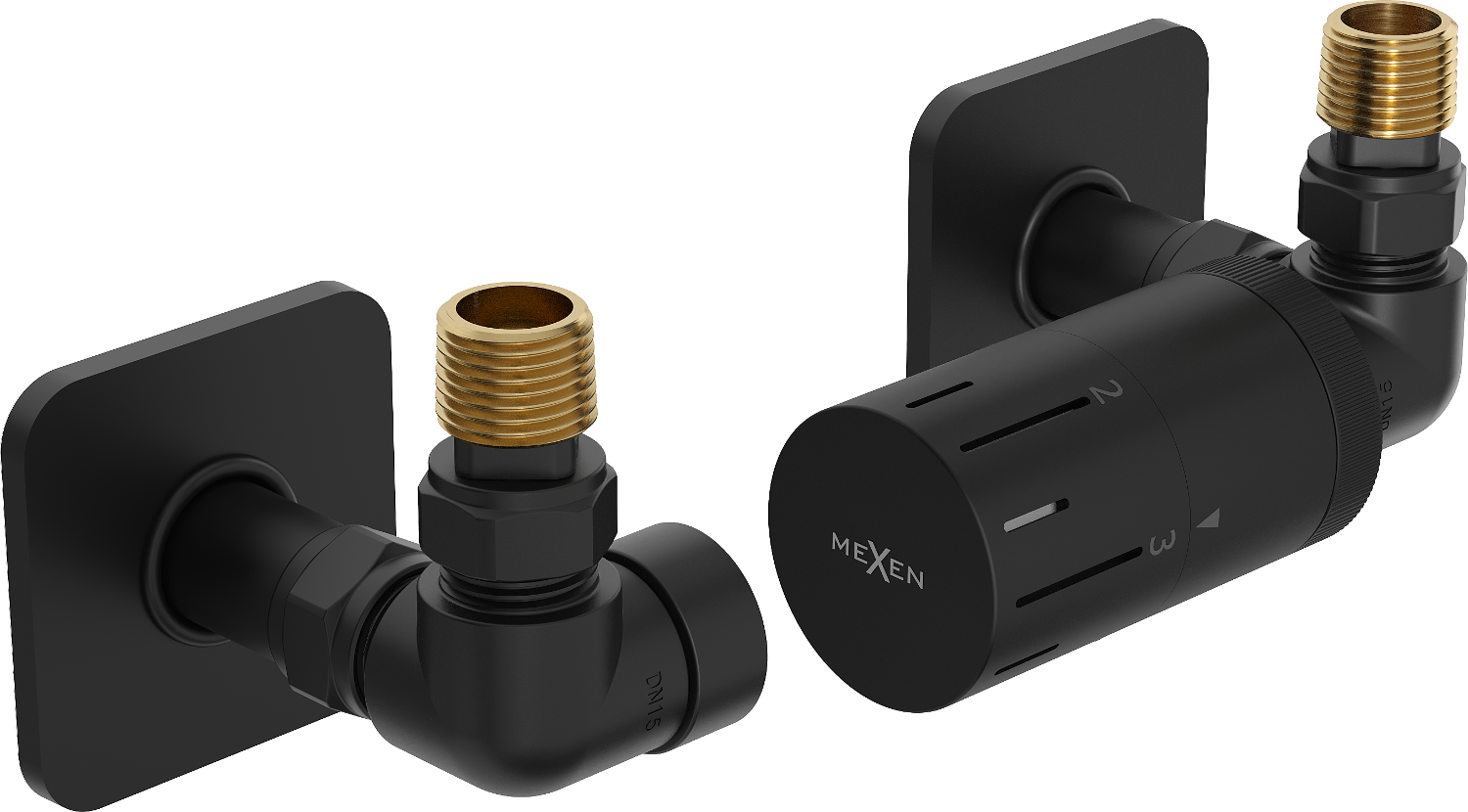

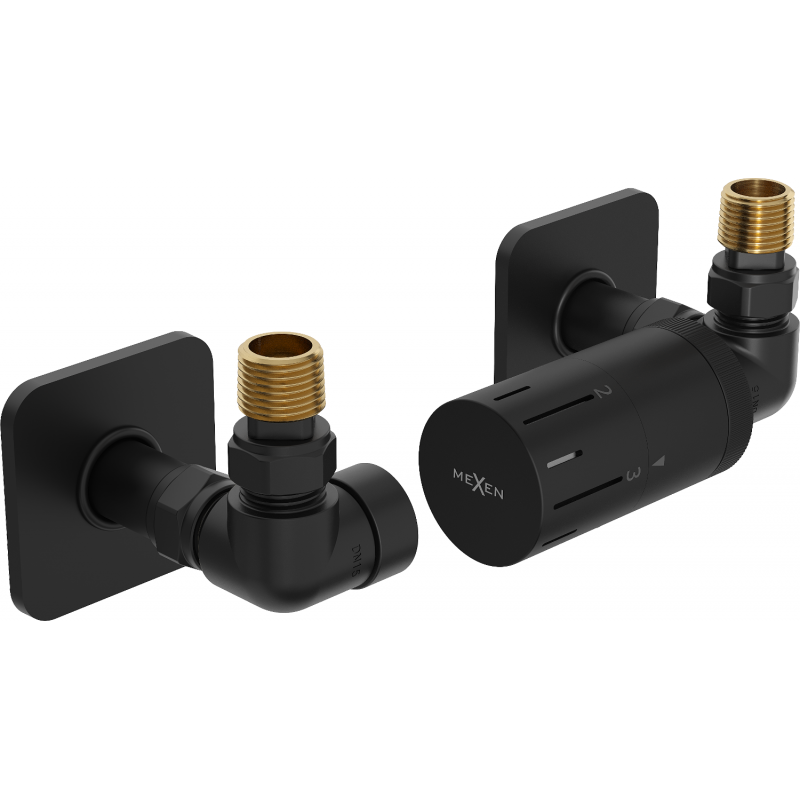

Mexen G05 axial thermostatic set with S cover, black - W903-958-909-70
Mexen G05 axial thermostatic set with S cover, black - W903-958-909-70 Mexen G05 axial thermostatic set with S cover, black - W903-958-909-70 Mexen G05 axial thermostatic set with S cover, black - W903-958-909-70
Brand:
Mexen
Seria:
G05
Ean:
5905315237965
Index:
W903-958-909-70
Color:
Black
Connection Diameter:
G 1/2"
Type:
Axial
Series:
G05
Color - Black - ()

Mexen G05 axial thermostatic set with S cover, black - W903-958-909-70

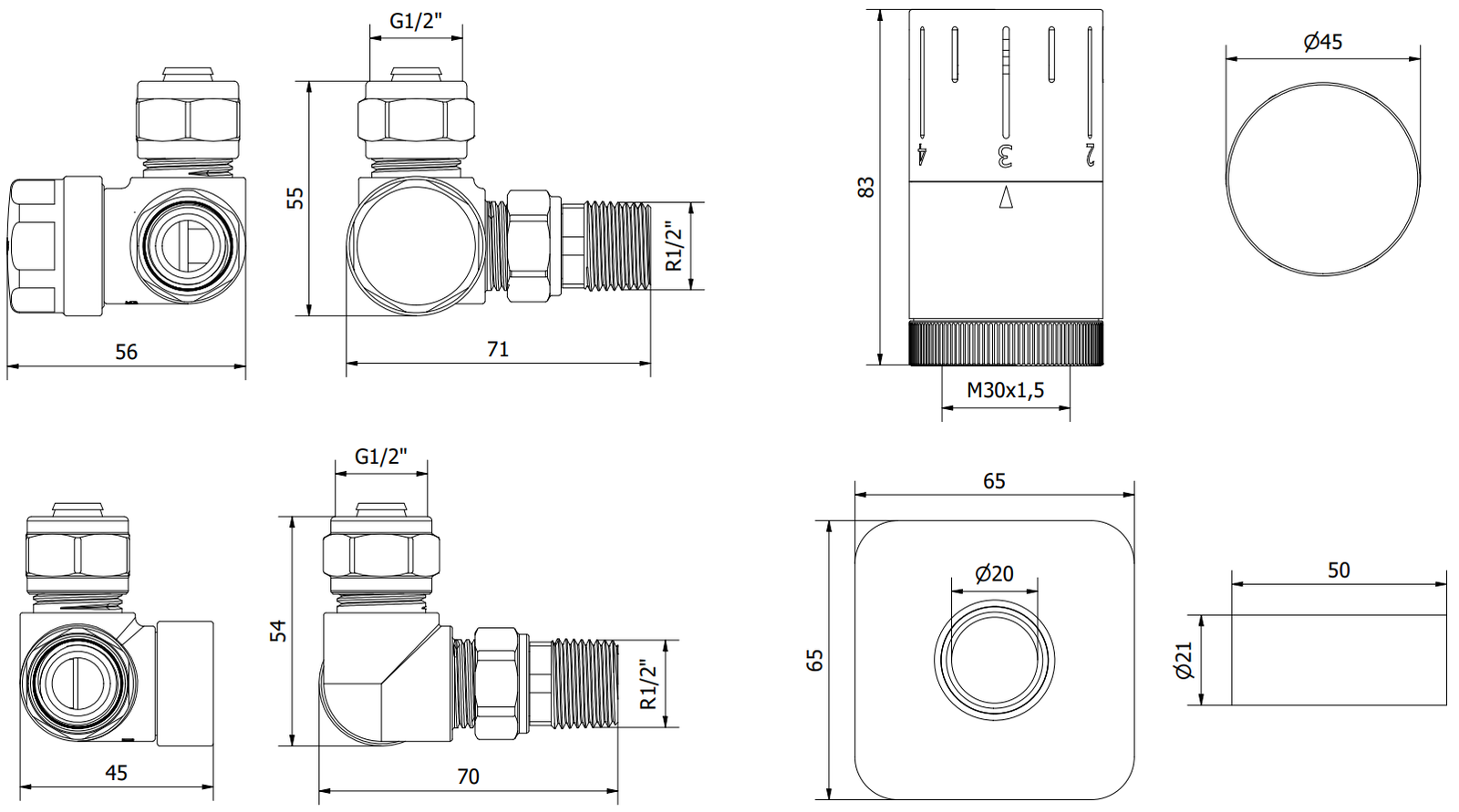

Technical data:

Valve material: Brass

Valve color: Anthracite

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: Anthracite

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover color: Anthracite

Rosette material: Stainless steel

Outer rosette diameter: 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Inner bushing diameter: 20 mm

The cover consists of two single rosettes and a sleeve

The set includes a radiator supply and shut-off valve

Innovative solutions used in this product

2-year warranty

The product is covered by a 2-year warranty. If you have any problems with the purchased product, please contact us via the contact form or by calling our hotline.

Serial
G05
Type
Axial
Color
Black
Connection Diameter
G 1/2"
Cover
Yes
