Mexen G05 angled thermostatic set with S cover, anthracite - W901-958-909-66
(0)
Questions
(0)

Mexen G05 angled thermostatic set with S cover, anthracite - W901-958-909-66

Mexen G05 angled thermostatic set with S cover, anthracite - W901-958-909-66
search
  • Mexen G05 angled thermostatic set with S cover, anthracite - W901-958-909-66
  • Mexen G05 angled thermostatic set with S cover, anthracite - W901-958-909-66
Mexen G05 angled thermostatic set with S cover, anthracite - W901-958-909-66
Mexen G05 angled thermostatic set with S cover, anthracite - W901-958-909-66 Mexen G05 angled thermostatic set with S cover, anthracite - W901-958-909-66
Brand:
Mexen
Seria:
G05
Ean:
5905315237859
Index:
W901-958-909-66
Color:
Anthracite
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G05
Color - Anthracite - ()

Mexen G05 angled thermostatic set with S cover, anthracite - W901-958-909-66

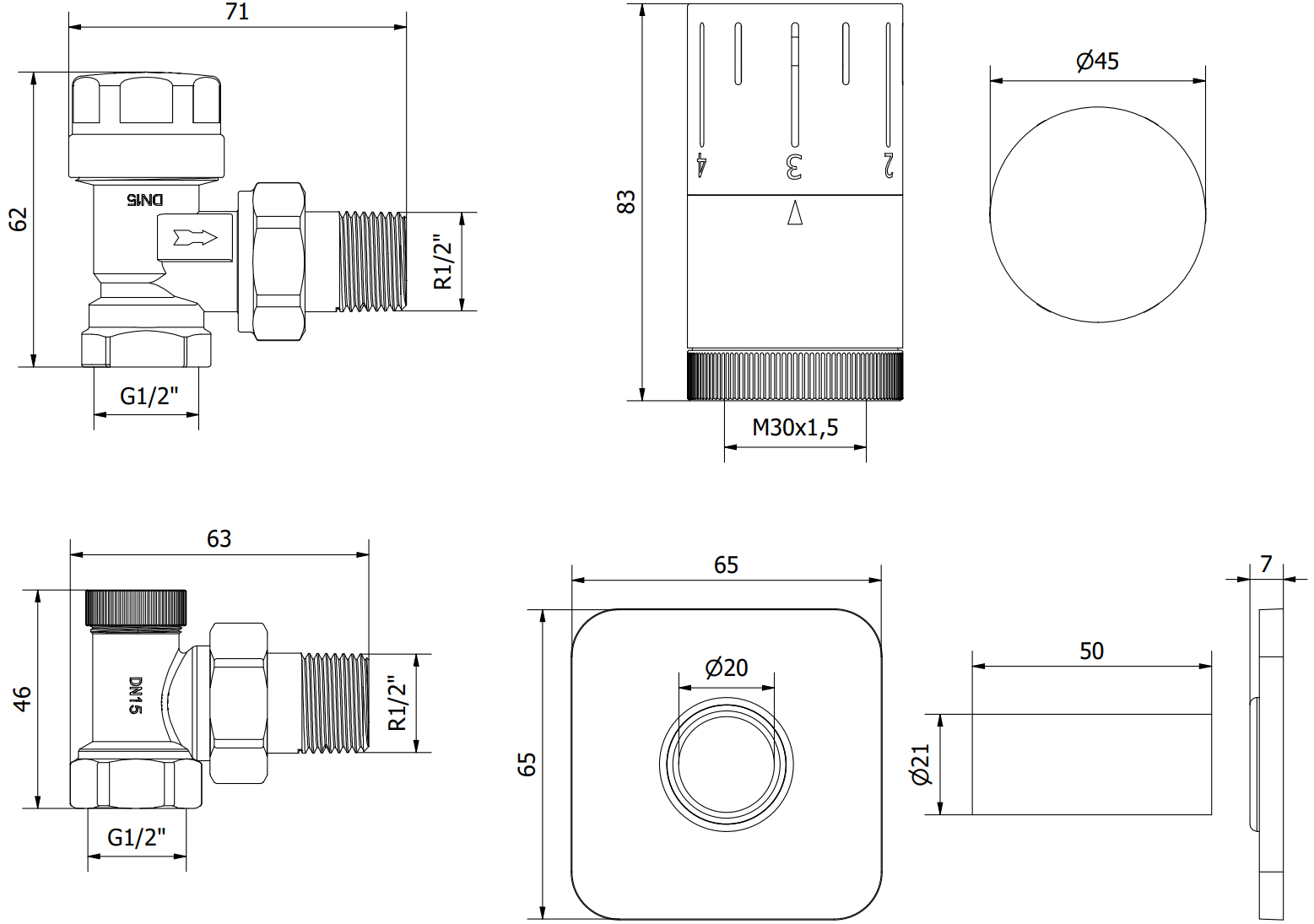

Technical data:

Valve material: Brass

Valve color: Anthracite

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum operating pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: Anthracite

Adjustment scale: 0-5

Temperature adjustment range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover color: Anthracite

Rosettes material: Stainless steel

Rosettes width: 65 mm

Rosettes height: 7 mm

Inner hole diameter: 21 mm

Sleeves material: Brass

Length of sleeves: 50 mm

Inner diameter of sleeves: 20 mm

The cover consists of two single rosettes and a sleeve

The set includes a supply and shut-off radiator valve

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Corner
Color
Anthracite
Connection Diameter
G 1/2"
Cover
Yes
Warranty conditions
Download
Manufacturer
See

Haven't found the answer?

Write to us

See more questions
The product has no opinion yet. Leave your opinion!
