Mexen G05 angle thermostatic set with rosette R, white - W901-958-904-20
Mexen G05 angle thermostatic set with rosette R, white - W901-958-904-20 Mexen G05 angle thermostatic set with rosette R, white - W901-958-904-20
Brand:
Mexen
Seria:
G05
Ean:
5905315237583
Index:
W901-958-904-20
Color:
White
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G05
Color - White - ()

Mexen G05 angle thermostatic set with rosette R, white - W901-958-904-20

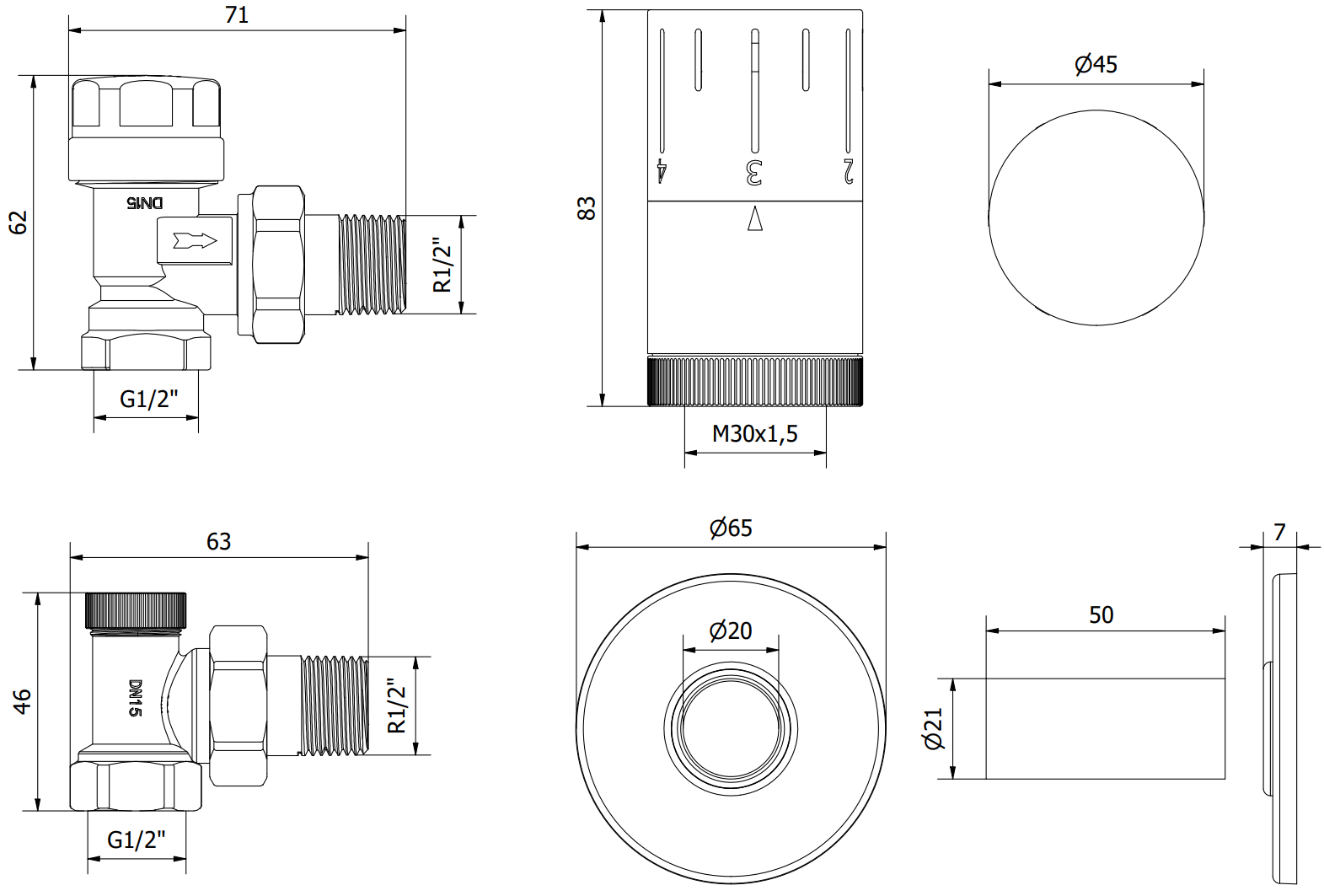

Technical data:

Valve material: Brass

Valve color: White

Valve connection diameter: G 1/2"

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: White

Scale range: 0-5

Temperature range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Rosette color: White

Rosette material: Stainless steel

External diameter of rosette: 65 mm

Height of rosette: 7 mm

Internal diameter of central hole: 21 mm

Bushing material: Brass

Bushing length: 50 mm

Internal bushing diameter: 20 mm

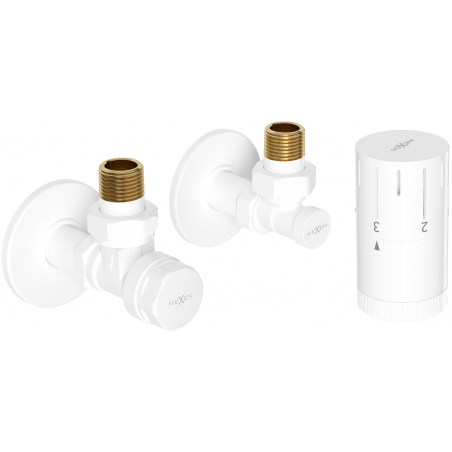

The rosette consists of two single rosettes and a sleeve

The set includes a radiator supply and shut-off valve

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Corner
Color
White
Connection Diameter
G 1/2"
Cover
Yes
Warranty conditions
