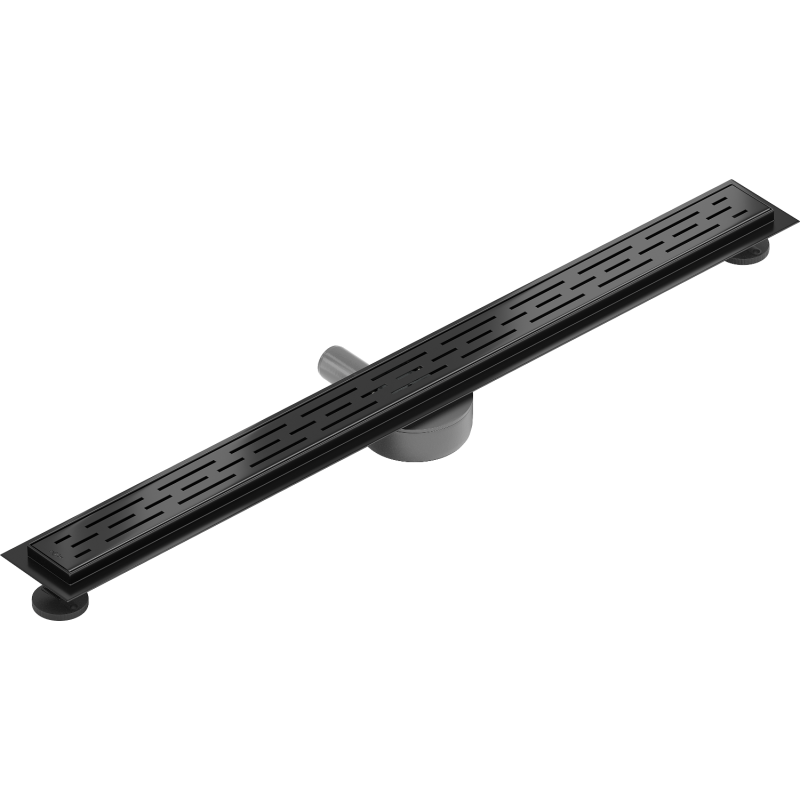

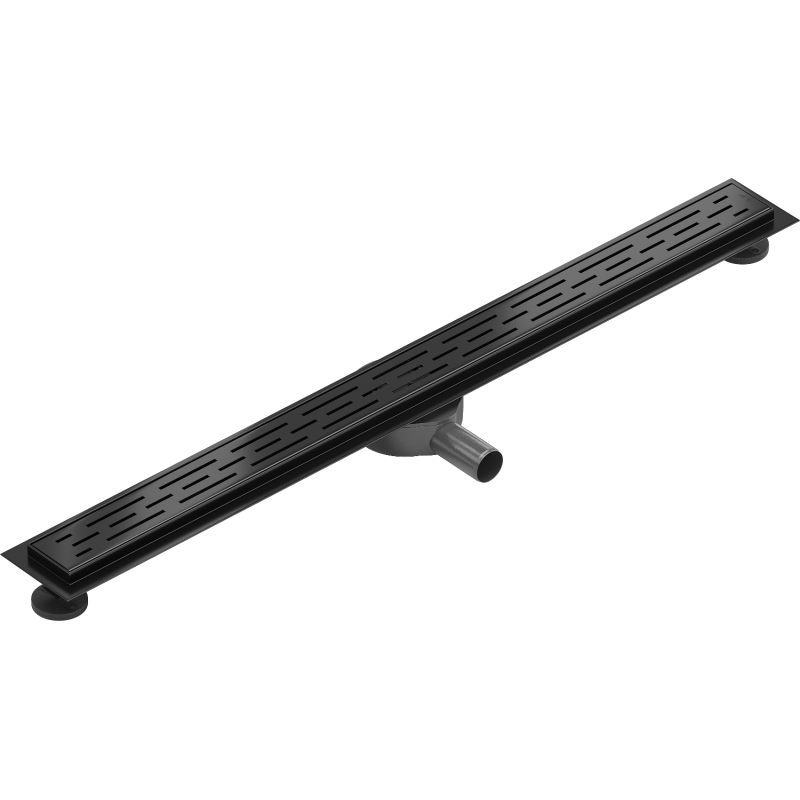

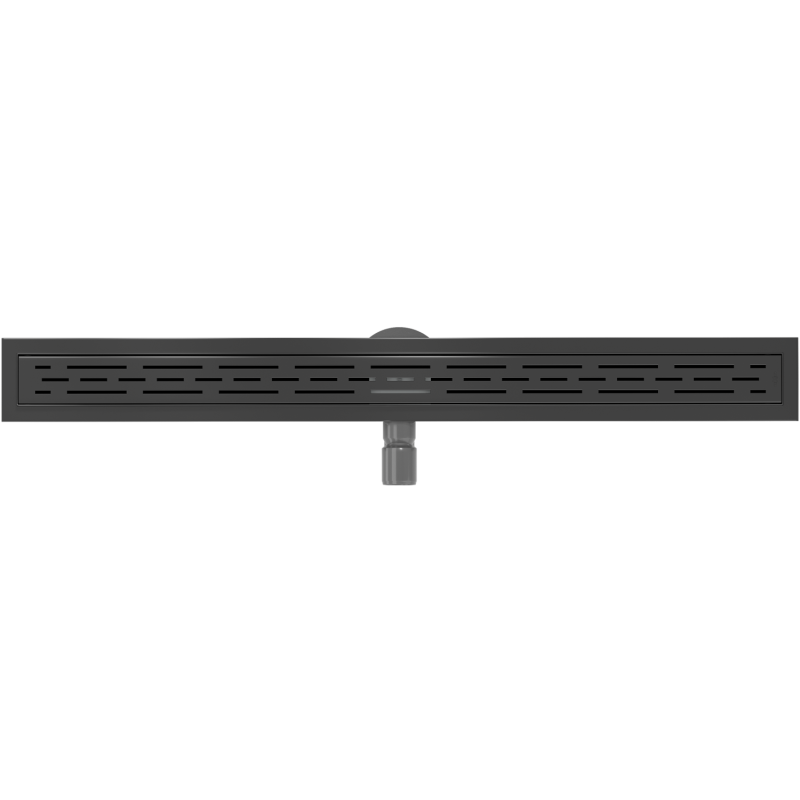

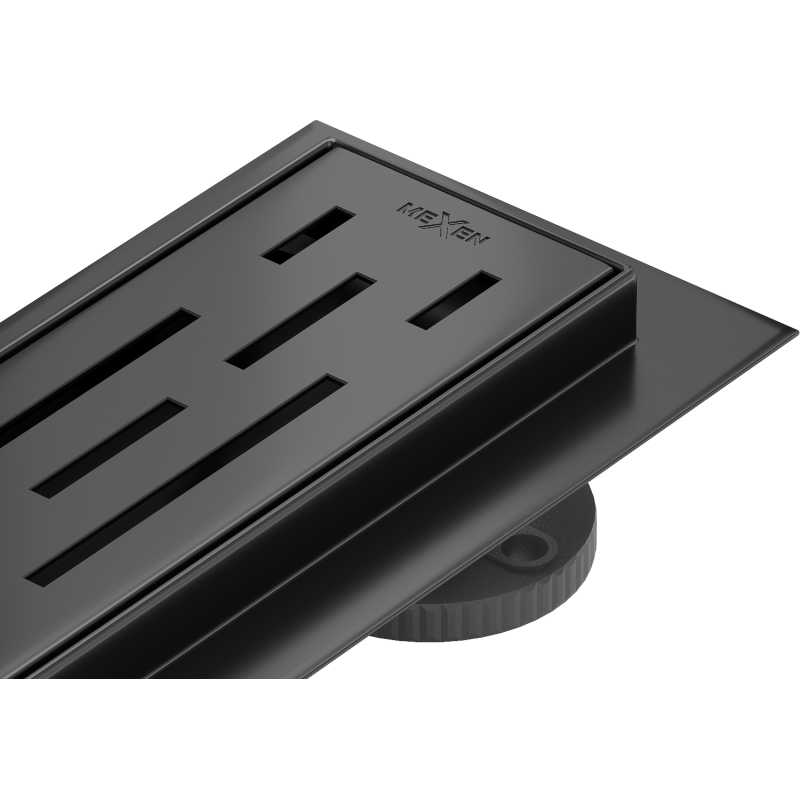

Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40

Brodziki EN

Brodziki EN

(0)
Questions
(0)

Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40

Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40
search
  • Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40
  • Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40
  • Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40
  • Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40
  • Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40
  • Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40
Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40
Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40 Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40 Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40 Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40 Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40 Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40
Stainless Steel Stainless Steel
High Capacity High Capacity
Low installation Low installation
Brand:
Mexen
Series:
Flat 360°
Ean:
5905315010513
Index:
1720080-40
Color:
Black
Included in the set:
Complete set
Size:
80 cm
Rotary siphon:
Yes
Size - 80 cm - ()
50 cm
60 cm
70 cm
80 cm
90 cm
100 cm
Color - Black - ()
Color Gold
Color Inox
Color Black
Color Chrome
Color Rose Gold
Color Black Glass
Color White Glass
Color Brushed Gold
Color Brushed Copper
Color Brushed Gun Gray

Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40

The Mexen Flat 360° M01 is a rotating linear drain measuring 80 cm in length, featuring an elegant black finish that is ideal for any bathroom, crafted from stainless steel AISI 304. Its main feature is the 360° rotating siphon, ensuring easy access for cleaning and preventing odors. Additionally, the product boasts a high flow rate of 50 l/min and a shallow installation depth of only 52 mm. The set also includes a handy hook for removing the cover and a sealing sleeve.

Technical data:

Material: Stainless Steel AISI 304

Finish: Black

Width: 80 cm

Rotating siphon 360°

Installation depth: 52 mm

Flow rate: 50 l/min

Surrounding flange - 2 cm

Set includes:

Cover with cushioning spacers

Removable dirt filter

Rotating siphon preventing odors

Water conducting gutter

Adjustable legs

Reduction 50/40 mm

Sealing sleeve

Hook for removing the cover

Innovative solutions used in this product

Stainless Steel

This product is made from the highest quality AISI 304 stainless steel, known for its high resistance to corrosion and damage. It is a robust material that ensures long-lasting, reliable use.

High Capacity

A capacity of 50l/min, which means the drainage can handle up to 50 liters of water in 1 minute. This allows the user to enjoy the comfort of a shower without worrying about excessive water accumulation.

Low installation

The linear drain is mounted at a depth of only 52 mm. The shallow depth allows for easier preparation of the surface for the drain installation and easy leveling, ensuring high aesthetics and effective water drainage.

Rotary siphon

The outlet is equipped with a rotary siphon (in a 360° range). It provides greater installation flexibility, allowing easy adjustment to drainage pipes even in hard-to-reach areas. A tailored and convenient installation in any location.

Stops unpleasant odours

The drain is equipped with a trap, whose task is to discharge used water while providing effective protection against the backflow of unpleasant odours from the sewage system. Comfort of use and a high level of hygiene.

Removable dirt filter

A system that makes cleaning the siphon even easier and faster. Simply remove the top, movable part, remove the dirt, and rinse it under water. An ideal support in maintaining hygiene and cleanliness in the bathroom.

Damping spacers

Damping spacers ensure the grille is evenly positioned, providing an aesthetic appearance. They effectively prevent the grate from rubbing against the housing and reduce the noise generated when water falls directly onto the drain.

Adjustable Feet

The drain is equipped with adjustable feet, which allow for setting the appropriate height of the drain and leveling on an uneven surface. This way, the drain is even better suited to the conditions of the particular bathroom.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Hygiene Certificate PZH

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - indicating that it in no way adversely affects human health and the natural environment. No. B.BK.60110.1719.2023 valid until 14.02.2027

Series
Flat 360°
Size
80 cm
Color
Black
Included in the set
Complete set
Slim version
No
Rotary siphon
Yes
Cover Pattern
M01
Possibility of pasting a tile
No
User manual
Download
Safety Information
Download
Warranty conditions
Download
PZH Certificate
Download
Manufacturer
See

Haven't found the answer?

Write to us

See more questions
The product has no opinion yet. Leave your opinion!

Previous
Next
Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40

Mexen Flat 360° M01 80 cm Rotating Linear Drain, Black - 1720080-40

(0)
Questions
(0)

List price: €82.20

€65.79 (tax included)

Cheaper by  €16.41

19.96%

Lowest price from the last 30 days: €65.79

Availability: In stock

Delivery from: 12.99 €

Returns up to 100 days

1people bought this product.
