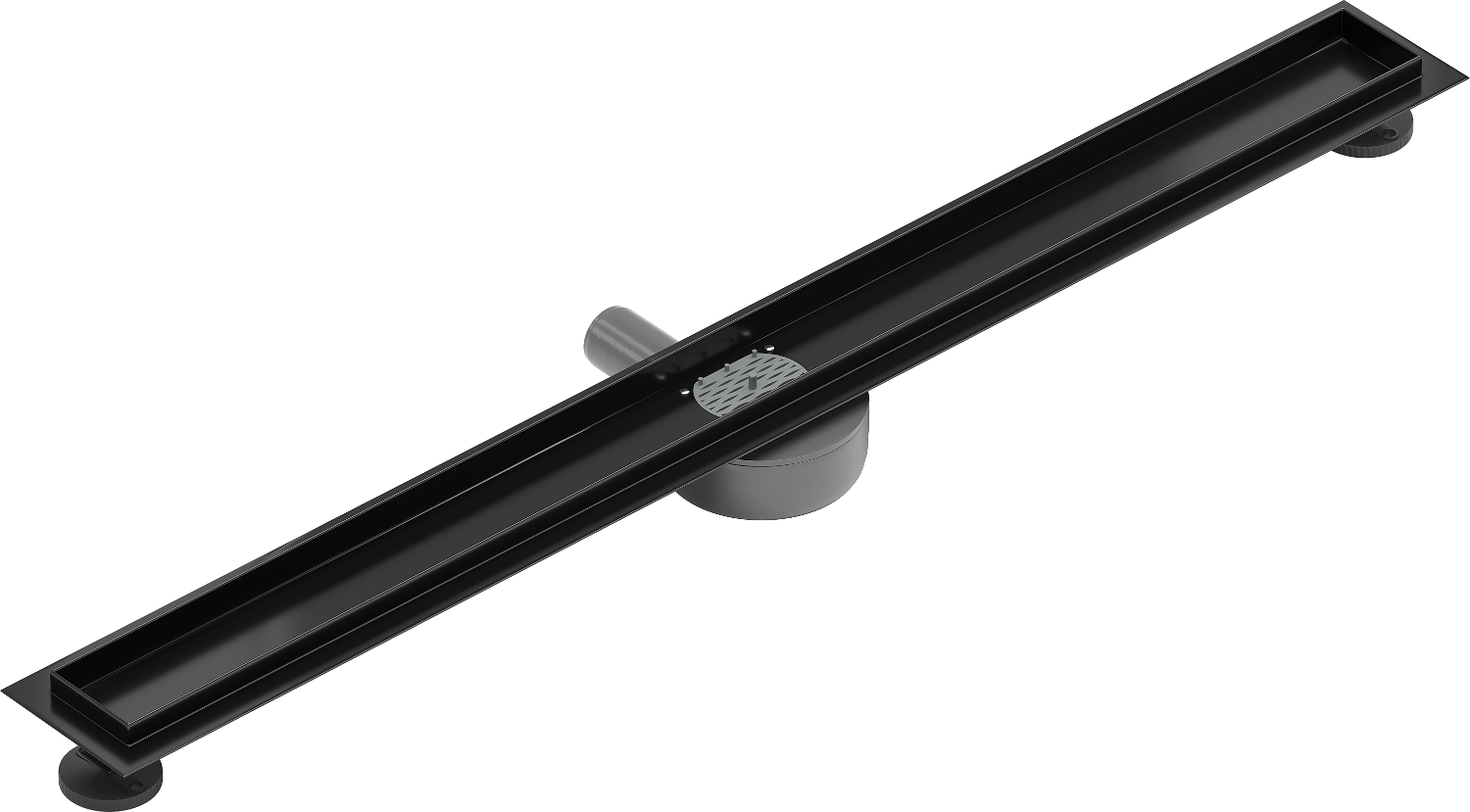

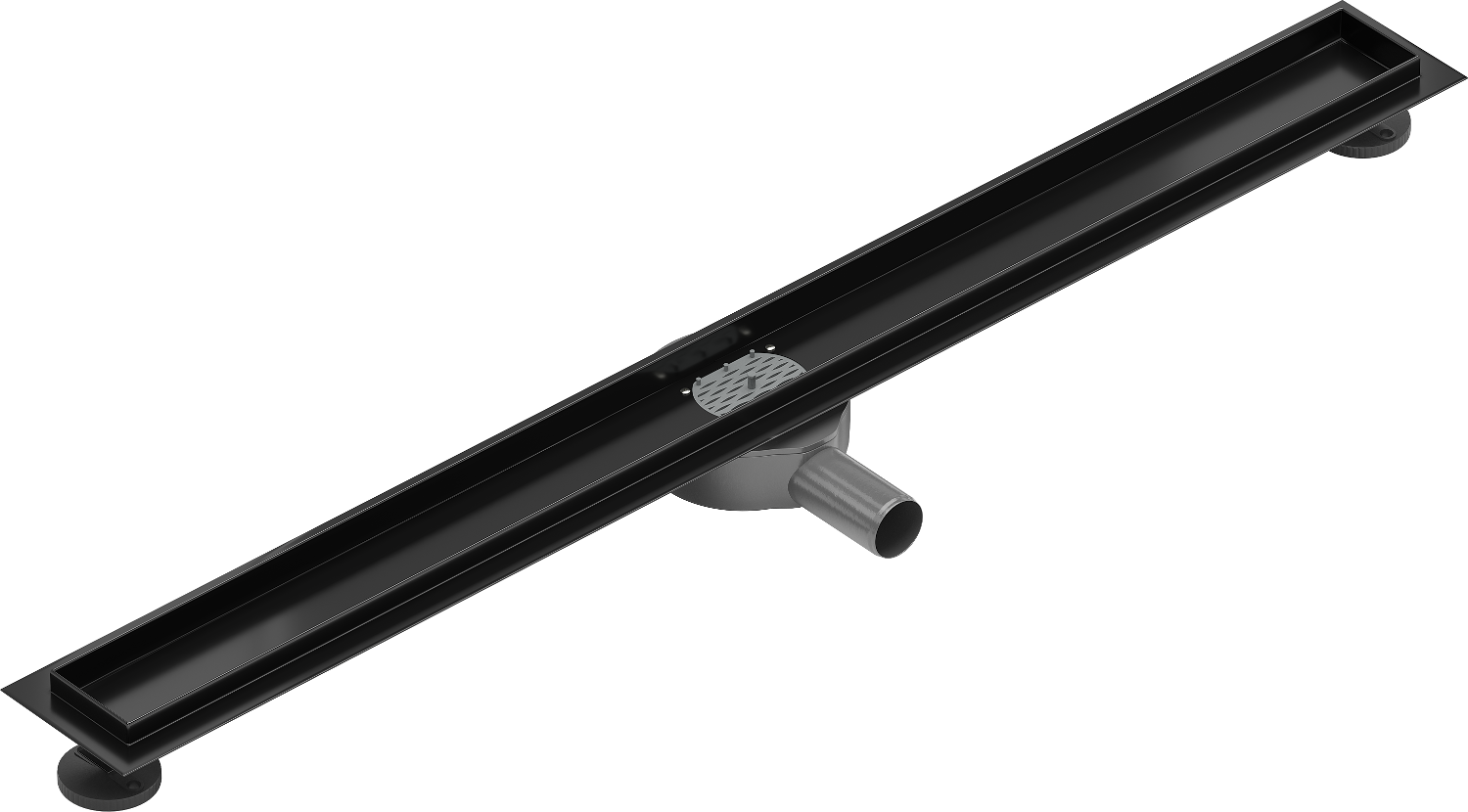

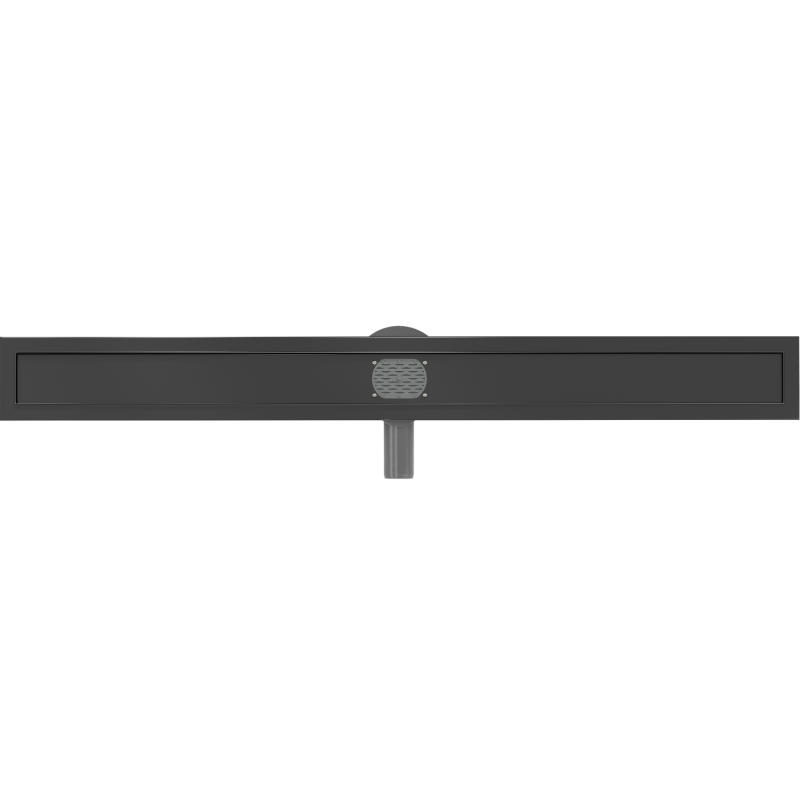

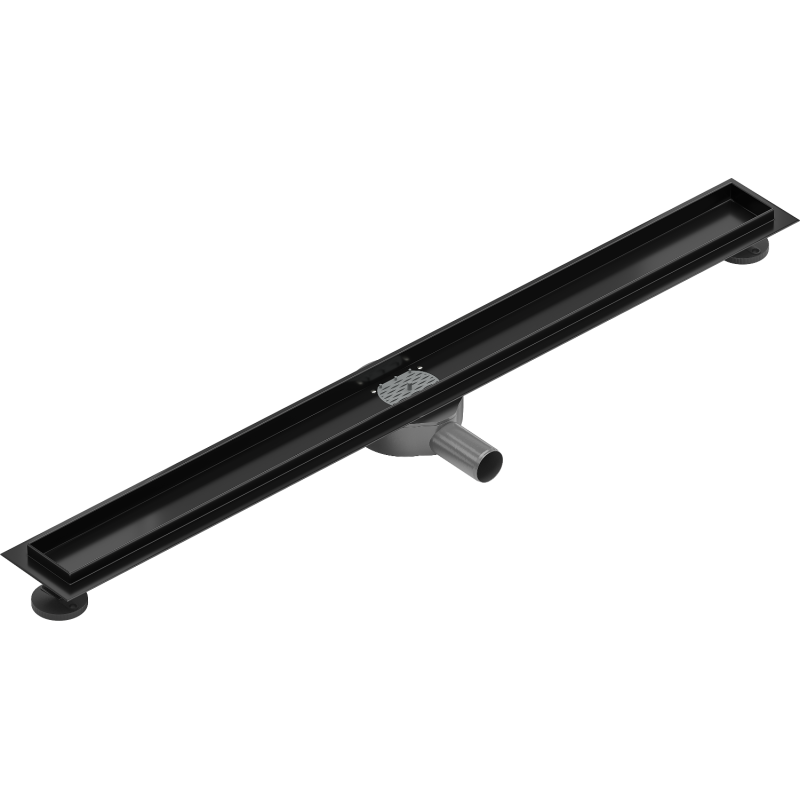

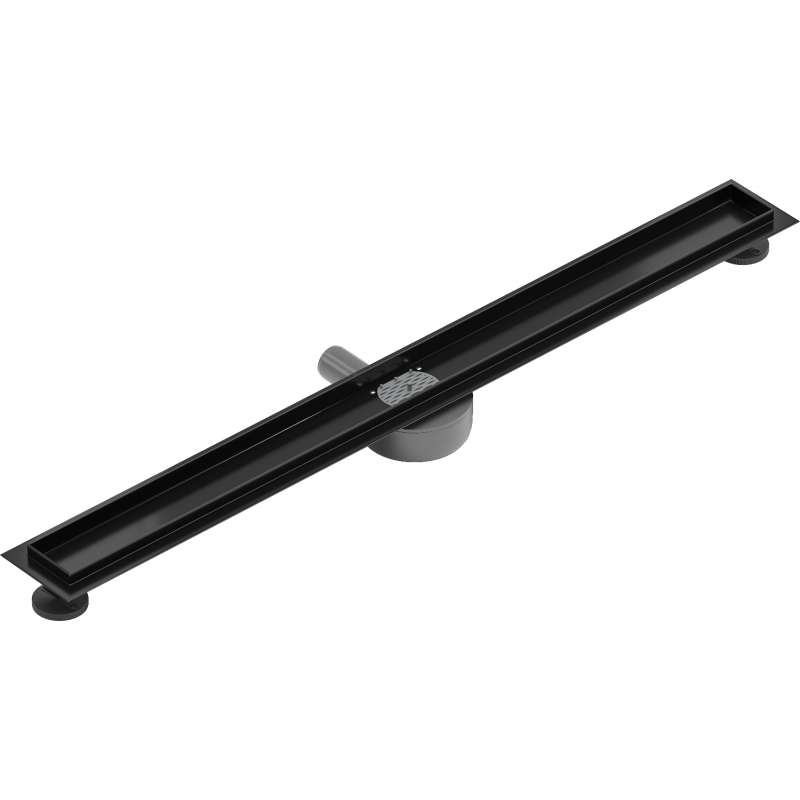

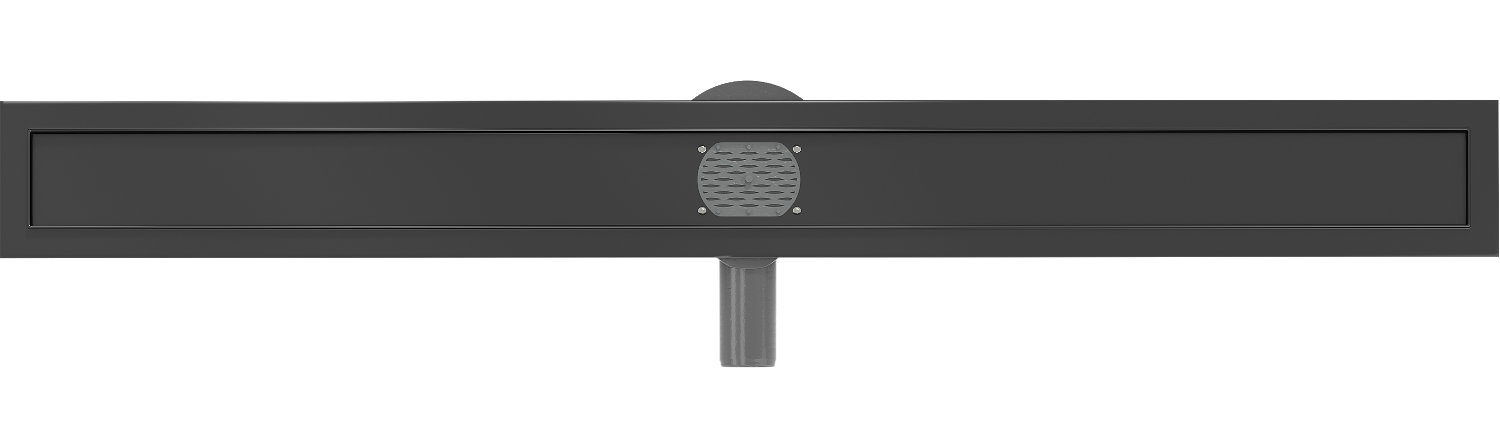

Mexen Flat 360° rotary linear drain body 90 cm, black - 1740090

Black Week EN

Black Week EN

(0)
Questions
(0)

Mexen Flat 360° rotary linear drain body 90 cm, black - 1740090

  • Mexen in Black
Mexen Flat 360° rotary linear drain body 90 cm, black - 1740090
search
  • Mexen Flat 360° rotary linear drain body 90 cm, black - 1740090
  • Mexen Flat 360° rotary linear drain body 90 cm, black - 1740090
  • Mexen Flat 360° rotary linear drain body 90 cm, black - 1740090
  • Mexen Flat 360° rotary linear drain body 90 cm, black - 1740090
Mexen Flat 360° rotary linear drain body 90 cm, black - 1740090
Mexen Flat 360° rotary linear drain body 90 cm, black - 1740090 Mexen Flat 360° rotary linear drain body 90 cm, black - 1740090 Mexen Flat 360° rotary linear drain body 90 cm, black - 1740090 Mexen Flat 360° rotary linear drain body 90 cm, black - 1740090
Stainless Steel Stainless Steel
High Capacity High Capacity
Low installation Low installation
Brand:
Mexen
Seria:
Flat 360°
Ean:
5907709156081
Index:
1740090
Colour:
Black
Size:
90 cm
Rotary Siphon:
Yes
In the set:
Body
Size - 90 cm - ()
50 cm
60 cm
70 cm
80 cm
90 cm
100 cm
Colour - Black - ()
Colour Gold
Colour Inox
Colour Black

Mexen Flat 360° rotary linear drain body 90 cm, black - 1740090

Technical specifications:

Material: Stainless steel AISI 304

Finish: Black

Width: 90 cm

Installation depth: 52 mm

Flow rate: 50 l/min

To be completed with M covers

Included:

Installation stabilizers

Adjustable feet

Removable dirt filter

Surrounding flange - 2 cm

Swivel siphon to prevent odors

Water draining gutter

50/40 mm reduction

Innovative solutions used in this product

Stainless Steel

This product is made from the highest quality AISI 304 stainless steel, known for its high resistance to corrosion and damage. It is a robust material that ensures long-lasting, reliable use.

High Capacity

A capacity of 50l/min, which means the drainage can handle up to 50 liters of water in 1 minute. This allows the user to enjoy the comfort of a shower without worrying about excessive water accumulation.

Low installation

The linear drain is mounted at a depth of only 52 mm. The shallow depth allows for easier preparation of the surface for the drain installation and easy leveling, ensuring high aesthetics and effective water drainage.

Rotary siphon

The outlet is equipped with a rotary siphon (in a 360° range). It provides greater installation flexibility, allowing easy adjustment to drainage pipes even in hard-to-reach areas. A tailored and convenient installation in any location.

Stops unpleasant odours

The drain is equipped with a trap, whose task is to discharge used water while providing effective protection against the backflow of unpleasant odours from the sewage system. Comfort of use and a high level of hygiene.

Removable dirt filter

A system that makes cleaning the siphon even easier and faster. Simply remove the top, movable part, remove the dirt, and rinse it under water. An ideal support in maintaining hygiene and cleanliness in the bathroom.

Adjustable Feet

The drain is equipped with adjustable feet, which allow for setting the appropriate height of the drain and leveling on an uneven surface. This way, the drain is even better suited to the conditions of the particular bathroom.

Resistance to Tarnishing and Corrosion

The product is made from high-quality materials resistant to tarnishing and corrosion, ensuring it retains its attractive appearance and functionality for a long time, regardless of the humidity level in the room.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Hygiene Certificate PZH

The product has a certificate issued by the National Institute of Hygiene, confirming compliance with safety standards - indicating that it in no way adversely affects human health and the natural environment. No. B.BK.60110.1719.2023 valid until 14.02.2027

Serial
Flat 360°
Size
90 cm
Colour
Black
In the set
Body
Rotary Siphon
Yes
User manual
Download
Safety Information
Download
Warranty conditions
Download
PZH Certificate
Download
