Mexen Fenix W concealed frame for wall-hung toilet - 60105
Mexen Fenix W concealed frame for wall-hung toilet - 60105 Mexen Fenix W concealed frame for wall-hung toilet - 60105
Economical Flushing Economical Flushing
Adjustable Brackets Adjustable Brackets
Adjustable legs Adjustable legs
Brand:
Mexen
Series:
Fenix W
Ean:
5905315066992
Index:
60105
Height:
111.7 cm
Button included:
No
Button Installation:
From the front
Mechanism:
Mechanical

Mexen Fenix W concealed frame for wall-hung toilet - 60105

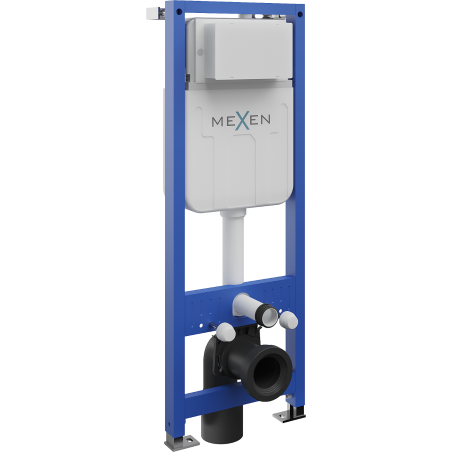

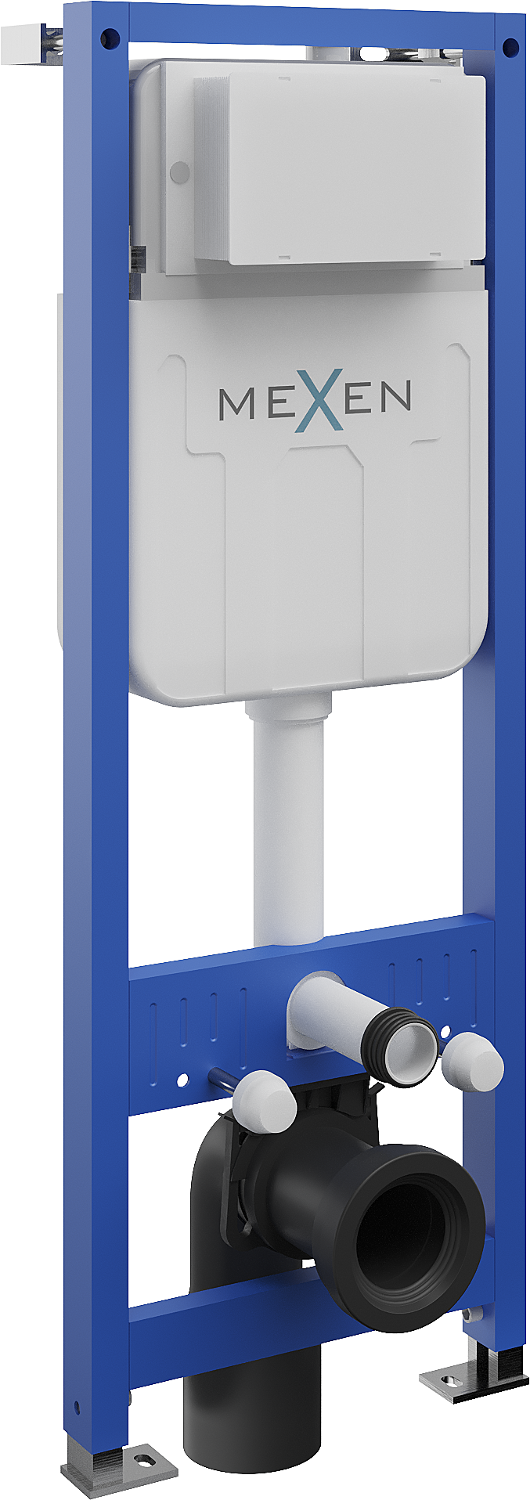

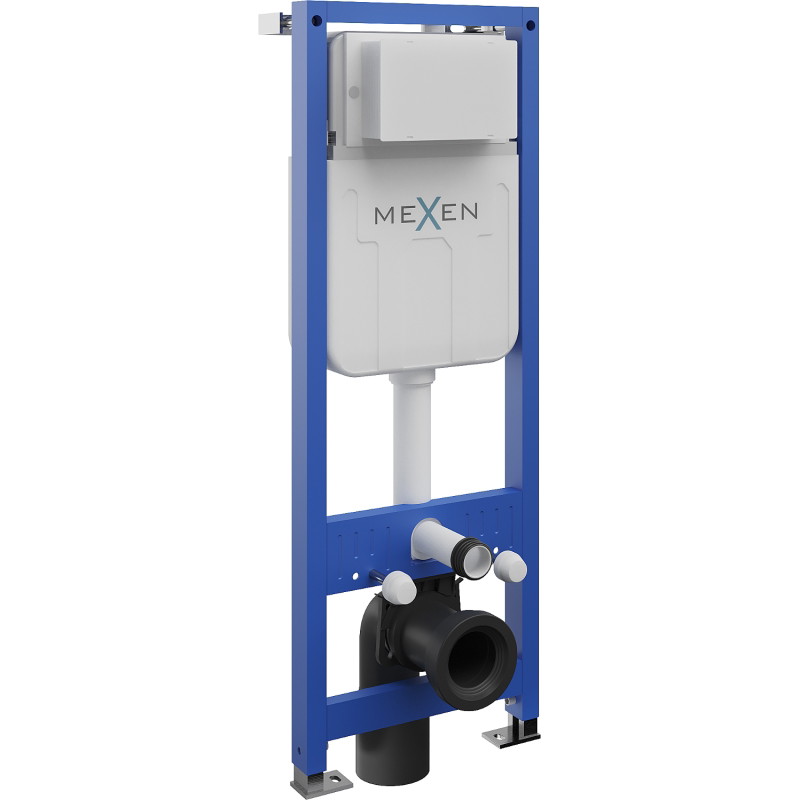

Mexen Fenix W is a solid concealed frame for a wall-hung toilet, designed for installation in a solid wall or drywall partition. Its compact dimensions of 111.7 × 38 × 19 cm make it easy to fit in any bathroom. The adjustable, galvanized legs and brackets ensure stability and convenient installation. The frame is compatible with wall-hung toilet bowls with a hole spacing of 18 or 23 cm and surfaces with a floor layer thickness of 0–22 cm. The insulated cistern prevents condensation, while the 6/4 or 4.5/3 L flush adjustment helps save water.

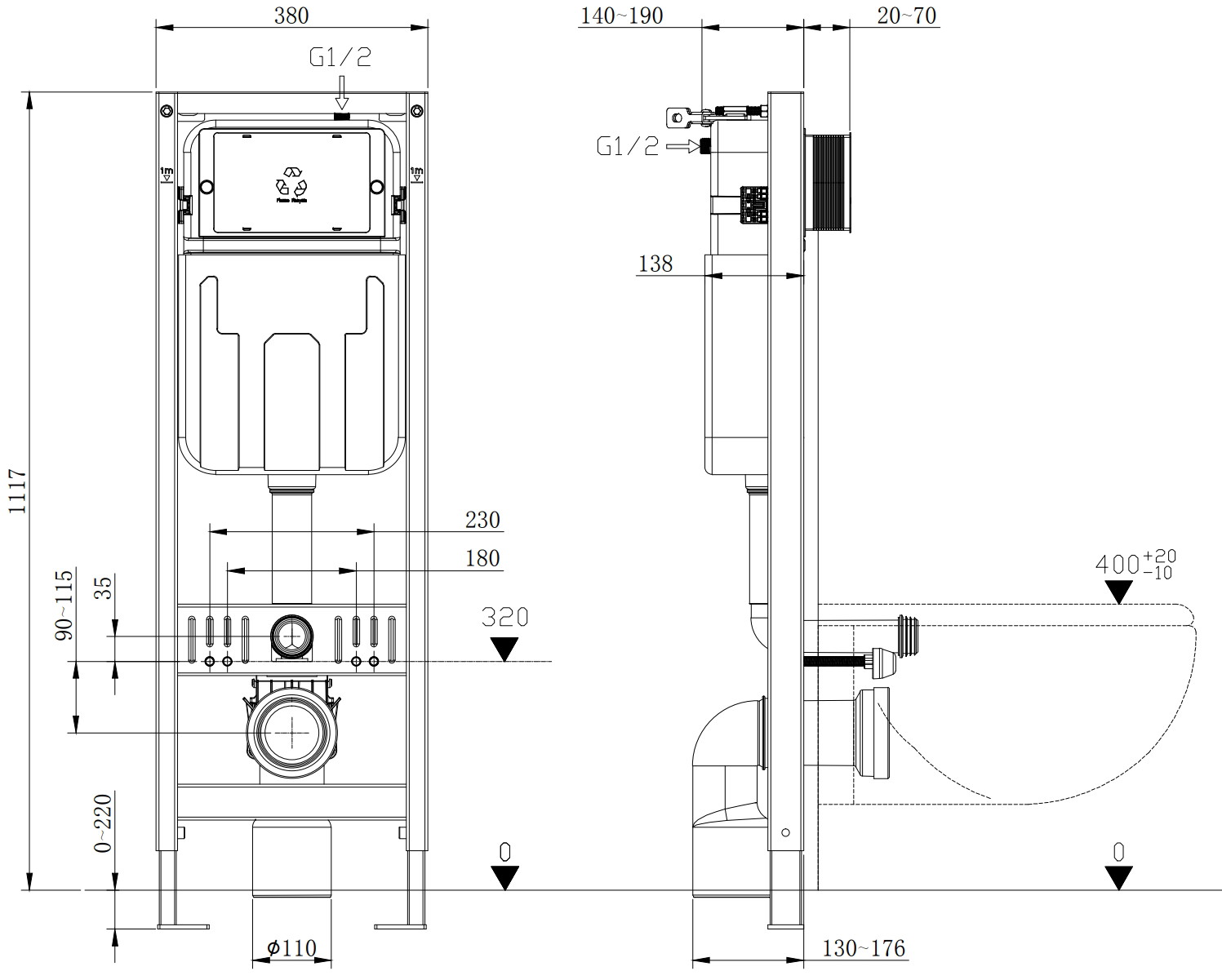

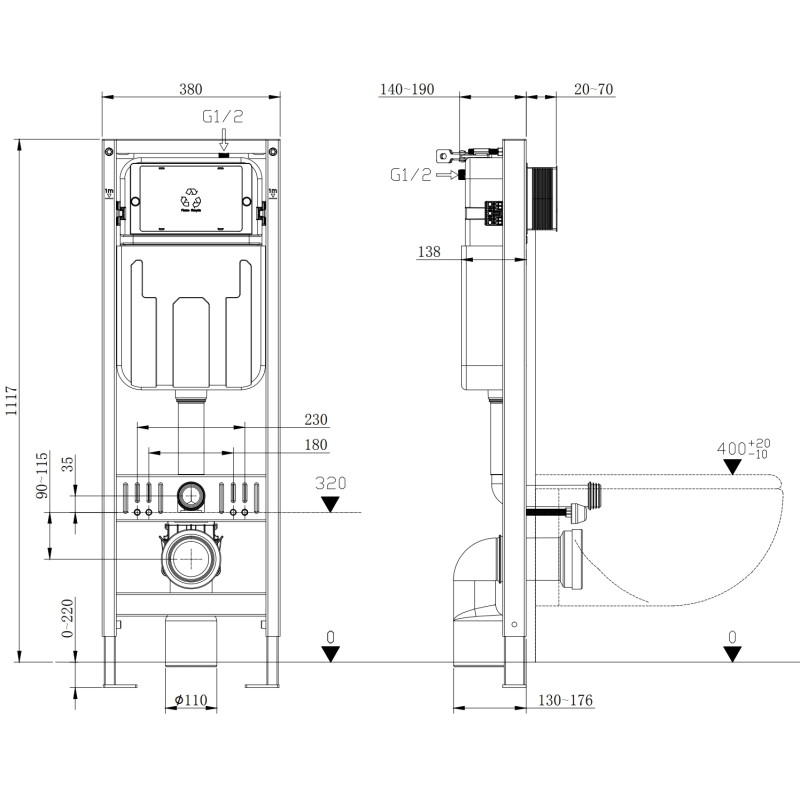

Product specifications:

Height: 111.7 cm

Width: 38 cm

Thickness: 13.9 cm

Mechanical flush

For installation in a solid wall or drywall partition

For a wall-hung toilet with a hole spacing of 18 cm or 23 cm

For installation on a surface with a floor layer thickness of 0–22 cm

Galvanized legs, adjustable from 0 to 22 cm

Galvanized brackets, adjustable from 139 to 190 mm

Cistern with anti-condensation insulation

Adjustable flush volume: 6/4 L, 4.5/3 L

Compatible with Mexen buttons from the Fenix series

Innovative solutions used in this product

Economical Flushing

Thanks to the use of a dual button, we decide whether a larger or smaller amount of water is needed for flushing at any given time. This solution is not only economical but also environmentally friendly.

Adjustable Brackets

The ability to adjust the distance from the wall using brackets allows for precise fitting of the frame to the specific dimensions of the bathroom. This feature is particularly useful in small or confined spaces.

Adjustable legs

The ability to adjust the height of the frame allows for better adaptation to different technical conditions in the bathroom. The flexible adjustment range provides convenience in installation and achieving the optimal frame height.

Adjustment of the drain elbow

The product features an adjustable drain elbow, allowing for a reduction in installation depth. This function facilitates easy adaptation of the product to various drain openings available in the bathroom, ensuring precise installation.

Anti-condensation Insulation

The tank has been secured with special anti-condensation insulation. It effectively reduces noise during filling and protects against corrosion. The insulation allows you to enjoy the performance and convenience, as well as the long durability of the tank.

Durability

The concealed frame is made of steel profiles and additionally reinforced with vertical supports. As a result, it is characterized by high durability against heavy loads, ensuring safe use for many years.

Front Button

The button is located at the front of the frame, making it easily accessible. This facilitates quick and convenient activation of the flushing function, which enhances the comfort of daily toilet use.

10 years warranty

The product is covered by a 10-year warranty. If you encounter any issues with the purchased product, we encourage you to contact us via the contact form or by phone through the helpline number.

Series
Fenix W
Width
38 cm
Height
111.7 cm
Button included
No
Mechanism
Mechanical
Button Installation
From the front
