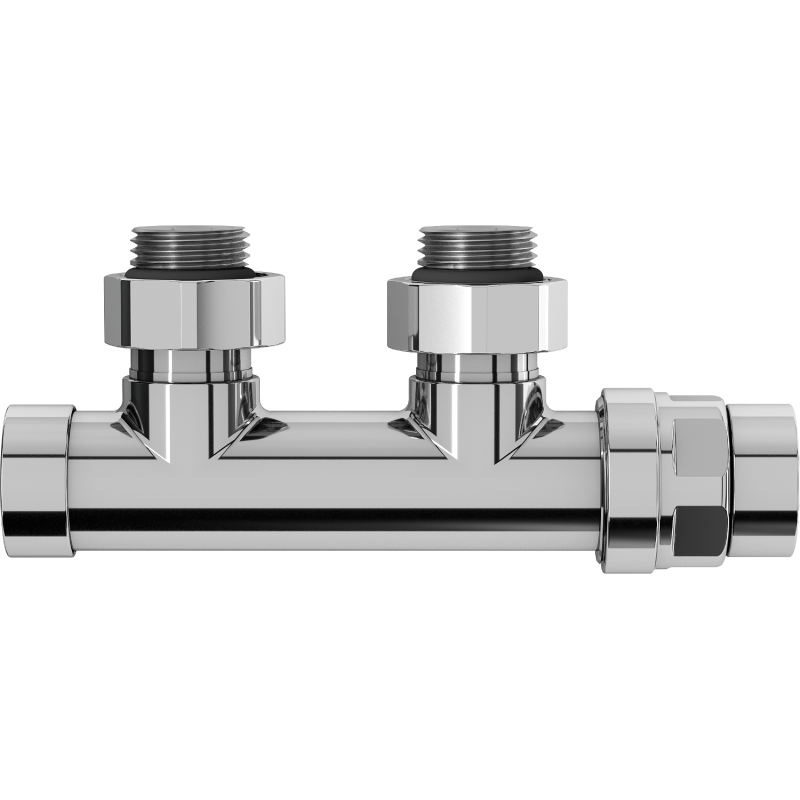

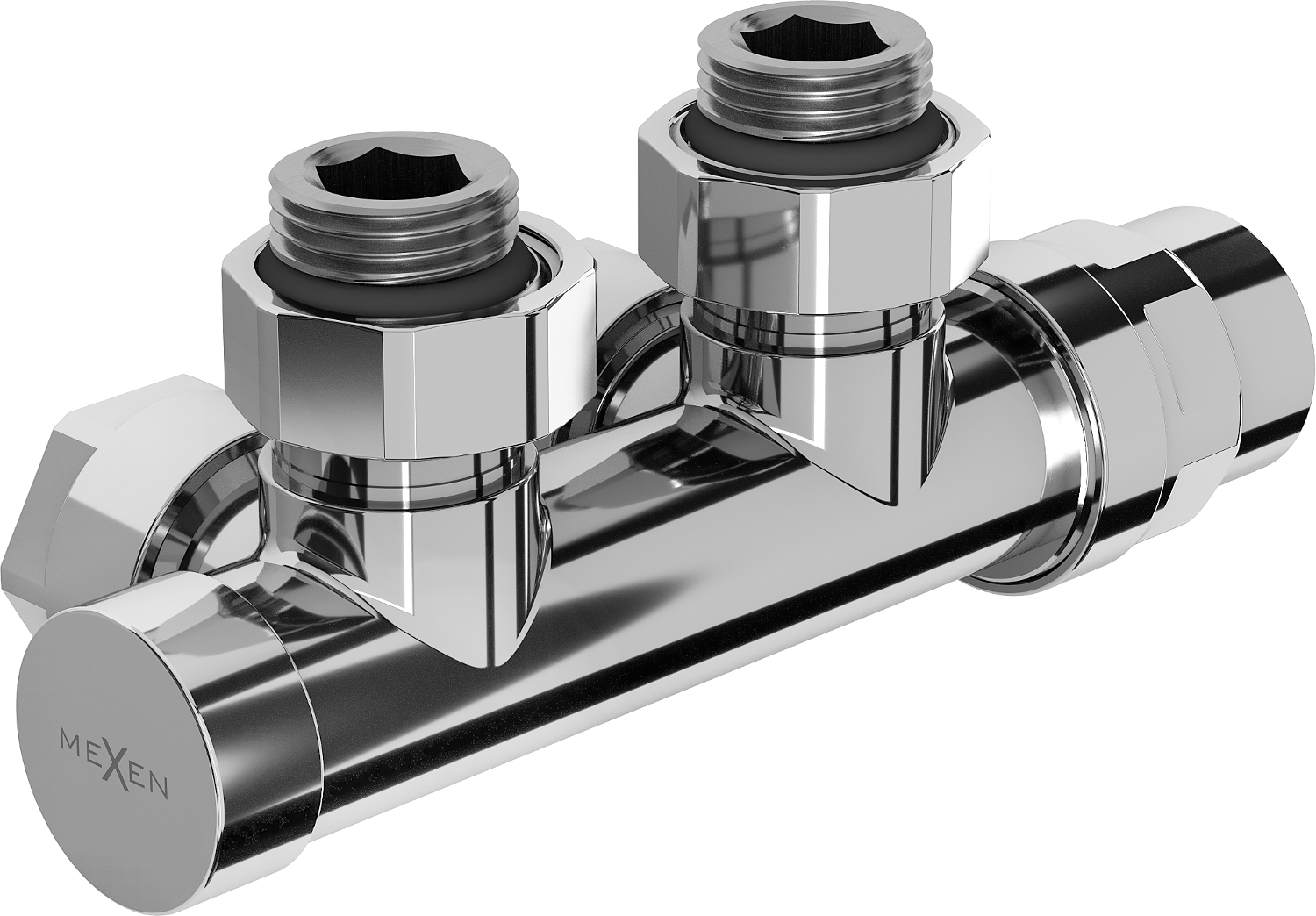

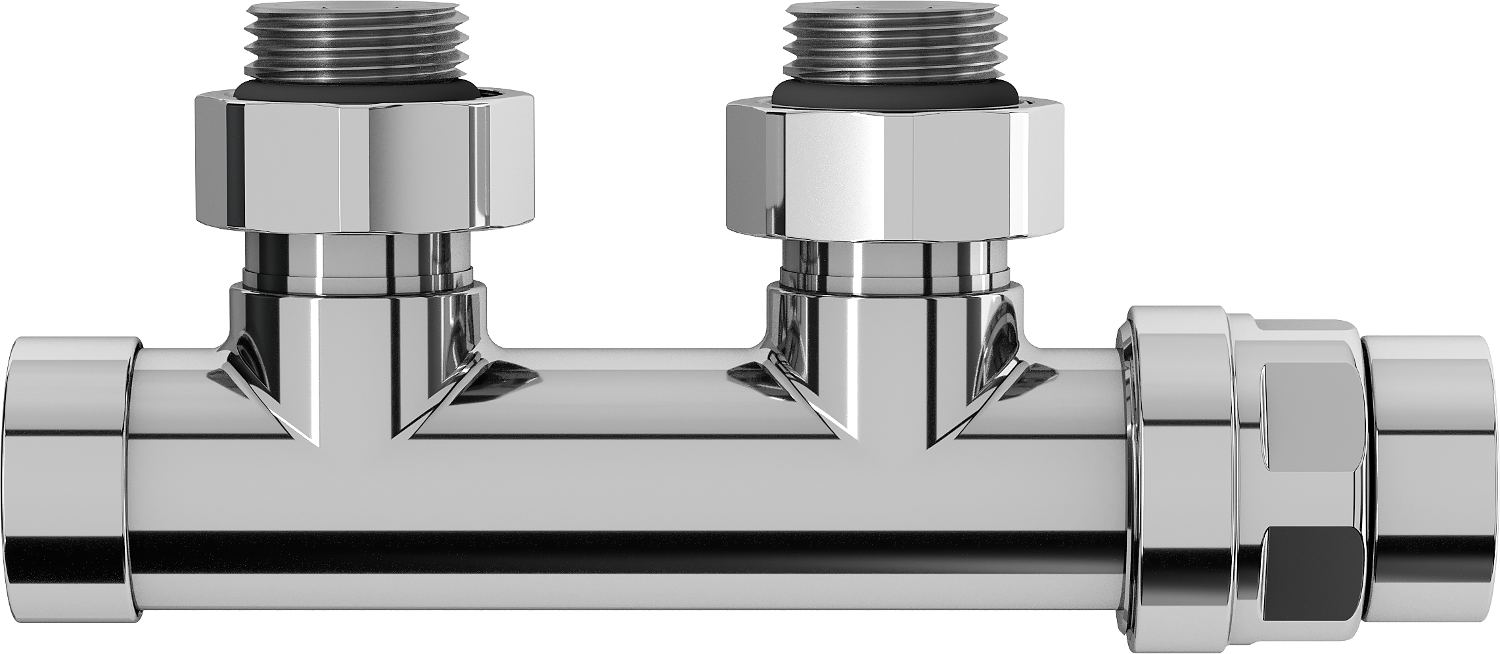

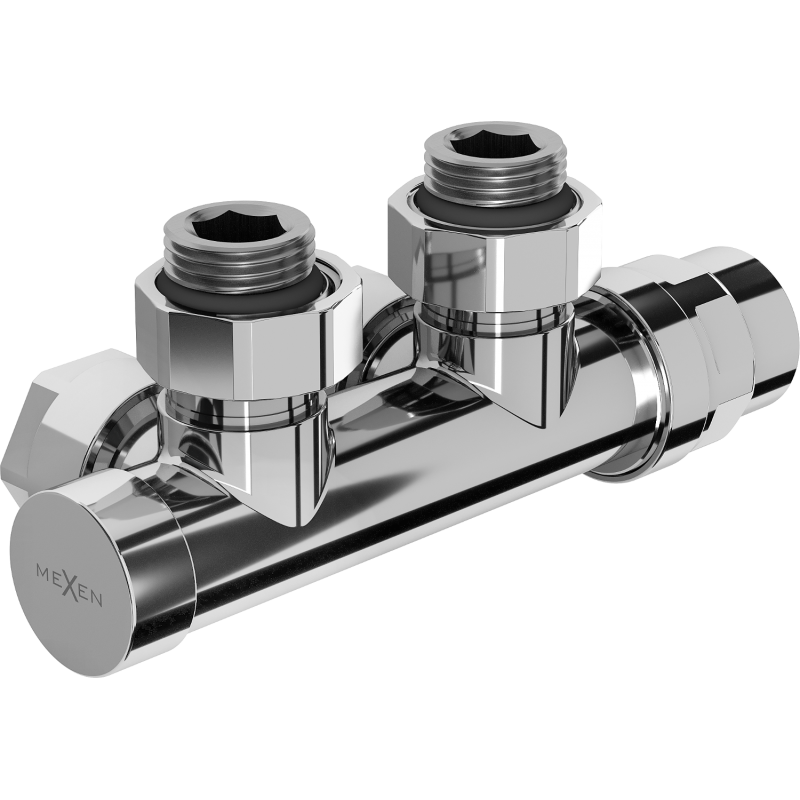

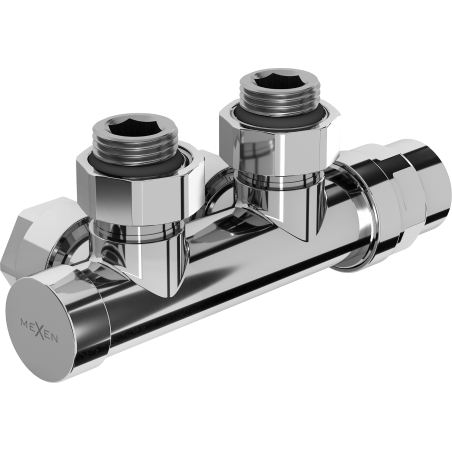

Mexen Uni-Term angle radiator valve, Duplex, DN50, chrome - W907-000-01

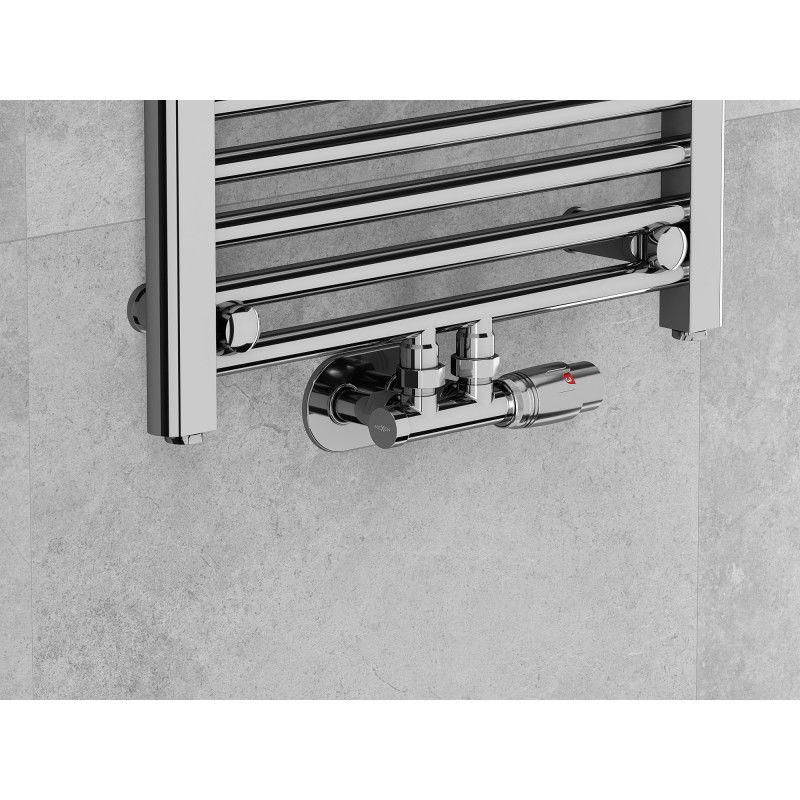

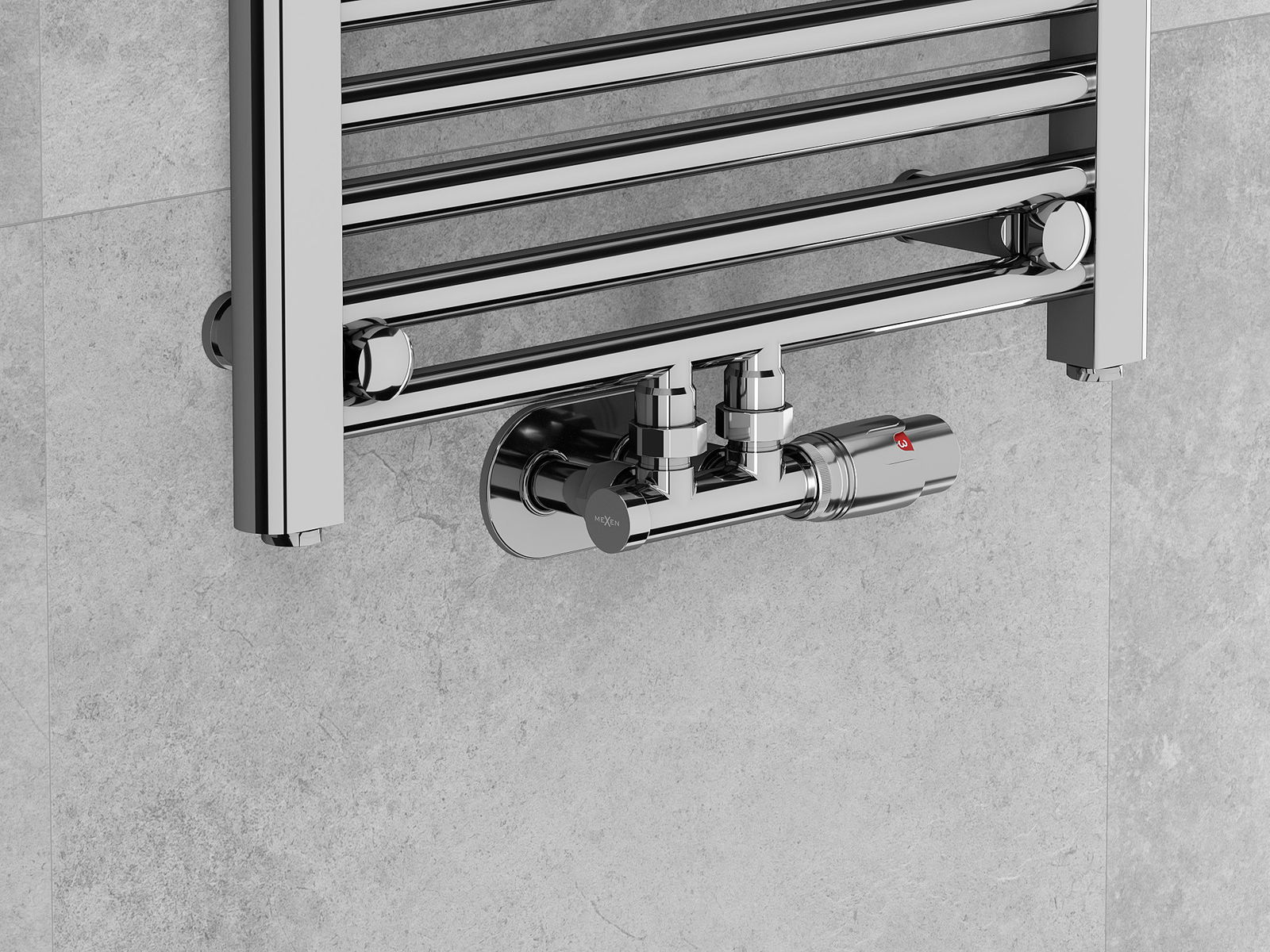

Mexen angular radiator valve Duplex DN50 chrome is an ideal solution for radiator installations. Made of brass and covered with chrome, it guarantees durability and an elegant look. It features a connection diameter of G 1/2", a thread for the head M30 x 1.5 mm, and allows operation at temperatures up to 120 °C with a maximum working pressure of 10 bar. The universal bottom connection with 50 mm spacing and the possibility of mounting the head on the left or right side increase functionality. The valve is supplied complete with connectors for multilayer pipes 16x2 mm and copper pipes 15 mm.

Technical data:

Material: Brass

Color: Chrome

Connection diameter: G 1/2"

Thread for head: M30 x 1.5 mm

Working temperature: max 120 °C

Maximum working pressure: 10 bar

Supply and shut-off radiator valve

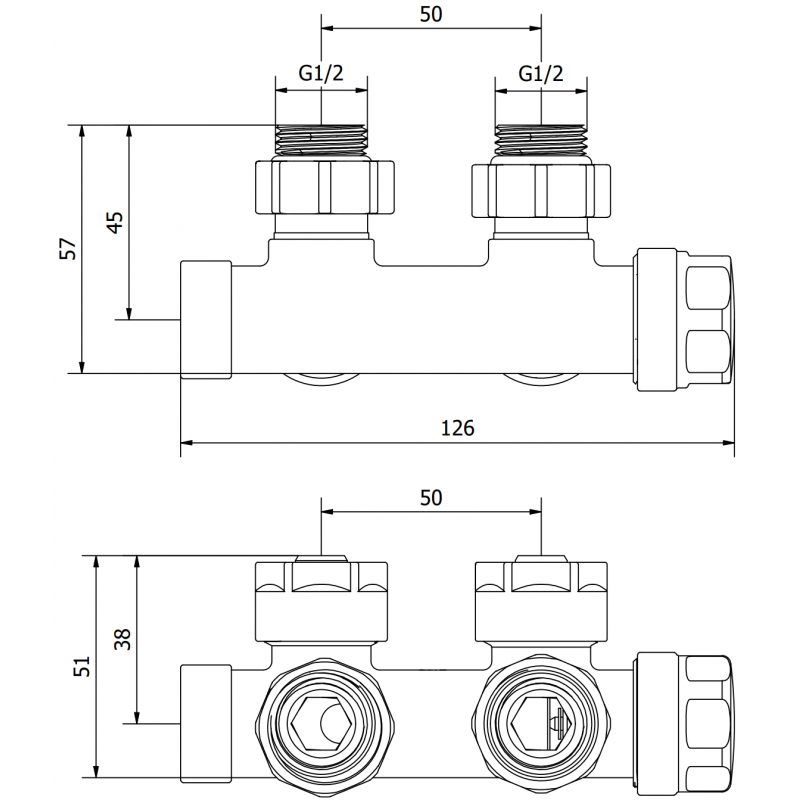

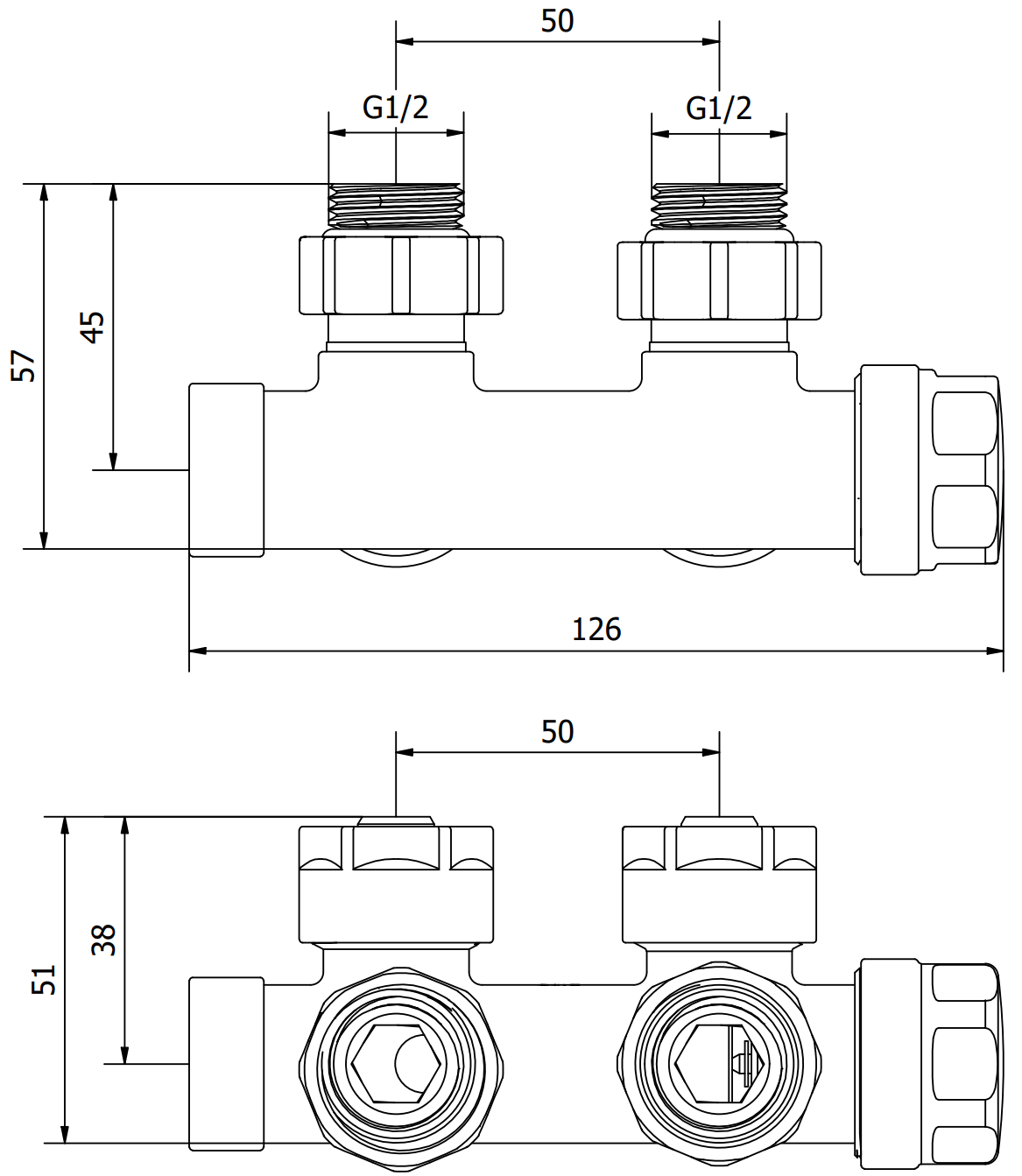

Bottom connection with 50 mm spacing

Possibility to connect the head from the left or right side

Includes connectors for multilayer pipes 16x2 mm and copper pipes 15 mm

Innovative solutions used in this product

Brass

Making the product from brass ensures its durability, resistance to corrosion, and strength, which is particularly important in environments where there is constant contact with water under pressure and fluctuating temperatures.

1 Mpa

The product is designed to operate in installations where the working pressure can be up to 1 Mpa (10 bars). This is an important parameter that ensures proper and safe operation in systems with relatively high pressure.

Standard Connection

A 1/2" threaded connection is a commonly used standard component in internal water installations. This makes connecting and installing additional installation components much easier and more intuitive.

2 years warranty

This product is covered by a 2-year warranty. If you encounter any problems with the purchased product, we encourage you to contact us via the contact form or by phone on the helpline.

Series
Uni-Term
Type
Angle
Color
Chrome
Inlet Diameter
G 1/2"
