Mexen G05 angled thermostatic set with R cover, black - W901-958-904-70
Mexen G05 angled thermostatic set with R cover, black - W901-958-904-70 Mexen G05 angled thermostatic set with R cover, black - W901-958-904-70
Brand:
Mexen
Seria:
G05
Ean:
5905315237613
Index:
W901-958-904-70
Color:
Black
Connection Diameter:
G 1/2"
Type:
Corner
Series:
G05
Color - Black - ()

Mexen G05 angled thermostatic set with R cover, black - W901-958-904-70

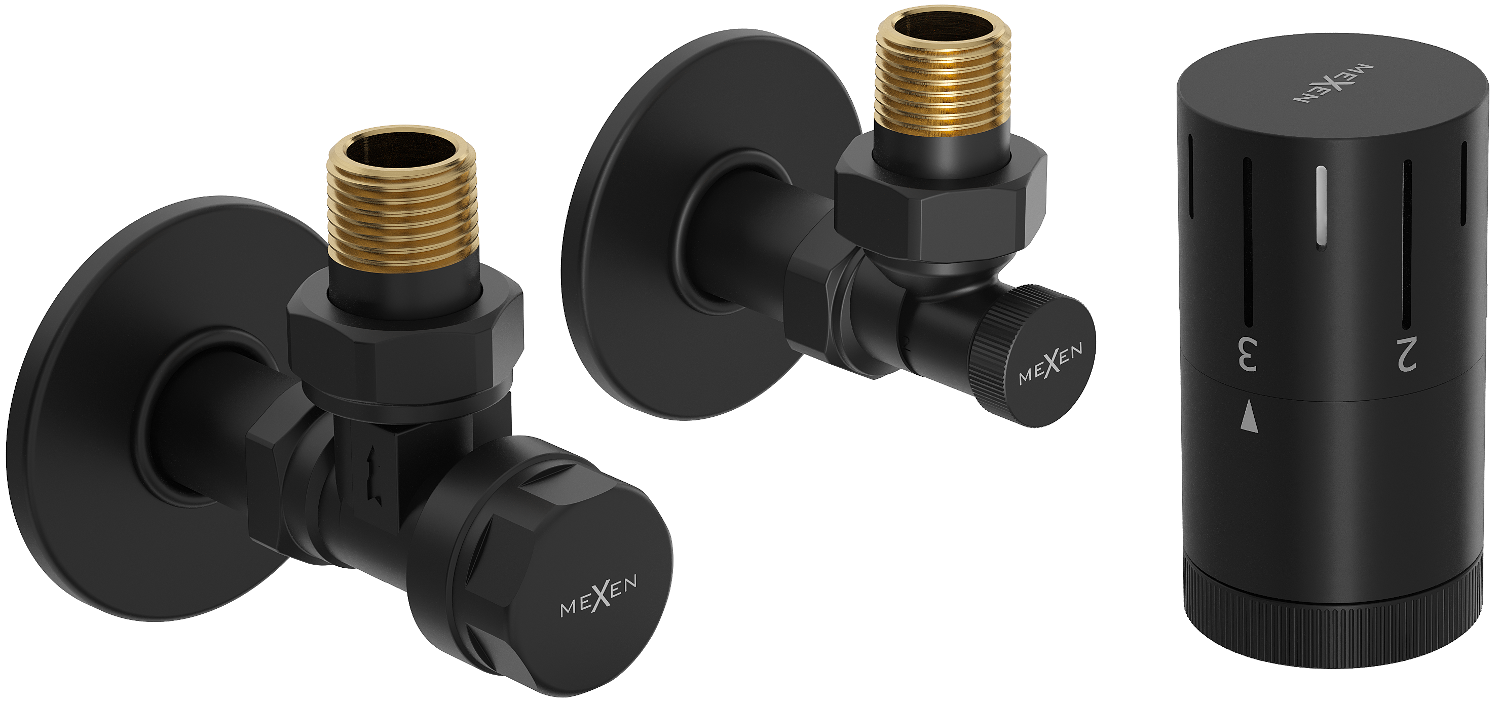

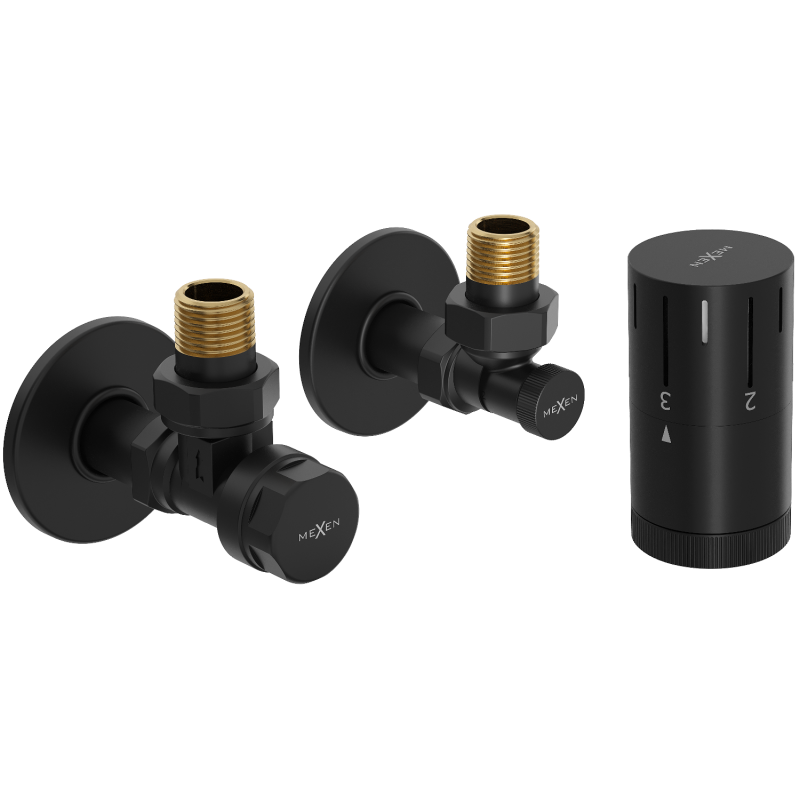

The Mexen G05 angled thermostatic set with R cover, black offers excellent temperature control with brass valves and an adjustment scale of 0-5. The anthracite color adds elegance, while steel covers ensure durability. The product supports high pressure up to 10 bar and temperatures up to 120°C. The set includes a radiator supply and shut-off valve, with the cover consisting of two rosettes and brass sleeves, ensuring an aesthetic finish.

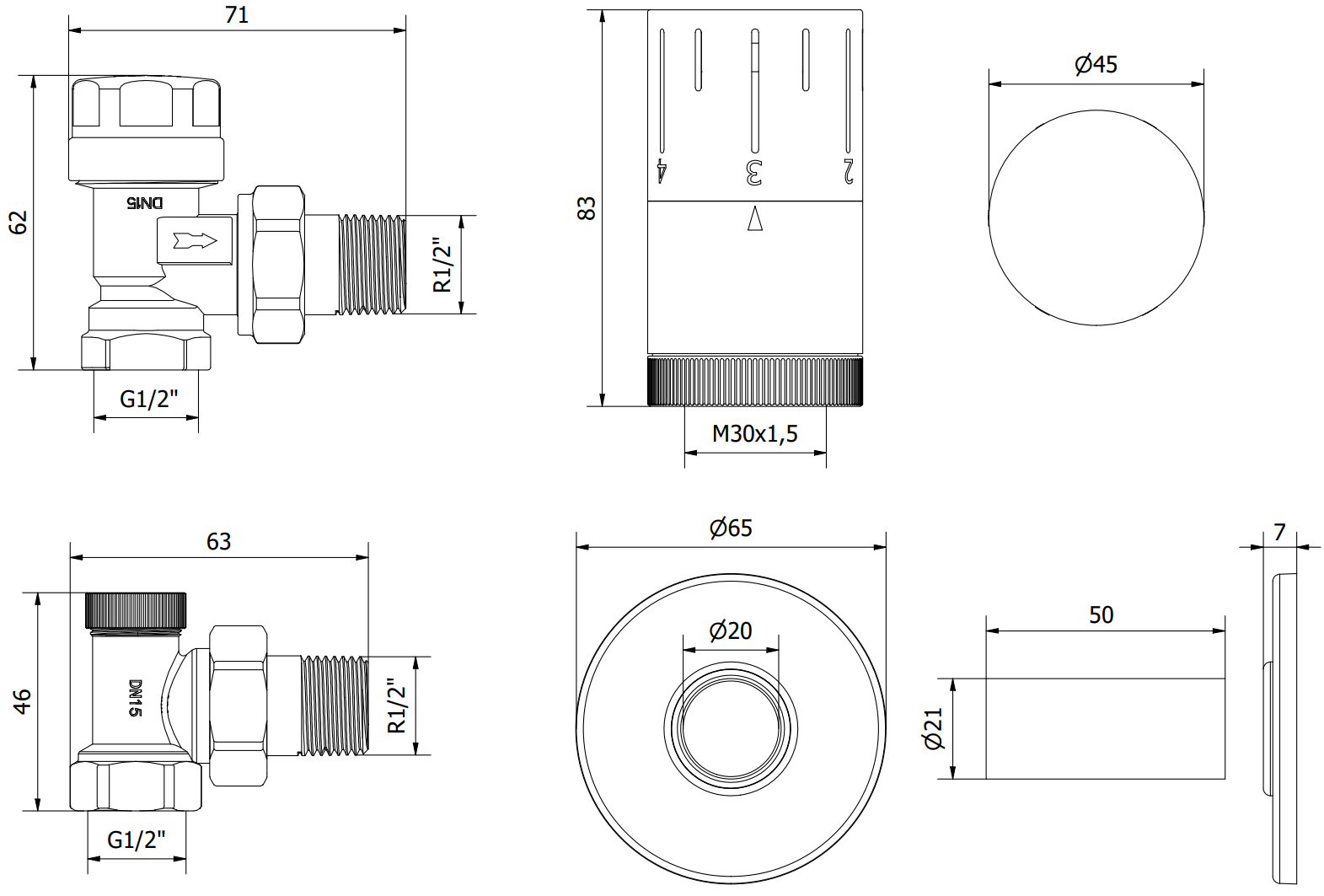

Technical data:

Valve material: Brass

Valve color: Black

Valve connection diameter: G 1/2"

Operating temperature: max 120 °C

Maximum working pressure: 10 bar

Head thread: M30 x 1.5 mm

Head color: Black

Adjustment scale: 0-5

Temperature regulation range: 0-29 °C

Ambient temperature: max 50 °C

Frost protection 5°C

Cover color: Black

Rosette material: Stainless steel

Outer diameter of rosettes: 65 mm

Rosette height: 7 mm

Inner hole diameter: 21 mm

Sleeve material: Brass

Sleeve length: 50 mm

Internal diameter of sleeves: 20 mm

The cover consists of two individual rosettes and a sleeve

The set includes a radiator supply and shut-off valve

Innovative solutions used in this product

2 years warranty

The product is covered by a 2-year warranty. In case of problems with the purchased product, we encourage you to contact us via the contact form or by phone to the hotline number.

Serial
G05
Type
Corner
Color
Black
Connection Diameter
G 1/2"
Cover
Yes
